DLC-Coated 2-Flute Solid Carbide Ball Nose End Mill for Aluminum

ALUMINUM 3D CONTOURING & FINISHING SERIES
Designed for 3D contouring, curved-surface machining and finishing of aluminum alloys.
End Profile:Ball Nose
Flûte Compte :2 Flutes
Application:3D Contouring & Curved-Surface Finishing
Dia. Range:R0.5-R10
Total Length:50-150mm
Revêtement :DLC
Application / Material
N Aluminum AlloysN Copper & BrassN Other Non-Ferrous Materials
Demander un devis Discuter sur WhatsApp
BEST FOR

3D Contouring

Curved and free-form aluminum surfaces.

Cavity Finishing

Mold cavities, fillets and recessed profiles.

2-Flute Chip Space

Efficient chip evacuation in aluminum.

DLC Low Friction

Reduced adhesion and built-up edge.

DLC Carbide Ball Nose End Mill Overview

This DLC-coated 2-flute solid carbide ball nose end mill is designed for 3D contouring, profiling and finishing in aluminum and selected non-ferrous materials. Full-radius geometry, wide chip space and a low-friction DLC surface support stable machining, while standard and custom sizes are available for repeat supply and OEM programs.


Technical Design Features

Sharp Cutting Edge & Reinforced Core

Negative-rake cutting-edge geometry combines cutting sharpness with improved edge strength for stable aluminum machining.

A large-core design increases tool rigidity, supports stable cutting and chip evacuation, and helps reduce the risk of edge chipping.

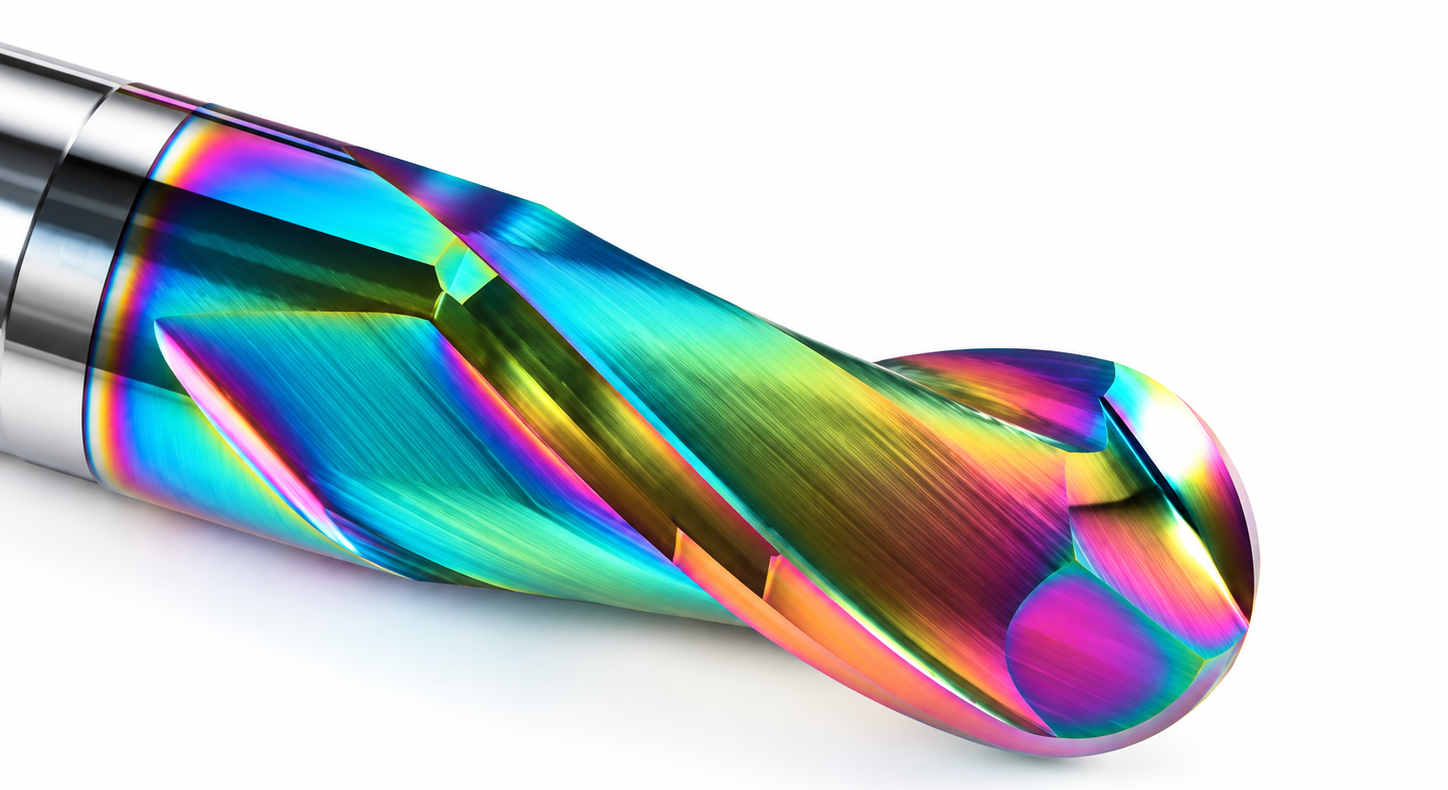

Sharp cutting edge and reinforced core of DLC-coated ball nose end mill for aluminum

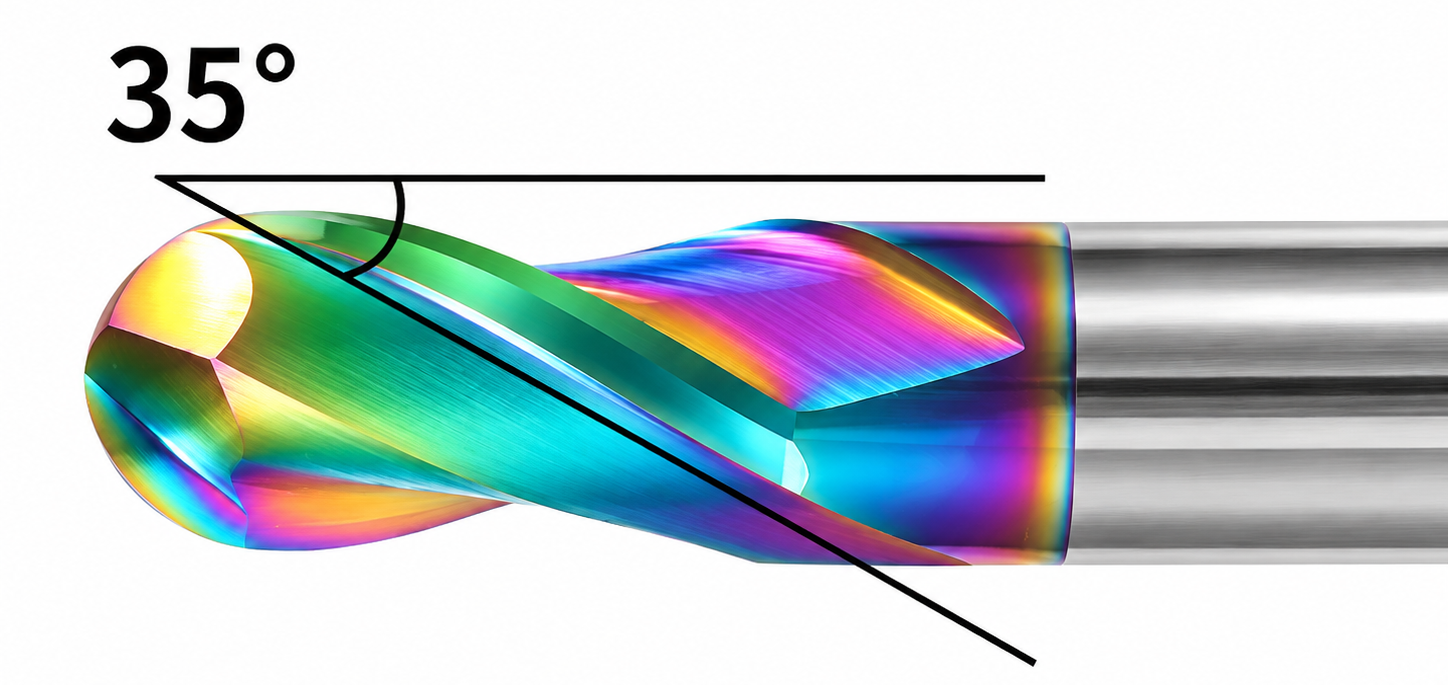

35 degree helix geometry and wide flute space for aluminum machining

35° Helix & Precision-Ground Flutes

Le 35° helix angle and precision-ground spiral flute geometry provide enlarged chip space for aluminum machining.

Smooth chip evacuation helps reduce chip adhesion and recutting while supporting higher-efficiency 3D contouring, profiling and finishing.

Multi-Layer DLC Coating Structure

A 5-layer coating structure improves surface hardness, wear resistance and thermal performance during continuous machining.

The low-friction DLC surface helps reduce aluminum adhesion, built-up edge and tool wear, supporting stable high-efficiency non-ferrous machining.

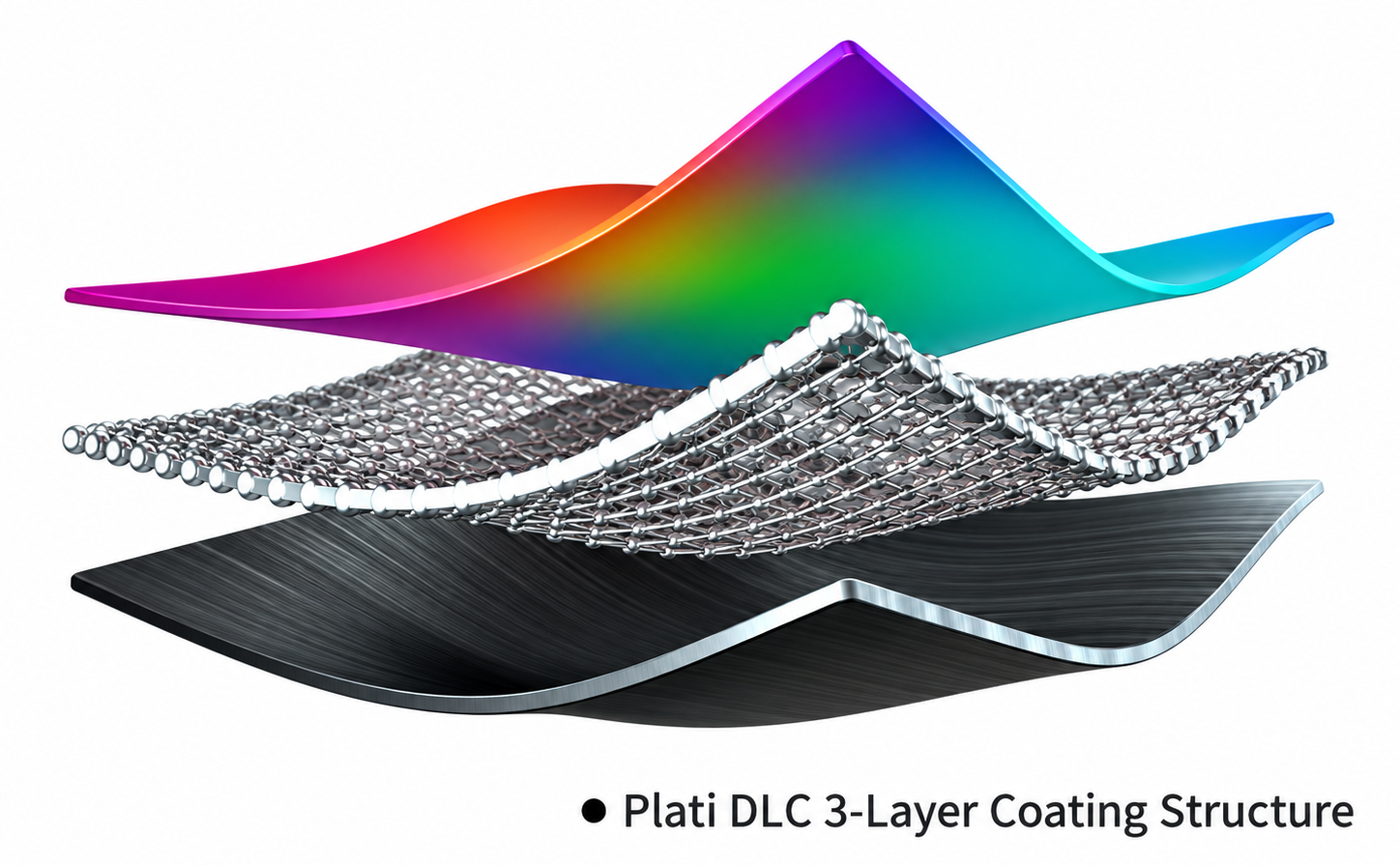

Multi-layer DLC coating structure for aluminum ball nose end mill

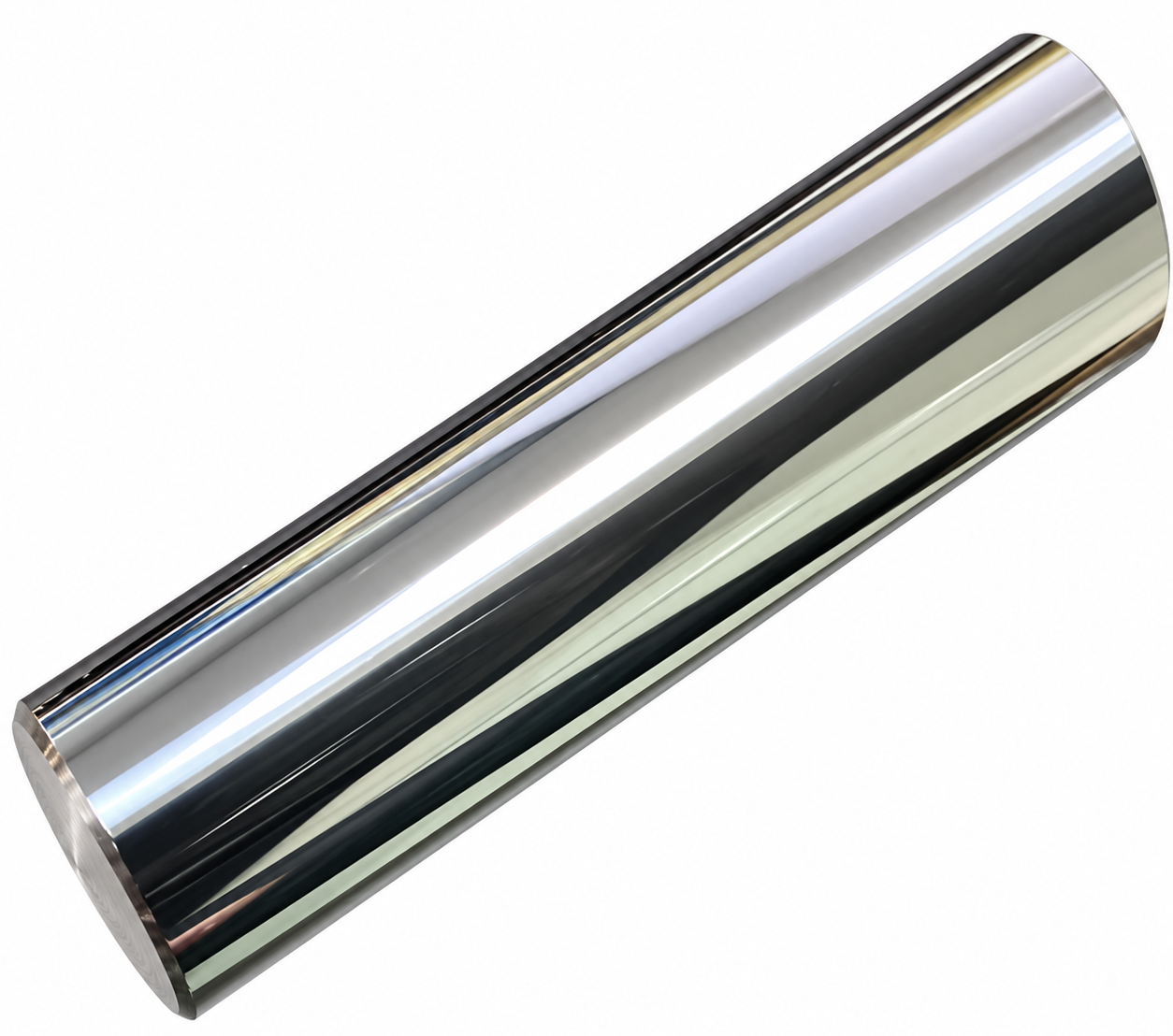

Precision-ground solid carbide shank for aluminum end mill

Precision-Ground Shank

The precision-ground straight shank is controlled to a 0 / -0.005 mm diameter tolerance for stable clamping and repeatable tool positioning.

Tight shank control helps reduce vibration and chatter, supporting stable cutting and consistent machining performance.

Material CompatibilityDLC-Coated Aluminum End Mills – 3-Flute Solid Carbide application materials

Alliages d'aluminium Primary Application
Copper & Brass Application Review
Other Non-Ferrous Confirm Material

Product Details & Machining

Ball nose geometry, DLC-coated cutting edge and aluminum machining reference.

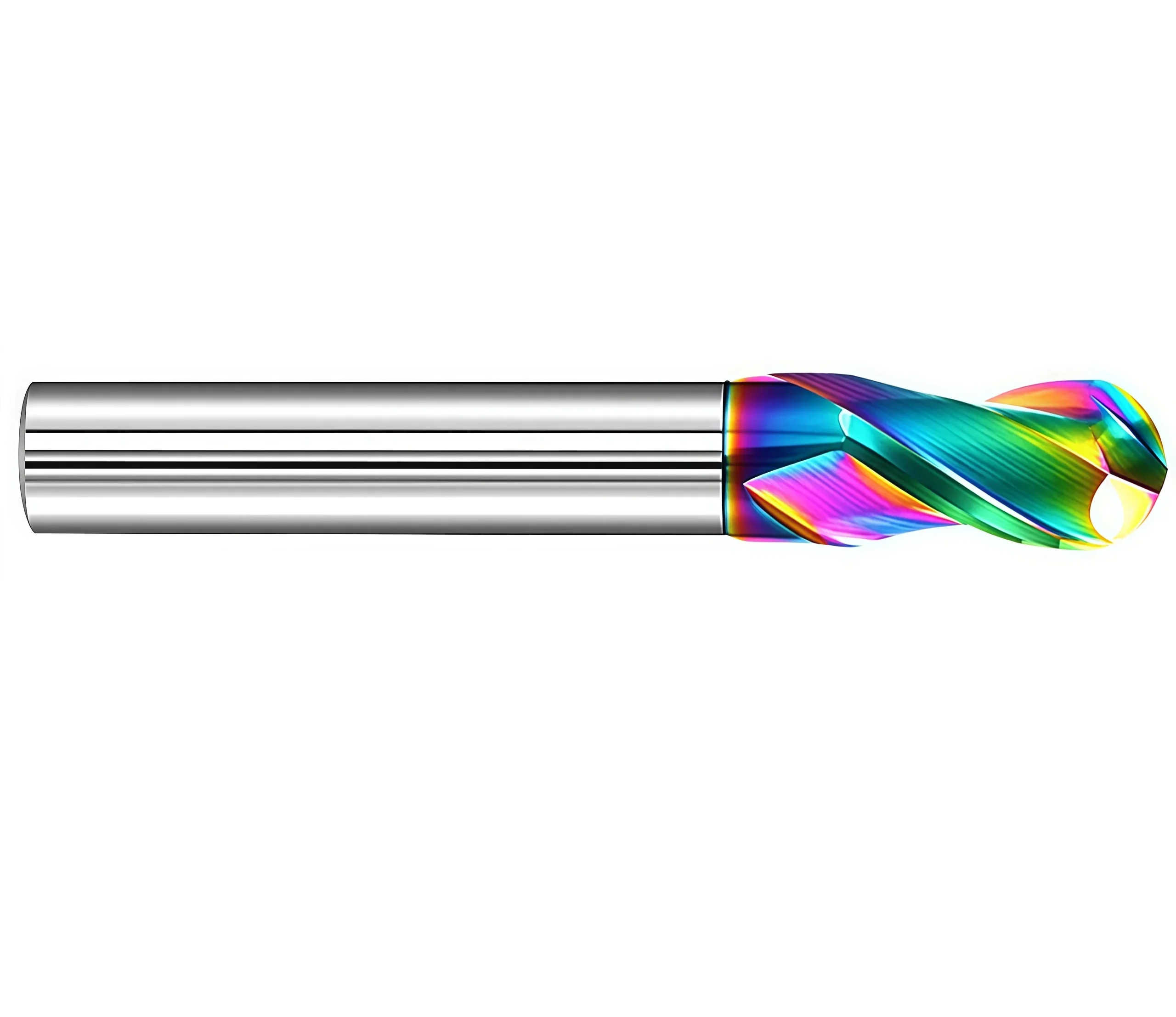

DLC-coated 2-flute solid carbide ball nose end mill for aluminum

DLC-Coated Ball Nose End Mill

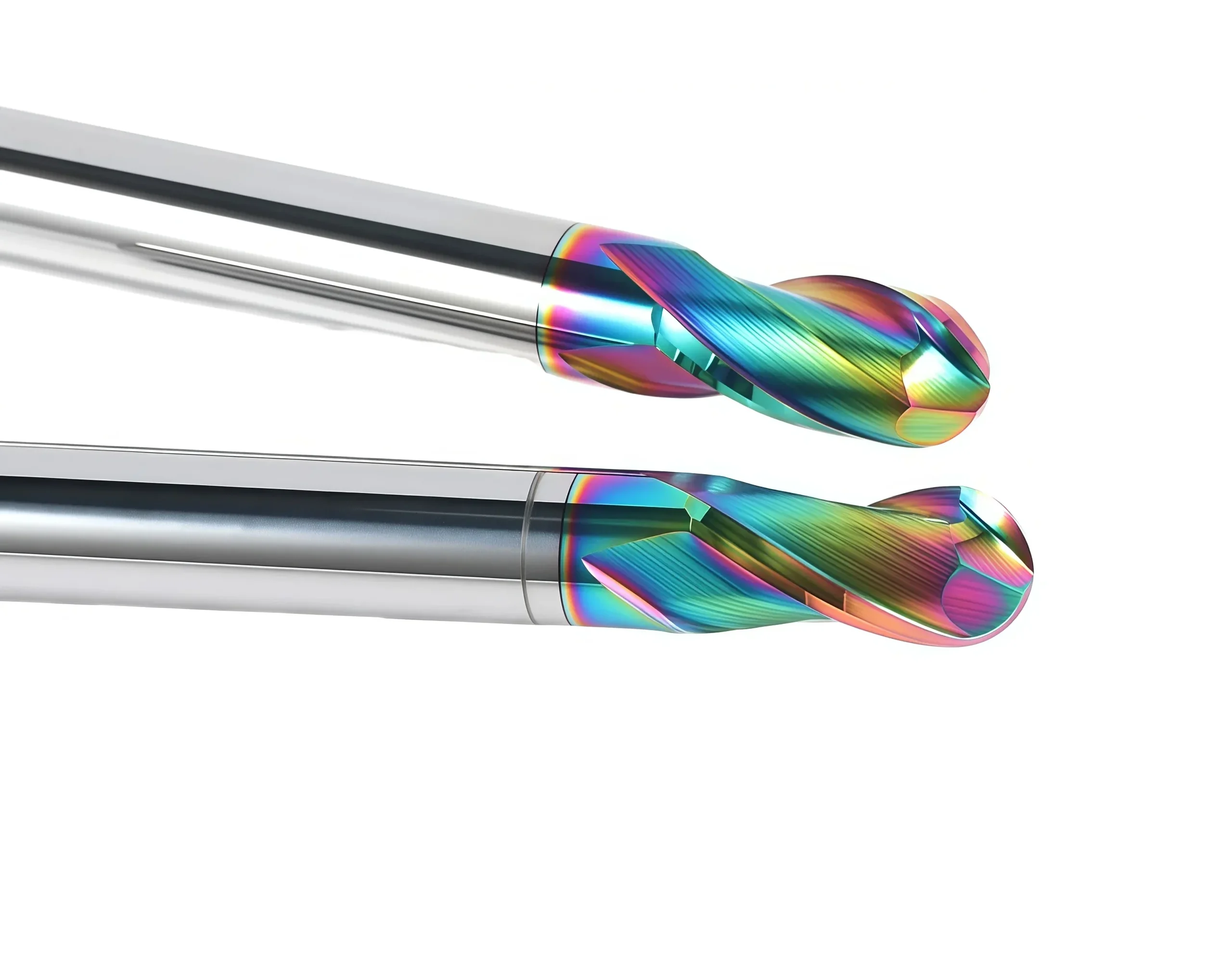

Two-flute ball nose cutting edge and DLC coating detail

2-Flute Geometry & DLC Cutting Edge

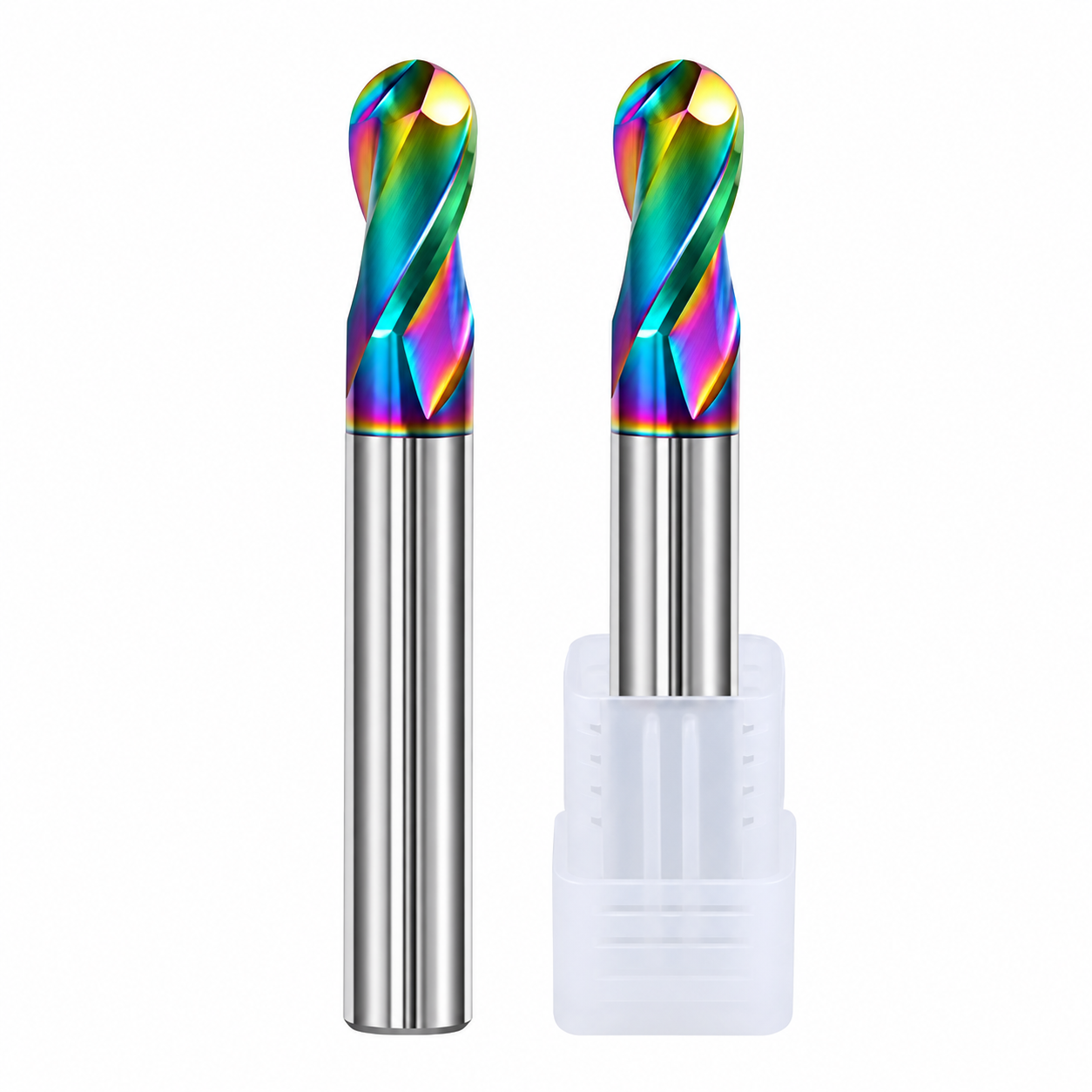

DLC carbide ball nose end mill for aluminum 3D finishing

Aluminum 3D Contouring & Finishing

DLC-coated carbide end mill batch display

DLC End Mill for Aluminum Machining

Ball Nose End Mill Dimensions

DLC-coated 2-flute ball nose end mill dimensions. All sizes in millimeters.

DLC-coated 2-flute solid carbide ball nose end mill dimension reference
R: Ball Radius DC / D: Cutting Diameter APMX / L1: Longueur de la cannelure DCON / d: Diamètre de la tige OAL / L: Longueur totale

Configuration technique

TECHNICAL ITEM CARACTÉRISTIQUES TECHNIQUES
Type d'outil Solid Carbide Ball Nose End Mill
End Profile Ball Nose / Full Radius
Flûtes 2 Flutes
Substrate Sub-Micron Solid Carbide
Revêtement DLC
Angle de l'hélice 35°–40°
Shank Tolerance h6
Matériaux Aluminum Alloys / Selected Non-Ferrous
Applications 3D Contouring / Curved Surfaces / Cavity Finishing / Profiling
Cutting Direction Right-Hand
Chip Control Air Blast / Oil Mist / External Coolant

Dimensions standard

Ball Radius: R0.5–R10 Cutting Diameter: Ø1–Ø20 mm Flûtes : 2 OAL: Up to 150 mm Custom: Drawing-Based Sizes

Scroll to review the full size range.

CARACTÉRISTIQUES TECHNIQUES R DC / D APMX / L1 DCON / d OAL / L FLUTES
R0.5×2×D4×50L 0.5 1 2 4 50 2
R0.75×3×D4×50L 0.75 1.5 3 4 50 2
R1×4×D4×50L 1 2 4 4 50 2
R1.25×5×D4×50L 1.25 2.5 5 4 50 2
R1.5×6×D3×50L 1.5 3 6 3 50 2
R1.5×6×D3×75L 1.5 3 6 3 75 2
R1.5×6×D3×100L 1.5 3 6 3 100 2
R1.5×6×D4×50L 1.5 3 6 4 50 2
R1.5×6×D6×50L 1.5 3 6 6 50 2
R1.75×7×D4×50L 1.75 3.5 7 4 50 2
R2×8×D4×50L 2 4 8 4 50 2
R2×8×D4×75L 2 4 8 4 75 2
R2×8×D4×100L 2 4 8 4 100 2
R2.5×10×D5×50L 2.5 5 10 5 50 2
R2.5×10×D5×75L 2.5 5 10 5 75 2
R2.5×10×D5×100L 2.5 5 10 5 100 2
R2.5×10×D6×50L 2.5 5 10 6 50 2
R3×12×D6×50L 3 6 12 6 50 2
R3×12×D6×75L 3 6 12 6 75 2
R3×12×D6×100L 3 6 12 6 100 2
R3×12×D6×150L 3 6 12 6 150 2
R3.5×14×D8×60L 3.5 7 14 8 60 2
R4×16×D8×60L 4 8 16 8 60 2
R4×16×D8×75L 4 8 16 8 75 2
R4×16×D8×100L 4 8 16 8 100 2
R4×16×D8×150L 4 8 16 8 150 2
R4.5×18×D10×75L 4.5 9 18 10 75 2
R5×20×D10×75L 5 10 20 10 75 2
R5×20×D10×100L 5 10 20 10 100 2
R5×20×D10×150L 5 10 20 10 150 2
R5.5×22×D12×75L 5.5 11 22 12 75 2
R6×24×D12×75L 6 12 24 12 75 2
R6×24×D12×100L 6 12 24 12 100 2
R6×24×D12×150L 6 12 24 12 150 2
R6.5×26×D14×100L 6.5 13 26 14 100 2
R7×28×D14×80L 7 14 28 14 80 2
R7×28×D14×100L 7 14 28 14 100 2
R7×28×D14×150L 7 14 28 14 150 2
R8×32×D16×100L 8 16 32 16 100 2
R8×32×D16×150L 8 16 32 16 150 2
R9×36×D18×100L 9 18 36 18 100 2
R9×36×D18×150L 9 18 36 18 150 2
R10×40×D20×100L 10 20 40 20 100 2
R10×40×D20×150L 10 20 40 20 150 2

How to Select & Apply

  • Ball Radius: Match surface curvature and finish.
  • Step-Over: Reduce for finer 3D finishing.
  • Tool Reach: Minimize overhang.
  • Chip Evacuation: Air blast, oil mist or suitable coolant.

Ball Nose End Mill Customization

Custom dimensions, geometry and DLC options for aluminum ball nose end mills.

CUSTOM ITEM OPTIONS
Ball Radius / Diameter R0.5–R10 / Drawing-Based
Longueur de la cannelure Standard / Custom
Neck / Reach Straight / Relieved / Long Reach
Longueur totale Standard / Extended
Diamètre de la tige Standard / Custom
Edge Geometry Aluminum Geometry
Revêtement DLC / Application Review
Tolérance Drawing-Defined

Fabrication pour compte de tiers (OEM) et marques de distributeur

Laser Marking Product Code Custom Label Private-Label Packaging Repeat Supply
OEM laser marking labels and private-label packaging for ball nose end mills

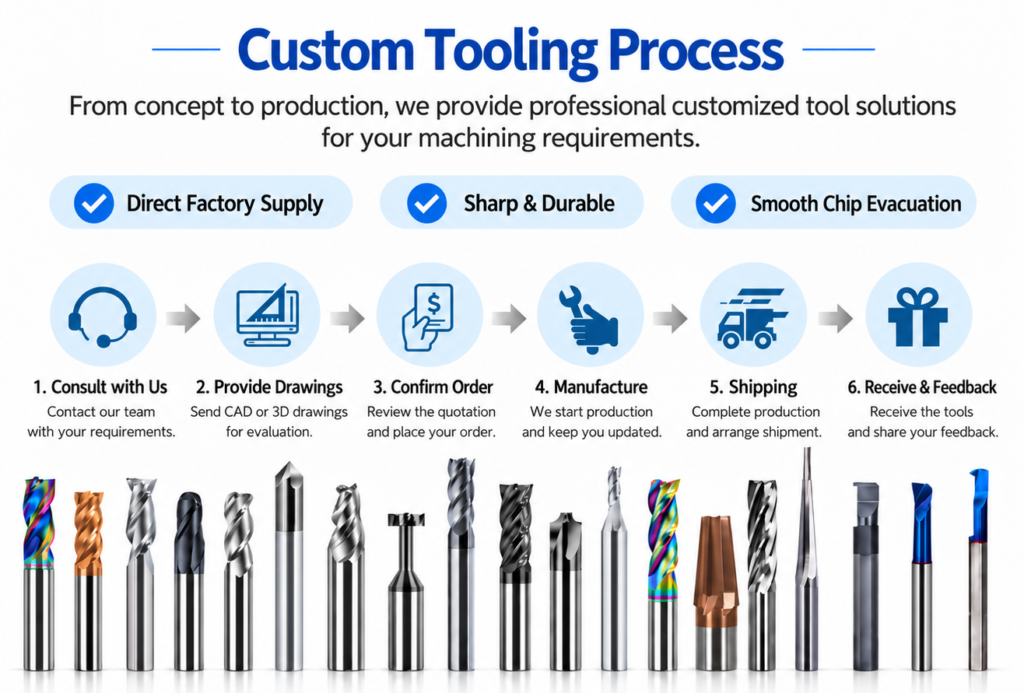

Custom Order Workflow

STEP 01

Requirement Review

Material · Dimensions · Application · Quantity

STEP 02

Sample Approval

Sample · Drawing · Specification

STEP 03

Production

Grinding · DLC · Marking · Inspection

STEP 04

Repeat Supply

Approved Specification · Repeat Orders

Contrôle qualité

HY Cutting Tools manufacturing and quality assurance

Material verification · Precision grinding · Final inspection

ÉTAPE 01

Material Verification

Carbide Grade · Blank Size

ÉTAPE 02

Precision Grinding

Ball Profile · Flute Geometry · Shank

ÉTAPE 03

Final Inspection

Dimensions · Runout · Cutting Edge · DLC

Key Inspection Items

  • Ball Radius
  • Cutting Diameter
  • Longueur de la cannelure
  • Diamètre de la tige
  • Runout
  • Ball Profile
  • Cutting Edge
  • DLC Coating

Repeat-Order Control

Approved specs for repeat orders.

  • Dimensions
  • Ball Profile
  • Géométrie
  • DLC Coating
  • Laser Marking
  • Packaging

Packaging & Delivery

  • Protective Tubes
  • Bulk Cartons
  • Export Packing
  • Courier
  • Air Freight
  • Sea Freight

FAQ

DLC ball nose end mill selection, sizing, customization and ordering.

What materials is this end mill designed for?
Primarily aluminum alloys and selected non-ferrous materials.
What applications is the ball nose profile best for?
3D contouring, curved surfaces, cavity finishing and profiling.
Why use 2 flutes for aluminum?
Wide chip space supports chip evacuation and reduces recutting.
What is the benefit of DLC coating?
Low friction, reduced aluminum adhesion and improved wear resistance.
What standard sizes are available?
R0.5–R10, Ø1–Ø20 mm, with multiple listed flute and overall lengths.
Can custom dimensions be manufactured?
Yes. Radius, diameter, flute length, reach, shank and overall length can be reviewed by drawing.
Proposez-vous le marquage OEM et le conditionnement sous marque de distributeur ?
Laser marking, product codes, custom labels and private-label packaging are available by order requirement.
Can sample or mixed-size orders be arranged?
Sample, mixed-size and repeat orders can be reviewed according to size, quantity and production requirements.
