DLC-Coated 2-Flute Solid Carbide Ball Nose End Mill for Aluminum

ALUMINUM 3D CONTOURING & FINISHING SERIES
Designed for 3D contouring, curved-surface machining and finishing of aluminum alloys.
End Profile:Ball Nose
Flûte Compte :2 Flutes
Application:3D Contouring & Curved-Surface Finishing
Dia. Range:R0.5-R10
Total Length:50-150mm
Revêtement :DLC
Application / Material
N Aluminum AlloysN Copper & BrassN Other Non-Ferrous Materials
Demander un devis Discuter sur WhatsApp
BEST FOR

3D Contouring

Curved and free-form aluminum surfaces.

Cavity Finishing

Mold cavities, fillets and recessed profiles.

2-Flute Chip Space

Efficient chip evacuation in aluminum.

DLC Low Friction

Reduced adhesion and built-up edge.

DLC Carbide Ball Nose End Mill Overview

This DLC-coated 2-flute solid carbide ball nose end mill is designed for 3D contouring, profiling and finishing in aluminum and selected non-ferrous materials. Full-radius geometry, wide chip space and a low-friction DLC surface support stable machining, while standard and custom sizes are available for repeat supply and OEM programs.

Technical Design Features

Sharp Cutting Edge & Reinforced Core

Negative-rake cutting-edge geometry combines cutting sharpness with improved edge strength for stable aluminum machining.

A large-core design increases tool rigidity, supports stable cutting and chip evacuation, and helps reduce the risk of edge chipping.

Sharp cutting edge and reinforced core of DLC-coated ball nose end mill for aluminum

35 degree helix geometry and wide flute space for aluminum machining

35° Helix & Precision-Ground Flutes

Le 35° helix angle and precision-ground spiral flute geometry provide enlarged chip space for aluminum machining.

Smooth chip evacuation helps reduce chip adhesion and recutting while supporting higher-efficiency 3D contouring, profiling and finishing.

Multi-Layer DLC Coating Structure

A 5-layer coating structure improves surface hardness, wear resistance and thermal performance during continuous machining.

The low-friction DLC surface helps reduce aluminum adhesion, built-up edge and tool wear, supporting stable high-efficiency non-ferrous machining.

Multi-layer DLC coating structure for aluminum ball nose end mill

Precision-ground solid carbide shank for aluminum end mill

Precision-Ground Shank

The precision-ground straight shank is controlled to a 0 / -0.005 mm diameter tolerance for stable clamping and repeatable tool positioning.

Tight shank control helps reduce vibration and chatter, supporting stable cutting and consistent machining performance.

Materials & Applications

DLC-coated aluminum end mill application materials

Material Group Typical Grades / Materials Typical Applications
Alliages d'aluminium 5052 · 6061 · 7075 3D Contouring · Cavity Finishing · Profile Milling · Surface Finishing
Cast Aluminum Aluminum Castings Pocket Machining · Semi-Finishing · Finishing
Other Non-Ferrous Brass · Zinc · Acrylic · Other Materials Application Review Required

Application Note:
This series is primarily designed for aluminum machining. For brass, zinc, acrylic and other non-ferrous or plastic materials, please contact our sales team to confirm material compatibility, tool geometry and cutting conditions before ordering.

Explore our fraises en aluminium for other geometries, or read our DLC end mill supplier selection guide for more information.

Product Details & Machining

Ball nose geometry, DLC-coated cutting edge and aluminum machining reference.

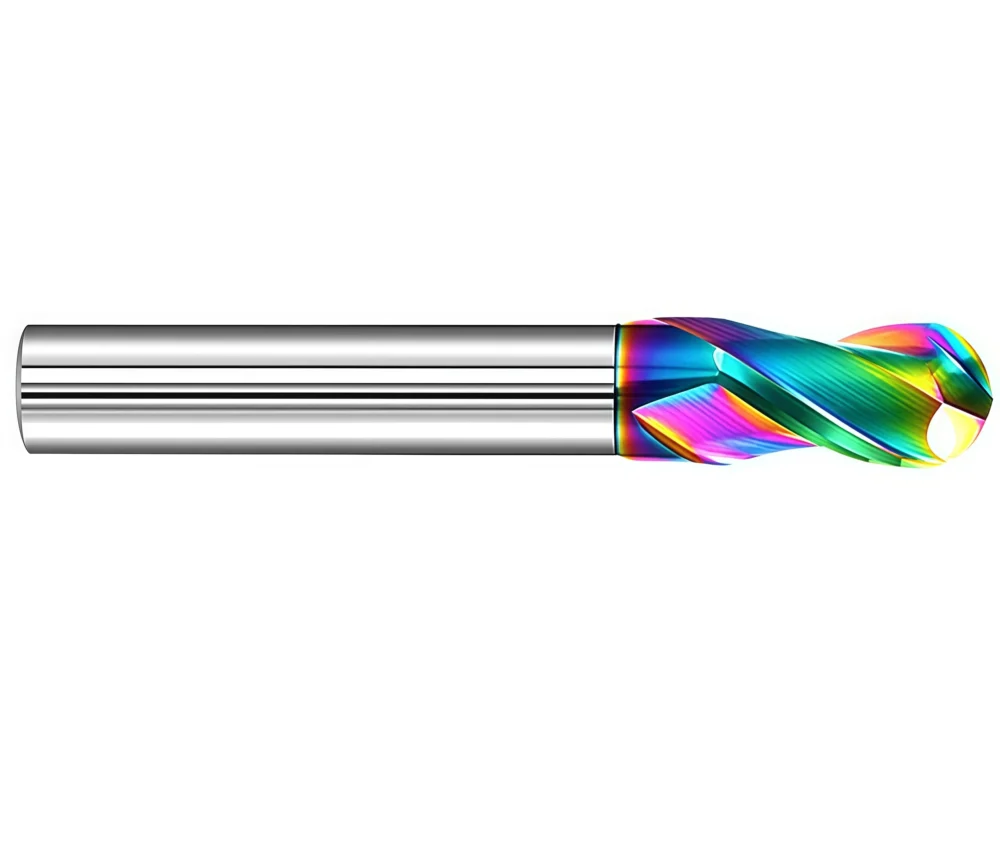

DLC coated carbide ball nose end mill

DLC-Coated Ball Nose End Mill

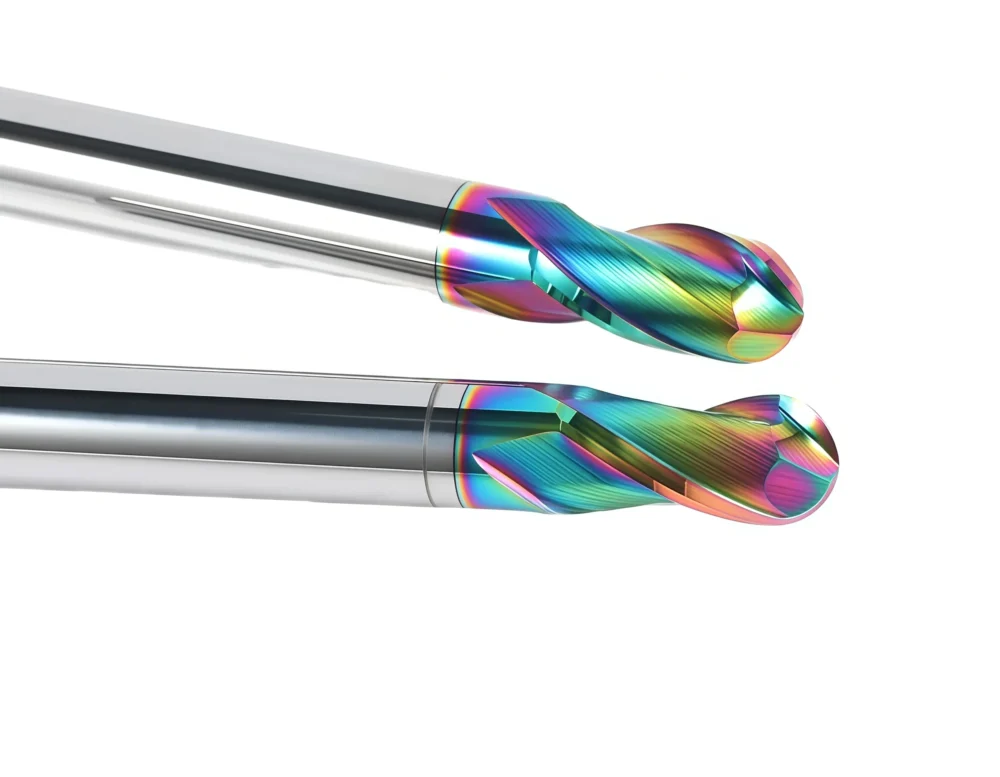

 DLC coated carbide ball nose end mill 2 pcs

2-Flute Geometry & DLC Cutting Edge
DLC coated carbide ball nose end mill for aluminum

Aluminum 3D Contouring & Finishing

 DLC coated carbide ball nose end mill with plastic box

Product & Packaging View

DLC-coated carbide end mill batch display

DLC-Coated End Mill Batch Display





DLC End Mill for Aluminum Machining

Ball Nose End Mill Dimensions

DLC-coated 2-flute ball nose end mill dimensions. All sizes in millimeters.

DLC-coated 2-flute solid carbide ball nose end mill dimension reference
R: Ball Radius DC / D: Cutting Diameter APMX / L1: Longueur de la cannelure DCON / d: Diamètre de la tige OAL / L: Longueur totale

Configuration technique

TECHNICAL ITEM CARACTÉRISTIQUES TECHNIQUES
Type d'outil Solid Carbide Ball Nose End Mill
End Profile Ball Nose / Full Radius
Flûtes 2 Flutes
Substrate Sub-Micron Solid Carbide
Revêtement DLC
Angle de l'hélice 35°–40°
Shank Tolerance h6
Matériaux Aluminum Alloys / Selected Non-Ferrous
Applications 3D Contouring / Curved Surfaces / Cavity Finishing / Profiling
Cutting Direction Right-Hand
Chip Control Air Blast / Oil Mist / External Coolant

Dimensions standard

Ball Radius: R0.5–R10 Cutting Diameter: Ø1–Ø20 mm Flûtes : 2 OAL: Up to 150 mm Custom: Drawing-Based Sizes

Scroll to review the full size range.

CARACTÉRISTIQUES TECHNIQUES R DC / D APMX / L1 DCON / d OAL / L FLUTES
R0.5×2×D4×50L 0.5 1 2 4 50 2
R0.75×3×D4×50L 0.75 1.5 3 4 50 2
R1×4×D4×50L 1 2 4 4 50 2
R1.25×5×D4×50L 1.25 2.5 5 4 50 2
R1.5×6×D3×50L 1.5 3 6 3 50 2
R1.5×6×D3×75L 1.5 3 6 3 75 2
R1.5×6×D3×100L 1.5 3 6 3 100 2
R1.5×6×D4×50L 1.5 3 6 4 50 2
R1.5×6×D6×50L 1.5 3 6 6 50 2
R1.75×7×D4×50L 1.75 3.5 7 4 50 2
R2×8×D4×50L 2 4 8 4 50 2
R2×8×D4×75L 2 4 8 4 75 2
R2×8×D4×100L 2 4 8 4 100 2
R2.5×10×D5×50L 2.5 5 10 5 50 2
R2.5×10×D5×75L 2.5 5 10 5 75 2
R2.5×10×D5×100L 2.5 5 10 5 100 2
R2.5×10×D6×50L 2.5 5 10 6 50 2
R3×12×D6×50L 3 6 12 6 50 2
R3×12×D6×75L 3 6 12 6 75 2
R3×12×D6×100L 3 6 12 6 100 2
R3×12×D6×150L 3 6 12 6 150 2
R3.5×14×D8×60L 3.5 7 14 8 60 2
R4×16×D8×60L 4 8 16 8 60 2
R4×16×D8×75L 4 8 16 8 75 2
R4×16×D8×100L 4 8 16 8 100 2
R4×16×D8×150L 4 8 16 8 150 2
R4.5×18×D10×75L 4.5 9 18 10 75 2
R5×20×D10×75L 5 10 20 10 75 2
R5×20×D10×100L 5 10 20 10 100 2
R5×20×D10×150L 5 10 20 10 150 2
R5.5×22×D12×75L 5.5 11 22 12 75 2
R6×24×D12×75L 6 12 24 12 75 2
R6×24×D12×100L 6 12 24 12 100 2
R6×24×D12×150L 6 12 24 12 150 2
R6.5×26×D14×100L 6.5 13 26 14 100 2
R7×28×D14×80L 7 14 28 14 80 2
R7×28×D14×100L 7 14 28 14 100 2
R7×28×D14×150L 7 14 28 14 150 2
R8×32×D16×100L 8 16 32 16 100 2
R8×32×D16×150L 8 16 32 16 150 2
R9×36×D18×100L 9 18 36 18 100 2
R9×36×D18×150L 9 18 36 18 150 2
R10×40×D20×100L 10 20 40 20 100 2
R10×40×D20×150L 10 20 40 20 150 2

How to Select & Apply

  • Ball Radius: Match surface curvature and finish.
  • Step-Over: Reduce for finer 3D finishing.
  • Tool Reach: Minimize overhang.
  • Chip Evacuation: Air blast, oil mist or suitable coolant.

Need a different aluminum milling geometry? View our aluminum end mill series.

Ball Nose End Mill Customization

Custom dimensions, geometry and DLC options for aluminum ball nose end mills.

CUSTOM ITEM OPTIONS
Ball Radius / Diameter R0.5–R10 / Drawing-Based
Longueur de la cannelure Standard / Custom
Neck / Reach Straight / Relieved / Long Reach
Longueur totale Standard / Extended
Diamètre de la tige Standard / Custom
Edge Geometry Aluminum Geometry
Revêtement DLC / Application Review
Tolérance Drawing-Defined

Fabrication pour compte de tiers (OEM) et marques de distributeur

Laser Marking Product Code Custom Label Private-Label Packaging Repeat Supply
OEM laser marking labels and private-label packaging for ball nose end mills

For drawing-based dimensions and application-specific geometry, see our custom cutting tools. For laser marking, labels and branded packaging, review our OEM & private-label cutting tools.hy cutting tools custom tooling process tools photo

Contrôle qualité

HY Cutting Tools manufacturing and quality assurance

Material verification · Precision grinding · Final inspection

ÉTAPE 01

Material Verification

Carbide Grade · Blank Size

ÉTAPE 02

Precision Grinding

Ball Profile · Flute Geometry · Shank

ÉTAPE 03

Final Inspection

Dimensions · Runout · Cutting Edge · DLC

Key Inspection Items

  • Ball Radius
  • Cutting Diameter
  • Longueur de la cannelure
  • Diamètre de la tige
  • Runout
  • Ball Profile
  • Cutting Edge
  • DLC Coating

Repeat-Order Control

Approved specs for repeat orders.

  • Dimensions
  • Ball Profile
  • Géométrie
  • DLC Coating
  • Laser Marking
  • Packaging

Packaging & Delivery

  • Protective Tubes
  • Bulk Cartons
  • Export Packing
  • Courier
  • Air Freight
  • Sea Freight

See our full manufacturing and quality control process for grinding, inspection and repeat-order control.

FAQ

DLC ball nose end mill selection, sizing, customization and ordering.

What materials is this end mill designed for?
Primarily aluminum alloys and selected non-ferrous materials.
What applications is the ball nose profile best for?
3D contouring, curved surfaces, cavity finishing and profiling.
Why use 2 flutes for aluminum?
Wide chip space supports chip evacuation and reduces recutting.
What is the benefit of DLC coating?
Low friction, reduced aluminum adhesion and improved wear resistance.
What standard sizes are available?
R0.5–R10, Ø1–Ø20 mm, with multiple listed flute and overall lengths.
Can custom dimensions be manufactured?
Yes. Radius, diameter, flute length, reach, shank and overall length can be reviewed by drawing.
Proposez-vous le marquage OEM et le conditionnement sous marque de distributeur ?
Laser marking, product codes, custom labels and private-label packaging are available by order requirement.
Can sample or mixed-size orders be arranged?
Sample, mixed-size and repeat orders can be reviewed according to size, quantity and production requirements.

Téléchargements techniques

Catalogue de fraises en carbure monobloc

Ball Nose · Square · Corner Radius · Specialty

Consulter le catalogue

Guide des vitesses et des avances des fraises en bout

Reference cutting data for machining trials.

Consulter le guide

Learn why distributors and OEM buyers choose HY for repeat supply, custom tooling and private-label programs.

Need more information about ordering, customization, shipping or tooling? Visit our Foire aux questions.

Vous avez besoin d'informations sur les tailles, les prix ou les options personnalisées ?

Veuillez nous indiquer le type d'outil requis, ses dimensions, les quantités, le matériau de la pièce à usiner ainsi que toute exigence spécifique à un équipementier ou toute demande sur mesure. Nous vous confirmerons les caractéristiques techniques adaptées, la disponibilité, le délai de livraison et les détails du devis.

Dimensions standard Petites commandes d'essai Tailles variées Options OEM et personnalisées
Demander le prix et les caractéristiques techniques Discuter sur WhatsApp

Les croquis, les listes de dimensions et les photos de référence sont les bienvenus.
