Dao tiện rãnh bán kính trong lỗ nhỏ hợp kim nguyên khối MKR

MKR solid carbide micro grooving bars for full-radius internal grooves in small bores.
Groove Profile: Full-Radius Internal Groove
Radius Range:R0.3–R1.0 mm
Minimum Bore:Ø4.1 / Ø5.1 / Ø6.1 / Ø8.1 mm
Đường kính thân:Ø4 / Ø5 / Ø6 / Ø8 mm
Working Length:10 / 15 / 22 / 30 mm
Tùy chọn tùy chỉnh:Radii, dimensions, coatings and marking
Giao hàng tiêu chuẩn1–3 ngày làm việc
OEM & Dụng cụ theo yêu cầuBản vẽ / Mẫu
Số lượng đặt hàng tối thiểuSố lượng đặt hàng tối thiểu (MOQ): 3–10 chiếc
TỐT NHẤT DÀNH CHO

Full-Radius Grooves

Small-Bore Access

Rigid Carbide

Sản phẩm theo yêu cầu & OEM

MKR Micro Internal Radius Grooving Bars

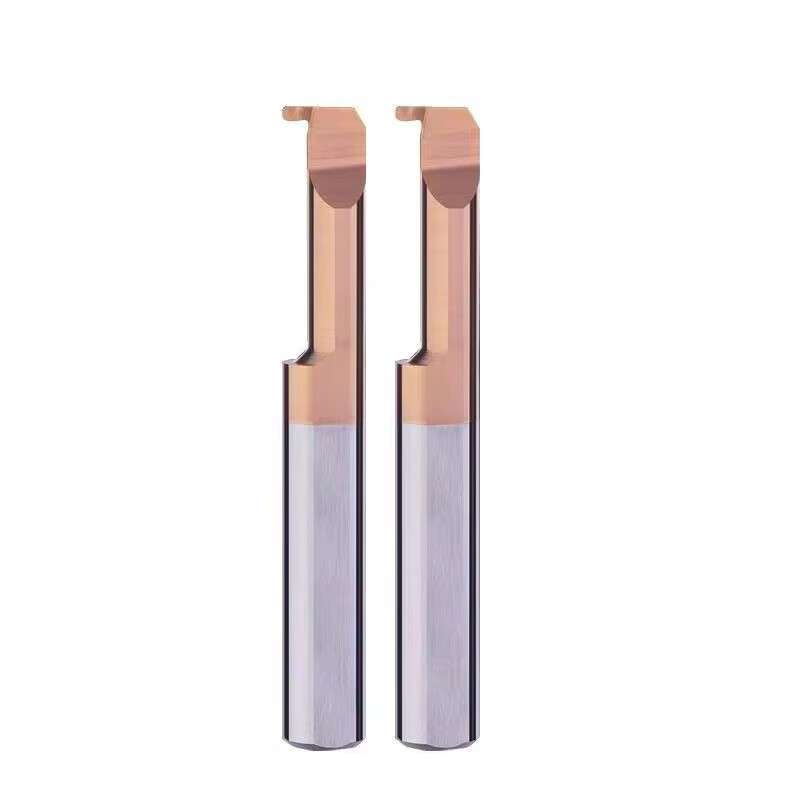

MKR solid carbide micro radius grooving bars form full-radius grooves and curved relief profiles inside small bores. Precision-ground R profiles support consistent rounded groove bottoms in CNC-turned components.

MKR solid carbide micro internal radius grooving bars

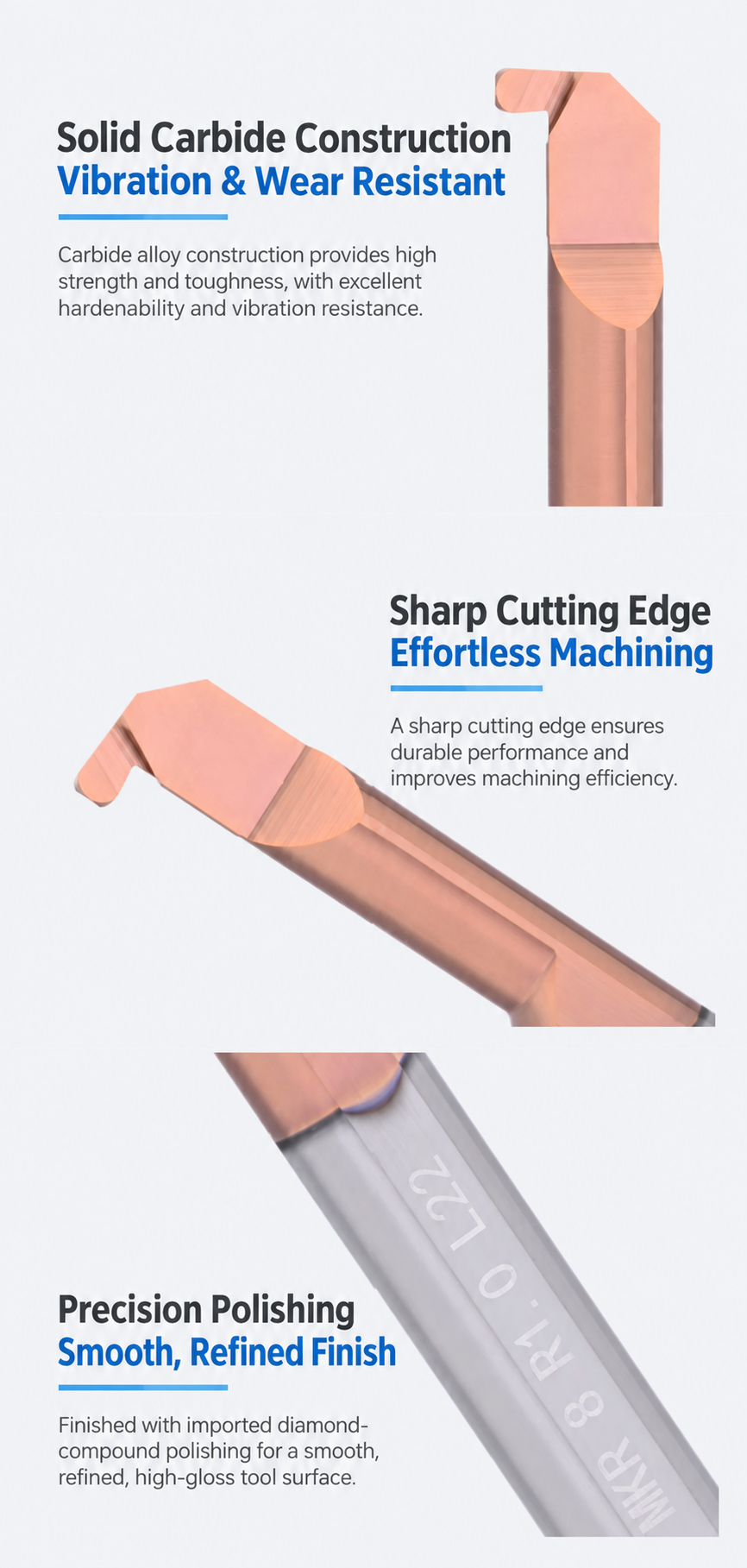

Full-Radius Profiles for Small-Bore Grooving

Ground Radius Profile

Defined R geometry forms rounded groove bottoms and curved transitions.

Compact Cutting Head

Provides access to internal grooves with limited bore and shoulder clearance.

Rigid Carbide Body

Helps limit deflection with secure clamping and short tool overhang.

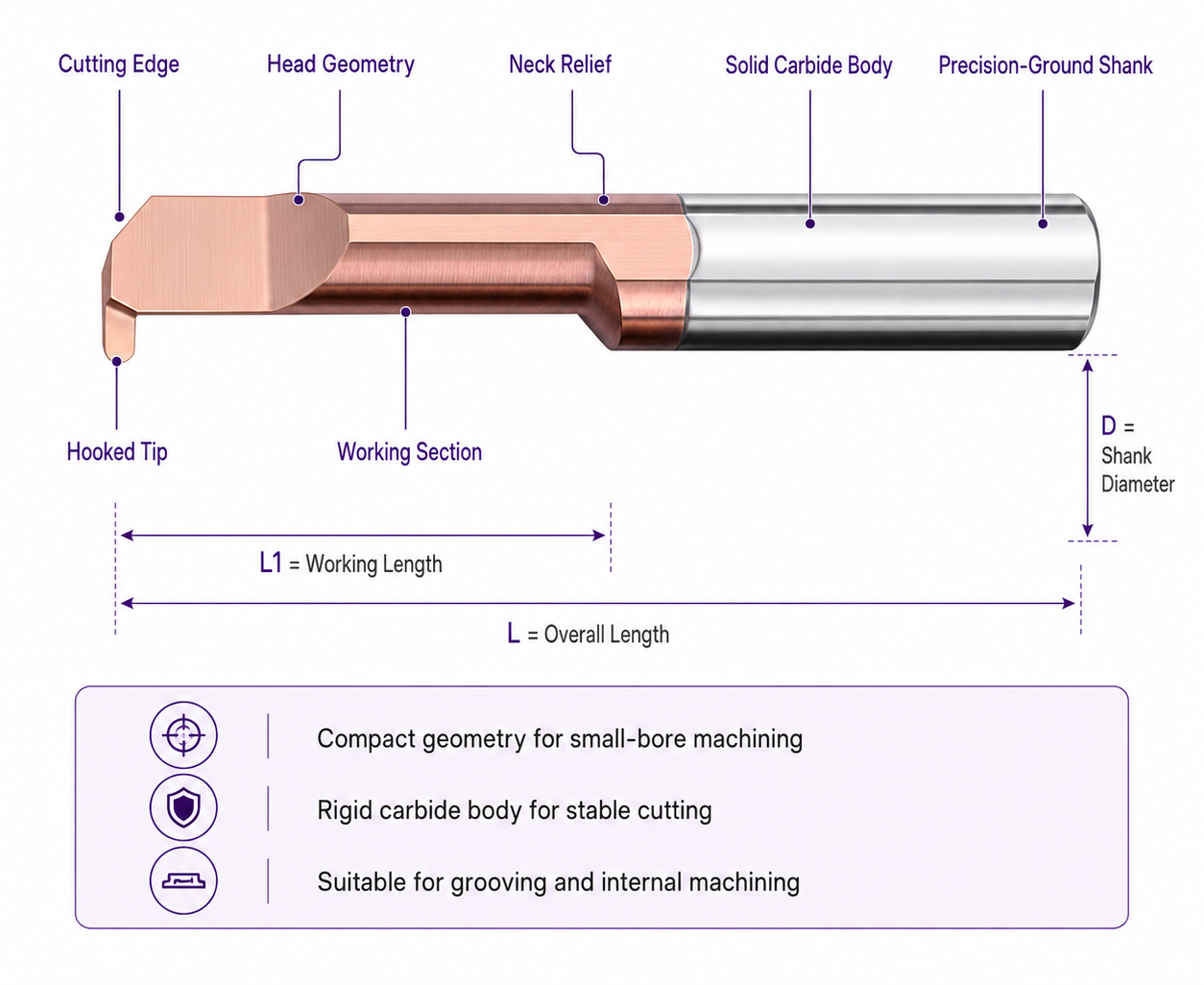

MKR internal radius grooving tool cutting profile and construction features

Internal Radius Grooving Applications

  • Full-radius grooves in sleeves, bushings and small turned components.
  • Curved relief features near internal shoulders.
  • Recessed bore grooves requiring matched radius and reach.

Phù hợp nhất cho: Internal grooves with defined rounded-bottom profiles.

Không phù hợp với: Square-bottom grooves or radius face grooves without separately matched geometry.

Match Radius, Width & Clearance

Standard nominal cutting width equals twice the radius: R0.5 = 1.0 mm và R1.0 = 2.0 mm. Match the complete groove profile and depth to the drawing, then confirm minimum bore, working reach and entry/retraction clearance.

MKR radius grooving bar geometry, radius and nominal cutting width

Radius and reach combinations vary by model. Use the shortest working length that provides sufficient access.

MKR Product Details

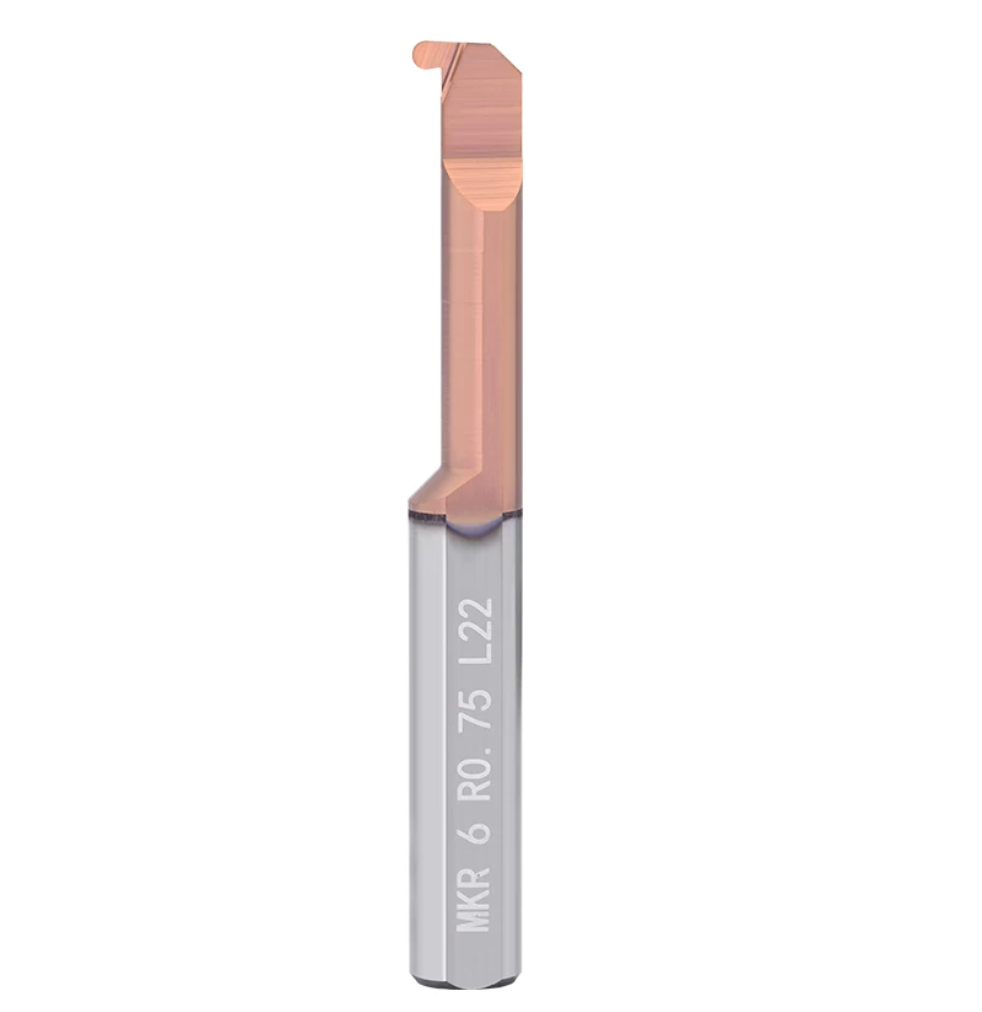

MKR micro internal radius grooving bar product photographMKR solid carbide radius grooving bars cutting-head detailMKR micro radius grooving tool pair

Custom Carbide Radius Grooving Tools

Custom radii, groove profiles, reach, shanks and coatings can be reviewed from drawings or samples, with laser marking and private-label options for OEM orders.

MKR Radius Grooving Bar Specifications

Select by groove radius, nominal width, minimum bore and working reach.

Dimension Key

R = cutting radius · b = nominal cutting width · L1 = working reach · D = shank diameter · L = overall length.

For the listed full-radius profiles, b = 2R. Confirm the radius and reach combination by model.

Thông số kỹ thuật & Bảng tham khảo kích thước

MKR solid carbide micro radius grooving bar dimensions and standard sizes

All dimensions are in mm. Check minimum bore and tool-path clearance against the groove drawing.

Standard Radius & Shank Configurations

Đường kính thân (Ø) Min. Bore Ø Radius Options Reach L1 OAL
4 4.1 R0.3 / R0.4 / R0.5 / R0.75 10 / 15 50
5 5.1 R0.5 / R0.75 / R1.0 15 / 22 50
6 6.1 R0.5 / R0.6 / R0.75 / R1.0 15 / 22 50
8 8.1 R0.5 / R0.6 / R0.75 / R1.0 22 / 30 60

Radius and reach options vary by model; confirm the exact combination before ordering.

Full-Radius Profile & Nominal Width

For the listed full-radius profiles, nominal cutting width b = 2R. Match both dimensions to the required groove section.

R0.3 → 0.6 mm R0.4 → 0.8 mm R0.5 → 1.0 mm R0.6 → 1.2 mm R0.75 → 1.5 mm R1.0 → 2.0 mm

Small-Bore Selection Checks

  • Groove fit: Confirm radius, width, depth and root diameter.
  • Giảm giá: Check minimum bore, shoulder position and the full cutting and retraction path.
  • Phạm vi: Use the shortest suitable L1; working reach is separate from allowable cutting depth.

Bạn cần biết thông tin về kích cỡ, giá cả hoặc các tùy chọn đặt hàng theo yêu cầu?

Send your model or groove drawing, bore size, material and quantity for radius-tool selection and quotation.

Các công cụ nội bộ Micro liên quan

MKR Radius Grooving Tool Customization & OEM

Custom radii, groove profiles, reach, shanks and coatings are available for MKR micro internal radius grooving bars, subject to drawing review.

Dòng dụng cụ gia công vi mô dành cho sản xuất theo yêu cầu và cung ứng OEM

OEM Options

Custom laser marking on micro internal tools

Khắc laser

Logo và mã mẫu, tùy thuộc vào không gian trên thân sản phẩm.

Private-label packaging for micro tooling

Private Label

Nhãn hiệu và bao bì bảo vệ.

Custom micro internal tool drawing reference

Technical Drawings

Confirmed geometry for approval and repeat orders.

Quy trình đặt hàng theo yêu cầu

Review → Drawing approval → Samples if required → Production & inspection.

Custom carbide cutting tool production process

Send: Groove drawing, radius, bore size, required reach, material and quantity.

MKR Radius Grooving Bar Quality & Delivery

Việc kiểm tra vật liệu, kiểm soát quá trình mài và kiểm tra cuối cùng nhằm xác minh MKR micro radius grooving bars so với các thông số kỹ thuật đã được xác nhận hoặc bản vẽ đã được phê duyệt.

Carbide tool dimensional and cutting-profile inspection

Các điểm kiểm tra chính

  • Chất liệu: Loại cacbua và thông số kỹ thuật của phôi.
  • Radius profile: Cutting radius, nominal width and edge condition.
  • Kích thước: Head, neck, working length, shank and overall length.
  • Xác định: Model, marking and packaging labels.

Specify critical tolerances and inspection-record requirements before order confirmation.

Bao bì bảo vệ

Individual protection, size labels and export packing help protect the radius cutting edges during storage and transport.

Protective packaging process for precision cutting toolsExport packing options for micro grooving tools

Thời gian giao hàng & Vận chuyển

Các công cụ tiêu chuẩn: Thông thường từ 1–3 ngày làm việc, tùy thuộc vào tình trạng hàng tồn kho.

Các công cụ tùy chỉnh: Lead time confirmed after geometry, coating and quantity review.

Thông tin tham khảo về vận chuyển và thanh toán của HY Cutting Tools

MKR Micro Internal Radius Grooving Bar FAQs

Is MKR suitable for internal radius grooves or face grooves?
MKR bars form full-radius grooves and curved relief profiles on the bore wall. For rounded grooves on internal end faces, review the MZR/MZL radius face grooving series.
Which radius matches my required groove width?
Standard MKR profiles have a nominal cutting width of 2R: R0.3 → 0.6 mm, R0.4 → 0.8 mm, R0.5 → 1.0 mm, R0.6 → 1.2 mm, R0.75 → 1.5 mm and R1.0 → 2.0 mm. Confirm the complete groove section and depth against the component drawing.
Which MKR size fits my bore diameter?

Reference minimum bores are Ø4.1 mm for Ø4 shanks, Ø5.1 mm for Ø5 shanks, Ø6.1 mm for Ø6 shanks and Ø8.1 mm for Ø8 shanks.

Also check cutting-head clearance, groove root diameter, shoulder position and the full tool path. Radius availability varies by shank size.

What working length should I choose for a recessed groove?
Choose the shortest reach that clears the component: Ø4 models offer 10 or 15 mm, Ø5–Ø6 models offer 15 or 22 mm, and Ø8 models offer 22 or 30 mm. Working length is separate from allowable cutting depth; confirm both on the selected tool drawing.
Can MKR radius grooving bars machine stainless steel or aluminum?
Configurations can be reviewed for steel, stainless steel, cast iron and selected aluminum or copper alloys. Provide material grade and hardness to match cutting geometry, edge preparation and coating.

Custom Orders & Supply

Can you make custom radii or groove profiles with OEM branding?
Yes. Radius, cutting profile, reach, shank and coating can be reviewed from drawings or samples. Laser marking, labels and private-label packaging are available by order.
What is the MOQ, and can I mix radii and working lengths?
The standard MOQ is 10 pieces. Mixed models and trial quantities can be reviewed according to specifications and stock. Include quantities for each radius, shank and working length in your inquiry.
What should I send for pricing and lead-time confirmation?
Send the model and quantity, or a drawing showing groove radius, width, depth, bore size and access length. Include material and OEM requirements. Stock models typically dispatch within 1–3 working days; custom lead time is confirmed after specification review.
