Dao tiện rãnh trong lỗ nhỏ hợp kim nguyên khối MGR

MGR solid carbide internal grooving tools for narrow grooves in small bores. Suitable for CNC and Swiss-type lathes, with model-specific groove widths, cutting depths and reach.

Cutting Diameter d1Ø2.9–Ø7.9 mm
Groove Width B0.5–3.0 mm
Groove Depth Q0.8–3.0 mm
Clearance Length L110 / 15 / 20 mm
Shank Diameter DØ4 / Ø5 / Ø6 / Ø8 mm
Vật liệu dụng cụCarbide nguyên khối
Số lượng đặt hàng tối thiểu (MOQ)10 pcs
Giao hàng hàng tồn kho1–3 working days
Sản phẩm theo yêu cầu & OEMSizes & Branding
TỐT NHẤT DÀNH CHO

Narrow Grooves

Small-Bore Access

Rigid Carbide

Sản phẩm theo yêu cầu & OEM

MGR Micro Internal Grooving Tools for CNC Lathes

Each MGR solid carbide internal grooving tool machines grooves and recesses in small bores, including sleeves, bushings and precision fittings. These bore grooving tools are selected by cutting width, groove depth and usable reach. Confirm head, neck and holder clearance during entry, cutting and retraction.

Micro internal tooling series — product display

Controlled Narrow-Groove Machining

Defined Cutting Width

Ground grooving edges match specified widths and model-specific cutting depths.

Compact Head & Neck

Provide access to internal grooves near shoulders and recessed bore features.

Cacbua rắn hạt mịn

A rigid one-piece body helps limit deflection with secure clamping and short overhang.

Small-Bore Internal Grooving Applications

  • Narrow internal grooves in sleeves, bushings and precision fittings.
  • Relief recesses near internal shoulders and functional surfaces.
  • Retaining-ring grooves where width, depth and corner geometry match the drawing.

For CNC turning centers, Swiss-type lathes and precision automatic lathes with compatible holders.

Micro internal tooling machining methods for grooving, boring and threading

Phù hợp nhất cho: Bore-wall grooves matched to the selected cutting width, depth and clearance.

Không phù hợp với: Full-radius grooves, thread cutting or end-face grooves without separately matched geometry.

Material-Matched Grooving Configurations

Configurations can be reviewed for carbon steel, alloy steel, stainless steel and copper alloys. Cast iron, titanium and harder materials require confirmation of grade, hardness, cutting geometry and coating.

Micro internal tooling workpiece-material selection reference

Series material reference; confirm suitability for the selected MGR model.

MGR Cutting Profile & Product Details

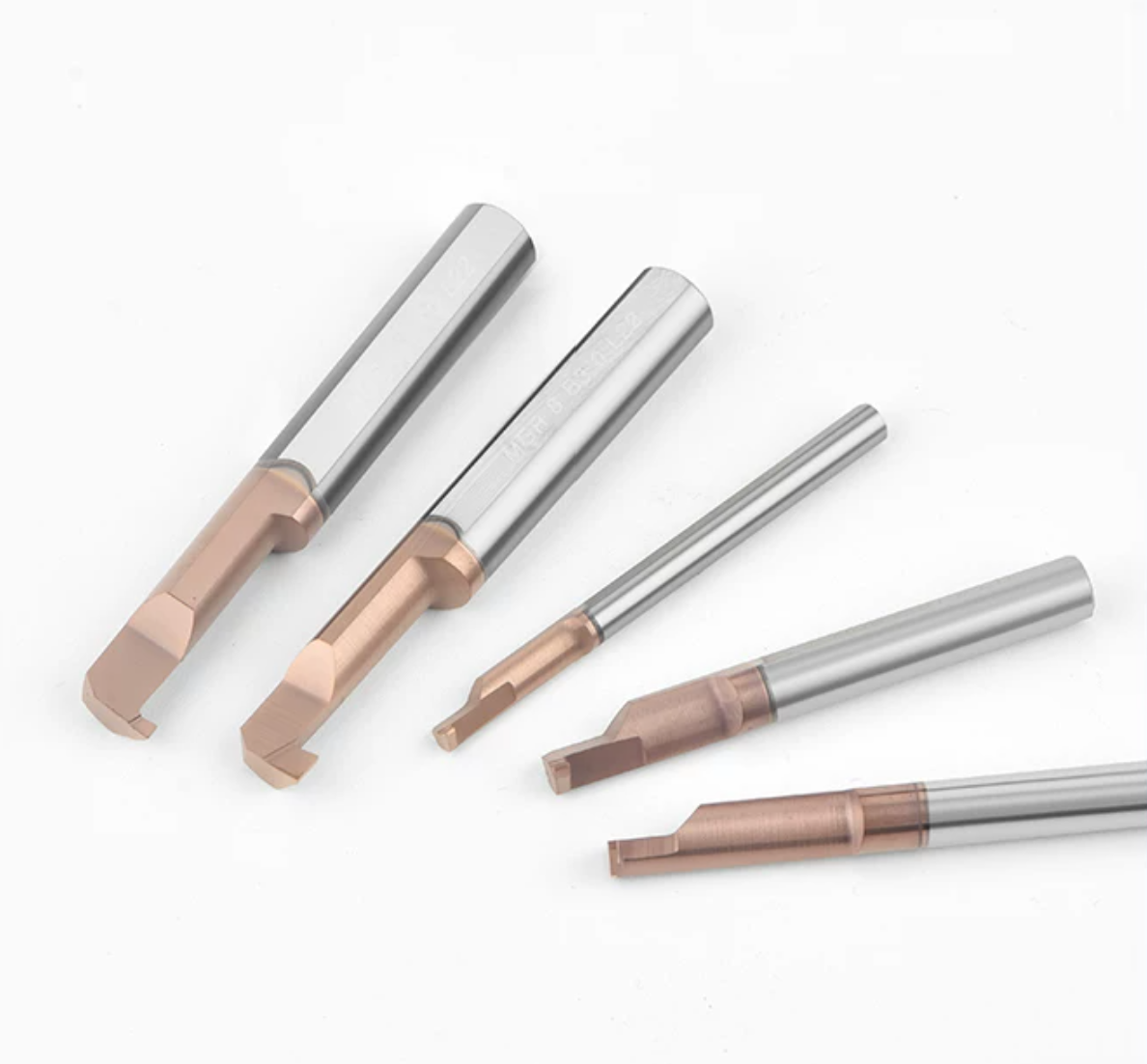

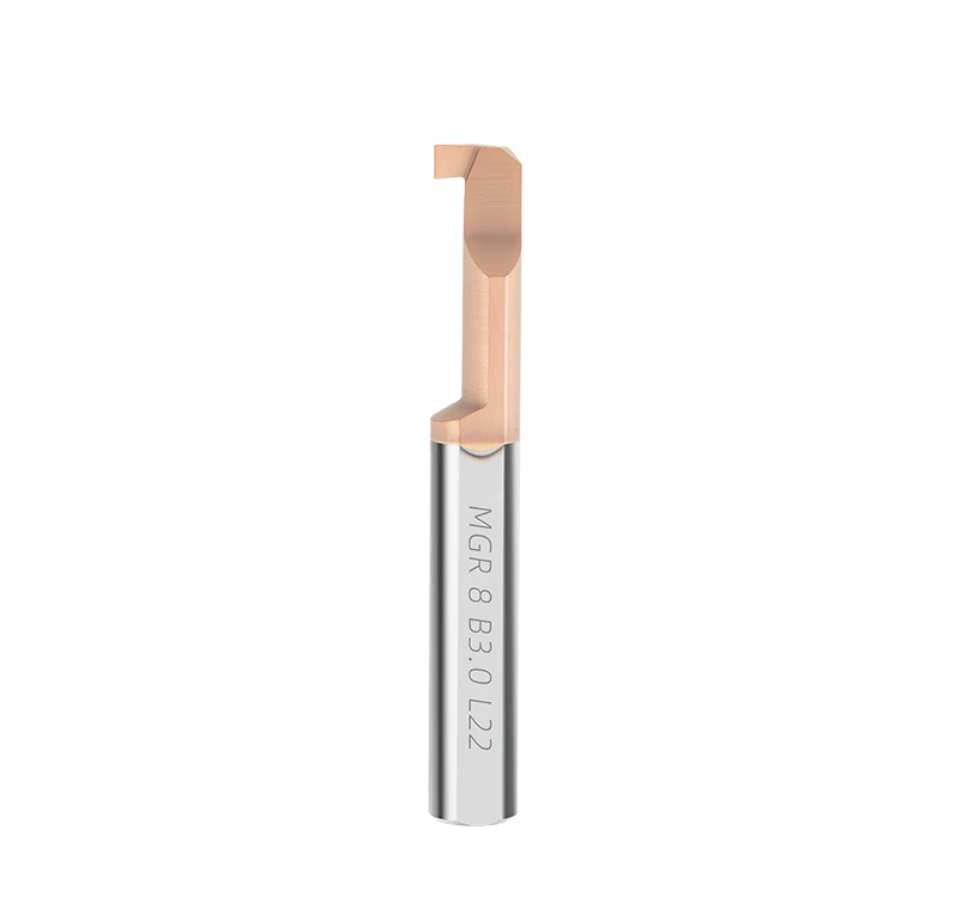

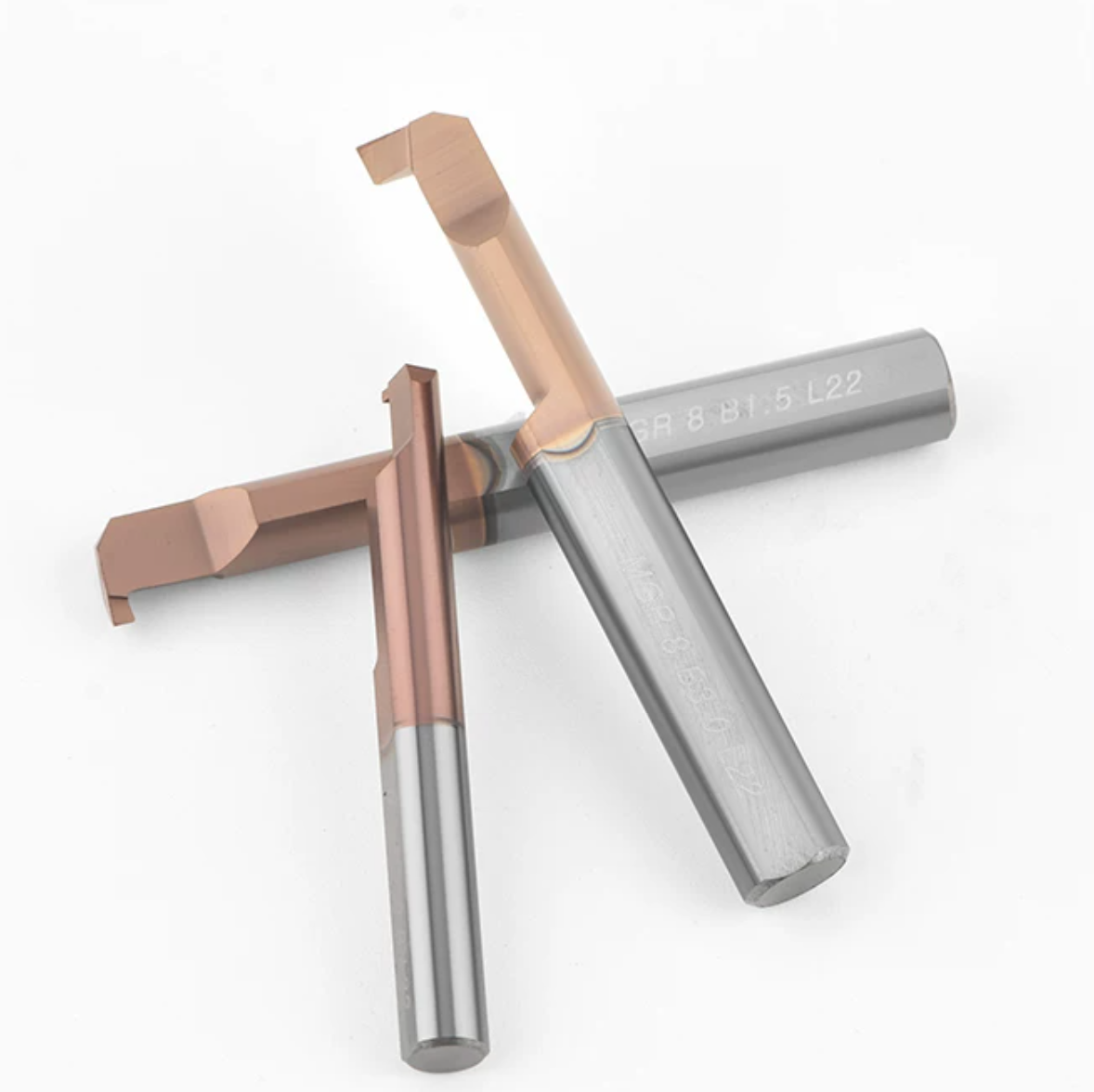

MGR solid carbide micro internal grooving tool pairMGR micro internal grooving bar cutting-head detailMGR carbide internal grooving bar product photograph

Select by Bore, Width, Depth & Reach

Confirm bore diameter, groove width B, depth Q and groove position. Choose the shortest suitable clearance length and check head, neck and holder clearance throughout entry, cutting and retraction.

Custom widths, profiles, reach and shanks can be reviewed from drawings, with coating, laser marking and private-label options for OEM orders.

Solid carbide micro internal tooling series referenceMicro internal tool selection guide for small-bore grooving, boring and threading

MGR Micro Internal Grooving Bar Specifications

Select your solid carbide micro internal grooving bar by cutting diameter, groove width, groove depth and clearance length. Standard dimensions are listed below.

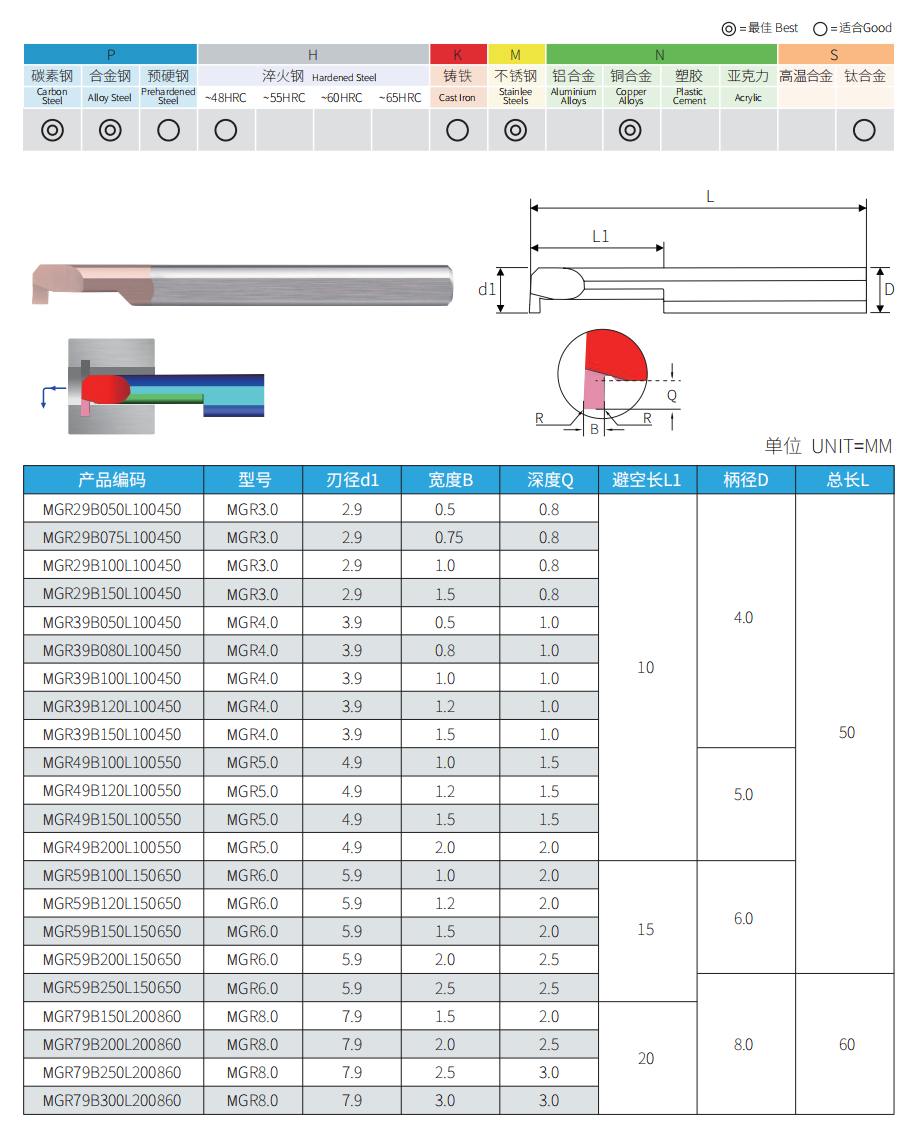

MGR micro internal grooving bar dimension drawing and standard sizes

All dimensions in mm. Cutting diameter d1 is not the minimum bore diameter; confirm clearance throughout the tool path.

Standard Sizes & Groove Dimensions

Size Group Đường kính cắt d1 Groove Width B Groove Depth Q Giảm giá L1 Shank D Tổng thể L
MGR3.0 2.9 0.5 / 0.75 / 1.0 / 1.5 0.8 for all widths 10 4 50
MGR4.0 3.9 0.5 / 0.8 / 1.0 / 1.2 / 1.5 1.0 for all widths 10 4 50
MGR5.0 4.9 1.0 / 1.2 / 1.5 / 2.0 1.5 / 1.5 / 1.5 / 2.0 10 5 50
MGR6.0 5.9 1.0 / 1.2 / 1.5 / 2.0 / 2.5 2.0 / 2.0 / 2.0 / 2.5 / 2.5 15 6 50
MGR8.0 7.9 1.5 / 2.0 / 2.5 / 3.0 2.0 / 2.5 / 3.0 / 3.0 20 8 60

Multiple B and Q values correspond from left to right. Select the listed combination; widths and depths are not independently interchangeable.

Small-Bore Grooving Tool Selection

  • Bore clearance: Check the head, neck and complete cutting and retraction path.
  • Groove profile: Match width B and depth Q to the component drawing.
  • Phạm vi tiếp cận và thời gian giữ: Choose the shortest suitable L1 and a compatible shank.
  • Chất liệu: Confirm carbide grade, coating and edge preparation for the workpiece and hardness.

Bạn cần biết thông tin về kích cỡ, giá cả hoặc các tùy chọn đặt hàng theo yêu cầu?

Send your model code or drawing, bore size, groove dimensions, workpiece material and quantity.

Related Internal Grooving Tools

MGR Internal Grooving Bar Customization

Tùy chỉnh solid carbide micro internal grooving bars are available with application-matched cutting diameters, groove widths, depths, clearance lengths and shanks. Geometry and coating options are reviewed against your drawing and workpiece material.

Dòng dụng cụ gia công vi mô dành cho sản xuất theo yêu cầu và cung ứng OEM

Các tùy chọn OEM và nhãn hiệu riêng

Laser marking on micro internal tool shanks

Khắc laser

Logos, model codes and size identification, subject to shank space.

Bao bì mang nhãn hiệu riêng dành cho các dụng cụ nội soi siêu nhỏ

Bao bì mang nhãn hiệu riêng

Branded labels and protective packaging for distributor supply.

Tài liệu tham khảo bản vẽ dụng cụ gia công vi mô tùy chỉnh

Bản vẽ và Thông số kỹ thuật

Confirmed tool dimensions for approval and repeat orders.

Quy trình đặt hàng theo yêu cầu

Requirement review → Drawing approval → Samples where required → Production & inspection.

Custom cutting tool design and production process

MGR Internal Grooving Bar Quality Control

Việc kiểm tra vật liệu, kiểm soát quá trình mài và kiểm tra cuối cùng nhằm xác minh MGR micro internal grooving bars so với các thông số kỹ thuật đã được xác nhận hoặc bản vẽ đã được phê duyệt.

Kiểm tra kích thước và kiểm tra tiên tiến đối với dụng cụ cacbua

Các điểm kiểm tra chính

  • Chất liệu: Loại cacbua và thông số kỹ thuật của phôi.
  • Hình dạng cắt: Diameter d1, width B, depth Q and edge condition.
  • Tool dimensions: Clearance length L1, shank D and overall length L.
  • Xác định: Mã mẫu, ký hiệu và nhãn mác.

Các yêu cầu về hồ sơ kiểm tra và nhận dạng lô hàng được xác nhận cùng với đơn đặt hàng.

Bao bì bảo vệ

Các biện pháp bảo vệ riêng lẻ, nhãn mẫu và bao bì xuất khẩu giúp bảo vệ các cạnh cắt và đơn giản hóa việc nhận diện hàng tồn kho.

Individual carbide tool protection and packaging
Các tùy chọn đóng gói xuất khẩu cho đơn hàng dụng cụ cắt

Thời gian giao hàng & Vận chuyển

Các công cụ tiêu chuẩn: Thông thường từ 1–3 ngày làm việc, tùy thuộc vào tình trạng hàng tồn kho.

Các công cụ tùy chỉnh: Thời gian giao hàng được xác nhận dựa trên việc phê duyệt bản vẽ, hình dạng, lớp phủ và số lượng.

Thông tin tham khảo về vận chuyển và thanh toán của HY Cutting Tools

MGR Micro Internal Grooving Bar FAQs

What is an MGR micro internal grooving bar used for?
MGR solid carbide bars machine narrow grooves and recesses on small-bore walls in CNC-turned sleeves, bushings and precision components. For full-radius grooves, thread reliefs or end-face grooves, select a tool profile designed for that feature.
What groove widths and depths are available?
Standard groove widths B range from 0.5–3.0 mm, with groove depths Q from 0.8–3.0 mm. Available combinations depend on the model; match the width and corresponding depth in the size chart.
What minimum bore size does an MGR tool require?
Standard cutting diameters d1 are Ø2.9, Ø3.9, Ø4.9, Ø5.9 and Ø7.9 mm. These are tool dimensions, not minimum bore specifications. Confirm clearance for entry, radial cutting and retraction using the complete tool and component drawings.
How do I choose the correct MGR model?
Confirm bore clearance, groove width B, depth Q and groove position. Then select the shortest suitable clearance length L1 and a shank diameter D compatible with your holder. Standard L1 options are 10, 15 and 20 mm, depending on the model.
Can MGR tools machine internal retaining-ring grooves?
Yes, where the tool width, depth capacity, corner geometry and bore clearance match the retaining-ring groove drawing. Share the groove specification for confirmation before ordering.

Công cụ tùy chỉnh & Đặt hàng

Can I order custom dimensions or private-label MGR bars?
Yes. Custom cutting profiles, widths, depths, clearance lengths and shanks can be reviewed from drawings. Coating, laser marking and private-label packaging options are also available.
Số lượng đặt hàng tối thiểu (MOQ) và thời gian giao hàng là bao nhiêu?
The standard MOQ is 10 pieces. Mixed-model trial orders are reviewed by specification and availability. Standard tools typically dispatch within 1–3 working days, subject to stock; custom lead times are confirmed with the quotation.
Cần những thông tin nào để lập báo giá?
Send the model code or component drawing, bore diameter, groove width and depth, groove position, workpiece material and hardness, and quantity. Include any coating, marking or packaging requirements.
