Visual Guide: Cutting Tool Grinding Defects and Solutions

Cutting tool grinding defects can affect an end mill before it reaches the machine. A chipped corner, a crack-like line or an unusual end face deserves investigation, but a shiny surface or a visible grinding line alone does not prove poor quality.

This visual guide focuses on solid carbide end mills. It helps distributors, importers and workshop buyers describe what they see, decide what needs further inspection and send useful evidence to a supplier. Manufacturing checks are included as possible investigation paths, rather than diagnoses from photographs alone.

Table of Contents

Cutting Tool Grinding Defects: Quick Inspection Table

ObservationUseful next step
End-face interferenceCompare the end teeth and relief with the specified design.
Crack-like lineIsolate the tool; request appropriate crack assessment.
Chipped corner or edgeRecord whether it was found before or after machining.
Suspected unground areaCompare the location with the drawing and other flutes.
Roughness or local pitsSeparate visible marks from measured surface condition.
Irregular micro-chippingCompare the edge with the intended preparation or serration.
Geometry discrepancyMeasure the affected feature against agreed limits.

These are screening actions, not universal acceptance limits. Microscopy, dimensional measurement or other inspection may be needed. A photograph cannot establish subsurface condition or predict tool life. These visual groups can overlap: micro-chipping is a fine-scale form of edge chipping.

1. Bottom Edge / End-Face Interference

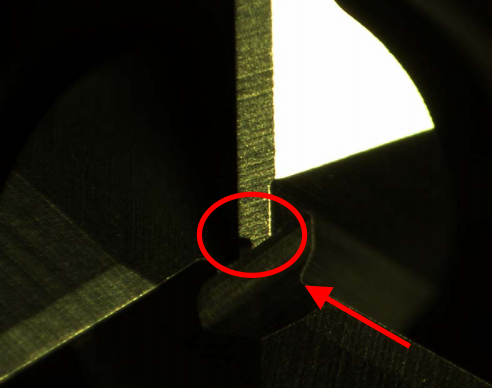

End-face grinding defect with the suspected interference region marked
End-face interference: inspect the marked centre region.
Visible signUnintended projections or interrupted relief around the end teeth and centre.
Possible causesTool-specific end-grinding or gashing settings, wheel profile or wheel position may leave unsuitable relief or centre geometry.
Supplier actionReview the complete end-grinding and gashing geometry. Correct the relevant program or wheel setup, then measure a first article against the drawing.
Buyer checkSend end-on and side views, stating whether plunge cutting is required. Request the relevant measured geometry and compare all teeth against the specified design.
Additional inspection notes

Different flute counts and centre-cutting designs require different geometry. A reduced over-centre setting is not a universal correction; its meaning depends on the grinding program. The photograph marks a geometry concern; actual interference requires assessment of the specified relief and intended cutting motion.

2. Cracks and Crack-Like Indications

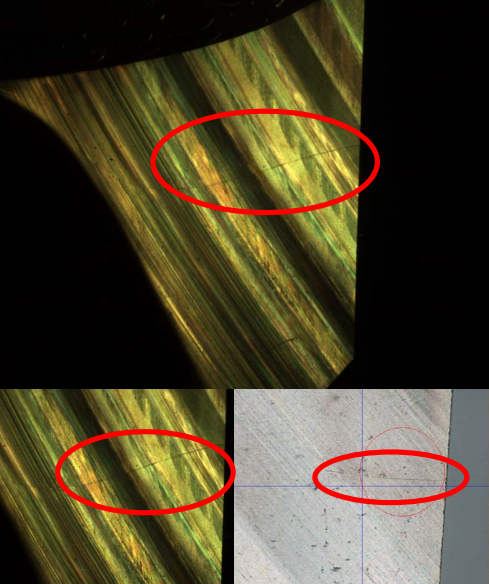

Crack-like lines marked on carbide tool grinding surfaces
Crack-like lines: the marked regions require further inspection.
Visible signCrack-like lines, particularly at flute roots or gash transitions. Their depth cannot be established from an ordinary photograph.
Possible causesGrinding load and heat, wheel condition, inadequate coolant access or defects in the carbide blank are possible investigation paths.
Supplier actionAssess the suspect tool before disposition. Investigate stock removal, wheel condition, coolant delivery and blank quality; verify the corrected process before releasing further production.
Buyer checkIsolate affected tools and keep their packaging. Send focused views, then request the inspection method, findings and agreed disposition. Do not use trial cutting to validate a suspect crack.
Additional inspection notes

The gash is the ground recess near the tool end that provides chip space. A scratch may resemble a crack in a photograph; diameter alone does not establish crack risk.

3. Edge Chipping and Corner Notches

Magnified end mill corner with a localized chipped cutting edge
Corner damage: compare the missing edge material with the other teeth.
Visible signMissing material at a peripheral edge, end edge or corner. Record the affected tooth and whether the tool was used.
Possible causesGrinding load, wheel condition, insufficient edge support, or collisions during handling and packing may contribute. Damage after cutting also requires application review.
Supplier actionCheck the affected feature and handling route. Address wheel or grinding issues where found, and improve separation and packaging if contact damage is identified.
Buyer checkKeep batch labels and photograph every tooth. Ask how the affected lot was assessed and request inspection of the same feature on replacement or subsequent tools, using the agreed inspection plan.

Example: An unused Ø6 mm four-flute end mill arrives with one chipped corner. Photograph all four teeth and the box label, compare unused tools from the delivery, and ask for the lot-review findings and same-feature inspection results before accepting the proposed resolution.

Additional inspection notes

A chipped edge alone does not identify when damage occurred. For used tools, add material, speed, feed, overhang and failure timing before assigning a manufacturing cause.

4. Incomplete Grinding or Residual Material

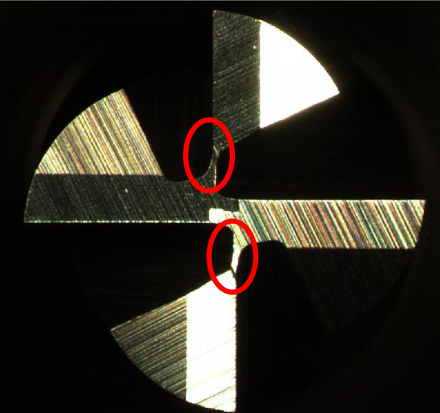

End-face detail with a suspected incompletely ground area marked
Suspected residual material: compare this edge with the intended geometry.
Visible signResidual material where the design requires a ground feature. Reflection or a shiny surface alone is not proof.
Possible causesInsufficient material removal, incomplete tool-path coverage, wheel-position error or tool deflection may leave the intended feature unfinished.
Supplier actionCompare the feature with the drawing. Review required material removal, wheel position, programmed coverage and support; measure the finished land or relief after correcting the relevant condition.
Buyer checkPhotograph equivalent locations on all flutes. Ask the supplier to identify the intended land or relief and provide its measured result against the applicable drawing requirement.
Additional inspection notes

Polished flutes and designed lands may look bright. Distinguish blank stock allowance, actual infeed or material removal, and traverse feed rate; increasing grinding speed is not a general remedy.

5. Rough Grinding Surfaces and Local Discontinuities

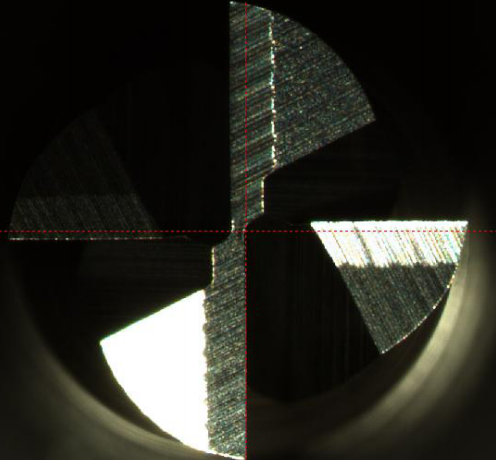

End mill end-face surfaces showing visible grinding texture
Grinding texture: assess the surface against the agreed requirement.
Visible signScoring, uneven texture or local discontinuities. Assess the flute, rake face and relief separately.
Possible causesWheel selection or dressing, vibration, insufficient support, grinding conditions and coolant contamination may affect the surface.
Supplier actionReview the diamond-wheel specification and condition, dressing method, support, vibration, coolant delivery and filtration. Adjust the identified cause, then inspect the specified surface rather than judging shine alone.
Buyer checkMark the inspection location. Where roughness is specified, request results using the agreed parameter and measurement method; photographs document appearance but do not establish a roughness value.
Additional inspection notes

Finer grit can change removal capability and thermal-damage risk. Local pits or missing material need separate investigation; visible grinding marks do not automatically make a tool unusable.

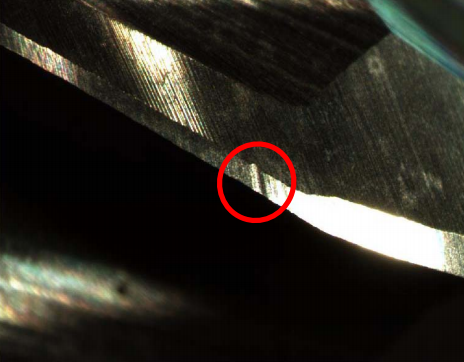

Local surface discontinuity near an end mill peripheral cutting edge
Local discontinuity near the peripheral edge; investigate separately.

6. Unintended Micro-Chipping Along the Edge

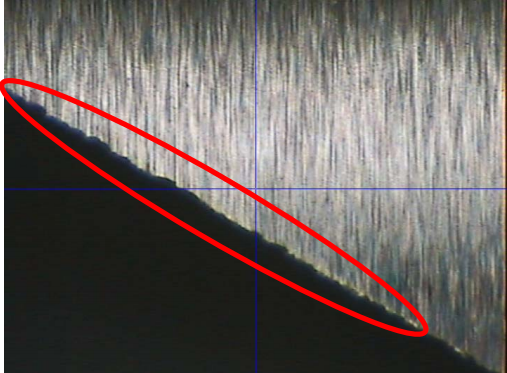

Irregular micro-chipping along a nominally continuous cutting edge
Irregular micro-chipping along a nominally continuous edge.
Visible signIrregular small losses along an intended continuous cutting edge, distinct from designed roughing serrations.
Possible causesAbrasive specification or condition, excessive grinding load, and the edge-preparation process may contribute to an irregular edge.
Supplier actionReview the grinding wheel, loading and intended edge preparation. Check the corrected edge against the specified form and agreed edge-quality requirements.
Buyer checkCompare equivalent edge sections under consistent lighting and magnification. Request images with a scale or an inspection result tied to the agreed criteria; avoid thresholds taken from an unscaled photo.
Additional inspection notes

Controlled honing, an intentional corner chamfer and designed chip-breaker features can be normal. The intended tool form must be known before classifying an edge as defective.

7. Incorrect End and Peripheral Geometry

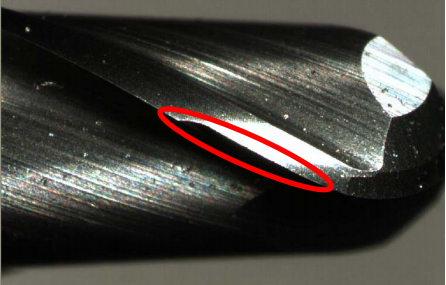

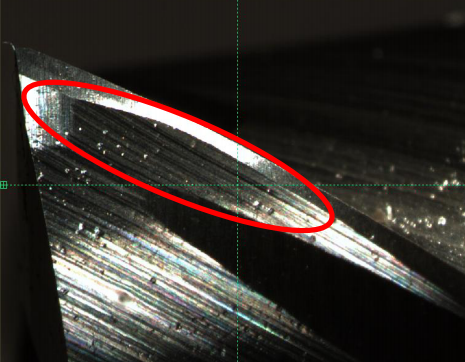

An over-ground gash, inadequate edge support, an unintended projection or a corner modification outside the drawing can change cutting behaviour. A feature becomes a nonconformity when it differs from the agreed design or requirements; a photograph alone does not supply those limits.

Visible signEnd, peripheral or corner features outside the agreed geometry, dimensions or tolerances.
Possible causesProgrammed geometry, wheel profile, wheel positioning or offsets may differ from the required configuration.
Supplier actionMeasure a first article, correct the relevant setup and recheck affected features after changes. Use the approved drawing revision and defined measurement points.
Buyer checkMark the disputed feature and request its actual measured value against the drawing limit. For a corner chamfer, compare the specified and supplied size rather than demanding an unspecified sharp corner.
Additional inspection notes

Centre and end-edge dimensions need defined measurement points on the approved drawing. Surface pits require their own material or surface assessment; they are not solely a geometry-programming issue.

What Does Not Automatically Mean a Defect?

AppearanceHow to assess it
Uniform honed edgeMay be intentional. Compare the specified edge preparation.
Corner chamfer or radiusCompare with the agreed shape and size; a sharp corner is not always specified.
Polished fluteBrightness alone does not prove a defect. Check the intended surface.
Roughing serrationsDesigned, regular serrations differ from unintended irregular edge losses.

For example, a polished three-flute aluminum end mill and a coated four-flute steel end mill should not be expected to have identical surface appearance or edge preparation. Use the end mill series guide to identify the intended tool family before comparing details.

4-Flute Square End Mill for Steel

4-Flute Square End Mill for Steel

Review model, geometry and dimensions.

3-Flute Uncoated End Mill for Aluminum

3-Flute Uncoated End Mill for Aluminum

Review polished flute and application details.

Receiving Inspection and a Useful Trial Record

Before delivery, agree the specification, critical dimensions and inspection requirements. There is no single visual sampling quantity or roughness limit for every end mill. Use an agreed inspection plan matched to the product and purchase.

01 · Identifyretain order references, packaging labels and available lot information; separate unused tools from tested tools.
02 · Inspectview every tooth of the selected tools using consistent lighting and magnification. Record the tooth and location of each observation.
03 · Measurecheck agreed diameter, cutting length, shank, overall length and corner geometry with suitable equipment. Small edge features may require optical measurement.
04 · Trialuse tools cleared for testing. Log the material, operation, holder, overhang, cutting data, coolant, acceptable parts, dimensional results and why each tool stopped.

Keep a planned test stop separate from a tool-life failure. Compare the current tool and candidate on the same job, and change one process variable at a time. See the trial-order guide for a fuller test record. If the problem appears only after machining, follow the machining troubleshooting guide to review the setup and process as well as the tool.

Questions Buyers Ask

Do visible grinding marks mean the tool is poor quality?
No. Identify the surface and compare it with the agreed requirement. Regular marks, polished areas and intentional edge preparation can be normal. Deep scoring, missing edge material or a measured discrepancy need separate review.
Can a photograph confirm a micro-crack?
It can locate a suspicious line, but cannot reliably establish its depth or exclude hidden damage. Isolate the tool and arrange appropriate inspection. Supply an overall view and several focused close-ups rather than one heavily compressed image.
Can coating repair a chipped or incorrectly ground edge?
Coating is not a substitute for the required geometry or sound cutting edges. Request assessment of the underlying condition; do not accept a coating change as evidence that a crack or dimensional error has been resolved.
What should I send if a new delivery has a problem?
Keep the affected tools. Send the model, size, affected quantity, order or batch details and clear photographs or videos. State whether the issue was found before use. For machining problems, add material, hardness, RPM, feed and setup details.
Will HY Cutting Tools replace tools with a quality problem?
The product, measurements, batch information and machining conditions are reviewed first. If the issue is confirmed to relate to the supplied tools, an appropriate solution such as replacement, remake or another agreed arrangement is discussed.
Can I start with samples or mixed sizes?
Yes, subject to the selected products and quantities. Most standard tools start from 10 pcs; sample quantities and the applicable MOQ are reviewed individually. Samples are generally charged, with shipping paid by the buyer. Choose sizes with actual customer test jobs.

For the complete ordering and after-sales policy, see our Buyer & Reseller FAQs.

Technical reference: Norton: grinding considerations for improving surface finish. General grinding principles support the manufacturing discussion; acceptance follows the agreed tool specification.
