Microfresa de metal duro maciço revestida com 2 canais, Ø 0,2–0,9 mm, para fresagem de precisão

2-flute coated solid carbide micro end mill with Ø0.2–0.9 mm diameter range for precision micro machining. Designed for high-accuracy milling, small feature processing and detailed CNC applications with stable cutting performance.

⚙️ Configurações de produtos

*Flute Count: 2 Flautas
*Faixa de diâmetro: Ø0.2–0.9 mm
*Revestimento: TiAlN / AlTiN coating options for improved wear resistance
*Tool Material: Ultra-fine grain solid carbide for high rigidity and precision machining
*Aplicativo: Micro milling, precision slotting, profiling and small feature machining
*Ângulo da hélice: 30° / 35° (optional)
*Tolerância: High precision tolerance / custom tolerances available
*Personalização: Custom diameter, flute length, overall length and coating options available

Get a Quote Chat On WhatsApp

Consistent Quality

Consistent geometry across repeat orders.

Pedidos flexíveis

Small batches and mixed sizes available.

OEM Support

Custom marking, labels and packaging.

Padrão e personalizado

Standard sizes and custom configurations.

2-Flute Coated Solid Carbide Micro End Mill

This 2-flute solid carbide micro end mill is designed for precision milling of miniature slots, fine contours, small cavities and detailed surface features. Cutting diameters from Ø0.2 to Ø0.9 mm are precision ground from ultra-fine-grain carbide to provide sharp cutting edges, controlled runout and stable performance at small cutting depths. Square-end and ball-nose reference configurations are available with a Ø4 mm shank and 50 mm overall length. Carbide grade, coating, flute length and cutting geometry can be selected according to the workpiece material, hardness, machine spindle and required surface accuracy.

Cutting Diameter
Ø0.2–Ø0.9 mm
Contagem de flautas
2 Flutes
End Profiles
Square End / Ball Nose
Aplicativo principal
Precision Micro Milling

Key Features and Machining Benefits

Micro-Diameter Precision

Cutting diameters from Ø0.2 to Ø0.9 mm support miniature slots, fine contours, micro-cavities and detailed precision features.

Precision-Ground Geometry

Advanced CNC grinding helps maintain sharp cutting edges, consistent flute geometry and controlled dimensional accuracy.

Ultra-Fine-Grain Carbide

The carbide substrate provides the balance of edge strength, wear resistance and toughness required by micro-diameter cutting tools.

Application-Matched Coating

AlTiN, TiAlN, TiSiN and other coatings can be selected according to workpiece hardness, cutting temperature and wear conditions.

Typical Precision-Milling Applications

Medical Components

Micro-features, miniature grooves, dental components and precision details in small medical parts.

Electronics & Connectors

Small slots, connector features, miniature housings, fine channels and precision electronic components.

Precision Molds

Micro-cavities, detailed mold inserts, fine textures, lettering and small-radius surface features.

Micro End Mill Details

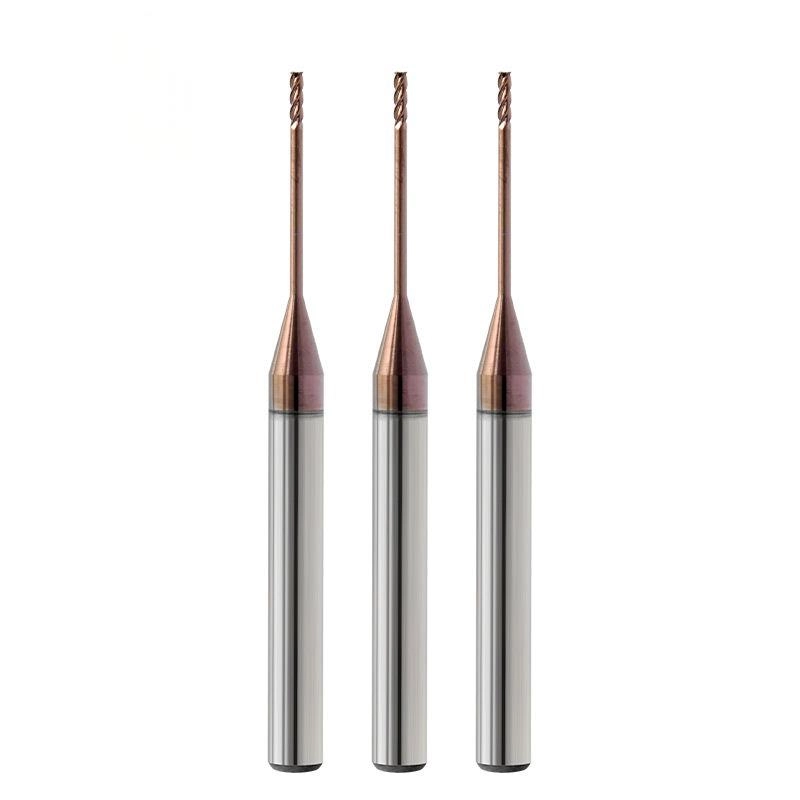

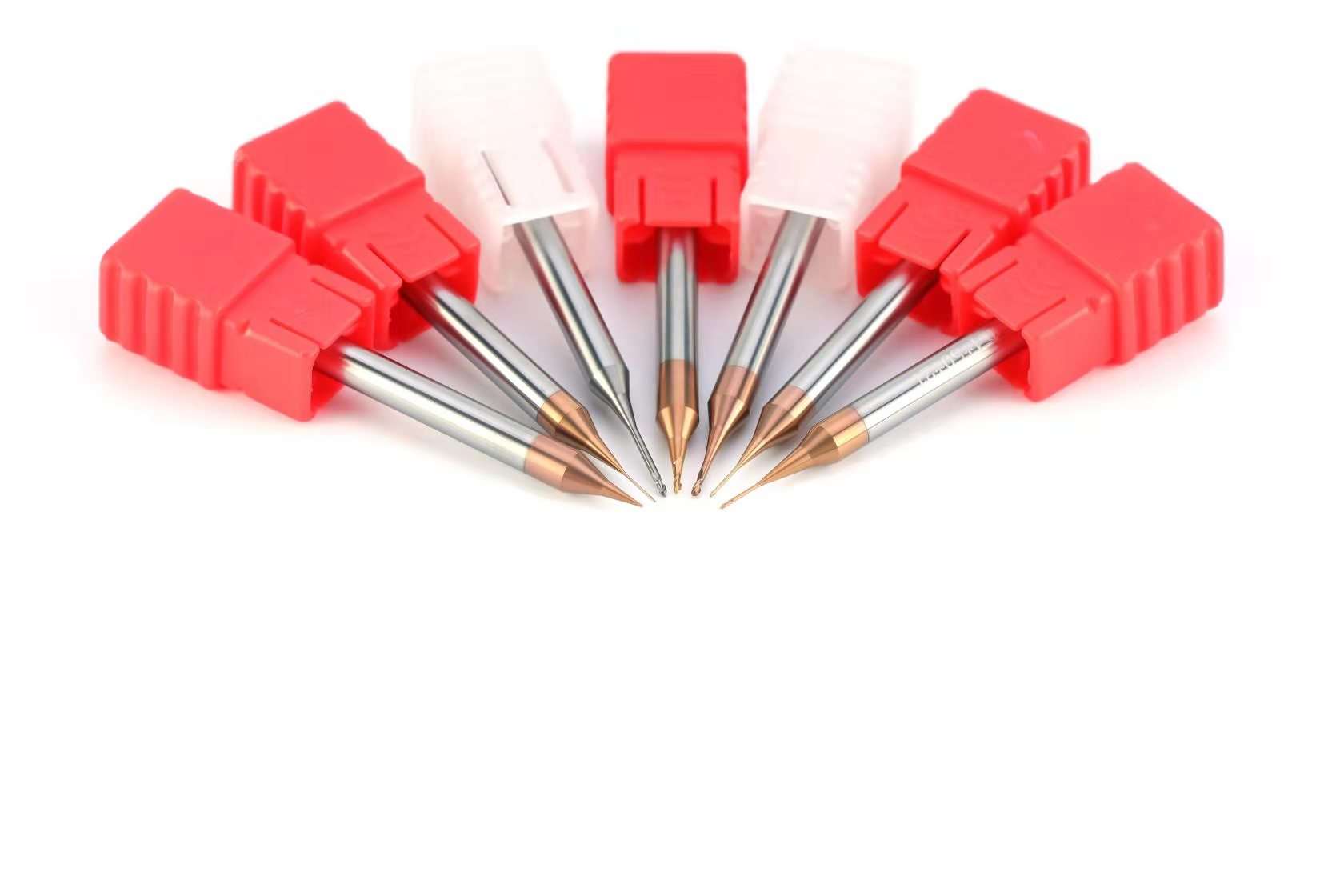

Coated 2-flute solid carbide micro end mills from 0.2 to 0.9 mm

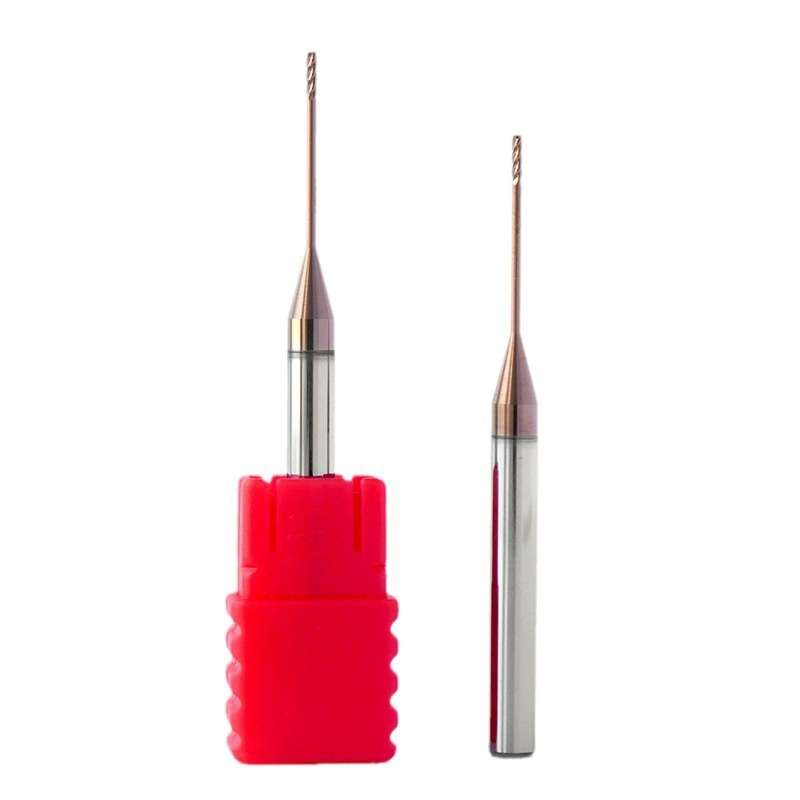

Precision-ground cutting edge of a solid carbide micro end mill

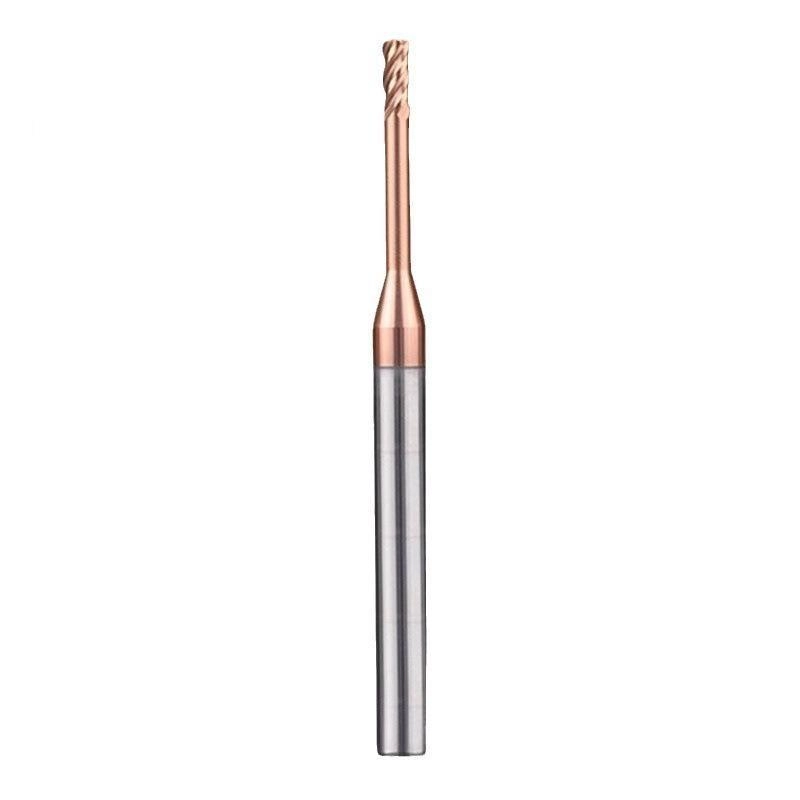

Micro-diameter solid carbide end mill for precision CNC milling2-Flute Coated Solid Carbide Micro End Mill Ø0.2–0.9 mm for Precision Milling 1 2-Flute Coated Solid Carbide Micro End Mill Ø0.2–0.9 mm for Precision Milling 3

Application and Workpiece Materials

Tool geometry, carbide grade and coating should be selected separately according to the workpiece material, hardness, feature size and required surface quality.

P Carbon & Alloy Steel

M Stainless Steel

H Mold & Hardened Steel

N Aluminum & Copper Alloys

S Titanium Alloys

Machining Note: Micro end mills are sensitive to spindle runout, tool overhang and sudden cutting loads. Use a high-precision holder, minimize overhang, apply a stable ramp or controlled entry, and select cutting parameters according to the tool diameter and workpiece material.

2-Flute Micro End Mill Specifications

Standard reference sizes cover cutting diameters from Ø0.2 to Ø0.9 mm with a Ø4 mm shank and 50 mm overall length. Both square-end and ball-nose models are listed below. Non-standard cutting diameters, flute lengths, neck dimensions, coatings and overall lengths can be reviewed according to the application drawing.

PARAMETER PRODUCT CONFIGURATION
Product Type Coated solid carbide micro end mill for precision milling and miniature-feature machining
Cutting Diameter Standard reference range Ø0.2–Ø0.9 mm, with selected intermediate and non-standard diameters available
End Profiles Square-end and ball-nose reference configurations
Contagem de flautas Standard 2-flute geometry for chip clearance and controlled cutting engagement at micro diameters
Carbide Substrate Ultra-fine-grain solid carbide selected for cutting-edge strength, wear resistance and micro-tool stability
Diâmetro da haste Standard Ø4 mm cylindrical shank for the listed reference sizes
Comprimento total Standard 50 mm overall length; non-standard lengths can be manufactured according to the drawing
Helix Options 30°, 35° or 45° reference geometry selected according to the workpiece material and machining operation
Opções de revestimento AlTiN, TiAlN, TiSiN, AlTiSiN, TiN or application-specific coating; low-friction configurations can be reviewed for non-ferrous materials
Hardness Series HRC45, HRC55, HRC60 and HRC65 series selected according to workpiece hardness and cutting conditions
Reference Tolerance Up to ±0.01 mm; critical cutting diameter, radius and runout requirements are confirmed according to the drawing
Requisitos da máquina High-precision CNC machining center or milling machine with controlled spindle runout and a suitable micro-tool holder

Dimensional Reference

2-flute solid carbide micro end mill dimensional drawing
Dimension Symbols: d = cutting diameter; C = flute length; L = overall length; D = shank diameter; T = flute count. Dimensions are shown in millimetres.

Standard Micro End Mill Sizes

MODEL d C L D T
Φ0.2 × 0.4 × 50 × 4D × 2F 0.2 0.4 50 4 2
Φ0.25 × 0.5 × 50 × 4D × 2F 0.25 0.5 50 4 2
Φ0.3 × 0.6 × 50 × 4D × 2F 0.3 0.6 50 4 2
Φ0.35 × 0.7 × 50 × 4D × 2F 0.35 0.7 50 4 2
Φ0.4 × 0.8 × 50 × 4D × 2F 0.4 0.8 50 4 2
Φ0.5 × 1.0 × 50 × 4D × 2F 0.5 1.0 50 4 2
Φ0.6 × 1.5 × 50 × 4D × 2F 0.6 1.5 50 4 2
Φ0.7 × 2.0 × 50 × 4D × 2F 0.7 2.0 50 4 2
Φ0.8 × 2.0 × 50 × 4D × 2F 0.8 2.0 50 4 2
Φ0.9 × 2.0 × 50 × 4D × 2F 0.9 2.0 50 4 2

Standard Micro Ball-Nose End Mill Sizes

MODEL d C L D T
R0.1 × 0.4 × 50 × 4D × 2F 0.2 0.4 50 4 2
R0.15 × 0.6 × 50 × 4D × 2F 0.3 0.6 50 4 2
R0.2 × 0.8 × 50 × 4D × 2F 0.4 0.8 50 4 2
R0.25 × 1.0 × 50 × 4D × 2F 0.5 1.0 50 4 2
R0.3 × 1.2 × 50 × 4D × 2F 0.6 1.2 50 4 2
R0.35 × 1.4 × 50 × 4D × 2F 0.7 1.4 50 4 2
R0.4 × 1.6 × 50 × 4D × 2F 0.8 1.6 50 4 2
R0.45 × 1.8 × 50 × 4D × 2F 0.9 1.8 50 4 2
Size Note: The listed dimensions are standard reference configurations. Please confirm the end profile, cutting diameter, flute length, shank diameter, overall length, workpiece material and coating before ordering. Drawing-defined non-standard micro end mills are available after technical review.

Carbide Micro End Mill Customization

Cutting diameter, end profile, flute length, neck geometry, shank diameter, overall length, helix angle, carbide grade, cutting-edge preparation and coating can be configured for precision micro-milling applications. Standard reference sizes cover Ø0.2–Ø0.9 mm cutting diameters with 2-flute square-end or ball-nose geometry, a Ø4 mm shank and 50 mm overall length. Intermediate diameters and drawing-defined non-standard micro tools can be reviewed according to the workpiece material, feature size, spindle runout, cutting depth and required surface accuracy.

PARAMETER MANUFACTURING CAPABILITIES
Cutting Diameter Standard reference range from Ø0.2–Ø0.9 mm, with selected intermediate and drawing-defined non-standard micro diameters available for technical review
End Profile Square-end geometry for miniature slots, flat-bottom features and fine profiling, or ball-nose geometry from R0.1–R0.45 for micro-contouring and curved-surface finishing
Contagem de flautas Standard 2-flute configuration providing chip space and controlled cutting engagement for micro-diameter precision milling
Comprimento da flauta Standard reference cutting lengths from 0.4–2.0 mm, with custom flute lengths reviewed according to the cutting diameter, feature depth and rigidity requirements
Neck & Reach Configuration Standard short-reach geometry or drawing-defined reduced-neck and extended-reach configurations for recessed micro-features and restricted machining areas
Configuração da haste Standard Ø4 mm precision cylindrical shank for stable clamping; alternative shank diameters and clamping lengths can be reviewed for non-standard orders
Comprimento total Standard 50 mm overall length, with drawing-defined extended or shortened configurations available according to machine clearance and machining reach
Ângulo da hélice 30°, 35° or 45° reference helix options selected according to the workpiece material, chip formation, cutting resistance and required surface finish
Cutting-Edge Preparation Application-matched rake angle, relief geometry, end-face grinding, gash geometry and micro-edge preparation selected to balance sharpness and resistance to edge chipping
Carbide Grade Ultra-fine-grain solid carbide selected according to the micro-tool diameter, required cutting-edge strength, wear resistance and workpiece hardness
Hardness Series HRC45, HRC55, HRC60 and HRC65 tool series can be configured according to the workpiece material, hardness and machining conditions
Coating Selection AlTiN, TiAlN, TiSiN or AlTiSiN for steel and higher-temperature applications; polished uncoated or DLC configurations can be reviewed for aluminum, copper and selected non-ferrous materials
Workpiece Materials Application-specific configurations are available for carbon steel, alloy steel, mold steel, stainless steel, hardened steel, titanium alloys, aluminum and copper alloys
Milling Application Geometry can be reviewed for miniature slotting, micro-cavity machining, fine profiling, engraving, detailed mold features and precision 3D contouring
Tolerance & Runout Drawing-defined control of cutting diameter, radius, flute length, shank diameter, overall length and tool runout, with critical requirements confirmed before production
OEM & Private Label Custom laser marking, tool codes, dimensional identification, coating presentation, specification labels, protective packaging and private-label supply are available
Nota de engenharia: Please provide the workpiece material and hardness, required end profile, cutting diameter or ball radius, flute length, neck length, shank diameter, overall length, machining operation, spindle speed, holder type, coolant method, dimensional tolerance and order quantity. Final carbide grade, cutting-edge geometry, coating and custom dimensions are confirmed after technical review.

Serviços de OEM e marca própria

OEM manufacturing and private-label supply options are available for industrial distributors, tooling brands and repeat-production customers. Laser identification, label content, protective packaging and coating presentation can be configured according to the approved product specification and order requirements.

OEM laser marking custom labels coatings and packaging for solid carbide square end mills

Laser Etching

Custom logos, tool codes, cutting dimensions, coating identification and batch numbers can be marked according to the available shank area.

Custom Labels & Packaging

Individual protective tubes, product labels, specification details, colored packaging tubes and private-label packaging can be reviewed.

Commercial Terms

MOQ, sample evaluation, custom-size trials, repeat orders and scheduled supply programs are confirmed according to the selected configuration.

Technical Workflow

A structured review process is used to confirm standard, customized and private-label square end mill requirements before production.

STAGE 01

Inquiry

Submit the material, hardness, milling operation, dimensions, tolerance and quantity.

STAGE 02

Engineering

Review flute geometry, helix angle, edge preparation, coating, ap and ae.

STAGE 03

Commercial

Confirm quotation, MOQ, sample requirements, production schedule and delivery terms.

STAGE 04

Production

CNC grinding, end-face formation, edge preparation, coating and laser marking.

STAGE 05

Quality Control

Inspect diameter, flute length, shank, runout, square-end geometry and cutting edges.

Need OEM or private-label supply for this product? Conheça nossos serviços de OEM e marca própria for custom marking, branded packaging, mixed-size orders and repeat supply.

Quality, Inspection & Delivery

Our solid carbide square end mills are controlled through material verification, precision grinding, in-process measurement and final inspection. Key dimensions, square-end geometry, cutting-edge condition, coating appearance and product identification are reviewed according to the approved specification or drawing before packing.

Controlled manufacturing and final inspection for solid carbide square end mills

Three-Stage Quality Control

Inspection checkpoints are arranged around the manufacturing process to support dimensional consistency and repeat-order control.

STAGE 01

Incoming Material Control

Carbide substrate grade, blank dimensions and supplied material information are checked against the production requirement.

STAGE 02

In-Process Grinding Control

Cutting diameter, flute geometry, flute length, square-end profile and shank dimensions are monitored during CNC grinding.

STAGE 03

Final Tool Inspection

Finished tools are reviewed for specified dimensions, runout, cutting-edge condition, coating appearance, marking and packing identification.

Key Inspection Characteristics

Inspection requirements are confirmed according to the standard product specification or the approved custom drawing.

INSPECTION ITEM CONTROL FOCUS CONFIRMATION BASIS
Cutting Diameter (DC) Diameter and dimensional consistency Standard specification or approved drawing
Flute Length (APMX) Effective cutting length Confirmed product size or drawing requirement
Shank Diameter (DCON) Clamping-section dimension and surface condition Applicable shank specification
Overall Length (OAL) Total tool length Standard size matrix or approved drawing
Deslocamento radial Concentricity between cutting section and shank Agreed inspection requirement
Square-End Geometry End-face profile, corner condition and center-cutting form Selected tool configuration
Flute & Helix Profile Flute count, helix form and grinding consistency Approved manufacturing configuration
Cutting Edge & Coating Edge condition, visible defects and coating appearance Application-specific production requirement
Marking & Identification Tool code, dimensions and batch information where applicable Confirmed order and packaging specification

Measurement & Batch Traceability

Optical measuring systems, tool inspection equipment and appropriate dimensional gauges are selected according to the feature being checked.

Optical Measurement

Profile and dimensional review of specified cutting features.

Runout Verification

Concentricity review based on the agreed product requirement.

Edge Inspection

Magnified review of the end face, corners and cutting-edge condition.

Batch Identification

Order, product and batch information are linked where required for repeat supply.

Inspection Documentation: Dimensional records, sample inspection requirements or additional documentation can be reviewed according to the order specification before production.

Protective Packaging Process

Finished end mills are protected to reduce contact between cutting edges and to support clear product identification during storage and transportation.

solid carbide micro end mill product collection photoProtective packaging process for solid carbide end mills
01 Individual ProtectionProtective tubes or cases help shield cutting edges.
02 Batch IdentificationLabels identify the applicable tool and order information.
03 Carton ProtectionInternal cushioning is selected according to the shipment.
04 Ready for DispatchCartons are closed and prepared for the confirmed shipping method.

Bulk-Order & Export Packaging

Bulk shipments can be arranged with reinforced cartons, protective wrapping, palletized loading or export cases according to order quantity, shipment weight and agreed transportation requirements.

Bulk-order and export packaging for HY Cutting Tools shipments

Delivery Coordination

Production completion, packing method and dispatch arrangements are confirmed according to the approved order. Courier, air, sea or customer-designated shipping options can be reviewed according to shipment size and destination. Final lead time is confirmed after product specifications, quantity and packaging requirements are approved.

2-Flute Solid Carbide Micro End Mill FAQ

Find answers about micro-end-mill sizes, square-end and ball-nose profiles, suitable materials, coatings, spindle runout, cutting conditions, custom dimensions, samples, lead time and OEM supply.

What applications is this micro end mill designed for?
This micro end mill is designed for miniature slots, micro-cavities, fine contours, detailed mold features, engraving and other precision-milling operations. It can be used for medical components, electronic parts, connectors, miniature molds and other small precision features.
Which cutting diameters are available?
Standard reference diameters range from Ø0.2 to Ø0.9 mm. Available square-end sizes include Ø0.2, Ø0.25, Ø0.3, Ø0.35, Ø0.4, Ø0.5, Ø0.6, Ø0.7, Ø0.8 and Ø0.9 mm. Intermediate and non-standard diameters can be manufactured after technical review.
Are square-end and ball-nose models both available?
Yes. Square-end micro end mills are suitable for miniature slots, flat-bottom features and fine profiling. Ball-nose models from R0.1 to R0.45 are available for curved surfaces, micro-contouring and detailed 3D finishing.
Why does this micro end mill use a 2-flute design?
The 2-flute design provides sufficient chip space at very small cutting diameters. It helps control chip evacuation and cutting engagement while retaining the tool-core strength required for precision micro milling.
What materials can this micro end mill machine?
Application-specific configurations are available for carbon steel, alloy steel, mold steel, stainless steel, hardened steel, titanium alloys, aluminum and copper alloys. Carbide grade, edge geometry and coating must be selected separately for the intended workpiece material.
Which coating should I choose?
AlTiN, TiAlN, TiSiN and AlTiSiN coatings can be selected for steel and higher-temperature machining. Polished uncoated or DLC-coated configurations are more appropriate for aluminum, copper and selected non-ferrous materials. Final coating selection depends on the material, hardness, cutting temperature and coolant method.
How important is spindle runout for a Ø0.2–0.9 mm end mill?
Spindle and holder runout are critical because even a small amount of runout represents a large percentage of the micro tool’s diameter. Excessive runout can cause uneven cutting loads, poor dimensional accuracy and premature tool breakage. A high-precision holder and stable spindle are recommended.
How can micro-end-mill breakage be reduced?
Minimize tool overhang, use a clean high-precision holder and avoid sudden cutting engagement. Controlled ramp entry, small cutting depths, stable chip evacuation and suitable speeds and feeds help reduce excessive cutting loads and micro-tool breakage.
Can this tool perform full-width slotting?
Full-width slotting may be possible with suitable cutting parameters, but it creates a higher load than profiling or partial radial engagement. The cutting depth, feed rate and entry method should be reduced according to the tool diameter, workpiece material and spindle rigidity.
Should air blast or coolant be used?
The appropriate method depends on the workpiece material and coating. Air blast or mist can help remove small chips from the cutting area, while a stable coolant supply may be used for selected materials. Avoid interrupted or inconsistent coolant delivery during heat-sensitive machining.
Can you manufacture custom micro end mills?
Yes. Cutting diameter, ball radius, flute length, neck diameter, effective reach, shank diameter, overall length, helix geometry and coating can be customized according to an approved drawing. Critical tolerance and runout requirements should be confirmed before production.
Can I order samples before bulk production?
Yes. Standard-size and custom samples can be reviewed before bulk production. Please provide the required diameter, end profile, flute length, workpiece material, coating and machining conditions so that the sample configuration can be confirmed.
What is the production lead time?
In-stock standard sizes are generally prepared for shipment within 1–3 working days. Lead time for custom diameters, special coatings, samples and OEM orders is confirmed separately after the dimensions, technical requirements and order quantity have been reviewed.
Do you provide OEM and private-label services?
Yes. OEM services include custom dimensions, carbide grades, coatings, laser-marked tool codes, product labels, individual protective packaging and private-label supply for distributors and tooling brands.
What information is required for a quotation?
Please provide the end profile, cutting diameter or ball radius, flute length, neck dimensions, shank diameter, overall length, workpiece material and hardness, machining operation, spindle speed, holder type, coolant method, tolerance and required quantity.

Technical Downloads

Download general product and cutting-data references for solid carbide micro end mill selection and machining preparation.

Need Sizes, Pricing or Custom Options?

Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.

Standard Sizes Small Trial Orders Mixed Sizes OEM & Custom Options
Request Price & Specifications Chat on WhatsApp

Drawings, size lists and reference photos are welcome.

Produtos relacionados
