HRC55 90° Solid Carbide Spot Drill for Centering and Chamfering

HRC55 90° SOLID CARBIDE SPOT DRILL SERIES
Rigid 90° spotting, centering and 45° edge chamfering for steel, alloy steel and selected pre-hardened materials.
Tool Type:Spot Drill / Chamfer Cutter
Substrat :Fine-Grain Solid Carbide
Point Angle:90° Included Angle
Chamfer Angle:45° per Side
Flûte Compte :2 Cutting Edges
Diameter Range:Ø3–Ø12 mm
Length Options:Standard / 150 mm / 200 mm
Shank Type:Cylindrical Straight Shank
Primary Operations:Spotting / Centering
Secondary Operations:Chamfering / Edge Breaking
Application / Material
P Steel & Alloy SteelH Pre-Hardened Steel

Une qualité constante

Une géométrie constante d'une commande à l'autre.

Commandes flexibles

Petits lots et formats variés disponibles.

Assistance OEM

Marquage, étiquettes et emballages personnalisés.

Modèles standard et sur mesure

Dimensions standard et configurations sur mesure.

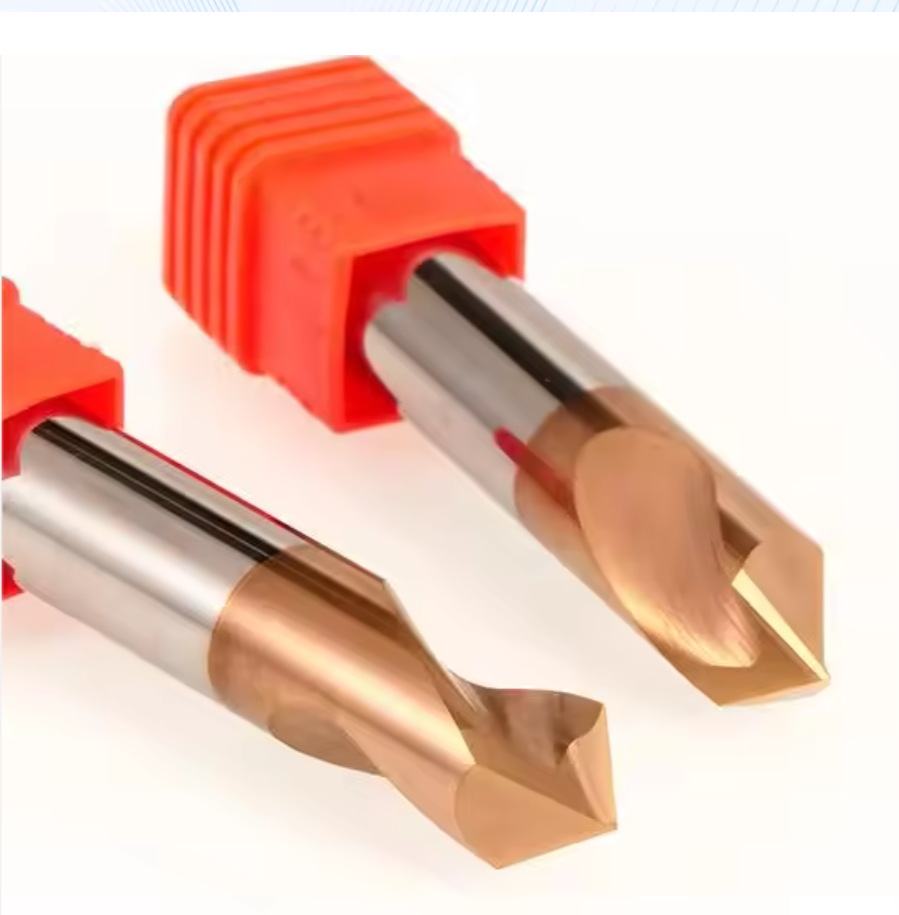

HRC55 90° Solid Carbide Spot Drill

This HRC55-series 90° solid carbide spot drill is designed for accurate spotting, centering and selected chamfering operations in steel, alloy steel and mold steel. Its short, rigid cutting geometry helps establish a controlled starting position before follow-up drilling, while the 90° included point can also produce a 45° edge chamfer when used perpendicular to the workpiece surface. Standard diameters range from Ø3 to Ø12 mm, with standard, 150 mm and selected 200 mm overall-length configurations available.

Point Angle
90° Included Angle
Flute Design
2 Cutting Edges
Matériau de l'outil
Solid Carbide
Diameter Range
Ø3–Ø12 mm

Key Configuration

1

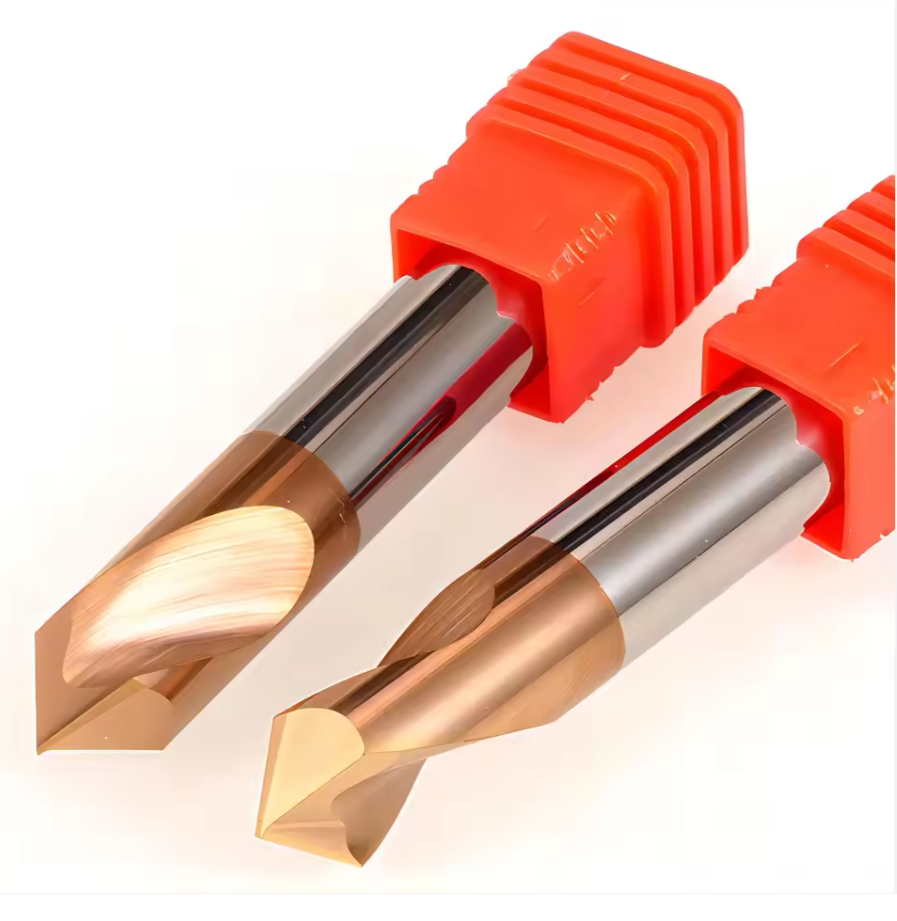

90° Point Geometry

Creates a controlled starting feature for follow-up drilling and can produce a 45° chamfer around the hole edge.

2

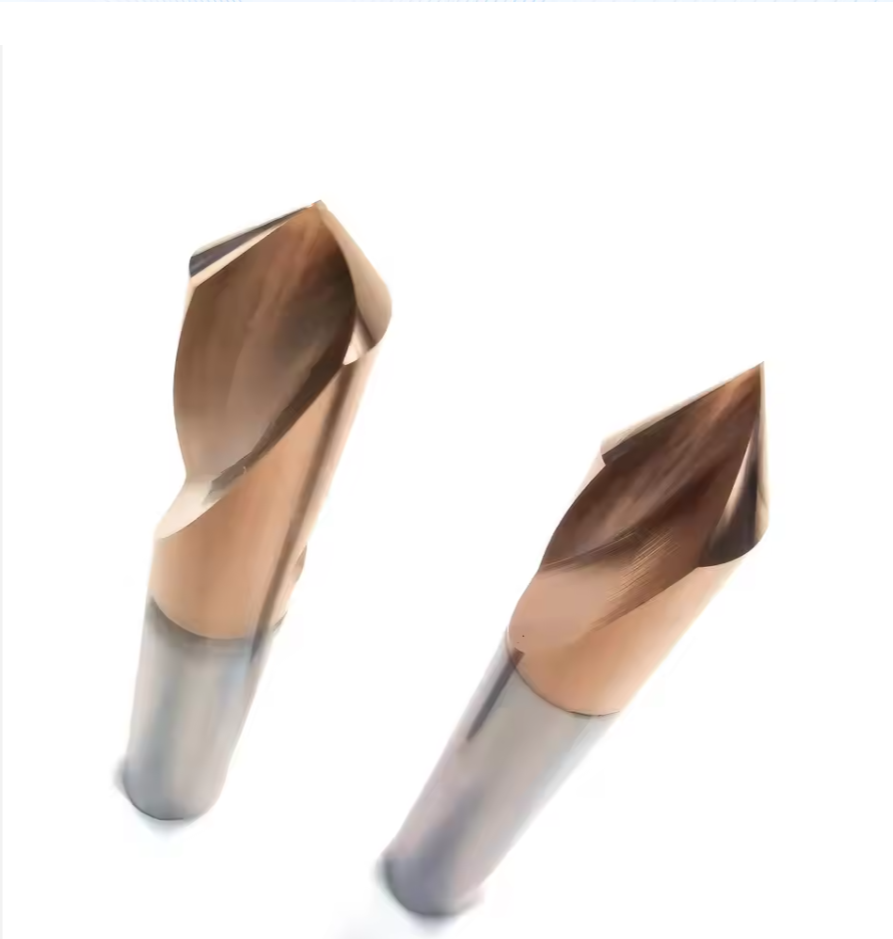

Two-Edge Spiral Design

Two cutting edges balance the cutting load while spiral flutes provide chip space during shallow spotting and chamfering.

3

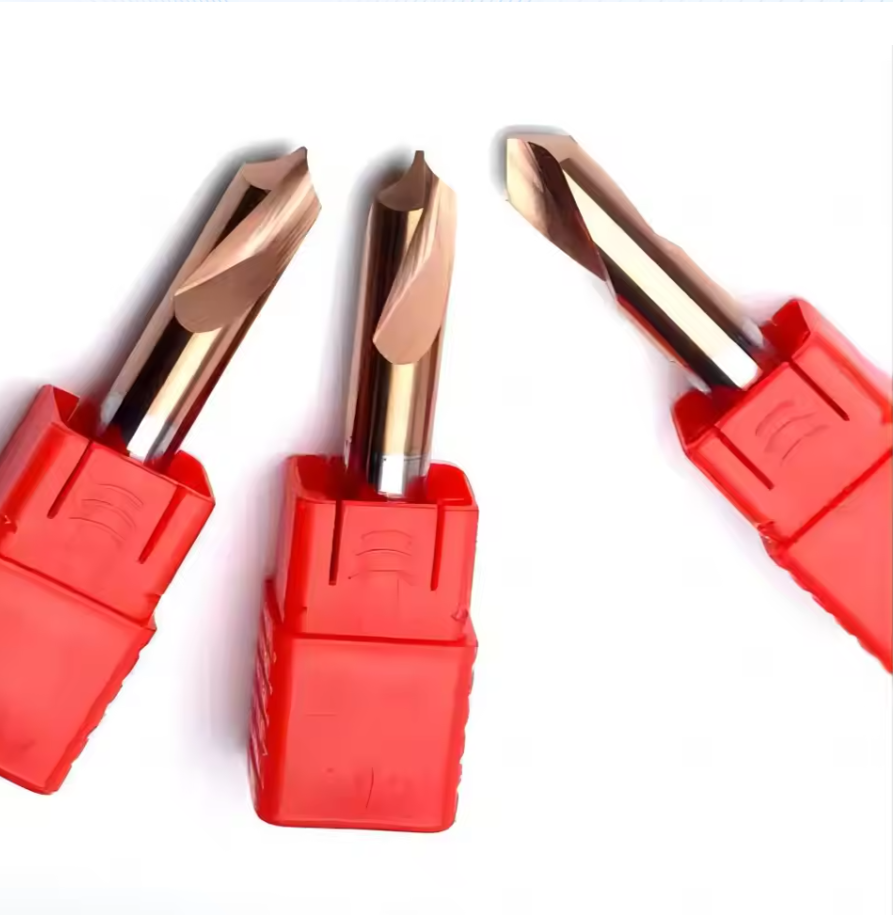

Standard & Extended Reach

Standard-length tools provide the highest rigidity, while selected 150 mm and 200 mm configurations support restricted-access machining.

Precision Hole-Preparation Functions

01 · Spotting

Creates a shallow conical starting feature that helps the following drill enter at the programmed hole location.

02 · Centering

Improves entry stability for subsequent drilling, especially with small-diameter or extended-length drills in rigid CNC setups.

03 · Chamfering

Produces a 45° chamfer around a drilled hole and supports selected edge-breaking and light countersinking operations.

90° Point Geometry & Application

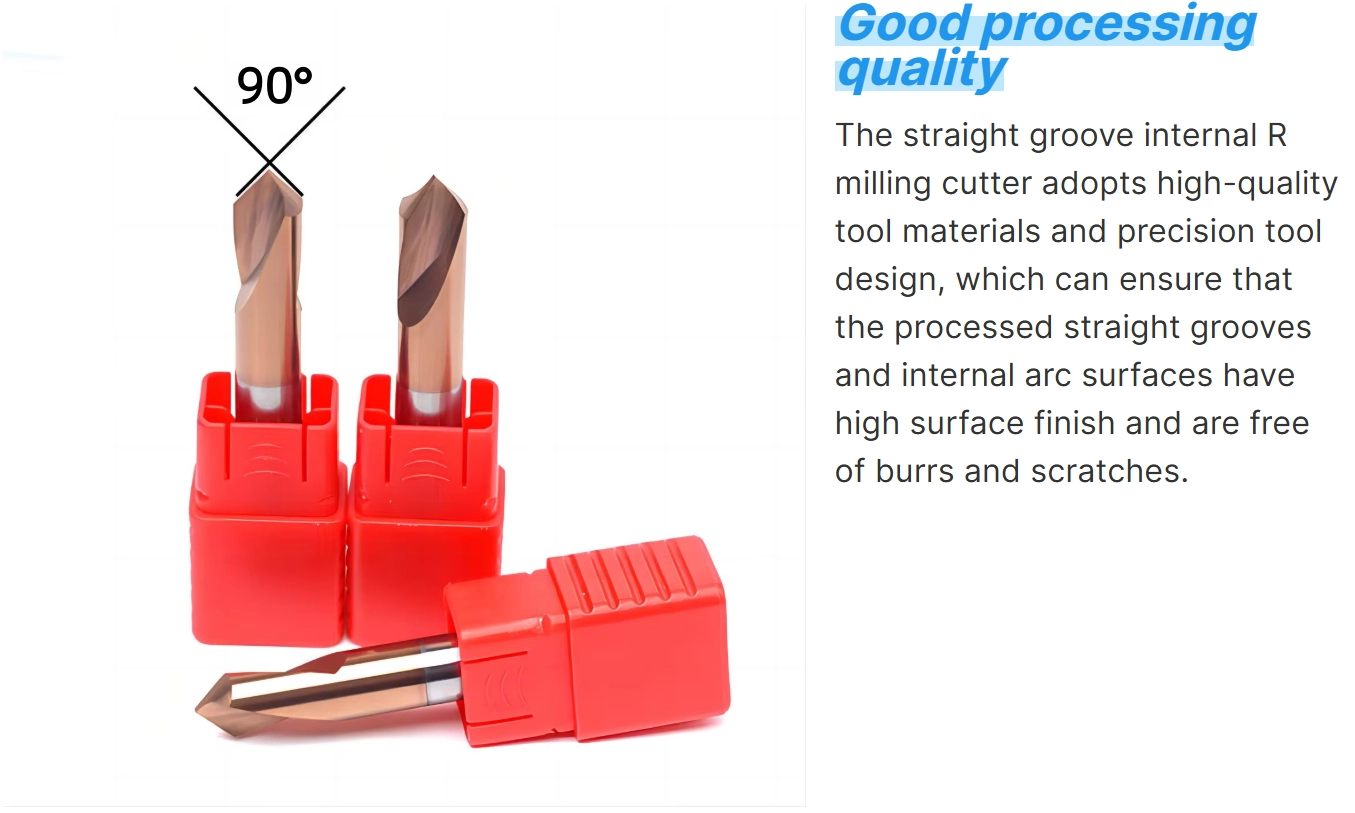

HRC55 solid carbide spot drills showing the 90 degree included point

90° solid carbide spot-drill point geometry

How to Use a 90° Spot Correctly

  • Keep the spot shallow when its main purpose is accurate hole location.
  • Use controlled axial depth when producing a specified hole-edge chamfer.
  • Check the relationship between the 90° spot and the following drill-point angle.
  • Do not use the spot drill as a substitute for a full-depth twist drill.
Process Note: A conventional 118° or 135° twist drill has a flatter point than this 90° spot drill. If the spot is made too deep, the following drill may initially contact near its outer cutting edges. Use a shallow spot for positioning and review both geometries for critical production work.

Key Product Advantages

◎

Controlled Drill Entry

Creates a defined starting position and helps reduce drill wandering during entry.

◇

Spotting & Chamfering

The 90° point supports accurate spotting and selected 45° edge chamfering.

◆

Carbide Rigidity

Rigid solid carbide supports stable positioning and controlled chamfer depth.

↕

Flexible Reach

Standard, 150 mm and selected 200 mm lengths cover different access requirements.

Tool Construction & Cutting Style

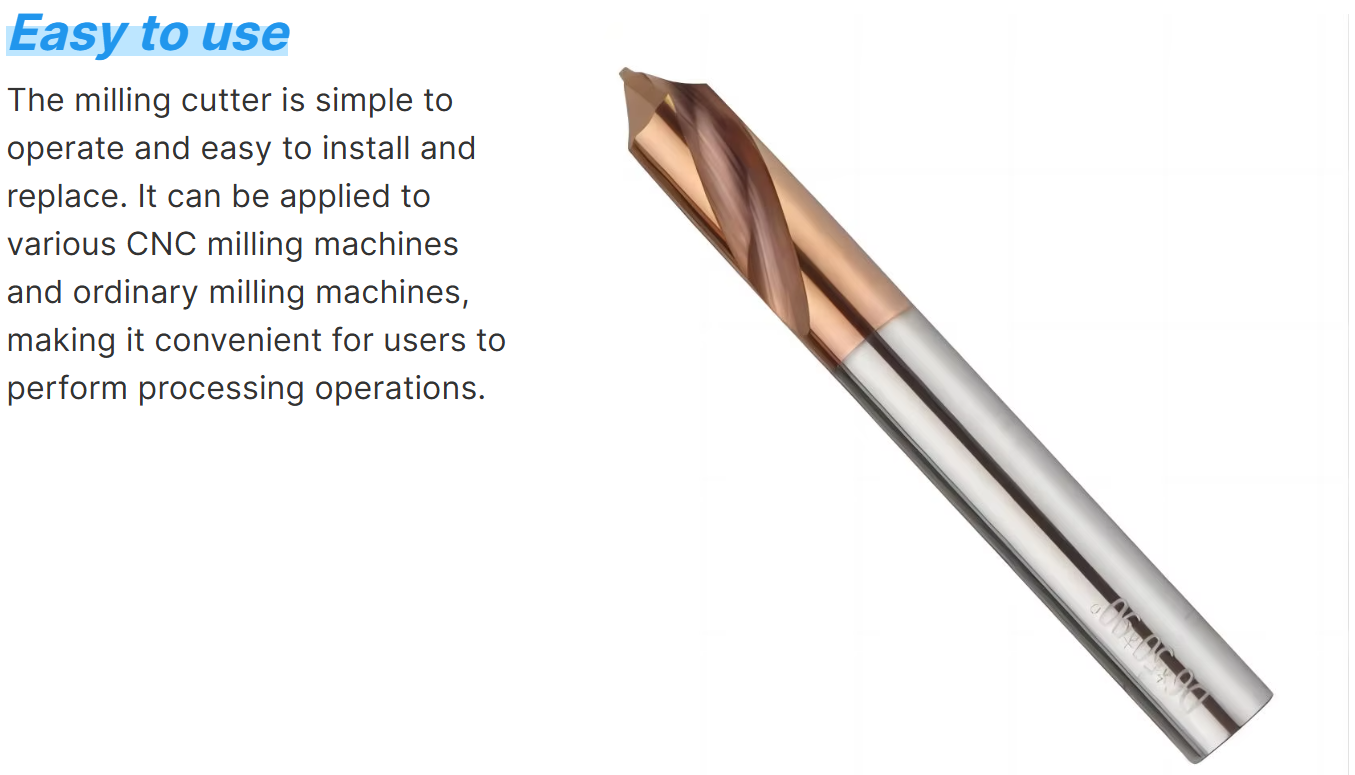

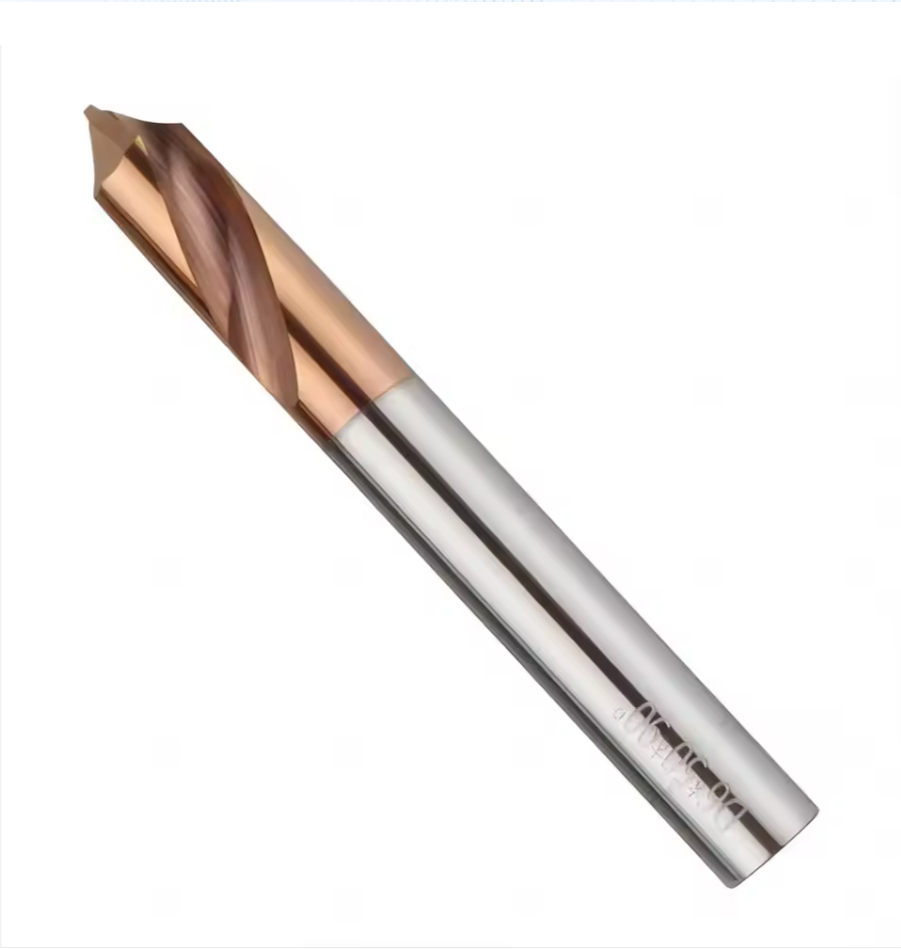

Long solid carbide 90 degree spiral spot drill with straight shank

Two-edge spiral geometry with standard and extended-length configurations

• Two-Edge Spiral Geometry

Two cutting edges share the cutting load while the spiral flutes provide chip space.

• Solid-Carbide Body

Rigid construction supports consistent spot location and controlled chamfer depth in stable setups.

• Straight Shank

Designed for low-runout clamping in a clean precision collet, hydraulic or shrink-fit holder.

Product Video

Solid Carbide Spotting and Chamfering Tool

Compatibilité avec les matériaux des pièces à usiner

GROUPE DE MATÉRIAUX EXAMPLES APPLICATION NOTE
P Steel & Alloy Steel Carbon steel and alloy steel Primary application
H Pre-Hardened Steel Mold steel and selected hardened steel Confirm actual hardness
Application Note: HRC55 indicates the intended upper application positioning for selected workpiece materials and stable machining conditions. It is not the hardness of the carbide tool or a universal machining guarantee.

Steel and Aluminum Require Different Cutting Styles

Coated carbide spot drills for steel and polished carbide spot drills for aluminum

Comparison of steel-focused and aluminum-focused carbide cutting styles

● Coated Steel-Focused Version

The coated tools are intended for steel, alloy-steel and mold-steel applications. Coating and edge preparation help manage cutting heat and abrasive wear.

● Polished Aluminum Version

Aluminum-focused tools normally use sharper cutting edges and polished flutes to reduce friction and material adhesion.

For aluminum-focused drilling, view the polished solid carbide drill for aluminum.

Applications & Target Scope

  • Accurate spotting before twist drilling
  • Hole-location preparation on CNC machining centers
  • Centering before small-diameter or extended-length drilling
  • Producing controlled 45° hole-edge chamfers
  • Selected light countersinking and edge-breaking operations
  • Restricted-access machining with 150 mm or 200 mm tool lengths

Product Series Information

Technical configuration and dimensional coverage for the HRC55 90° solid carbide spot-drill series.

Type d'outil Spot Drill Point Angle 90°
Matériau de l'outil Solid Carbide Flute Design 2 Cutting Edges
Diameter Range Ø3–Ø12 mm Longueur totale 50–200 mm
Shank Type Cylindrical Straight Shank Application Positioning Steel Applications up to HRC55
Opérations principales Spotting and Centering Secondary Operation 45° Edge Chamfering
HRC55 Note: HRC55 describes the intended upper workpiece-hardness positioning under selected machining conditions. Final suitability depends on the exact material grade, actual hardness, coating, tool overhang and machine rigidity.

Tool Nomenclature & Dimensions

Reference dimensions used in the standard size matrix for this 90° solid carbide spot-drill series.

D: Cutter Diameter d: Diamètre de la tige L: Longueur totale Angle : 90° Included Point

Standard Size Matrix

Standard and extended-length configurations retained from the original product size chart. All dimensions are in millimeters.

Modèle Cutter Diameter D Point Angle Overall Length L Shank Diameter d
D3×90° 3 90° 50 3
D4×90° 4 90° 50 4
D5×90° 5 90° 50 5
D6×90° 6 90° 50 6
D6×90°×150L 6 90° 150 6
D8×90° 8 90° 60 8
D8×90°×150L 8 90° 150 8
D8×90°×200L 8 90° 200 8
D10×90° 10 90° 75 10
D10×90°×150L 10 90° 150 10
D10×90°×200L 10 90° 200 10
D12×90° 12 90° 75 12
D12×90°×150L 12 90° 150 12
Remarque concernant les dimensions : The original chart lists the configurations shown above. Cutting length, diameter tolerance, shank tolerance and coating designation should be confirmed before ordering.

Setup & Machining Guidance

  • Minimize Runout: Clean the shank and holder, verify clamping and keep tool projection as short as the part permits.
  • Control Spot Depth: Program only the depth needed for hole location or the specified chamfer width.
  • Match Cutting Data: Select speed, feed and coolant according to material hardness, coating, tool diameter and machine rigidity.
  • Use Extended Length Carefully: The 150 mm and 200 mm tools require low vibration, reliable clearance and more conservative parameters.

Recommended Hole-Making Workflow

Step 1

Spot or Center

Create a shallow and accurately located starting feature.

Step 2

Drill the Hole

Continue with the correctly selected solid carbide twist drill.

Step 3

Finish as Required

Chamfer, ream or inspect according to the finished-hole specification.

For steel hole production after spotting, view the HRC55 solid carbide twist drill for steel.

Recommended Starting Cutting Parameters

Use the technical guide as a starting reference, then adjust the parameters according to tool diameter, material grade, hardness, spot depth, tool overhang and machine rigidity.

Solid Carbide Drill Cutting Data Guide

Access ISO-categorized starting cutting data for initial machining trials.

View Cutting Data Guide

Solid Carbide Drill Product Family

Review matching spotting, chamfering and hole-making tools for different workpiece conditions.

HRC55 90° Series

Current Spot-Drill Option

HRC65 Spot Drills

Harder-Material Option

90° Chamfer Cutters

Chamfering-Focused Option

Custom Spot Drills

Drawing-Based Supply

For additional sizes and related series, View the Solid Carbide Drill Catalog.

HRC55 90° Spot Drill Customization

Cutting diameter, 90° point geometry, cutting length, overall reach, edge preparation and coating are configured according to the required centering or chamfering operation, workpiece material and hardness.

Custom HRC55 90-degree solid carbide spot drill geometry

90° Point Geometry & Edge Preparation

The 90° point, center-cutting geometry, flute profile and cutting-edge preparation can be reviewed for accurate spotting, controlled drill entry and selected 45° hole-edge chamfering.

HRC55 spot and center drill customization solutions

Dimensions & Reach Options

Cutting diameter, flute length, overall length, shank diameter and available reach can be configured according to the required spot diameter, chamfer size and component-access conditions.

PARAMÈTRE CAPACITÉS DE FABRICATION
Diameter Configuration Standard and custom cutting diameters selected according to the required spot diameter, chamfer width and hole-entry feature
Point Geometry 90° included point angle with center-cutting preparation and application-specific cutting-edge reinforcement
Cutting & Overall Length Custom cutting length, neck clearance, overall length and reach configured according to the required access and setup rigidity
Configuration de la tige Cylindrical straight or reduced shank with drawing-defined diameter, clamping length and holder requirements
Flute & Edge Preparation Two-flute geometry, center-cutting point, reinforced cutting edges and edge preparation selected for the workpiece hardness
Coating & Coolant AlTiN, TiAlN or application-specific PVD coating with air, mist or external coolant selected according to the material and machining conditions
Tolérance dimensionnelle Drawing-defined tolerances for cutting diameter, point angle, concentricity, runout, cutting length and overall geometry
Note d'ingénierie : HRC55 identifies the product-series application target under suitable conditions. Confirm the exact workpiece grade, hardness, required spot or chamfer dimensions, machine rigidity and cutting parameters before production.

Services OEM et de marque de distributeur

OEM manufacturing and private-label supply options for industrial distributors, tooling brands and repeat-production customers.

OEM branding and packaging for HRC55 solid carbide spot drills

Gravure au laser

Custom marking for logos, tool codes, model numbers, dimensions, coating identification and batch information.

Custom Packaging

Individual protective tubes, internal supports, custom labels, multi-pack boxes and private-label packaging.

Conditions commerciales

Flexible MOQ options for standard dimensions, custom lengths, trial orders and scheduled repeat supply.

Processus technique

ÉTAPE 01

Demande de renseignements

Submit the spot or chamfer dimensions, workpiece grade, hardness and required quantity.

ÉTAPE 02

Ingénierie

Point geometry, cutting length, coating and edge preparation are reviewed.

ÉTAPE 03

Commercial

Quotation, MOQ, production schedule and delivery terms are confirmed.

ÉTAPE 04

Production

Carbide grinding, 90° point formation, edge preparation, coating and marking.

ÉTAPE 05

Contrôle qualité

Diameter, point angle, cutting-edge condition, concentricity and runout are inspected before dispatch.

Inspection & Quality Control

Drill dimensions, cutting-edge geometry and visible surface condition are checked according to the confirmed product specification and application requirements.

Carbide drill inspection and quality control at HY Cutting Tools
POINT D'INSPECTION WHAT WE CHECK
Cutting Diameter Checked against the confirmed product specification or drawing requirement
Overall & Flute Length Dimensional consistency according to the confirmed drill configuration
Runout Checked according to the drill type, diameter and agreed application requirement
Point Geometry Point angle, cutting-edge form and visible geometry condition
Cutting Edge Visible edge condition, grinding quality and edge preparation
Surface & Coating Coating condition, surface consistency and visible defects
Marking & Packaging Product model, quantity, marking and label consistency against the confirmed order
Quality Note: Inspection requirements and tolerance values vary by drill type, diameter, geometry and application. Product-specific requirements are confirmed before production.
Voir « Fabrication et qualité »

Protective Packing for Shipment

Finished drills are protected individually before batch labeling and export-carton reinforcement.

Individual plastic tube protection for carbide drills

Individual Tool Protection

Each drill is individually protected in a plastic tube to reduce contact damage during storage, handling and transportation.

Batch identification label and spec verification for cutting tools

Batch & Label Verification

Tools are grouped and labeled by specification to support order verification before carton packing.

Protective batch packing and export carton protection for cutting tools

Export Carton Protection

Batch packaging, cushioning materials and reinforced export cartons are selected according to the order quantity and shipping method.

Each tool is individually protected before being packed into export cartons. Custom labels, tube colors and outer packaging can be discussed for OEM orders.

Reference Lead Time

The following timeframes are general references. Availability and production scheduling are reviewed for each order.

ORDER TYPE REFERENCE LEAD TIME
Standard Products Usually 3–7 working days, subject to availability
Coated or Marked Products Confirmed after specification and order review
Outils de coupe sur mesure Usually 10–20 working days after drawing approval
Large Batch Orders Confirmed according to the production schedule
Lead Time Note: Final lead time is confirmed according to specification, quantity, coating and packaging requirements.

Shipping Options

Shipping arrangements can be selected according to order size, delivery schedule and destination.

International Express Door-to-door delivery
Customer-Nominated Forwarder Shipment through your appointed agent
Air Freight For time-sensitive batch orders
Sea Freight For larger-volume orders
Shipping and payment hy cutting tools end mill drills
View Buyer & Reseller Resources

Product FAQs

Product-specific information about applications, 90° point geometry, HRC55 series positioning, available configurations and machining requirements for this solid carbide spot drill.

What materials and applications is this spot drill designed for?

This solid carbide spot drill is designed primarily for accurate centering, spotting and selected light chamfering operations in steel, alloy steel, pre-hardened steel and other confirmed materials. Final suitability should be reviewed according to the exact material grade, hardness, feature size and machining conditions.

What is the purpose of the 90° point angle?

The 90° included point angle can produce a controlled starting feature for follow-up drilling and create a 45° chamfer on each side of a hole. The selected spotting diameter and depth should be matched to the point geometry of the following drill and the required chamfer dimensions.

What does the HRC55 designation mean?

HRC55 indicates the product-series positioning and an upper application target for selected machining conditions. It is not a universal guarantee that every material at 55 HRC can be machined with the same parameters. Workpiece grade, actual hardness, coating, tool overhang and machine rigidity must be confirmed.

Can the same tool be used for both centering and chamfering?

Yes. Its short, rigid 90° geometry is suitable for spotting and selected light chamfering operations. For wide chamfers, heavy countersinking or interrupted cuts, the required feature dimensions and cutting conditions should be reviewed before tool selection.

What sizes and configurations are available?

Standard and custom configurations can be reviewed according to the product series. Cutting diameter, cutting length, shank diameter, overall length, point angle, coating and dimensional tolerances should be confirmed before ordering.

What information is required for a quotation?

Please provide the required cutting diameter, shank diameter, cutting length, overall length, workpiece material and hardness, coating requirement and estimated quantity. A drawing is recommended when the tool must produce a specified spot diameter, chamfer or non-standard feature.

Ordering & OEM FAQs

General information for trial orders, mixed-size purchasing, private labeling and production scheduling.

Do you accept small trial orders?

Yes. Small sample or trial orders are welcomed for checking centering accuracy, chamfer quality, tool life and compatibility with the intended workpiece before volume purchasing.

Can mixed sizes be ordered together?

Yes. Standard and custom sizes can be combined in one order when the carbide grade, coating and production requirements are compatible. Mixed-size purchasing is suitable for distributors and multi-diameter machining requirements.

Is OEM laser marking available?

Yes. Custom shank laser marking such as a logo, model number, tool dimensions or batch identification can be reviewed together with OEM labels and packaging requirements.

What is the typical production lead time?

Standard stock items normally have a shorter lead time, while custom dimensions, special coatings and OEM orders require additional production time. The exact schedule is confirmed according to specification, quantity, coating and current production capacity.

Downloads & Technical Resources

Access product dimensions, series information and starting cutting data for tool selection and application review.

Product Series Catalog PDF
Complete product range, dimensions and available solid carbide drill configurations
Speeds & Feeds Guide
Starting cutting data for solid carbide drill selection and machining trials

Vous avez besoin d'informations sur les tailles, les prix ou les options personnalisées ?

Veuillez nous indiquer le type d'outil requis, ses dimensions, les quantités, le matériau de la pièce à usiner ainsi que toute exigence spécifique à un équipementier ou toute demande sur mesure. Nous vous confirmerons les caractéristiques techniques adaptées, la disponibilité, le délai de livraison et les détails du devis.

Dimensions standard Petites commandes d'essai Tailles variées Options OEM et personnalisées
Demander le prix et les caractéristiques techniques Discuter sur WhatsApp

Les croquis, les listes de dimensions et les photos de référence sont les bienvenus.
