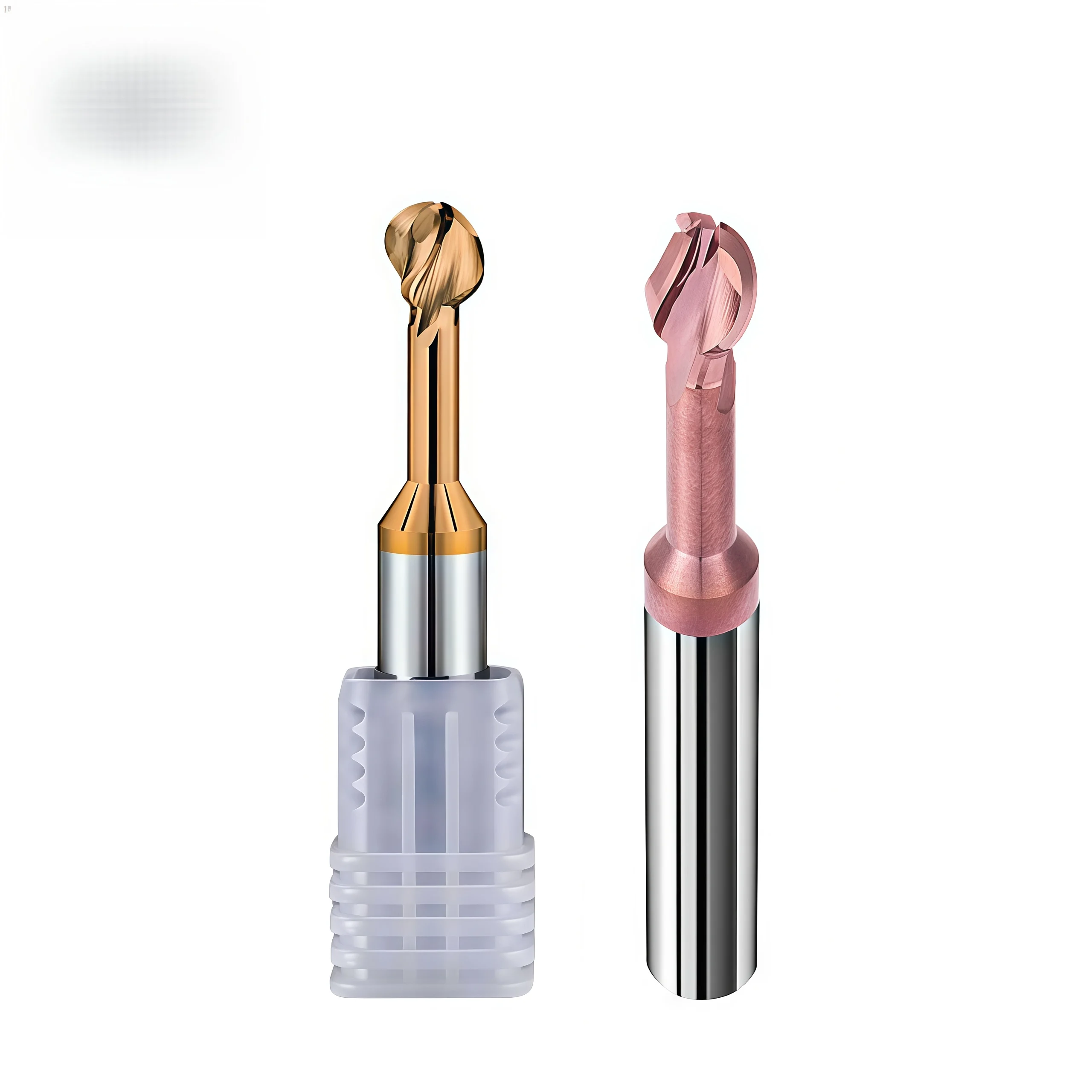

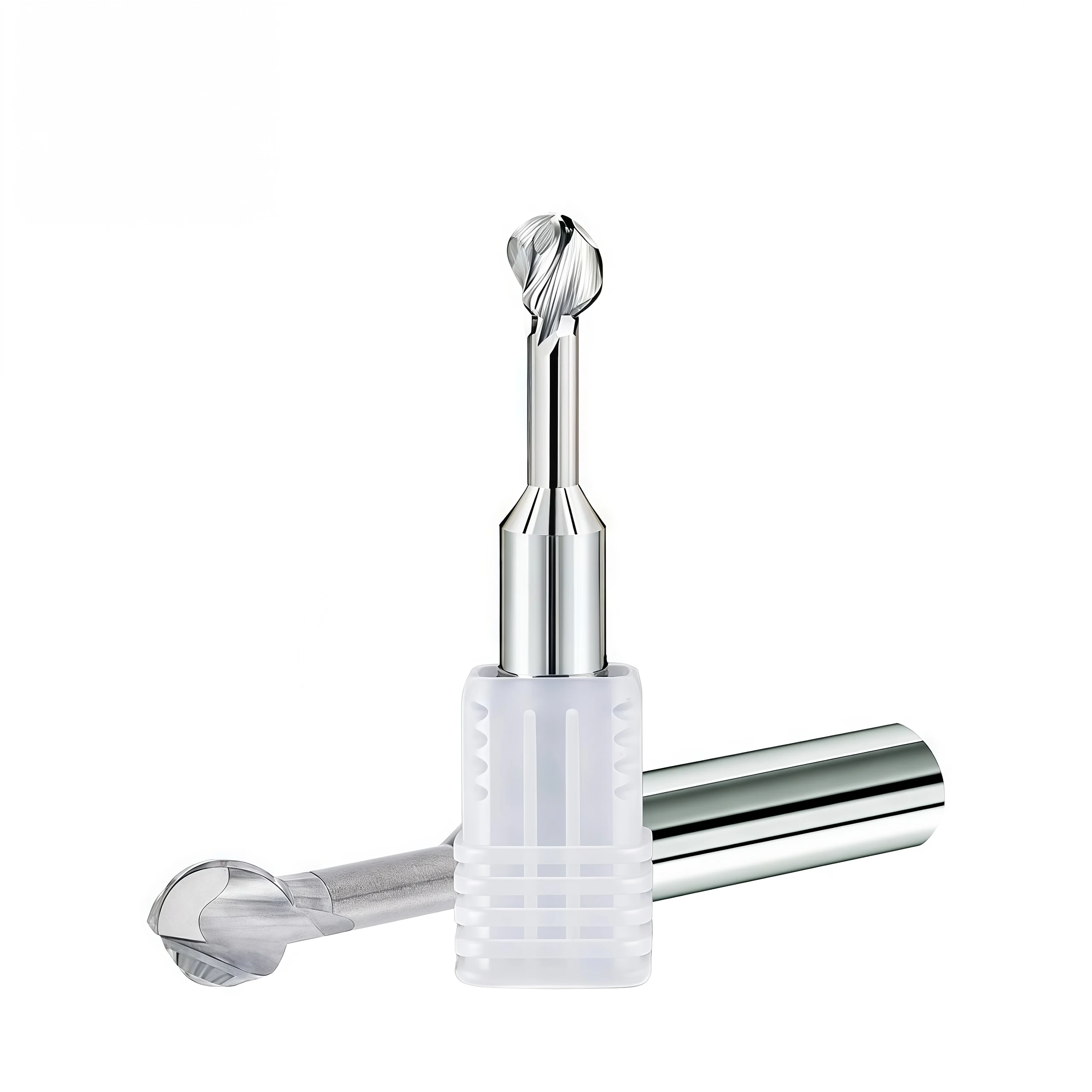

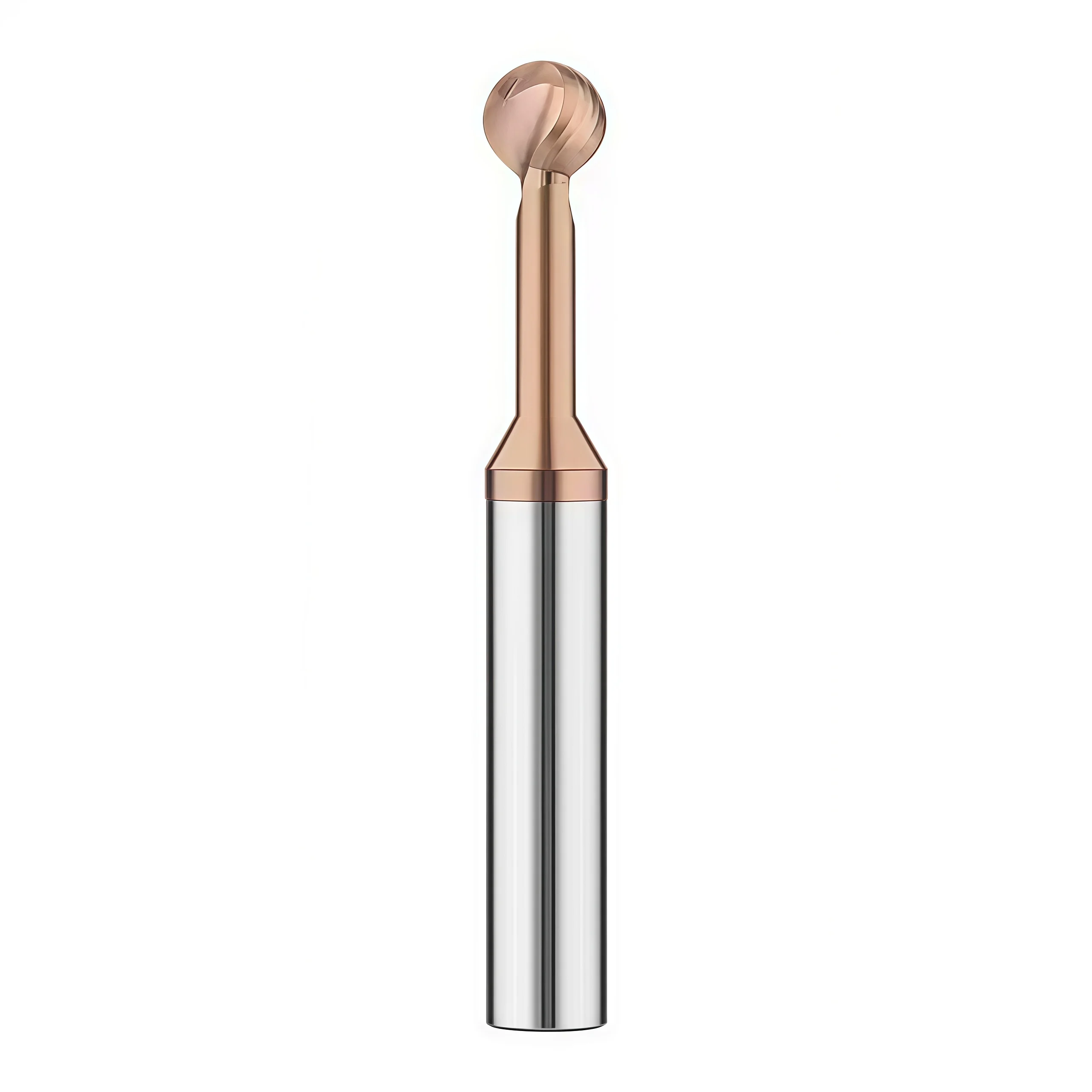

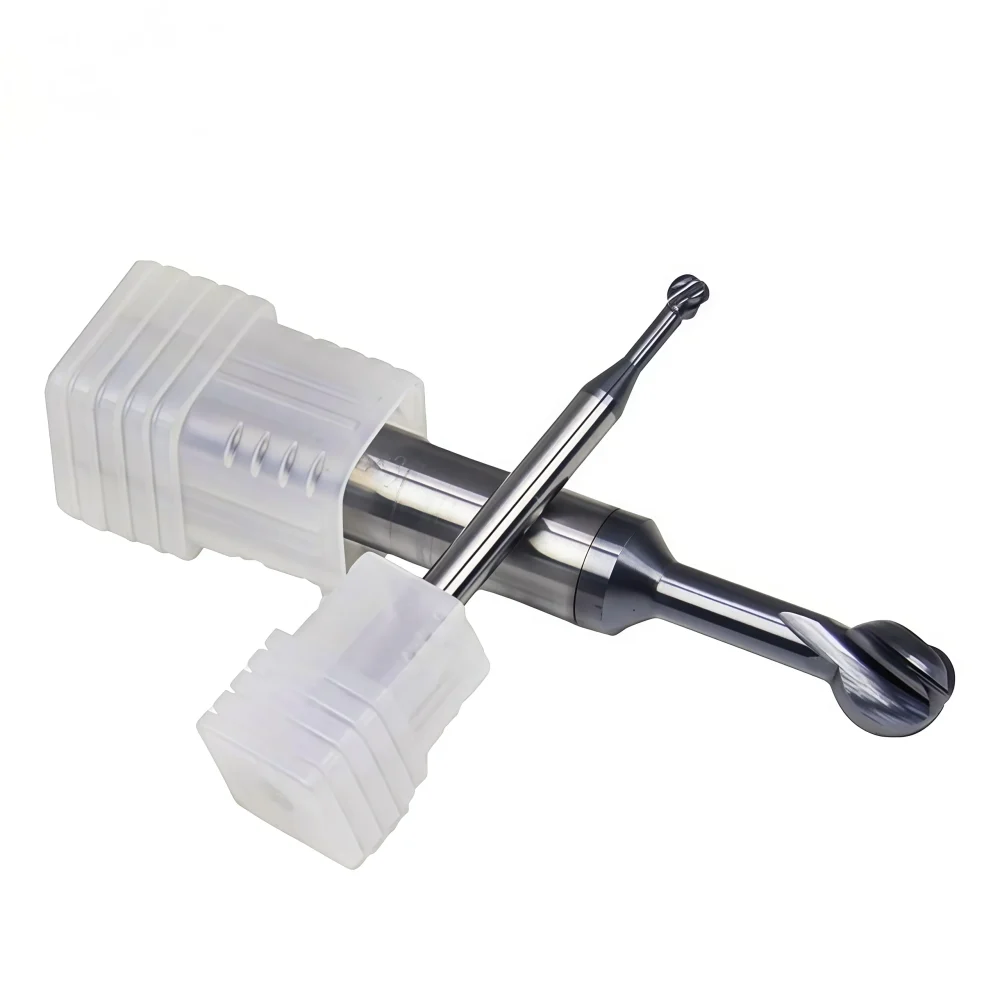

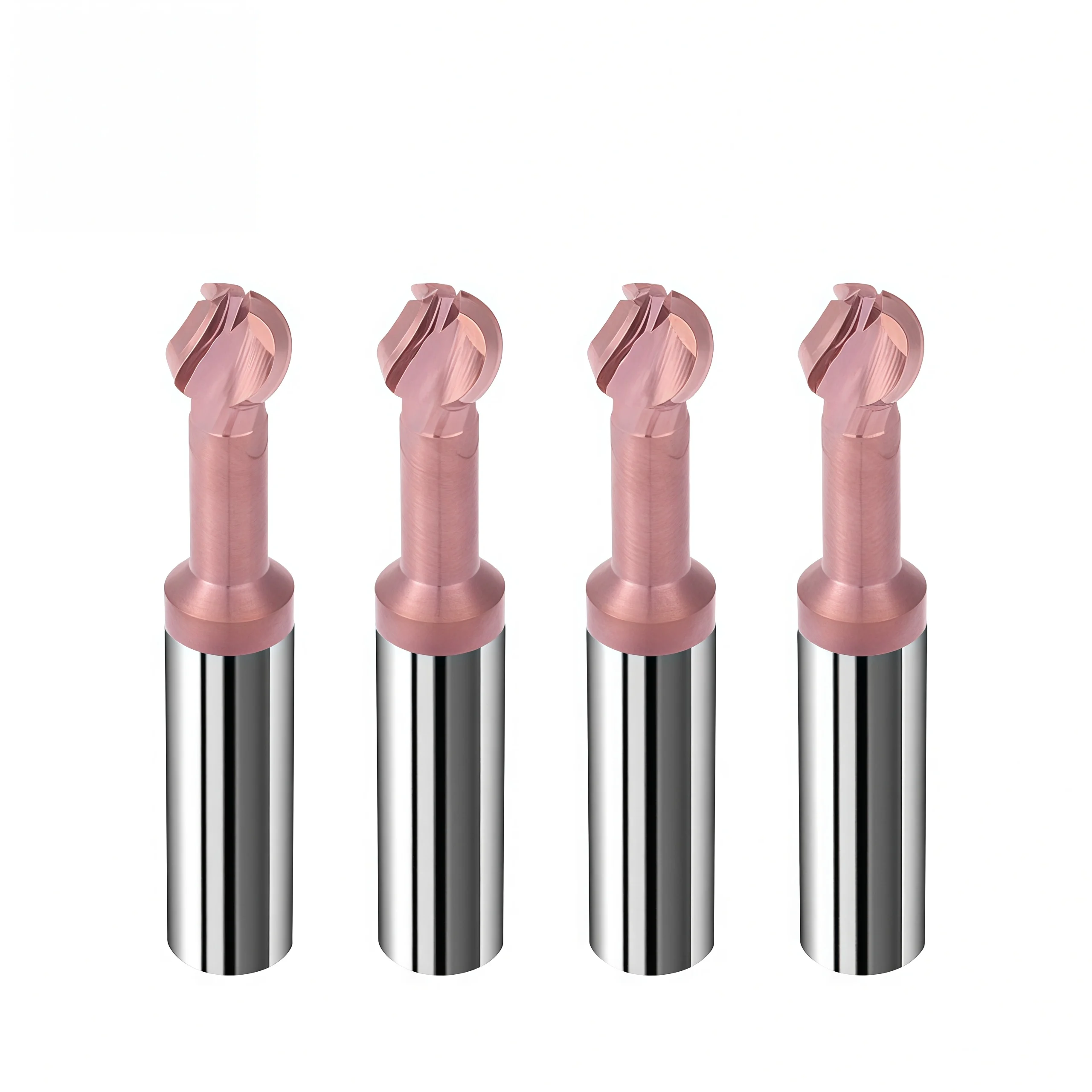

Solid Carbide Lollipop Ball Nose End Mill for Undercutting and Deburring
This Solid Carbide Lollipop Ball Nose End Mill delivers precise engraving, smooth cutting, and excellent chip evacuation for detailed CNC machining and fine surface finishing.
⚙️ Product Configurations
*Material: Cacbua nguyên chất
*Helix Angle: Optimized for engraving and fine cutting
*Application Materials: Aluminum, copper, plastics, wood, non-ferrous metals
*Machining Type: Engraving / profiling / finishing
*Ball Diameter: Available in standard and customized sizes
*Neck Diameter: Selected according to the required undercut depth and clearance
*Shank Diameter: Standard metric sizes or customized upon request
*Application Materials: Aluminum, copper, plastics, wood, non-ferrous metals, steel, and stainless steel
*Typical Applications: Curved surfaces, hidden edges, mold cavities, backside features, and difficult-to-reach areas
*Machine Compatibility: CNC machining centers, engraving machines, and precision milling equipment
Consistent Quality
Consistent geometry across repeat orders.
Đơn hàng linh hoạt
Small batches and mixed sizes available.
OEM Support
Custom marking, labels and packaging.
Tiêu chuẩn & Theo yêu cầu
Standard sizes and custom configurations.
Carbide Lollipop Ball Nose End Mill Overview
This solid carbide lollipop ball nose end mill combines a spherical cutting head with a relieved-neck design for undercutting, backside profiling and recessed-feature machining. Once the cutting head passes through a suitable opening, the reduced neck provides additional clearance for machining behind shoulders, around obstacles and inside difficult-to-reach areas. The tool can be used for backside deburring, cross-hole edge finishing, recessed grooves, mold-cavity finishing and complex 3D contouring.
Lollipop Ball Nose
R1–R10
2T / 3T by Size

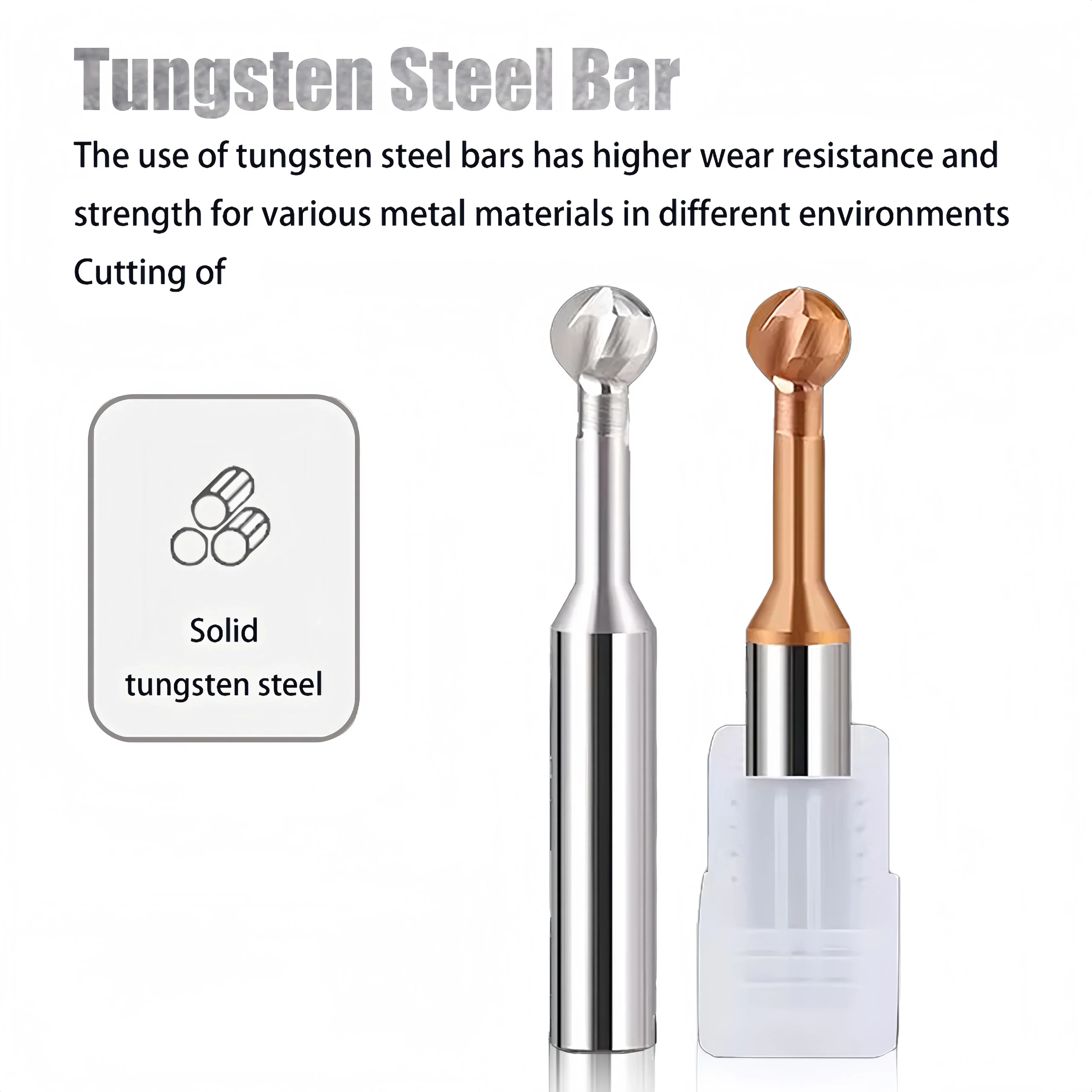

Micro-Grain Carbide

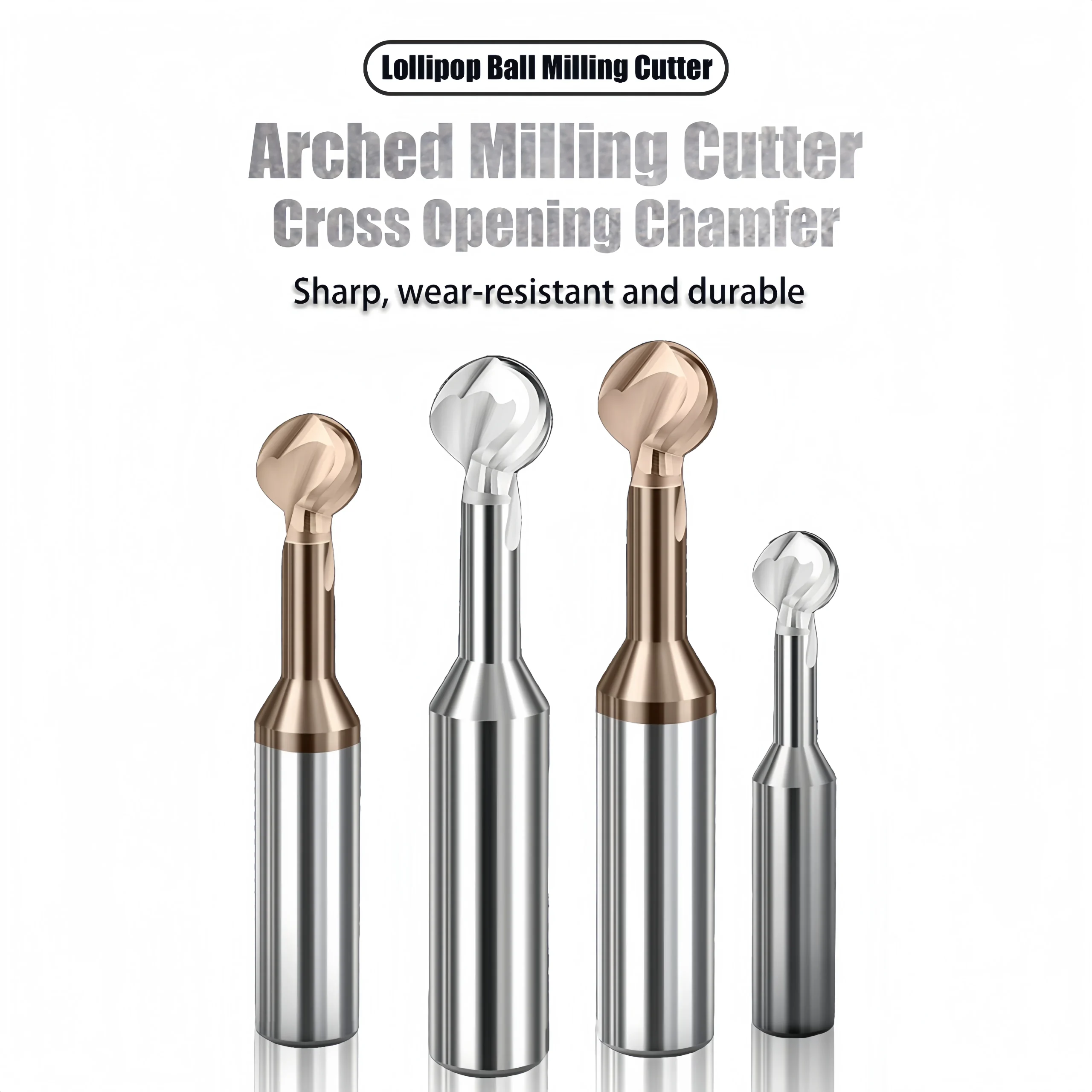

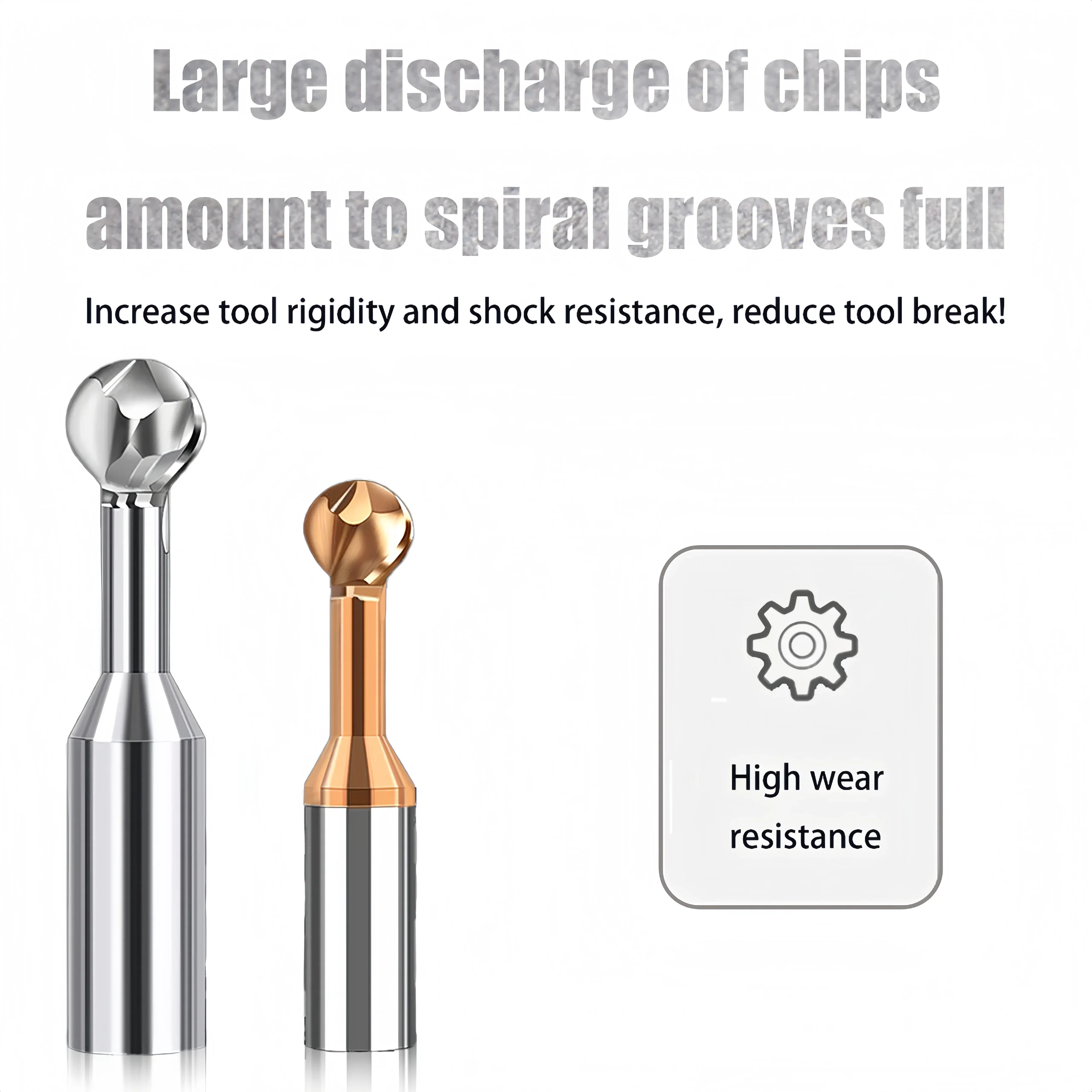

Lollipop Cutting Geometry

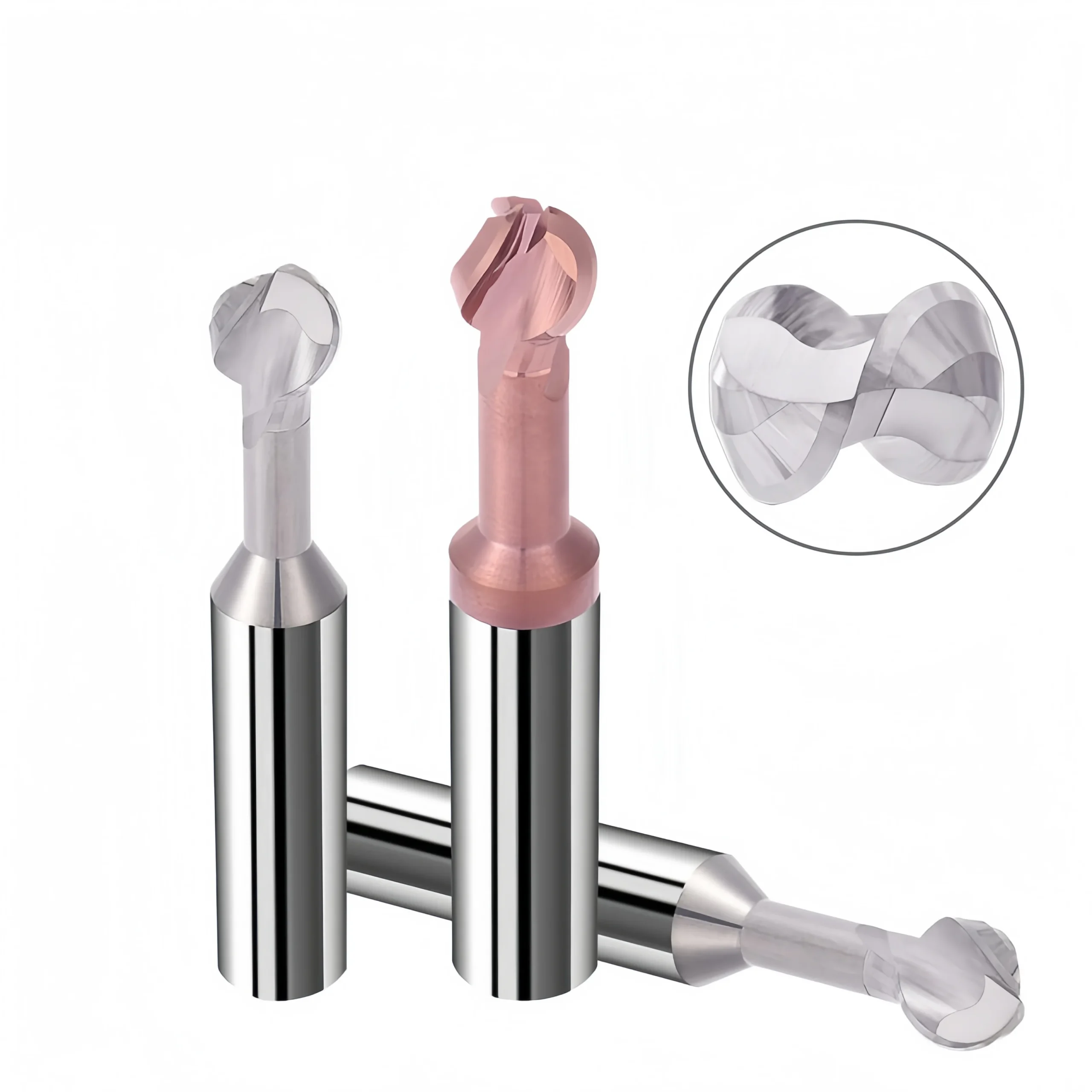

Spherical Cutting Head
The rounded cutting form can contact recessed and curved surfaces from multiple directions, supporting radius features and complex side profiles.
Reduced-Neck Clearance
The relieved neck creates clearance between the cutting head and shank, allowing the tool to reach behind shoulders and into undercut regions.
R1–R10 Size Family
Multiple radius, neck and shank combinations cover small recessed features through larger backside and undercut applications.
Application-Specific Advantages
Undercut Access
Reach recessed side surfaces after the spherical head passes through a suitable access opening.
Backside Features
Suitable for backside edge finishing and deburring where direct front-side access is limited.
3D Contouring
The spherical head can follow curved and multi-angle surfaces in recessed mold and precision-component features.
Flexible Configuration
Radius, neck dimensions, overall length, coating and other specifications can be reviewed for custom applications.
Recommended Machining Applications
RECOMMENDED
RECOMMENDED
RECOMMENDED
SUITABLE
Typical Application Areas
| APPLICATION | TYPICAL USE |
|---|---|
| Backside Deburring | Finishing edges located behind shoulders or openings |
| Cross-Hole Finishing | Edge treatment around intersecting-hole features |
| Recessed Grooves | Rounded internal grooves and undercut side features |
| Mold Cavities | Curved and difficult-access finishing surfaces |
| Complex 3D Profiles | Multi-angle and recessed contour machining |
Product Details

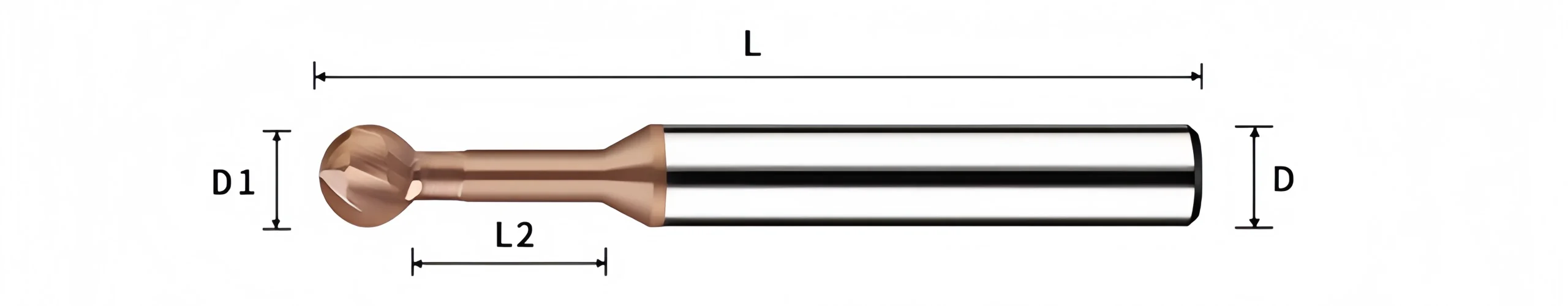

Lollipop Ball Nose End Mill Dimensions
The R1–R10 series combines different ball radii, relieved-neck dimensions, shank diameters and overall lengths for recessed and undercut machining. Tool selection should consider both the finished profile and the clearance required for the cutting head, neck, shank and holder throughout the complete toolpath.
Technical Configuration
| PARAMETER | REFERENCE CONFIGURATION |
|---|---|
| Tool Type | Solid Carbide Lollipop Ball Nose End Mill |
| Vật liệu dụng cụ | Solid Micro-Grain Carbide |
| Cutting Profile | Spherical / Full-Radius Ball Head |
| Radius Range | R1–R10 |
| Cutting Teeth | 2T for R1–R6 / 3T for R7–R10 according to the current size matrix |
| Relief Diameter | D1–D10 according to radius size |
| Relief Length | 4–25 mm according to radius size |
| Shank Diameter | D4–D20 according to radius size |
| Shank Type | Straight Precision Cylindrical Shank |
| Overall Length | 50 / 60 / 75 mm in the current standard series |
| Coating | Optional coating selected according to workpiece material and machining conditions |
| Applications | Undercutting / Backside Profiling / Cross-Hole Edge Finishing / Recessed Grooves / 3D Contouring |
| OEM Options | Custom radius, neck geometry, lengths, coating, shank dimensions and private branding |
R1–R10 Standard Size Matrix
Current standard-reference dimensions for the lollipop ball nose end mill series. All dimensions are in millimeters.
| BALL RADIUS R | RELIEF DIAMETER | RELIEF LENGTH | SHANK DIAMETER | OVERALL LENGTH | CUTTING TEETH |
|---|---|---|---|---|---|
| R1 | D1 | 4 | D4 | 50 | 2T |
| R1.5 | D1.5 | 5 | D4 | 50 | 2T |
| R2 | D2 | 6 | D4 | 50 | 2T |
| R2.5 | D2.5 | 10 | D6 | 50 | 2T |
| R3 | D3 | 10 | D6 | 50 | 2T |
| R4 | D4 | 12 | D8 | 60 | 2T |
| R5 | D5 | 15 | D10 | 60 | 2T |
| R6 | D6 | 15 | D12 | 60 | 2T |
| R7 | D7 | 25 | D14 | 75 | 3T |
| R8 | D8 | 25 | D16 | 75 | 3T |
| R9 | D9 | 25 | D18 | 75 | 3T |
| R10 | D10 | 25 | D20 | 75 | 3T |
Selection & Machining Guidance
- Radius Selection: Select the ball radius according to the required finished curved profile and available feature size.
- Entry Clearance: Confirm that the spherical cutting head can pass through the entry opening before lateral engagement begins.
- Relief Geometry: Use sufficient relief diameter and length to reach the undercut while retaining as much neck rigidity as practical.
- Controlled Engagement: Use smooth lead-in moves and progressive side passes rather than forcing the complete spherical profile into heavy engagement.
- Holder Clearance: Check the cutting head, relieved neck, shank and holder against surrounding workpiece geometry throughout the complete toolpath.
- Custom Tools: Provide a drawing or CAD model when the required radius, neck geometry, reach or overall length differs from the standard series.
Carbide Lollipop End Mill Customization
Ball radius, spherical-head geometry, relief diameter, relief length, shank diameter, overall length, cutting-edge configuration and coating can be customized for undercutting, backside profiling and recessed 3D machining. Standard R1–R10 configurations cover different feature sizes and access depths, while non-standard tools can be reviewed according to the finished profile, entry opening, undercut reach, workpiece material and available machine clearance.
| PARAMETER | MANUFACTURING CAPABILITIES |
|---|---|
| Ball Radius (R) | Standard R1–R10 radius configurations are available. Non-standard radii can be reviewed according to the required curved profile, undercut geometry and component drawing. |
| Spherical Head Geometry | Rounded cutting-head geometry can be configured for recessed grooves, backside edges, cross-hole features, undercuts and complex 3D surfaces. |
| Cutting Teeth | The current standard size matrix uses 2 cutting teeth for R1–R6 and 3 cutting teeth for R7–R10. Alternative configurations can be reviewed according to tool size and machining requirements. |
| Relief Diameter | Relief diameter can be matched to the ball radius, entry opening, undercut clearance and required neck rigidity. |
| Relief Length & Reach | Standard relief lengths range from 4–25 mm depending on tool size. Custom reach can be reviewed according to cavity depth, backside access and surrounding-wall clearance. |
| Shank Configuration | Straight cylindrical shanks from D4–D20 are used in the current standard series. Custom shank diameters and clamping lengths can be reviewed according to holder requirements. |
| Overall Length | Standard 50 mm, 60 mm and 75 mm overall lengths are available in the current series. Extended or drawing-defined lengths can be reviewed for deeper or restricted-access features. |
| Entry & Head Clearance | The entry opening must provide sufficient clearance for the spherical head before side engagement. Head diameter, neck geometry and access path should be checked against the component geometry. |
| Cutting-Edge Preparation | Cutting-edge preparation can be reviewed according to workpiece material, hardness, radius size, cutting engagement and required surface condition. |
| Coating Selection | Optional coating and surface treatment can be selected according to the workpiece material, hardness, machining temperature and coolant conditions. |
| Machining Application | Geometry can be reviewed for undercutting, backside profiling, cross-hole edge finishing, recessed grooves, mold-cavity finishing and complex 3D contouring. |
| Dimensional Tolerance | Drawing-defined tolerances can be reviewed for ball radius, head profile, relief diameter, relief length, shank diameter, overall length and finished cutting geometry. |
| Replacement Tool Matching | Existing lollipop or undercut cutters can be reproduced or modified based on a component drawing, existing tool drawing or physical sample. |
| OEM & Private Label | Laser marking, custom tool codes, labels and private-label packaging can be reviewed for distributors, tooling brands and OEM customers. |
Dịch vụ OEM và nhãn hiệu riêng
OEM manufacturing and private-label supply options are available for industrial distributors, tooling brands and repeat-production customers. Laser identification, label content, protective packaging and coating presentation can be configured according to the approved product specification and order requirements.
Laser Etching
Custom logos, tool codes, cutting dimensions, coating identification and batch numbers can be marked according to the available shank area.
Custom Labels & Packaging
Individual protective tubes, product labels, specification details, colored packaging tubes and private-label packaging can be reviewed.
Commercial Terms
MOQ, sample evaluation, custom-size trials, repeat orders and scheduled supply programs are confirmed according to the selected configuration.
Technical Workflow
A structured review process is used to confirm standard, customized and private-label square end mill requirements before production.
Inquiry
Submit the material, hardness, milling operation, dimensions, tolerance and quantity.
Engineering
Review flute geometry, helix angle, edge preparation, coating, ap and ae.
Commercial
Confirm quotation, MOQ, sample requirements, production schedule and delivery terms.
Production
CNC grinding, end-face formation, edge preparation, coating and laser marking.
Quality Control
Inspect diameter, flute length, shank, runout, square-end geometry and cutting edges.
Quality, Inspection & Delivery
Our solid carbide square end mills are controlled through material verification, precision grinding, in-process measurement and final inspection. Key dimensions, square-end geometry, cutting-edge condition, coating appearance and product identification are reviewed according to the approved specification or drawing before packing.
Three-Stage Quality Control
Inspection checkpoints are arranged around the manufacturing process to support dimensional consistency and repeat-order control.
Incoming Material Control
Carbide substrate grade, blank dimensions and supplied material information are checked against the production requirement.
In-Process Grinding Control
Cutting diameter, flute geometry, flute length, square-end profile and shank dimensions are monitored during CNC grinding.
Final Tool Inspection
Finished tools are reviewed for specified dimensions, runout, cutting-edge condition, coating appearance, marking and packing identification.
Key Inspection Characteristics
Inspection requirements are confirmed according to the standard product specification or the approved custom drawing.
| INSPECTION ITEM | CONTROL FOCUS | CONFIRMATION BASIS |
|---|---|---|
| Cutting Diameter (DC) | Diameter and dimensional consistency | Standard specification or approved drawing |
| Flute Length (APMX) | Effective cutting length | Confirmed product size or drawing requirement |
| Shank Diameter (DCON) | Clamping-section dimension and surface condition | Applicable shank specification |
| Overall Length (OAL) | Total tool length | Standard size matrix or approved drawing |
| Radial Runout | Concentricity between cutting section and shank | Agreed inspection requirement |
| Square-End Geometry | End-face profile, corner condition and center-cutting form | Selected tool configuration |
| Flute & Helix Profile | Flute count, helix form and grinding consistency | Approved manufacturing configuration |
| Cutting Edge & Coating | Edge condition, visible defects and coating appearance | Application-specific production requirement |
| Marking & Identification | Tool code, dimensions and batch information where applicable | Confirmed order and packaging specification |
Measurement & Batch Traceability
Optical measuring systems, tool inspection equipment and appropriate dimensional gauges are selected according to the feature being checked.
Optical Measurement
Profile and dimensional review of specified cutting features.
Runout Verification
Concentricity review based on the agreed product requirement.
Edge Inspection
Magnified review of the end face, corners and cutting-edge condition.
Batch Identification
Order, product and batch information are linked where required for repeat supply.
Protective Packaging Process
Finished end mills are protected to reduce contact between cutting edges and to support clear product identification during storage and transportation.
Bulk-Order & Export Packaging
Bulk shipments can be arranged with reinforced cartons, protective wrapping, palletized loading or export cases according to order quantity, shipment weight and agreed transportation requirements.
Delivery Coordination
Production completion, packing method and dispatch arrangements are confirmed according to the approved order. Courier, air, sea or customer-designated shipping options can be reviewed according to shipment size and destination. Final lead time is confirmed after product specifications, quantity and packaging requirements are approved.
Product & Application FAQs
Common questions about solid carbide lollipop ball nose end mills for undercutting, backside profiling, edge finishing and recessed 3D machining.
What is a lollipop ball nose end mill used for?
How is a lollipop cutter different from a standard ball nose end mill?
What radius sizes are available?
How many cutting teeth are used?
Can this tool machine conventional flat T-slots?
Can it be used for backside deburring?
Does the tool require a pre-machined access opening?
Are coated versions available?
Ordering & Customization FAQs
Ordering information for distributors, tooling suppliers and OEM customers requiring standard or non-standard lollipop ball nose cutters.
Which dimensions can be customized?
Can you manufacture from a drawing or sample tool?
Are OEM marking and private-label packaging available?
What information should I provide for quotation?
Thời gian thực hiện thông thường là bao lâu?
Technical Downloads
Reference documents for solid carbide end mill selection and machining-data review.
Solid Carbide End Mill Catalog
Review ball nose, specialty undercut and related solid carbide milling tools.
End Mill Speeds & Feeds Guide
Use as a general reference before confirming final undercut and lollipop-milling parameters.
Need Sizes, Pricing or Custom Options?
Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.
Drawings, size lists and reference photos are welcome.
