Mũi khoan đáy phẳng hợp kim nguyên khối 180° cho khoét bậc & Bề mặt nghiêng

180° FLAT-BOTTOM SOLID CARBIDE DRILL
Solid carbide flat-bottom drill with 180° cutting geometry for counterboring and flat-bottom blind-hole drilling. Coating and dimensions are selected by application. Inclined-surface entry and spot-facing suitability require confirmation of tool geometry and machining conditions.
Loại mũi khoan:180° Flat-Bottom Drill
Góc điểm:180° Flat Bottom
Số lượng sáo:2 Flutes / Confirm
Chất làm mát:External / On Request
Phạm vi đường kính:Standard / Custom Sizes
Lớp phủ:Coated / Application-Specific
Ứng dụng / Vật liệu
P SteelM StainlessK Cast IronN Non-Ferrous
TỐT NHẤT DÀNH CHO

180° Flat Bottom

Flat Holes

Counterboring

Flat Seats

Coated Carbide

Khả năng chống mài mòn

Custom Sizes

OEM Options

180° Flat-Bottom Carbide Drill for Counterboring

Điều này flat-bottom drill bit produces flat-bottom hole profiles where conventional twist drills leave a conical bottom. Select the diameter, usable depth, corner profile and coolant configuration according to the drawing. Selected spot-facing and inclined-entry applications can be reviewed separately.

Hình học điểm180° Flat Bottom
Vật liệu dụng cụCarbide nguyên khối
Lớp phủDành riêng cho ứng dụng
Nguồn cungStandard & OEM

180° Flat-Bottom Drill Configuration

180° Flat-Bottom Point

The 180° point profile supports flat-bottom holes and counterbores where a conventional drill leaves a conical bottom.

Coated Solid Carbide

Solid carbide provides tool rigidity, while an application-matched coating helps manage wear in suitable materials.

Application-Matched Dimensions

Cutting diameter, flute length and shank options are reviewed according to counterbore size, hole depth and entry conditions.

Flat-Bottom Drilling Features

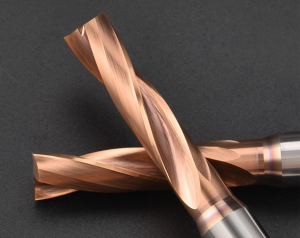

180-degree solid carbide flat-bottom drill cutting-edge detail

180° Flat Cutting Edge

Creates a flat-bottom hole profile for blind holes and precision counterboring applications.

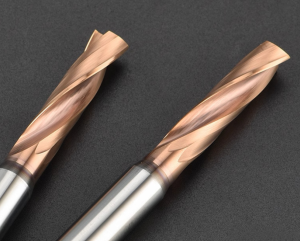

Coated solid carbide flat-bottom drill flutes for counterboring

Coated Solid Carbide

Application-specific coatings help manage friction and wear during steel and other suitable material drilling.

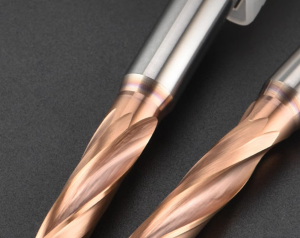

Flat-bottom drill point detail for selected inclined-surface entry

Controlled Entry on Inclined Surfaces

Selected inclined- or curved-surface entries can be reviewed according to entry angle, edge engagement and machine rigidity.

180-degree coated solid carbide drill for counterboring and flat-bottom holes

Custom Flat-Bottom Drills & OEM

Custom dimensions, trial quantities, tool marking and private-label packaging can be reviewed for OEM and distributor orders.

Workpiece Materials for Flat-Bottom Drilling

ISO CODE NHÓM VẬT LIỆU REPRESENTATIVE MATERIALS SUITABILITY
P Steel / Alloy Steel Carbon steel, alloy steel and selected tool steel grades ● Recommended
M Thép không gỉ Selected stainless steels with material-specific geometry and coating ○ Confirm Grade
N Non-Ferrous Metals Aluminum, copper and brass with suitable edge and coating options ○ Confirm Application
Ghi chú ứng dụng: Confirm material grade, flat-bottom profile, hole depth and entry angle. Inclined-surface suitability depends on cutting-edge engagement and setup rigidity.

Counterboring & Flat-Bottom Hole Applications

  • Flat-bottom counterbore machining
  • Flat-bottom blind-hole drilling
  • Selected spot-facing operations
  • Selected inclined- and curved-surface entries
  • Flat-bottom hole profiles where standard drills leave conical bottoms

Flat-Bottom Drill Geometry & Applications

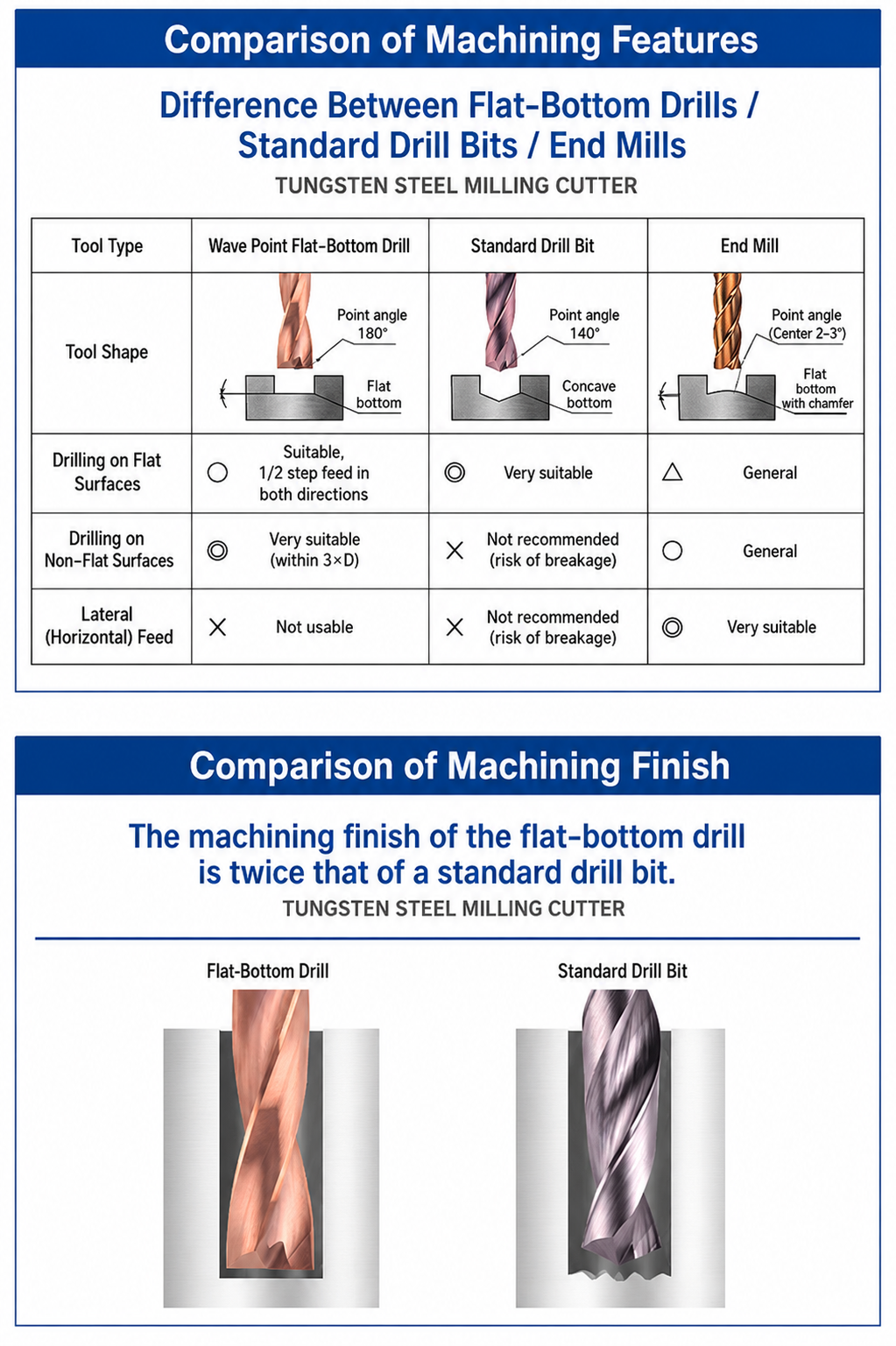

Flat-bottom carbide drill versus standard twist drill and end mill applications
Flat-Bottom vs. Standard Drill — Application Comparison
Solid carbide 180-degree flat-bottom drill for precision counterboring
180° Solid Carbide Flat-Bottom Drill

180° Flat-Bottom Carbide Drill Specifications

Technical specifications for 180° solid carbide flat-bottom drills used in counterboring, flat-bottom blind holes and selected inclined-surface applications.

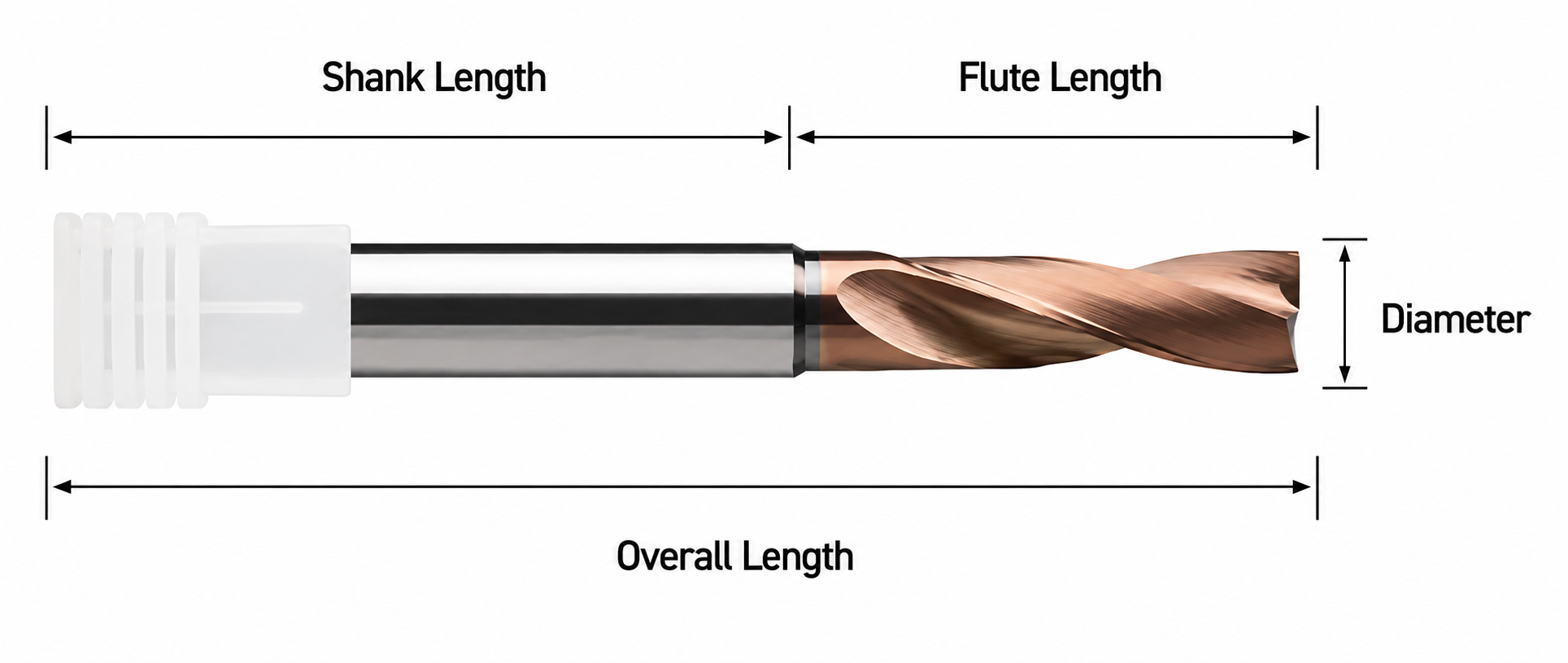

180 degree flat-bottom solid carbide drill dimension diagram for counterboring
D: Đường kính cắt L1: Chiều dài sáo d: Đường kính thân L: Overall Lengt

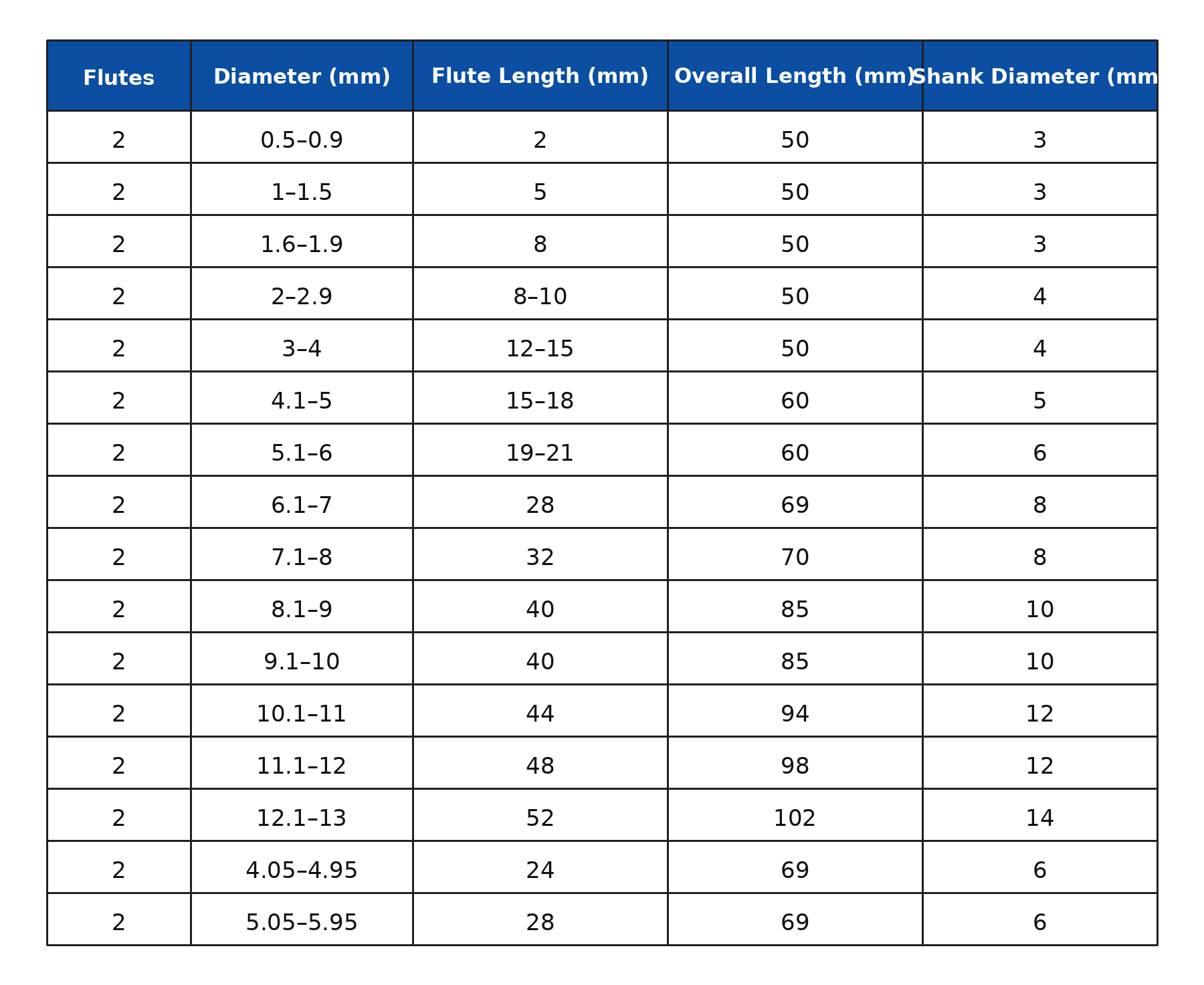

180° Flat-Bottom Drill Standard Sizes

Kích thước tham khảo cho flat-bottom carbide drills. Confirm the selected diameter, flute length, shank and overall length before ordering.

180 degree solid carbide flat-bottom drill standard size and dimension chart

Size Selection: Confirm D × L1 × d × L, required flat-bottom depth and hole tolerance. Non-standard dimensions and coatings can be reviewed for custom and OEM orders.

Bạn cần biết thông tin về kích cỡ, giá cả hoặc các tùy chọn đặt hàng theo yêu cầu?

Send your hole dimensions, workpiece material and quantity for review.

Yêu cầu báo giá OEM

Counterboring Setup & Cutting Data

Select the flat-bottom drill according to hole geometry, entry condition and workpiece material.

Hole Geometry

Confirm counterbore diameter, flat-bottom depth and hole tolerance.

Entry Condition

Review inclined, curved or interrupted entries before machining.

Material & Coolant

Match cutting data, coating and coolant to the workpiece and setup.

180° Flat-Bottom Carbide Drill Customization

Tùy chỉnh 180° flat-bottom carbide drills for counterboring and flat-bottom holes. Cutting geometry, dimensions and coatings are reviewed according to the hole profile, material and entry conditions.

Custom flat-bottom carbide drill geometry and cutting-edge preparation

180° Geometry & Edge Options

Flat-bottom profile, cutting-edge preparation, corner radius or chamfer, and material-specific coating options.

Custom flat-bottom drill diameter, flute length and shank dimensions

Counterbore Dimensions & Reach

Custom cutting diameters, flute lengths, overall lengths and shank dimensions for the required hole depth and access.

Ghi chú kỹ thuật: Provide the counterbore diameter, flat-bottom depth, corner profile, workpiece material, entry angle and quantity. Special edge and coolant configurations require technical confirmation.

OEM & Private-Label Flat-Bottom Drills

Custom manufacturing and private-label supply for cutting-tool distributors, tooling brands and OEM customers.

OEM laser marking and private-label packaging for carbide flat-bottom drills

180° Flat-Bottom Drill Quality Inspection

Kiểm tra chất lượng đối với 180° flat-bottom carbide drills focus on point geometry, cutting-edge integrity, dimensions and coating condition for counterboring and flat-bottom hole applications.

HY Cutting Tools carbide drill production inspection and quality control

180° Point Geometry

Flat-bottom profile, corner form and cutting-edge condition are checked against specifications.

Kích thước và độ lệch tâm

Cutting diameter, tool lengths, shank dimensions and runout are verified as required.

Surface & Coating

Grinding finish, coating appearance and visible edge defects are inspected.

Inspection criteria and dimensional tolerances are confirmed according to the selected configuration and approved drawing.

Xem sản xuất & Kiểm soát chất lượng

Bao bì bảo vệ và nhận dạng lô hàng

Individual protection, specification labeling and export packaging help protect precision-ground flat-bottom cutting edges during shipment.

Individual protective tubes for solid carbide flat-bottom drills

Bảo vệ cá nhân

Protective tubes help prevent cutting-edge damage.

Carbide cutting tool batch identification and specification labels

Nhận dạng lô hàng

Models, dimensions and order labels are verified.

Protective export packing for precision carbide flat-bottom drilling tools

Bảo hộ xuất khẩu

Protective cartons are arranged for international delivery.

Custom labels and private-label packaging are available for OEM and distributor orders.

Production Lead Time & Shipping

Sản xuất và thời gian giao hàng

Standard and custom flat-bottom drills are scheduled according to dimensions, coating and quantity. Lead time is confirmed before production.

International Shipping

Express courier, air freight, sea freight and customer-nominated forwarders are available according to destination and order size.

Xem các tài nguyên dành cho người mua và nhà phân phối
HY Cutting Tools shipping and payment options for carbide cutting tool orders

180° Flat-Bottom Carbide Drill FAQs

Technical answers about flat-bottom hole drilling, counterboring, inclined-surface entry, material compatibility and drill selection.

What is a 180° flat-bottom carbide drill used for?

A 180° flat-bottom carbide drill is designed for flat-bottom blind holes and counterboring where conventional twist drills leave a conical hole bottom. Selected spot-facing applications can also be reviewed.

How is a flat-bottom drill different from a twist drill or end mill?

A standard twist drill produces a conical hole bottom. A 180-degree flat-bottom drill is designed for axial drilling with a flatter bottom profile. An end mill is primarily designed for milling and may require a different machining process to produce the same hole feature.

Can this drill be used for counterboring and spot facing?

Đúng vậy. Flat-bottom counterboring is a primary application. Selected spot-facing operations can be reviewed according to the cutting geometry, required bottom profile, hole diameter and workpiece conditions.

Can a flat-bottom drill start on an inclined or curved surface?

Selected inclined- or curved-surface entries are possible with suitable cutting geometry and a rigid setup. Confirm the entry angle, cutting-edge engagement and material before machining. Not every 180° drill is suitable for unrestricted inclined entry.

Which materials and coatings are suitable for flat-bottom drilling?

Steel and alloy steel are primary applications. Selected stainless steel, aluminum and copper grades require material-matched geometry and coating. Uncoated, TiAlN, AlTiN and AlCrN configurations can be reviewed according to the application.

What dimensions are needed for a custom flat-bottom drill?

Provide the hole or counterbore diameter, flat-bottom depth, corner profile, tolerance, workpiece material, entry condition and quantity. Include flute length, overall length, shank size and coolant requirements for custom flat-bottom carbide drills.

Custom Flat-Bottom Drill & OEM FAQs

Ordering information for machining companies, cutting-tool distributors and OEM customers.

Do you accept small trial orders for flat-bottom drills?

Yes. Small trial orders can be reviewed to evaluate the flat-bottom hole profile, cutting stability and tool performance before volume purchasing.

Can different counterbore diameters be ordered together?

Yes. Mixed-size orders can include different cutting diameters and lengths, subject to configuration and availability. This supports distributors and projects requiring multiple counterbore sizes.

Is OEM laser marking and private-label packaging available?

Yes. HY supports custom tool marking, model identification, branded labels and private-label carbide drill packaging theo yêu cầu của đơn hàng.

What is the MOQ and lead time for custom flat-bottom drills?

Small-batch custom orders are supported. MOQ and lead time depend on the diameter, bottom geometry, coating and quantity. Final requirements and production schedules are confirmed after drawing review.
