Mũi khoan hợp kim nguyên khối mài chính xác 140° cho thép & Gang

140° PRECISION-GROUND CARBIDE DRILL SERIES

Precision-ground 140° carbide drills for controlled hole entry in steel and cast iron. Available in Ø3–20 mm reference sizes with 3D/5D/8D depth options.

Chất nền:Cacbua rắn hạt mịn
L/D Ratio:3×D / 5×D / 8×D
Loại mũi khoan:Precision-Ground Twist Drill
Góc điểm:140° Precision-Ground Point
Số lượng sáo:2 rãnh xoắn ốc
Chất làm mát:External Coolant / Air
Phạm vi đường kính:Ø3,0–20,0 mm
Số lượng đặt hàng tối thiểu (MOQ):3–10 chiếc/kích cỡ
Ứng dụng / Vật liệu
Thép cacbon PThép hợp kim PP Pre-Hardened SteelK Cast Iron
TỐT NHẤT DÀNH CHO

140° Point

Kiểm soát lối vào

Precision-Ground

Consistent Geometry

2 sáo

Smooth Chip Flow

3D / 5D / 8D

Các tùy chọn độ sâu

140° Solid Carbide Twist Drill Overview

140° solid carbide twist drills for CNC hole machining in steel and selected cast irons. Available in Ø3–20 mm and 3D / 5D / 8D series, with precision-ground points for controlled entry.

Các tính năng chính

140° Ground Point

Point accuracy and cutting-edge symmetry support controlled entry và repeatable drilling.

Two Spiral Flutes

Không gian dành cho sáo supports chip removal in blind and through holes.

Độ cứng của vật liệu cacbua nguyên khối

Rigid construction supports dimensional stability during repeat CNC machining.

3D / 5D / 8D Options

Match drill length and coolant arrangement to the required hole depth.

Confirm point thinning separately; a 140° angle alone does not identify split-point geometry.

Materials & Applications

For carbon steel, alloy steel and selected gray or ductile cast irons in mechanical and mold components. Confirm material grade, hardness and coating, especially for pre-hardened steel.

Phù hợp nhất cho

Repeat CNC drilling in suitable steel and cast iron, with rigid clamping and prepared entry surfaces.

Not Ideal for

Unprepared inclined entries, unstable setups or materials beyond the confirmed application range.

Minimize runout and overhang. Confirm coolant delivery and chip evacuation for 5D and 8D holes.

Product & Point Geometry Details

Solid carbide twist drill configuration reference

Drill configuration reference — confirm coolant and point design.

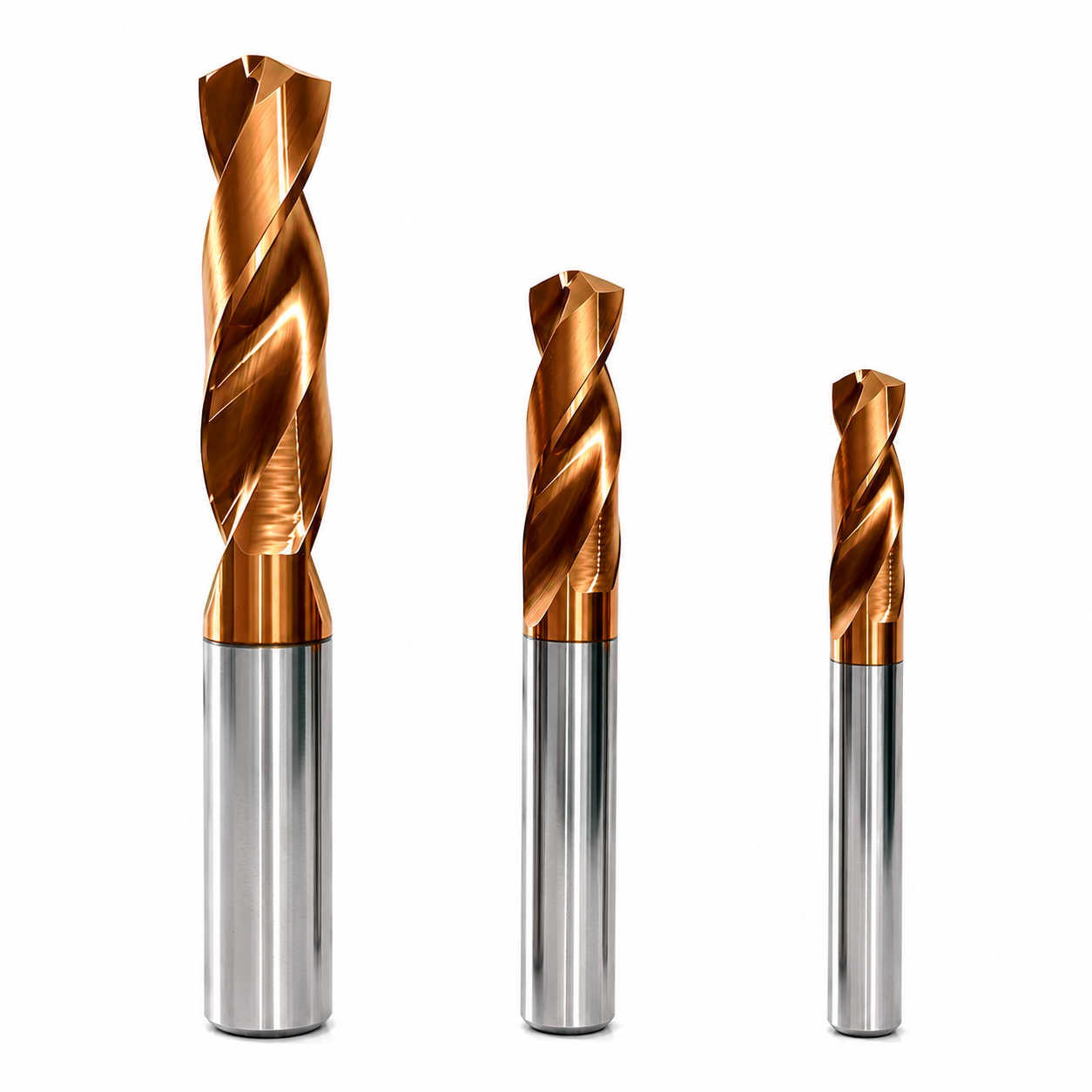

140 degree solid carbide twist drill for steel and cast iron

140° solid carbide drill series.

140° Solid Carbide Drill Specifications

Điều này 140° precision-ground solid carbide drill is designed for controlled hole entry in steel and cast iron. The 2-flute series offers Ø3–20 mm reference sizes in 3D, 5D and 8D configurations, with point thinning và coating options available for review.

140 degree carbide twist drill dimensional reference showing cutting diameter, shank diameter, flute length and overall length
d1: Đường kính cắt   d2: Đường kính thân   L1: Chiều dài sáo   L: Chiều dài tổng thể

140° Carbide Drill Size Chart — 3D / 5D / 8D

Reference dimensions for the 140-degree solid carbide twist drill. d1 = cutting diameter, L1 = flute length and L = overall length. All dimensions are in millimeters.

d1 (mm) 3D L1 3D L 5D L1 5D L 8D L1 8D L
3 20 62 28 66 30 70
4 24 66 36 74 42 83
5 28 66 44 82 50 90
6 28 66 44 82 57 97
7 34 79 53 91 76 116
8 41 79 53 91 76 116
9 47 89 61 103 87 131
10 47 89 61 103 95 139
11 55 102 71 118 106 155
12 55 102 71 118 114 163
13 / 14 60 107 77 124 133 182
15 / 16 65 115 83 133 152 204
17 / 18 73 123 93 143 171 223
19 / 20 79 133 101 153 190 244

Paired diameters share the same listed lengths. L1 is flute length, not maximum usable drilling depth. Confirm dimensions and availability before ordering.

Bạn cần biết thông tin về kích cỡ, giá cả hoặc các tùy chọn đặt hàng theo yêu cầu?

Send your diameter, hole depth, material grade, tolerance and quantity for a quote.

Yêu cầu báo giá OEM

140° Drill Point & Hole Entry

Cái 140° drill point geometry provides a relatively flat point profile for controlled entry in suitable steel and cast iron applications. Hole accuracy also depends on point symmetry, runout and setup rigidity.

Hình học điểm

Maintain a consistent 140° point and balanced cutting edges.

Hole Entry

Use rigid clamping and low runout for repeatable CNC drilling.

Depth Selection

Choose 3D, 5D or 8D according to hole depth and chip evacuation.

Starting Cutting Data for Steel & Cast Iron

Reference cutting speeds for 140° solid carbide drilling. Final speeds, feeds and coolant selection depend on workpiece hardness, coating, diameter and setup.

Chất liệu Điều kiện Vc (m/phút) Chất làm mát
Thép cacbon Below HRC30 70–110 External Coolant
Thép hợp kim HRC30–45 50–85 Consistent Coolant
Thép đã qua xử lý làm cứng sẵn HRC45–55 30–55 Stable Coolant
Gang Gray / Ductile 70–130 Dry / Air / Suitable Coolant

These are original reference cutting-speed ranges, not validated settings for every tool configuration. Feed rates and material suitability, especially for HRC45–55 steel, require confirmation before production.

140° Carbide Drill Customization

Tùy chỉnh 140° solid carbide drills support precision-ground point geometry, edge preparation and drawing-defined dimensions for steel and cast iron drilling. Point design and tool configuration are reviewed according to hole-entry conditions and machining requirements.

Custom 140 degree carbide drill point geometry, web thinning and cutting-edge preparation

140° Point & Edge Geometry

Cái 140° drill point, web thinning, chisel-edge preparation and cutting-edge geometry can be reviewed for controlled hole entry and consistent cutting action.

Custom metric and inch diameter, flute length and shank options for 140 degree carbide drills

Đường kính và chiều dài tùy chỉnh

Metric, inch and non-standard diameters, flute lengths, overall lengths and shank dimensions can be configured to drawing requirements.

OEM & Private-Label 140° Carbide Drills

OEM supply for precision CNC machining companies, cutting-tool distributors and industrial tooling brands.

OEM laser marking and private-label packaging for 140 degree solid carbide drills

140° Carbide Drill Quality Inspection

Kiểm tra chất lượng đối với 140° precision-ground carbide drills focus on point geometry, cutting-edge symmetry and dimensional consistency to support repeatable CNC drilling.

Precision inspection and quality control for 140 degree solid carbide drills

140° Point Accuracy

Point angle, cutting-lip symmetry and point grinding quality are inspected.

Kích thước và độ lệch tâm

Diameter, flute length, overall length and runout are checked against specifications.

Edge & Surface Quality

Cutting-edge condition, flute finish and optional coating are inspected.

Point-angle tolerances and inspection criteria are confirmed according to the selected drill specification.

Xem sản xuất & Kiểm soát chất lượng

Bao bì bảo vệ và nhận dạng lô hàng

Individual protection and specification labeling help safeguard precision-ground drill points during storage and shipment.

Individual protective tubes for 140 degree solid carbide twist drills

Bảo vệ cá nhân

Protective tubes help prevent drill-point damage.

Batch labeling and specification verification for precision carbide drills

Nhận dạng lô hàng

Tool sizes and labels are verified against orders.

Protective export packaging for solid carbide drill orders

Bảo hộ xuất khẩu

Protective cartons are arranged by order quantity.

Thời gian giao hàng & Vận chuyển quốc tế

Sản xuất và thời gian giao hàng

Standard and custom 140° carbide drill orders are scheduled according to size, point preparation, coating and quantity. Lead time is confirmed before production.

Giao hàng quốc tế

Express courier, air freight, sea freight and customer-nominated forwarders are available according to shipment requirements.

Xem các tài nguyên dành cho người mua và nhà phân phối
International shipping and payment reference for HY Cutting Tools carbide drills

140° Carbide Drill — Technical FAQ

Các câu hỏi thường gặp về 140-degree solid carbide drills, point geometry, controlled hole entry and precision CNC drilling in steel and cast iron.

What is a 140° drill point used for?

A 140° carbide drill point has a relatively flat tip profile designed for controlled penetration in suitable steel and cast iron applications. Precision-ground cutting edges support consistent drilling when combined with rigid toolholding and low runout.

What is the difference between a 140° drill and a 135° split-point drill?

Cái 140° drill is defined by its point angle, while a 135° split-point drill combines a point angle with a modified chisel edge to help reduce drill walking. A 140° point is not automatically split-point or self-centering. Point thinning can be reviewed separately.

Can a 140° carbide drill machine hardened steel and cast iron?

The series is intended for carbon steel, alloy steel and selected gray or ductile cast iron. Pre-hardened steel requires confirmation of hardness, coating and cutting-edge geometry. Suitability for HRC45–55 steel should not be assumed without checking the selected configuration.

Does a 140° carbide drill need a pilot or spot-drilled hole?

Not always. Direct drilling may be suitable on stable, flat entry surfaces with proper toolholding. Inclined, curved or interrupted surfaces may require spot drilling or pilot-hole preparation to improve entry stability.

Does a 140° drill point improve hole accuracy?

Precision-ground point geometry can support repeatable hole entry, but the angle alone does not guarantee hole tolerance. Cutting-lip symmetry, tool runout, holder rigidity and cutting conditions also affect hole diameter, position and finish.

How do I choose between 3D, 5D and 8D carbide drills?

Choose the shortest practical drill for the required depth. 3D favors rigidity, while 5D and 8D support progressively deeper holes. Longer drills require closer control of runout, coolant access and chip evacuation. Confirm usable depth from the dimensional specification.
