Mũi khoan xoắn hợp kim nguyên khối mũi chẻ 135° cho thép

135° SPLIT-POINT SOLID CARBIDE DRILL SERIES
Stable-entry CNC drilling for carbon steel, alloy steel and pre-hardened steel with 135° split-point geometry.
Chất nền:Cacbua rắn hạt mịn
L/D Ratio:3×D / 5×D / 8×D
Loại mũi khoan:Split-Point Twist Drill
Góc điểm:135° Split Point
Số lượng sáo:2 rãnh xoắn ốc
Chất làm mát:External Coolant / Emulsion
Phạm vi đường kính:Ø3,0–20,0 mm
Lớp phủ:Coated / Uncoated
Ứng dụng / Vật liệu
Thép cacbon PThép hợp kim P P Pre-Hardened Steel
TỐT NHẤT DÀNH CHO

135° Split Point

Carbide Rigidity

3D/5D/8D Options

Custom&OEM Supply

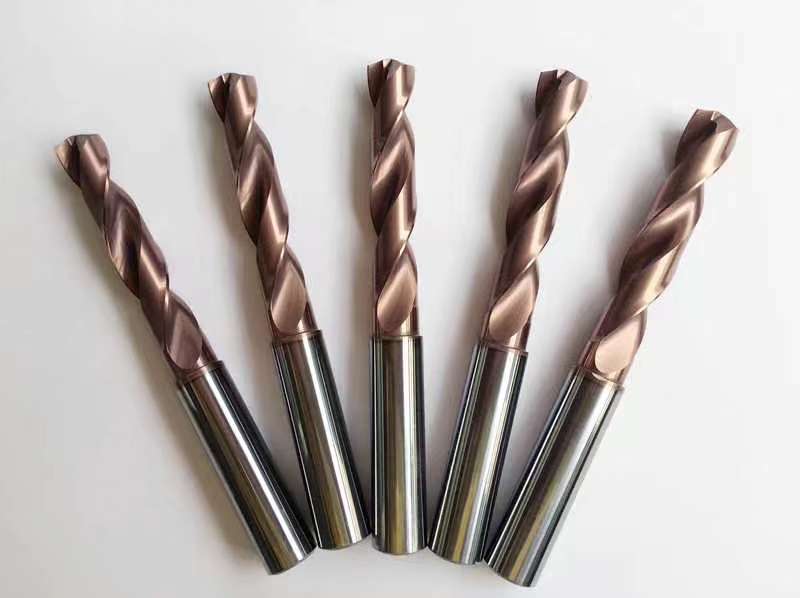

135° Split-Point Solid Carbide Twist Drill Overview

Solid carbide twist drills for CNC drilling in carbon, alloy and confirmed pre-hardened steels. Available in Ø3–Ø20 mm và 3×D, 5×D or 8×D series for different hole-depth requirements.

Key Features & Benefits

135° Split Point

Giúp limit drill walking on prepared flat surfaces. Chisel-edge thinning reduces entry resistance.

Two Spiral Flutes

Ground flutes guide chips away from the cutting zone in blind and through holes.

Cacbua rắn hạt mịn

Rigid construction supports dimensional stability and wear resistance in repeat steel drilling.

3D / 5D / 8D Options

Match the depth series to the required hole, coolant arrangement and available clearance.



Steel Drilling Applications

Đối với blind and through holes in carbon and alloy steel mechanical parts. Pre-hardened and mold steels require confirmation of grade, hardness and coating.

Phù hợp nhất cho

Repeat CNC steel drilling with rigid clamping, low runout and suitable coolant delivery.

Confirm Before Selection

Material hardness, actual drilling depth, entry conditions and chip removal, especially for 8D holes.

Product & Cutting-Edge Details

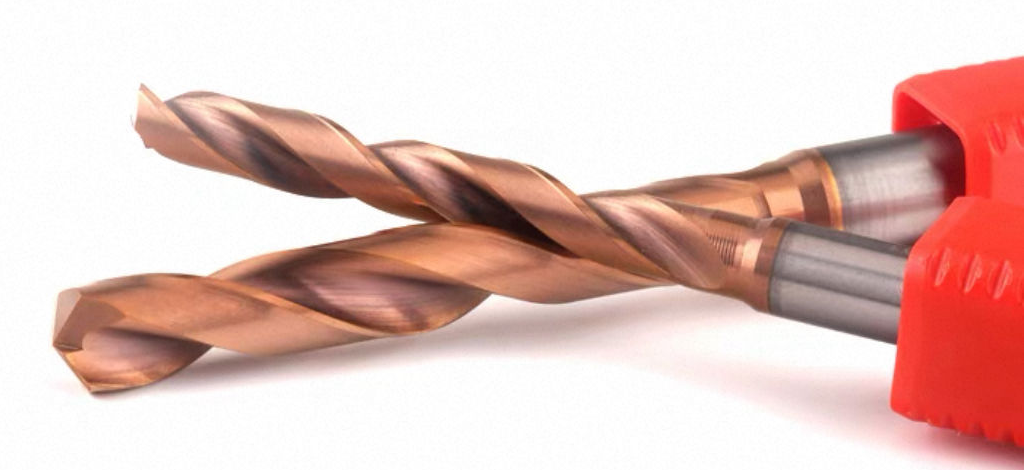

135 degree split-point carbide drill dimensional reference

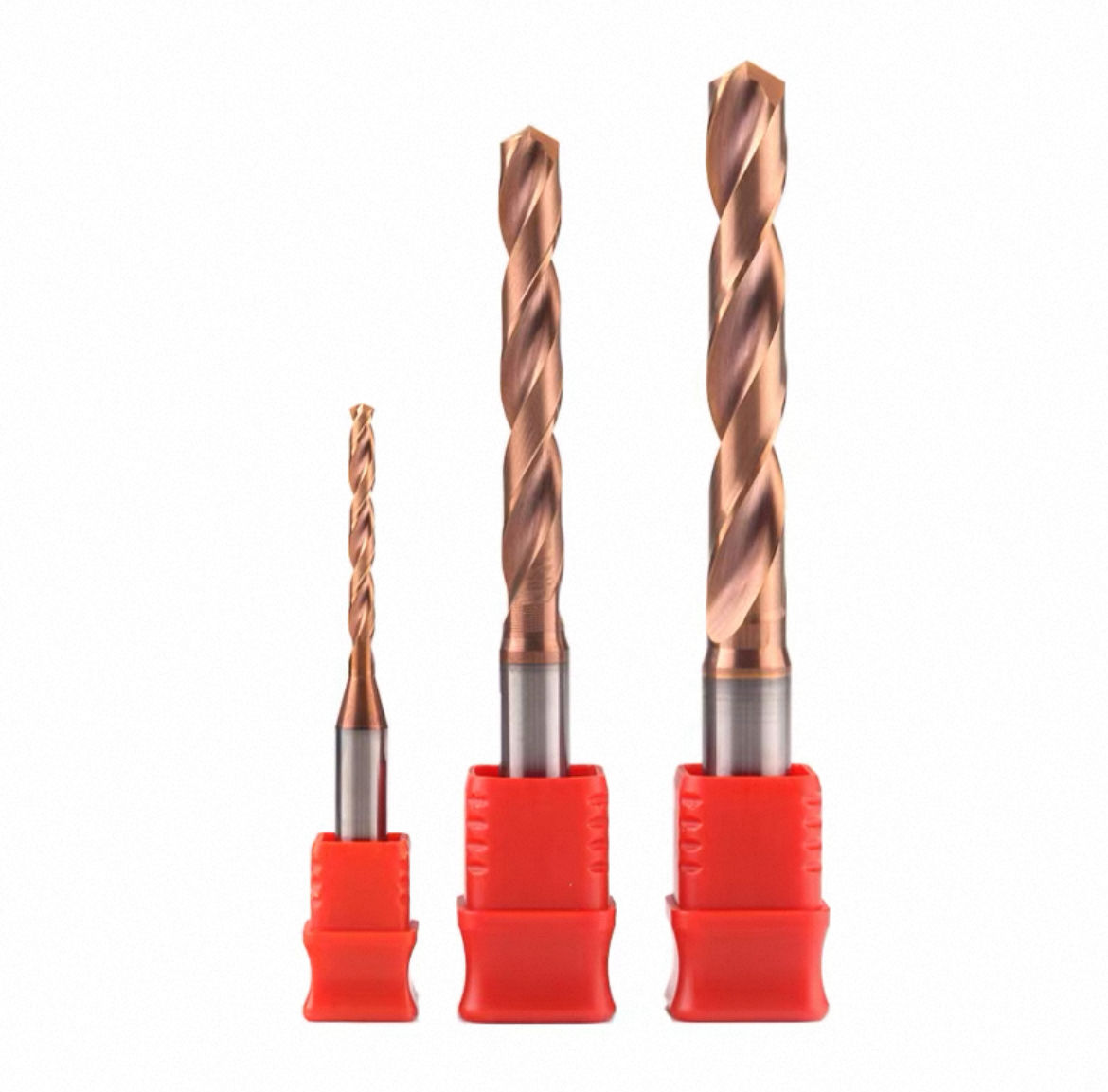

Solid carbide steel drill product detail

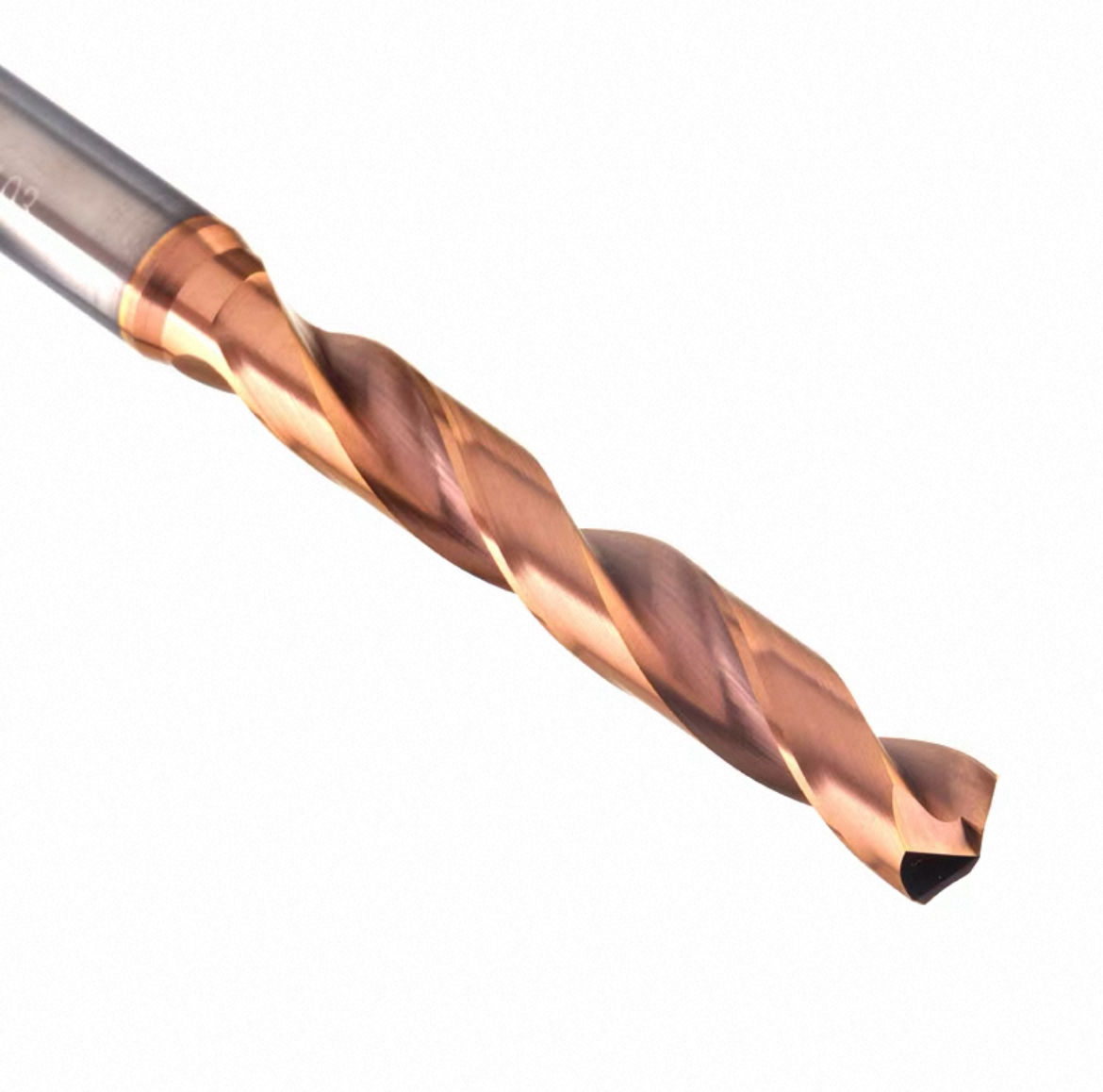

Split-point carbide twist drill cutting geometry

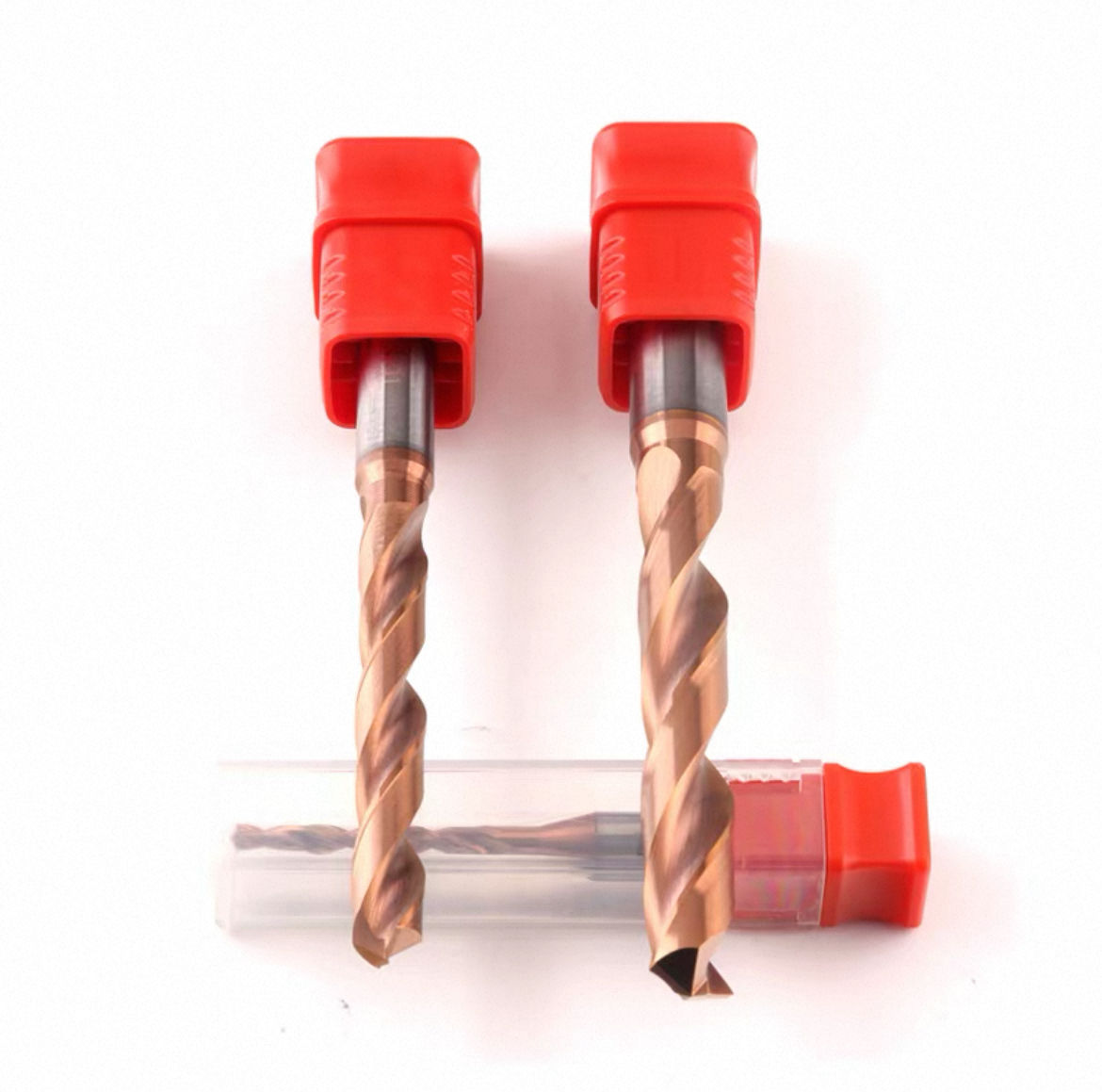

Coated solid carbide twist drill for CNC steel drilling

135° Split-Point Drill Specifications

Solid carbide twist drills for steel, available in Ø3–20 mm và 3D, 5D or 8D configurations. Confirm shank size, coating and coolant options when ordering.

Solid carbide twist drill dimensional reference showing cutting diameter, flute length, shank diameter and overall length
d1: Đường kính cắt L1: Chiều dài sáo d2: Đường kính thân L: Chiều dài tổng thể

3D, 5D & 8D Carbide Drill Sizes

Reference dimensions in mm. Confirm the selected drill size and configuration before ordering.

Scroll to view all sizes. Swipe horizontally on mobile.

d1 3D L1 3D L 5D L1 5D L 8D L1 8D L
3 20 62 28 66 30 70
4 24 66 36 74 42 83
5 28 66 44 82 50 90
6 28 66 44 82 57 97
7 34 79 53 91 76 116
8 41 79 53 91 76 116
9 47 89 61 103 87 131
10 47 89 61 103 95 139
11 55 102 71 118 106 155
12 55 102 71 118 114 163
13 60 107 77 124 133 182
14 60 107 77 124 133 182
15 65 115 83 133 152 204
16 65 115 83 133 152 204
17 73 123 93 143 171 223
18 73 123 93 143 171 223
19 79 133 101 153 190 244
20 79 133 101 153 190 244

Bạn cần biết thông tin về kích cỡ, giá cả hoặc các tùy chọn đặt hàng theo yêu cầu?

Send your drill diameter, hole depth, steel grade and quantity for a quotation.

Yêu cầu báo giá OEM

Custom 135° Split-Point Carbide Drills

Custom solid carbide drills for steel, with diameter, length, split-point geometry and coating matched to your drawing and drilling requirements.

Custom 135 degree split-point carbide drill geometry for steel

Split-Point & Edge Geometry

Web thinning, margins and edge preparation tailored to steel grade and cutting conditions.

Metric and inch custom carbide drill diameter and length options

Đường kính và chiều dài tùy chỉnh

Metric, inch and non-standard drill sizes with matched flute, shank and overall lengths.

For a Custom Drill Quote: Send your drawing, steel grade, hardness, hole depth, tolerance, coolant setup and quantity.

Mũi khoan cacbua OEM và nhãn hiệu riêng

Branding, protective packaging và repeat supply for cutting-tool distributors and OEM brands.

OEM laser marking and private-label packaging for solid carbide drills

Carbide Drill Quality Control

Dimensions, 135° split-point geometry and cutting edges are checked against agreed specifications.

Solid carbide drill dimensional and cutting-edge inspection at HY Cutting Tools
Inspection Item Checks
Kích thước Cutting diameter, flute and overall lengths
Runout Checked to agreed limits
Point & Edges 135° point, split-point geometry and edge condition
Surface & Coating Visible defects and finish consistency
Order Verification Tool codes, quantities, markings and labels

Inspection criteria and tolerances are confirmed before production. Xem sản xuất & Kiểm soát chất lượng

Protective Drill Packaging

Individual protective tubes for solid carbide drills

Bảo vệ cá nhân

Protective tubes help prevent tool contact damage.

Cutting tool specification and batch label verification

Label Verification

Specifications and quantities checked before packing.

Cushioned export carton packaging for carbide cutting tools

Export Packing

Cushioned cartons matched to order size and shipment.

Reference Lead Time

Order Type Estimated Lead Time
Standard Drills Usually 1–3 working days, subject to availability
Coating & Marking Confirmed by specification
Custom Drills Usually 5–7 working days after drawing approval
Bulk Orders Confirmed by production schedule
Xem các tài nguyên dành cho người mua và nhà phân phối

Wholesale Solid Carbide Drills for Steel — FAQs

Specifications, trial orders and OEM options for distributors sourcing 135° split-point carbide drills.

Which applications should distributors recommend this drill for?

This solid carbide twist drill is intended for CNC drilling in carbon, alloy and pre-hardened steels. Confirm the steel grade, hardness and hole depth before selecting a configuration.

What is the benefit of the 135° split point?

The split point helps reduce drill walking and entry thrust on suitable flat steel surfaces. A rigid setup and low runout remain essential for accurate drilling.

What sizes are available, and can I mix sizes in one order?

The range covers Ø3–20 mm in 3D, 5D and 8D configurations. Mixed-size orders can be reviewed against your stock list; availability and MOQ are confirmed per specification.

What is the MOQ for wholesale carbide drills?

MOQ depends on size, coating and customization. Send your required quantities per size so we can confirm a trial order or wholesale quotation.

Can I place a trial order before buying in bulk?

Yes. Trial quantities can be arranged subject to specification and availability, allowing you to evaluate hole quality and tool life before bulk purchasing.

OEM & Repeat Supply

Can you supply carbide drills under our brand?

Yes. OEM options include laser marking, branded labels and private-label packaging. Marking content depends on the available shank area; packaging requirements are confirmed before production.

Can you manufacture custom sizes and coatings?

Custom diameters, lengths, shanks and coatings can be reviewed from your drawing. AlTiN, TiAlN and TiSiN options are selected according to the steel grade and drilling conditions.

Can you provide inspection reports for our orders?

Yes. Inspection reports can be provided, with dimensions, tolerances and reporting requirements agreed before production. Repeat orders are checked against the approved specifications.

What is the lead time for initial and repeat orders?

Lead time depends on availability, quantity, coating and OEM requirements. Share your replenishment schedule so delivery timing can be confirmed for each order.

What should I send for a wholesale quotation?

Send a size list with quantities, drilling depth, coating and branding requirements. For application-specific or custom drills, include the steel grade, hardness, coolant method and drawing.

Carbide Drill Catalog & Cutting Data

Review the drill range for purchasing and the starting cutting data for customer trials.

Catalog mũi khoan & Mũi taro

Product series, dimensions and configurations.

Tải xuống danh mục sản phẩm
Hướng dẫn về tốc độ và lượng cấp liệu

Starting parameters for carbide drill trials.

Xem thông số cắt
