Одноканальная резьбофреза из цельного твердого сплава с несколькими шагами для метрической и унифицированной резьбы

This solid carbide single flute thread mill is designed for metric and Unified thread milling. Its multi-pitch design supports different thread pitches within the tool’s specified range. Select the tool according to thread diameter, pitch and required depth.

Стандарты резьбыMetric / Unified
Профиль60° Single-Form
Диапазон метрических значенийM5–M33
Диапазон высоты тона0.5–3.5 mm / 8–56 TPI
Диаметр режущего инструментаØ3.9–Ø16 mm
Флейты4 / 5 / 6
Индивидуальные заказы и OEM-производствоРазмеры / Покрытия / Брендинг
Стандартная доставка1–3 days, subject to stock
MOQ per Size3–10 pieces
ЛУЧШИЙ ДЛЯ

Multi-Pitch Coverage

Metric & Unified

Fewer Tools

Индивидуальные заказы и OEM-производство

Single-Flute Multi-Pitch Carbide Thread Mill

MULTIPLE PITCHES. FEWER TOOLS.

Flexible Tooling for Mixed Thread Sizes

This single flute carbide thread mill supports internal and accessible external thread milling within its specified diameter and pitch range. The multi-pitch thread mill design provides flexibility for different thread sizes. Confirm tool clearance, usable reach and machine interpolation capability for the application.

Профиль темы60° Single-Form
Metric Pitch Coverage*0.5–3.5 mm
Unified Pitch Coverage*8–56 TPI

Combined series coverage. Each product code has its own approved pitch range.

Why Choose a Multi-Pitch Thread Mill?

01 / FEWER TOOLS

Simpler Tool Inventory

Cover several compatible pitches and diameters with one selected cutter.

02 / THREAD FLEXIBILITY

Metric & Unified Threads

Machine compatible 60° internal threads using the specified pitch and CNC interpolation path.

03 / CUTTING ENGAGEMENT

Single-Row Cutting

Engages one axial profile row at a time, helping manage cutting load.

Tool & Packaging Details

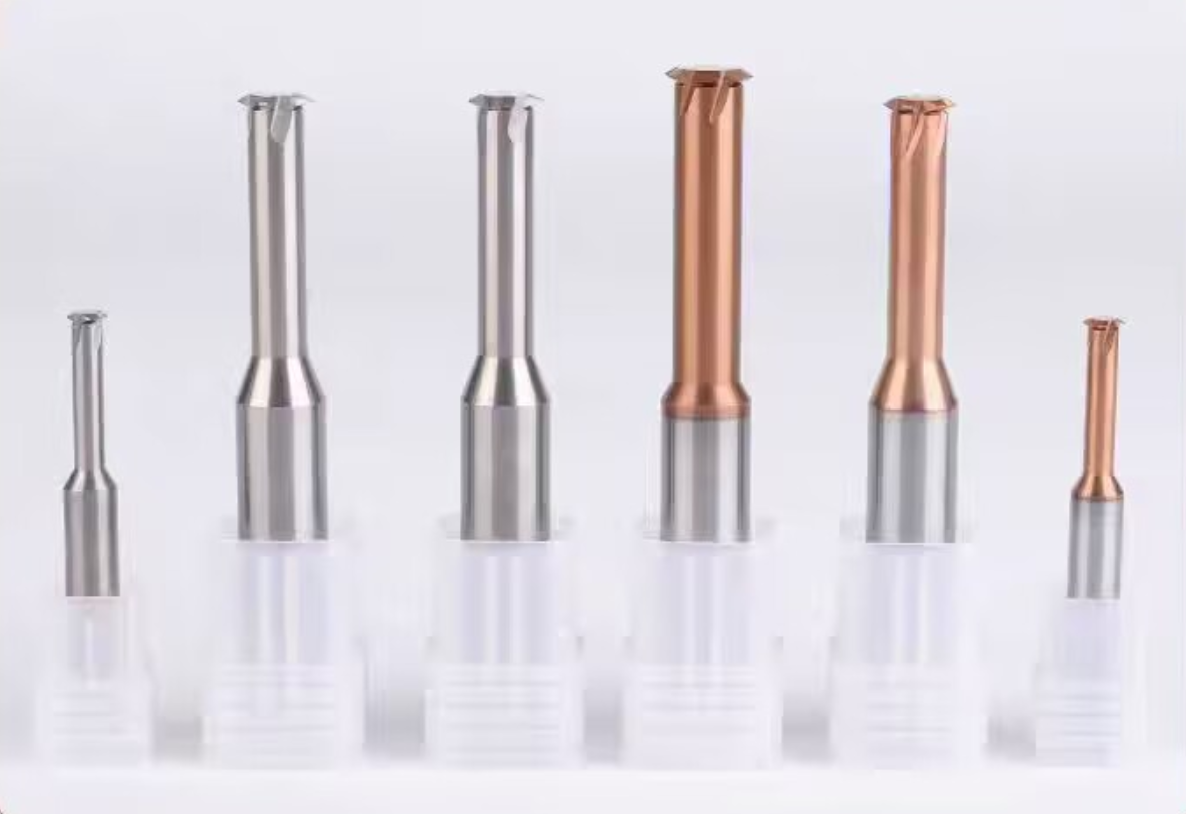

Solid carbide single-form multi-pitch thread mill product detail

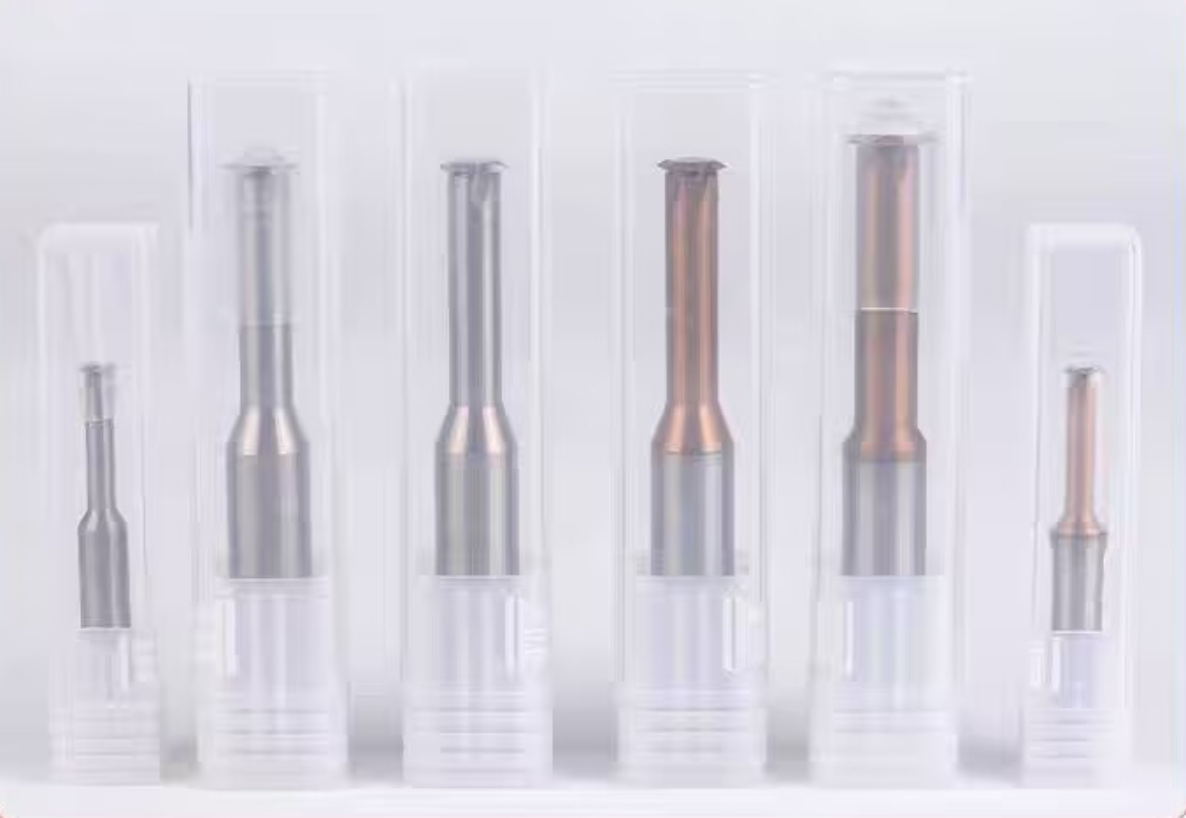

Single-form multi-pitch carbide thread mill with protective packaging

Application Fit

Идеально подходит для

Mixed-size jobs, small batches and shops seeking fewer dedicated thread mills.

Не подходит для

Pitches outside the selected model’s limits or jobs prioritizing the shortest cycle for one fixed thread size.

Материалы: Steel, stainless steel and cast iron, with carbide grade and coating matched to the actual material and hardness.

  • Match the model’s pitch range, cutter diameter and neck clearance to the prepared bore.
  • Confirm usable reach and thread depth, then gauge the first thread before batch production.

Single-Form Multi-Pitch Thread Mill Specifications

Select a model whose listed pitch range, cutter diameter and reach suit your metric or Unified internal thread. All tool dimensions are in mm.

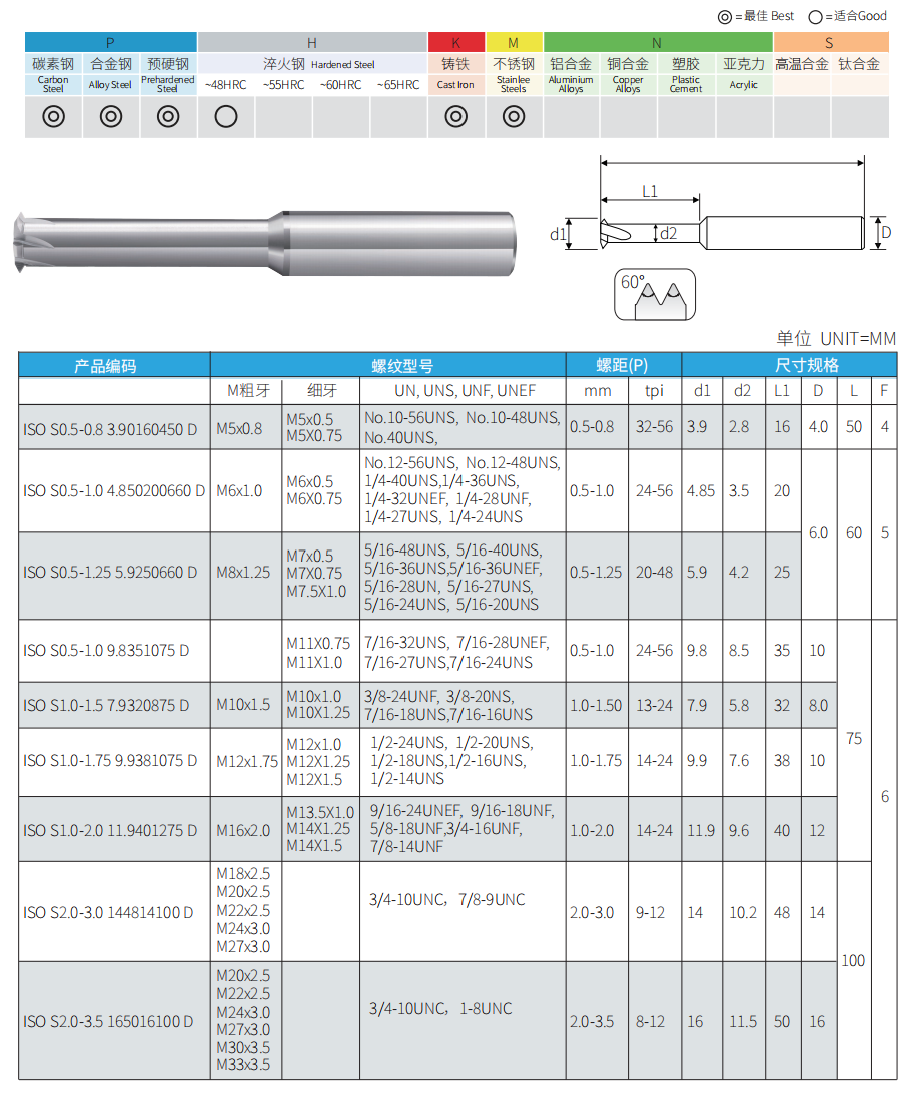

Single-form multi-pitch thread mill dimensions and metric and Unified pitch ranges

P: Metric pitch range · TPI: Threads per inch · d1: Диаметр резака · d2: Neck diameter · L1: Reach · D: Диаметр хвостовика · L: Общая длина · F: Флейты

Multi-pitch coverage is model-specific. Each cutter supports only its listed P and TPI ranges. Single-form describes one axial profile row; flute count varies by model.

Confirm Before Ordering

  • Thread & pitch: Match the required 60° thread designation to the model's listed metric pitch or TPI range.
  • Bore & reach: Check cutter entry, neck clearance and usable reach against thread depth and position.
  • Material & coating: Confirm the workpiece grade, hardness and suitable tool configuration.

Советы по применению

  • Program the exact thread pitch using CNC helical interpolation.
  • Use material-specific cutting data, low holder runout and the shortest practical projection.
  • Maintain chip removal and verify the first thread with the specified gauge.

Вам нужны размеры, цены или индивидуальные варианты?

Send your thread sizes, pitches, material and quantity. HY can review compatible models, custom dimensions and OEM options.

Запрос Цитировать

Custom Single-Form Multi-Pitch Thread Mills

Custom pitch coverage, cutter diameter, neck clearance, reach and coating for compatible metric and Unified internal threads.

Для цитирования: Send your thread sizes, pitches or TPI, bore dimensions, thread depth, material and quantity.

OEM и частные торговые марки

Logo marking, product codes, pitch-range labels and protective packaging for distributors and tooling brands.

OEM marking and private-label packaging for single-form multi-pitch thread mills

Контроль качества

The 60° profile, tool dimensions, runout and cutting edges are checked against the approved specification. Inspection documentation can be reviewed with your order.

Single-form carbide thread mill inspection and quality control

Защита и идентификация

Individual packaging protects cutting edges. Product codes, pitch ranges and batch labels simplify stock control and repeat orders.

Protective packaging and pitch-range identification for multi-pitch thread mills

Упаковка и доставка экспортных грузов

Packing is arranged by quantity and destination. In-stock tools normally dispatch within 1–2 working days. Custom lead times are confirmed after specification approval.

Export packing options for carbide thread mills Варианты доставки и оплаты режущих инструментов HY

Single-Form Multi-Pitch Thread Mill FAQ

Can one thread mill cut different pitches and diameters?

Yes, within the selected model's approved pitch range and diameter limits. This flexibility reduces dedicated-tool inventory for mixed-size metric and Unified thread production.

Does every tool cover 0.5–3.5 mm and 8–56 TPI?

No. These are combined series ranges. Check the individual product code's listed metric pitch and TPI coverage before ordering.

Is single-form the same as single-flute?

No. Single-form describes one axial thread-profile row. This series has four, five or six circumferential flutes, shown as F in the size chart.

How do I select a model for my application?

Match the thread designation and pitch first, then check cutter diameter, neck clearance and reach against the prepared bore. Confirm material and coating; blind holes also need sufficient bottom clearance and chip removal.

Can one multi-pitch thread mill cut every thread pitch?

No. Each tool has a defined thread profile and supported pitch range. Confirm the thread standard, pitch, diameter and depth against the selected tool specification.

Каковы минимальный объем заказа (MOQ) и срок выполнения заказа?

MOQ: 10 pieces per size. In-stock tools normally dispatch within 1–2 working days. Custom lead times are confirmed after specification approval.

Каталог и данные по резке

Confirm cutting data for your tool and material. Gauge the first thread before batch production.
