2-Flute Solid Carbide Spiral Router Bit for CNC Wood Cutting and Slotting

2-flute solid carbide spiral router bits for CNC wood cutting, slotting and profiling. Combined upcut and downcut geometry helps reduce tear-out on both faces of plywood and laminated panels. Small-batch orders, custom sizes and laser marking are available.

◆
Geometry: 2 flutes · Combined upcut / downcut
◆
Sizes: Ø3.175–20 mm · Custom diameter, flute length, shank and overall length
◆
Materials: Plywood / MDF / Solid Wood / Laminated Panels
◆
MOQ: 3–10 pcs per size, depending on specification
◆
Dispatch: Typically 1–3 working days for in-stock items
◆
OEM Options: Laser marking · Customer logo · Private-label packaging
◆
Order Options: Trial orders · Mixed sizes by confirmation · Individual protective boxes
BEST FOR

Clean Panel Edges

2-Flute Geometry

Solid Carbide

Custom Sizes

2-Flute Solid Carbide Spiral Router Bit Overview

These 2-flute solid carbide spiral router bits support CNC wood cutting, slotting and profiling. Combined upcut and downcut geometry helps reduce tear-out on both faces of plywood and laminated panels when the cutting depth matches the flute configuration.

Designed for furniture components, cabinet panels and general woodworking, with standard sizes and custom dimensions for distributor and OEM orders.

Router bit production process.

Cleaner Edges on Both Panel Faces

Opposing cutting directions help limit surface lifting and edge breakout when cutting panels with two visible faces.

◆
Combined Geometry: Upcut and downcut sections help protect opposite panel faces.
◆
2-Flute Design: Spiral cutting edges for routing, slotting and contour cutting.
◆
Solid Carbide: Rigid construction for CNC woodworking.
◆
Custom Dimensions: Diameter, flute length, shank and overall length options.

Selection point: Match the lower upcut-section length to panel thickness and cutting depth. Shallow cuts may not engage both sections.

Product at a Glance

Tool MaterialSolid carbide
Flutes & Geometry2 flutes · Combined upcut / downcut
Main OperationsPanel cutting · Slotting · Profiling
Size OptionsStandard and custom dimensions

Cutting Geometry Details

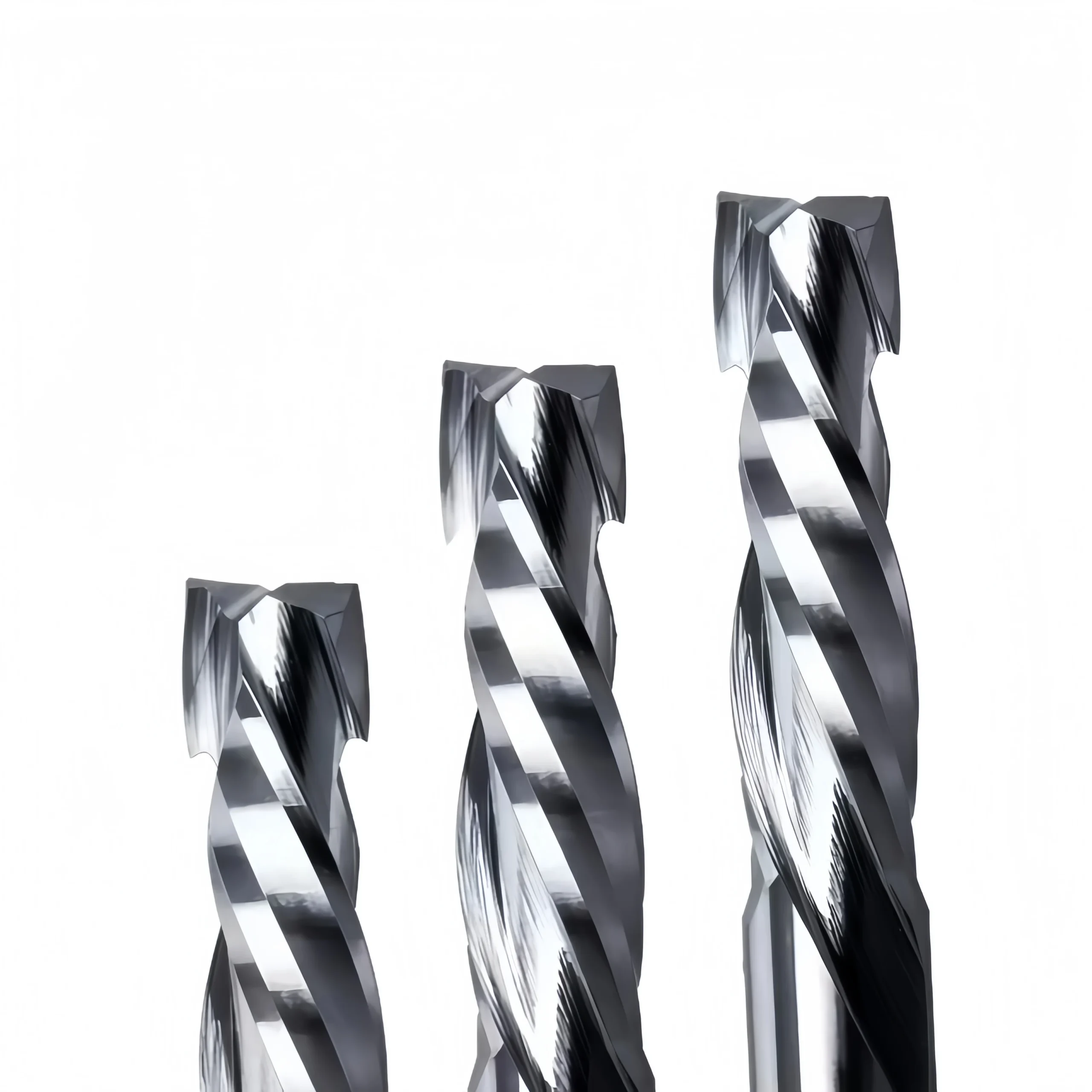

Spiral flute detail of a solid carbide woodworking router bit
Spiral Flutes
Helical flute layout for woodworking cuts and chip movement.
Cutting edge and tip detail of a two-flute wood router bit
Cutting Edge & Tip
Match the end geometry and entry method to the intended operation.
Combined cutting geometry detail of a spiral woodworking router bit
Combined Geometry
Opposing cutting sections help reduce tear-out on both panel faces.

Materials & Applications

For MDF, solid wood, plywood, melamine-faced panels and wood-veneered boards. Particularly useful for panel cutting where both top and bottom edge quality matter.

Router Bit for CNC Wood Cutting application primary materials

Best for: Through-cut profiles in plywood, veneered boards and laminated panels with both cutting sections correctly engaged.

Conditional: Slots and pockets require adequate chip clearance; shallow cuts may not benefit from the combined geometry.

Not ideal for: Metal machining or deep enclosed slots with insufficient chip evacuation.

Product & Packaging

Protective boxes help shield cutting edges during handling and shipment. Confirm tool sizes, quantities and OEM marking requirements when ordering.

Two-flute solid carbide spiral router bit for CNC woodworking
Tool View

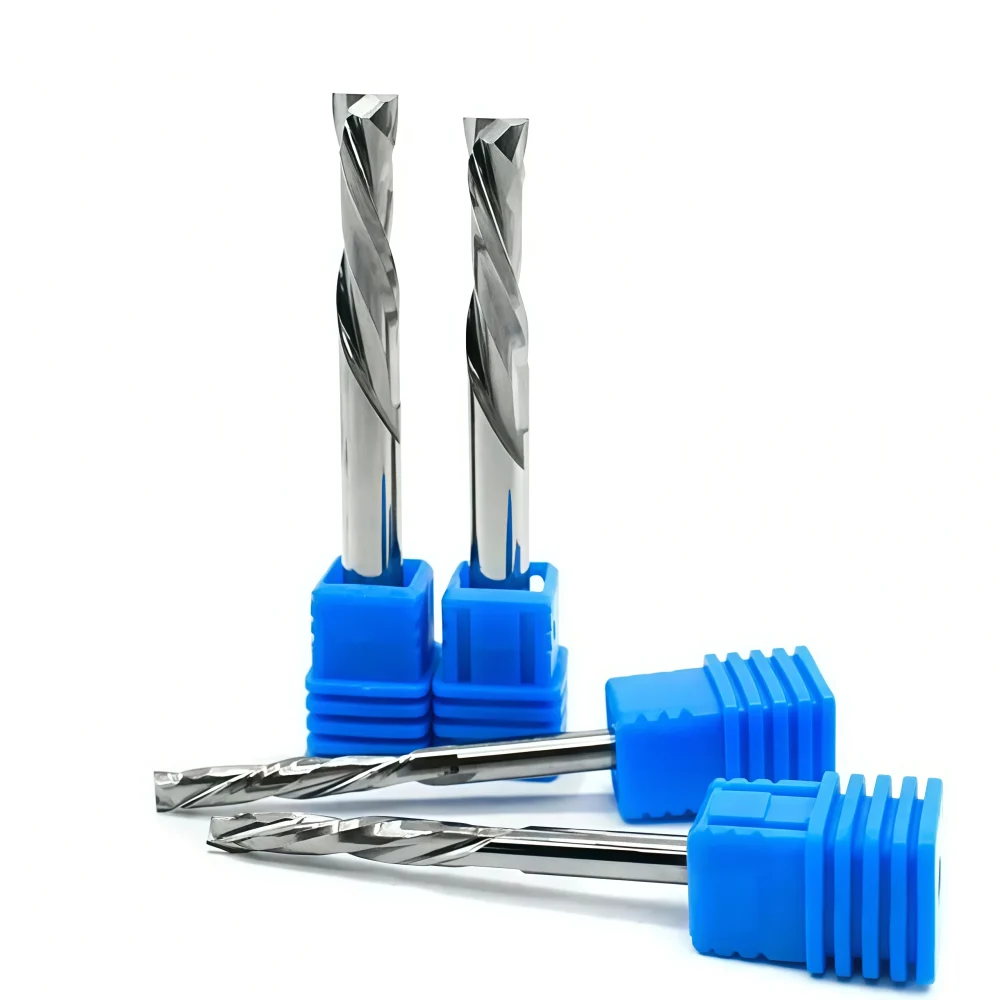

Solid carbide wood router bit beside its protective plastic box
Individual Protection
Protective packaging for solid carbide spiral woodworking router bits
Packaging Reference

Specifications & Size Chart

Reference sizes for the 2-flute solid carbide spiral router bit. Dimensions are listed as cutting diameter × flute length × shank diameter × overall length. All dimensions are in millimeters.Router Bit for CNC Wood Cutting dimension diagram

Size: d × H × D × L Cutting Ød Flute Length H Shank Ø D L
3.175 × 12 × 3.175 × 50 3.175 12 3.175 50
3.175 × 15 × 3.175 × 50 3.175 15 3.175 50
3.175 × 17 × 3.175 × 50 3.175 17 3.175 50
3.175 × 22 × 3.175 × 50 3.175 22 3.175 50
4 × 17 × 4 × 50 4 17 4 50
4 × 22 × 4 × 50 4 22 4 50
4 × 25 × 4 × 50 4 25 4 50
4 × 32 × 4 × 70 4 32 4 70
5 × 17 × 5 × 50 5 17 5 50
5 × 22 × 5 × 50 5 22 5 50
6 × 17 × 6 × 50 6 17 6 50
6 × 22 × 6 × 50 6 22 6 50
6 × 25 × 6 × 60 6 25 6 60
6 × 32 × 6 × 70 6 32 6 70
8 × 22 × 8 × 60 8 22 8 60
8 × 25 × 8 × 60 8 25 8 60
8 × 32 × 8 × 70 8 32 8 70
8 × 45 × 8 × 80 8 45 8 80
10 × 35 × 10 × 75 10 35 10 75
10 × 45 × 10 × 90 10 45 10 90
10 × 52 × 10 × 100 10 52 10 100
12 × 35 × 12 × 80 12 35 12 80
12 × 52 × 12 × 100 12 52 12 100
12.7 × 35 × 12.7 × 80 12.7 35 12.7 80
12.7 × 52 × 12.7 × 100 12.7 52 12.7 100
14 × 52 × 14 × 100 14 52 14 100
16 × 52 × 16 × 110 16 52 16 110
16 × 62 × 16 × 120 16 62 16 120
16 × 72 × 16 × 130 16 72 16 130
18 × 52 × 18 × 110 18 52 18 110
18 × 72 × 18 × 130 18 72 18 130
20 × 52 × 20 × 120 20 52 20 120
20 × 72 × 20 × 130 20 72 20 130

Need Sizes, Pricing or Custom Options?

Send the required dimensions, panel material, thickness and quantity for size matching and quotation.

Cutting Data & Setup

Request starting parameters for the selected tool size and panel material. The supplied speed chart does not establish cutting settings for the Ø3.175–20 mm sizes listed above.

Parameter Selection Guidance
Spindle Speed (n) Confirm the operating RPM and maximum permissible speed for the exact tool.
Feed Rate (Vf) Calculate from confirmed chip load: Vf = n × 2 × fz.
Chip Load (fz) Select by diameter, material, engagement and machine rigidity; numerical values require confirmation.
Cutting Depth & Width Confirm axial depth and radial engagement for slotting or profiling; do not use flute length as a depth recommendation.
Combined-Geometry Engagement Match the lower upcut-section length to panel thickness and programmed depth.
Workholding & Chip Removal Use secure panel support, suitable clamping and effective extraction; monitor chip accumulation in enclosed slots.

Formula units: n in RPM, fz in mm/tooth and Vf in mm/min. The flute count is 2. A confirmed chip-load value is required before calculating feed.

General Router Speed Reference

The following values reproduce the metric diameter labels and maximum-speed figures in the supplied general chart. These larger diameters fall outside this product’s listed size range.

Diameter Label in Source Maximum Speed Shown
25 mm 24,000 RPM
30–50 mm 18,000 RPM
55–65 mm 16,000 RPM
75–90 mm 12,000 RPM

General reference only. Do not extrapolate these limits to smaller tools or treat maximum speed as recommended cutting speed. Follow the confirmed tool, spindle and holder limits.

Frequently Asked Questions

What materials can these spiral router bits cut?

These solid carbide router bits are intended for MDF, solid wood, plywood, melamine-faced panels and wood-veneered boards. The combined cutting geometry is particularly useful for panels requiring clean edges on both faces. They are not intended for metal machining.

How does the bit help reduce chipping on plywood and laminated panels?

Combined upcut and downcut sections help reduce tear-out on the bottom and top faces respectively. This is commonly called compression geometry. Both sections must engage the panel correctly; edge quality also depends on tool sharpness, workholding and cutting parameters.

Can I use this router bit for slots and pockets?

Yes, where the selected tool geometry and entry method suit the operation. Shallow slots may engage only the lower upcut section, so the top-edge benefit may be limited. Deep enclosed slots require effective chip removal. Confirm the end-cutting geometry before direct plunging.

How do I choose the diameter and flute length?

Choose the diameter for the required slot width, internal corner radius and machine capacity. Select enough flute length for the panel thickness while keeping tool overhang short. For combined geometry, also confirm the lower upcut-section length. Flute length is not a recommended single-pass cutting depth.

What spindle speed and feed rate should I use?

Starting settings depend on tool diameter, flute length, panel material, cutting depth and machine rigidity. Send your tool size and application for parameter review. A general maximum-speed chart does not establish the recommended operating speed or feed for every size.

Can I order custom sizes or private-label router bits?

Yes. Cutting diameter, flute length, shank diameter and overall length can be reviewed from your drawing or sample. Mixed-size orders, marking and private-label packaging are available by confirmation. Send quantities per size so we can confirm availability, minimum order and lead time.

Need help selecting a size? Send your panel material, thickness and required tool dimensions.
