2-Flute Solid Carbide Straight Router Bit for Wood Panel Cutting

2-flute solid carbide straight router bits for CNC wood panel cutting, slotting and profiling. Available in Ø1–8 mm cutting diameters for fine grooves and general woodworking, with custom dimensions and OEM options for distributor orders.

◆
Shank Sizes: 3.175 / 4 / 4.76 / 5 / 6 / 8 mm · Match to the selected specification
◆
Materials: Solid Wood / Hardwood / Plywood / MDF
◆
Applications: CNC Routing / Panel Cutting / Slotting / Profiling
◆
Customization: Cutting diameter, flute length, shank and overall length
◆
OEM Options: Laser marking · Customer logo · Private-label packaging
◆
Orders: Trial quantities and mixed sizes by confirmation · MOQ and lead time quoted by item
◆
For a Quote: Send dimensions, workpiece material and quantity per size
BEST FOR

Straight Flutes

Solid Carbide

Ø1–8 mm Sizes

Custom Options

2-Flute Solid Carbide Straight Router Bit Overview

These 2-flute solid carbide straight router bits are designed for CNC wood panel cutting, slotting and profiling.
Straight cutting edges provide an alternative to spiral tooling for grooves, rebates and contour machining
in wood and wood-based panels.

The size range covers Ø1–8 mm cutting diameters, with different flute lengths and shank sizes for fine slots and general woodworking. Multiple sizes support distributor stocking and application-specific order

Straight router bit product view.

Straight-Flute Tools for Slots & Profiles

Select the cutting diameter for the required groove width or internal corner
radius, then match flute length and shank size to the workpiece and collet.

◆
Straight Flutes: Non-helical cutting edges for wood routing and slotting.
◆
2-Flute Design: Two cutting edges across the listed size range.
◆
Solid Carbide: One-piece construction for CNC woodworking tools.
◆
Multiple Sizes: Small diameters for fine grooves and larger sizes for panel machining.

Key Specifications

Material & GeometrySolid carbide · 2 straight flutes
Cutting DiameterØ1–8 mm
Flute Length3–52 mm, depending on diameter
Shank Diameters3.175 / 4 / 4.76 / 5 / 6 / 8 mm
Overall Length38–80 mm, depending on size
Main OperationsPanel cutting · Slotting · Profiling

Confirm the exact diameter, flute length, shank and overall length combination in the size table.

Product Details

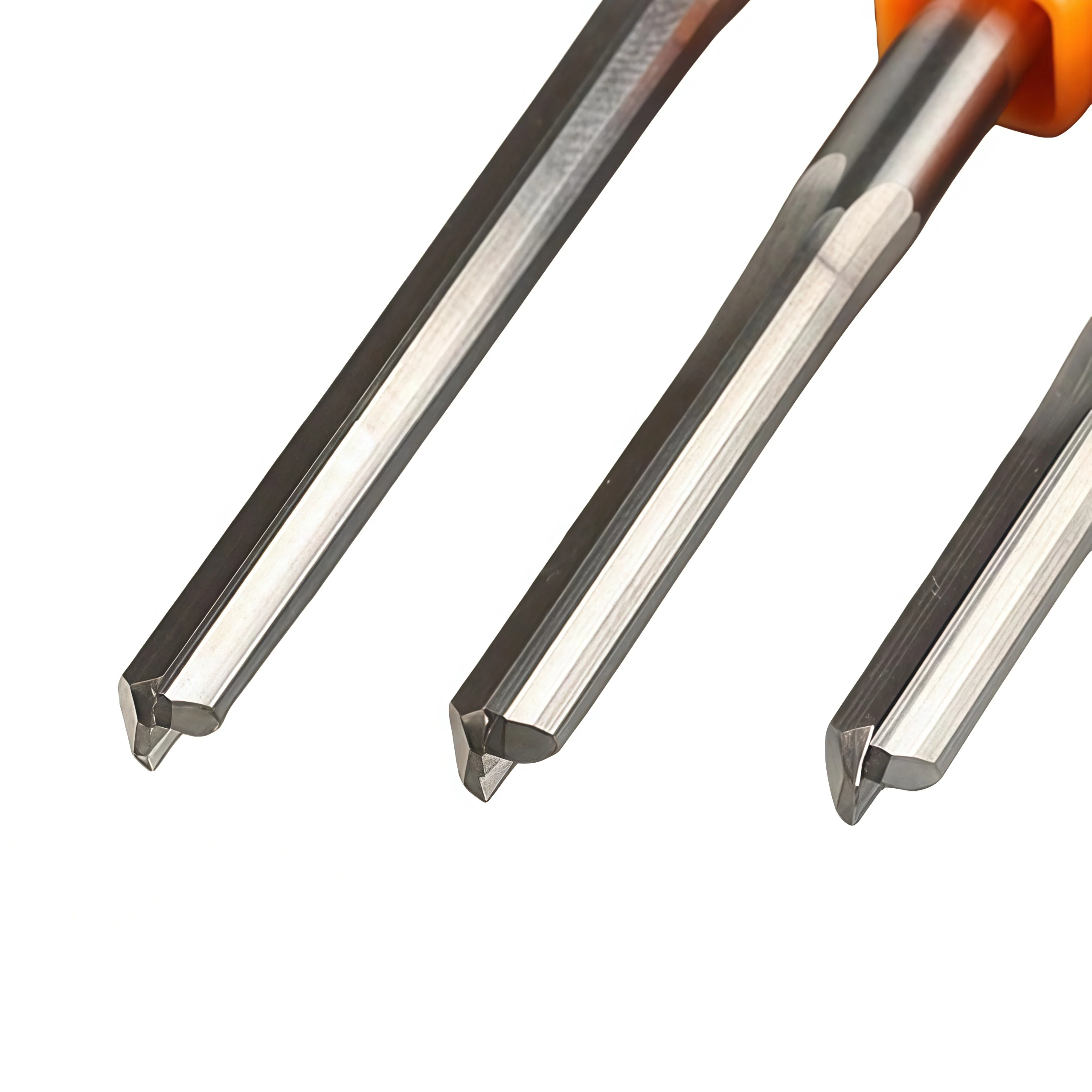

Two-flute solid carbide straight router bit for woodworking

Solid carbide straight-flute wood router bit product view

Carbide straight router bit for CNC wood panel cutting

Materials & Applications主 Cnc Wood Router Bits 8Mm Cnc Endmill 3 副本 Scaled



For routing solid wood, MDF and plywood in furniture, cabinet and general woodworking applications. Match the tool size and cutting conditions to the material, groove depth and required edge finish.

Best for:
Straight grooves, rebates, panel profiles and fine slots using suitable tool sizes.

Conditional:
Pocketing and plunge entry require confirmation of end-cutting geometry and chip clearance. Long-flute and small-diameter tools need conservative engagement.

Not ideal for:
Applications requiring combined upcut/downcut action for double-sided laminate edges, or deep enclosed slots with poor chip removal.

Distributor & Custom Orders

Custom dimensions and private-label requirements can be reviewed from your drawing, sample or size list. Confirm the full specification for each item to simplify repeat ordering.

◆
Custom Sizes: Cutting diameter, flute length, shank and overall length.
◆
OEM Options: Tool marking and private-label packaging by confirmation.
◆
Order Planning: Samples, mixed sizes, MOQ and dispatch timing confirmed by specification and quantity.

Specifications & Size Chart

Reference dimensions for 2-flute solid carbide straight router bits. Select the cutting diameter, flute length and shank size for your application. All dimensions are in millimeters.

主 Cnc Wood Router Bits 8Mm Cnc Endmill 1 副本 1 Scaled

Cutting Ø d-CED (mm) Flute Length h-CEL (mm) Shank Ø D-SHK (mm) Overall Length L-OVL (mm) Flutes
1 3 3.175 38 2
1.5 3 3.175 38 2
1.5 5 3.175 38 2
1.5 8 3.175 38 2
2 6 3.175 38 2
2 8 3.175 38 2
2 12 3.175 38 2
2 15 3.175 38 2
2 17 3.175 38 2
2.5 15 3.175 38 2
2.5 17 3.175 38 2
2.5 22 3.175 38 2
3.175 12 3.175 38 2
3.175 17 3.175 38 2
3.175 22 3.175 40 2
3.175 25 3.175 50 2
3.175 32 3.175 60 2
4 17 4 45 2
4 22 4 45 2
4 25 4 48 2
4 32 4 60 2
4.76 22 4.76 50 2
5 17 5 50 2
5 22 5 50 2
5 25 5 50 2
5 32 5 60 2
5 22 6 50 2
6 12 6 50 2
6 17 6 50 2
6 22 6 50 2
6 32 6 60 2
6 42 6 70 2
6 52 6 80 2
8 22 8 50 2
8 32 8 60 2
8 42 8 70 2

Reference dimensions; confirm tolerances and availability before ordering. Cutting diameter and shank diameter differ on some sizes. Flute length is not the recommended cutting depth per pass.

Need Sizes, Pricing or Custom Options?

Send cutting diameter, flute length, shank diameter, overall length and quantity per size. Custom dimensions and OEM requirements can be reviewed from your drawing or sample.

Frequently Asked Questions

What materials can these straight router bits cut?

They are intended for solid wood, MDF and plywood cutting, slotting and profiling. For laminated panels, confirm the surface-finish requirement and cutting conditions before selection.

Should I choose a straight or spiral router bit?

Straight bits use non-helical edges for grooves and profiles. Spiral bits offer upcut, downcut or combined cutting action. Choose according to chip clearance and edge quality; this straight-flute tool does not provide compression action.

Can these bits plunge-cut or machine deep slots?

Confirm the selected tool’s end-cutting geometry before direct plunging. Deep slots require suitable cutting passes and effective chip removal. Flute length is not the recommended cutting depth per pass.

What sizes and shank diameters are available?

The reference chart covers Ø1–8 mm cutting diameters with 3–52 mm flute lengths. Shank options include 3.175, 4, 4.76, 5, 6 and 8 mm. Check each listed combination: cutting diameter and shank diameter are not always equal.

What spindle speed and feed rate should I use?

Settings depend on diameter, flute length, material, cutting depth and machine rigidity. Send your tool size and application for parameter review. Do not apply the same settings across all diameters.

Can I order mixed sizes, custom dimensions or private labels?

Yes. Mixed sizes, custom dimensions, laser marking and private-label packaging can be reviewed by request. Send dimensions, quantities per size and branding requirements to confirm MOQ, pricing and dispatch timing.
