Batang Pemotong Alur Relie Ujung Ulir Mikro dari Karbida Padat Seri MDR untuk Pemesinan Lubang Berdiameter Kecil

Solid carbide MDR micro thread-relief grooving bars for machining internal thread runouts, relief grooves and narrow undercuts in small bores. Right-hand MDR and left-hand MDL versions are available, with standard, stainless-steel and custom configurations for precision turning applications.
Substrat:Karbida Padat Berbutir Halus
Jenis Alat:Micro Thread Relief Grooving Bar
Seri:MDR / MDL
Cutting Direction:Right-Hand / Left-Hand
Diameter Dalam Minimum:Ø4.1 / Ø5.1 / Ø6.1 mm
Diameter Batang:Ø4 / Ø6 mm
Working Length:18 / 24 / 27 mm
Opsi Kustom:Dimensions / Coolant Layout / Marking
Pengiriman Standar1–3 Hari Kerja
OEM & Pesanan KhususGambar / Contoh
Jumlah Pesanan MinimumJumlah Pesanan Minimum (MOQ) 10 buah
Dapatkan Penawaran Ngobrol di WhatsApp

Kualitas yang Konsisten

Geometri yang konsisten pada setiap pesanan berulang.

Pesanan Fleksibel

Tersedia dalam jumlah kecil dan berbagai ukuran.

Dukungan OEM

Penandaan khusus, label, dan kemasan.

Standar & Khusus

Ukuran standar dan konfigurasi khusus.

MDR Micro Thread Relief Grooving Bars

MDR series solid carbide micro grooving bars are designed for machining thread-relief grooves, thread runout areas and internal undercuts in small bores. The precision-ground cutting geometry combines a narrow 1.5 mm cutting section, R0.5 corner radius and compact neck design for controlled access near internal threads and shoulders.

Available in right-hand MDR and left-hand MDL configurations, the series covers minimum bore diameters from 4.1 mm to 6.1 mm. Standard, stainless-steel and drawing-based customized versions are available for precision components, sleeves, bushings and Swiss-type CNC turned parts.

Ikhtisar Produk

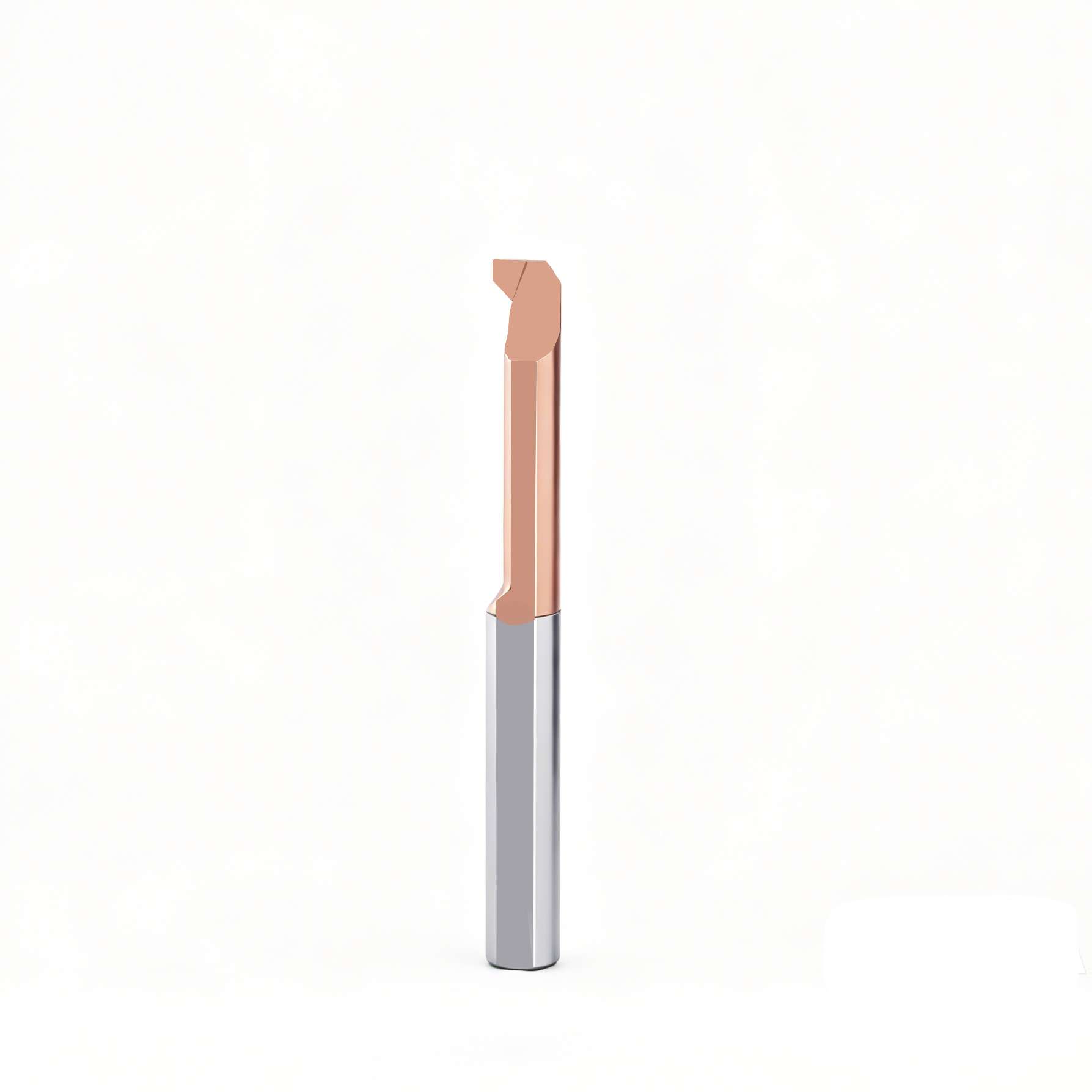

MDR solid carbide micro thread relief grooving bars

Key Product Advantages

Thread-Relief Geometry
Precision-ground profile for producing controlled relief and runout grooves next to internal threads.
Akses Berdiameter Kecil
Standard models support minimum machining diameters of Ø4.1, Ø5.1 and Ø6.1 mm.
Solid Carbide Construction
Integral carbide construction provides rigidity and helps control deflection during precision small-bore machining.
Right- and Left-Hand Options
MDR right-hand and MDL left-hand tools support different spindle directions, holder positions and machining paths.

Aplikasi Umum

Aplikasi Tujuan Pemesinan
Internal Thread Relief Produces a controlled runout area at the end of an internal thread.
Internal Undercutting Machines narrow relief features behind internal shoulders and stepped bores.
Shoulder Relief Creates tool clearance and seating relief near an internal shoulder.
Chamfering & Profiling Supports light internal chamfering and profile finishing when permitted by the tool path and component geometry.

application material MIR micro boring bars

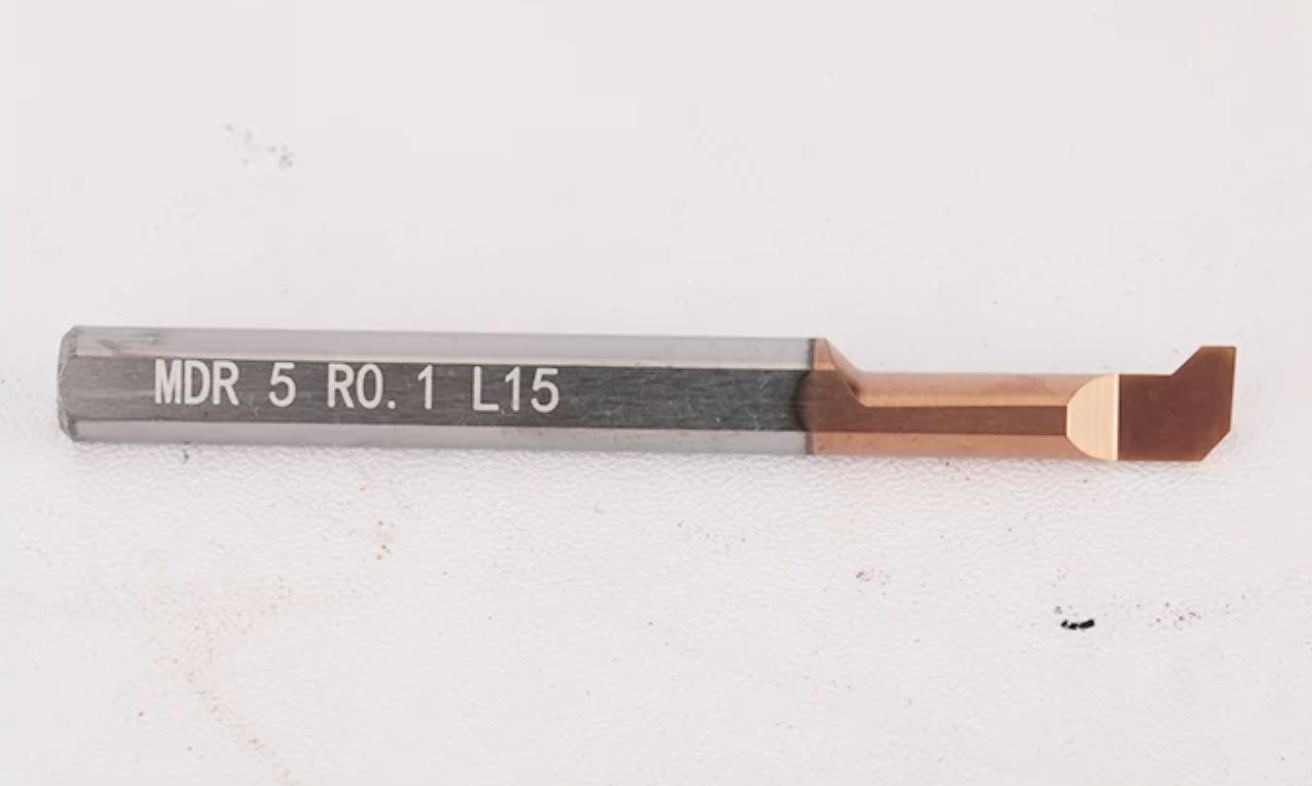

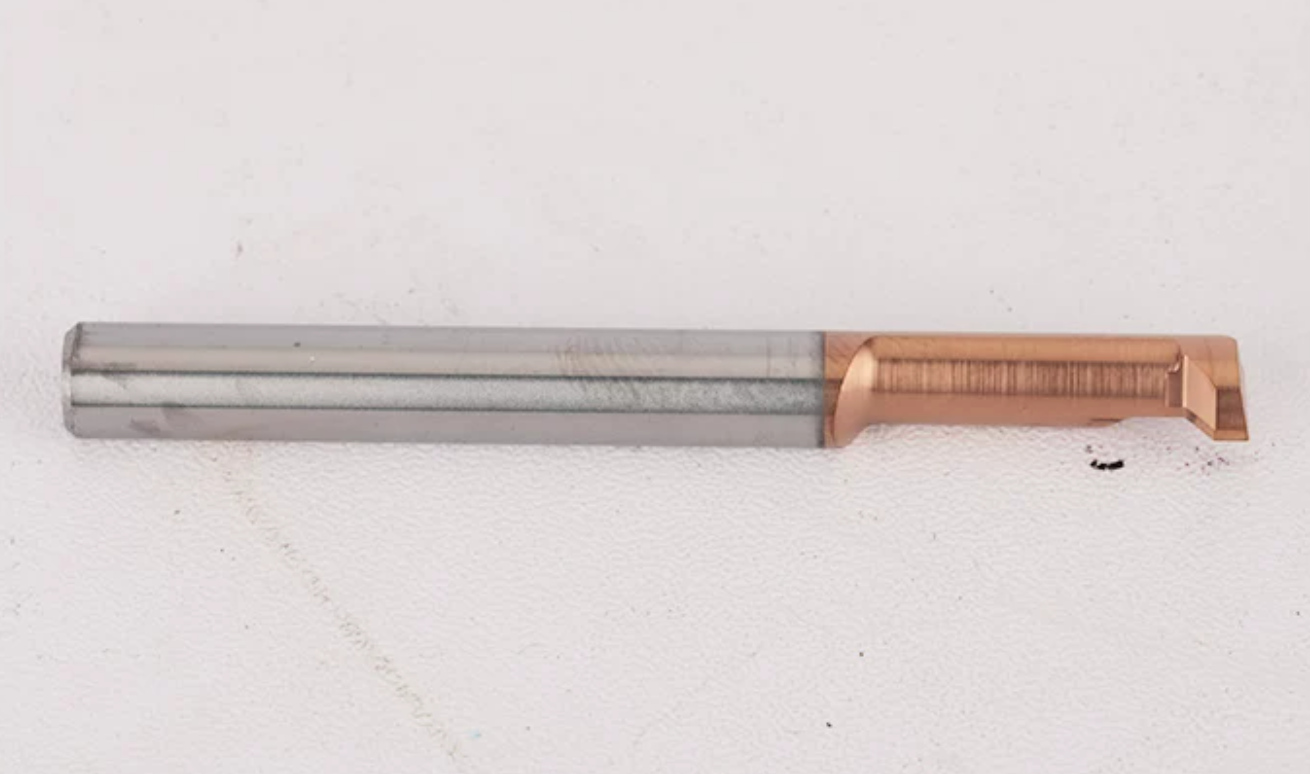

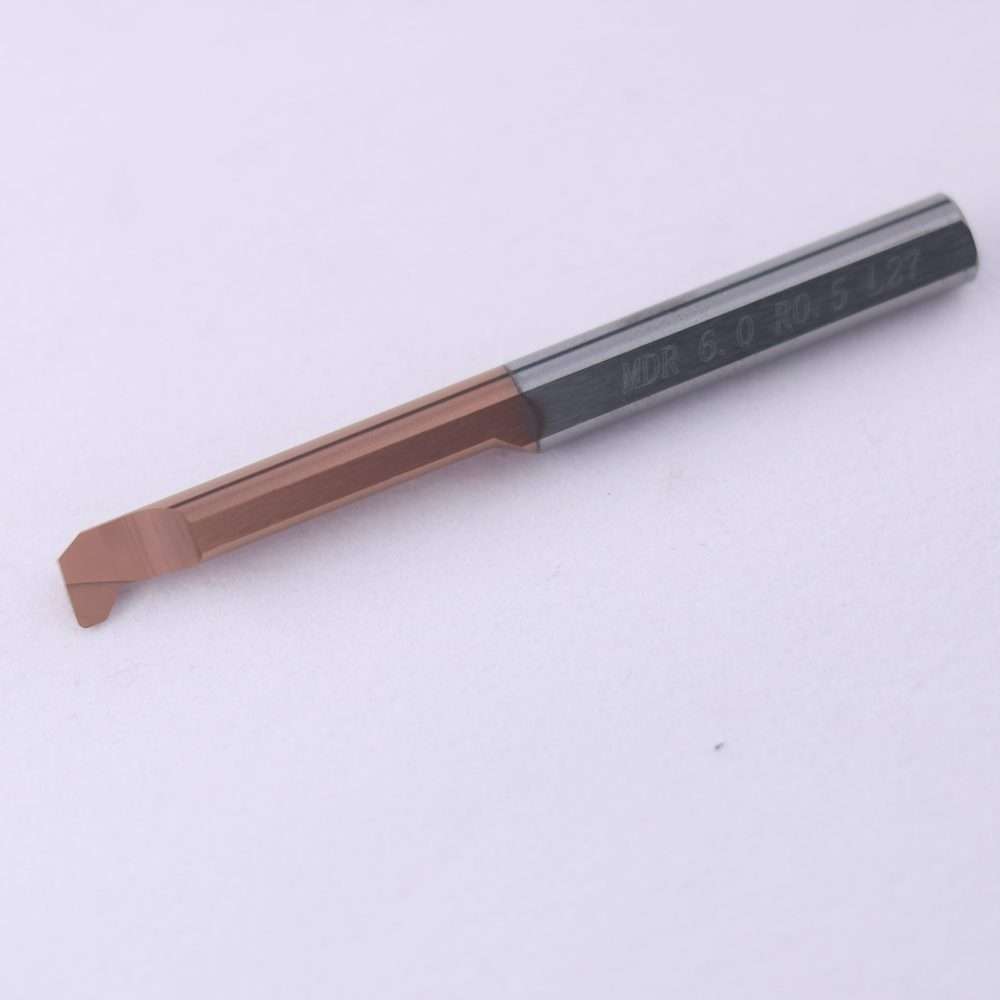

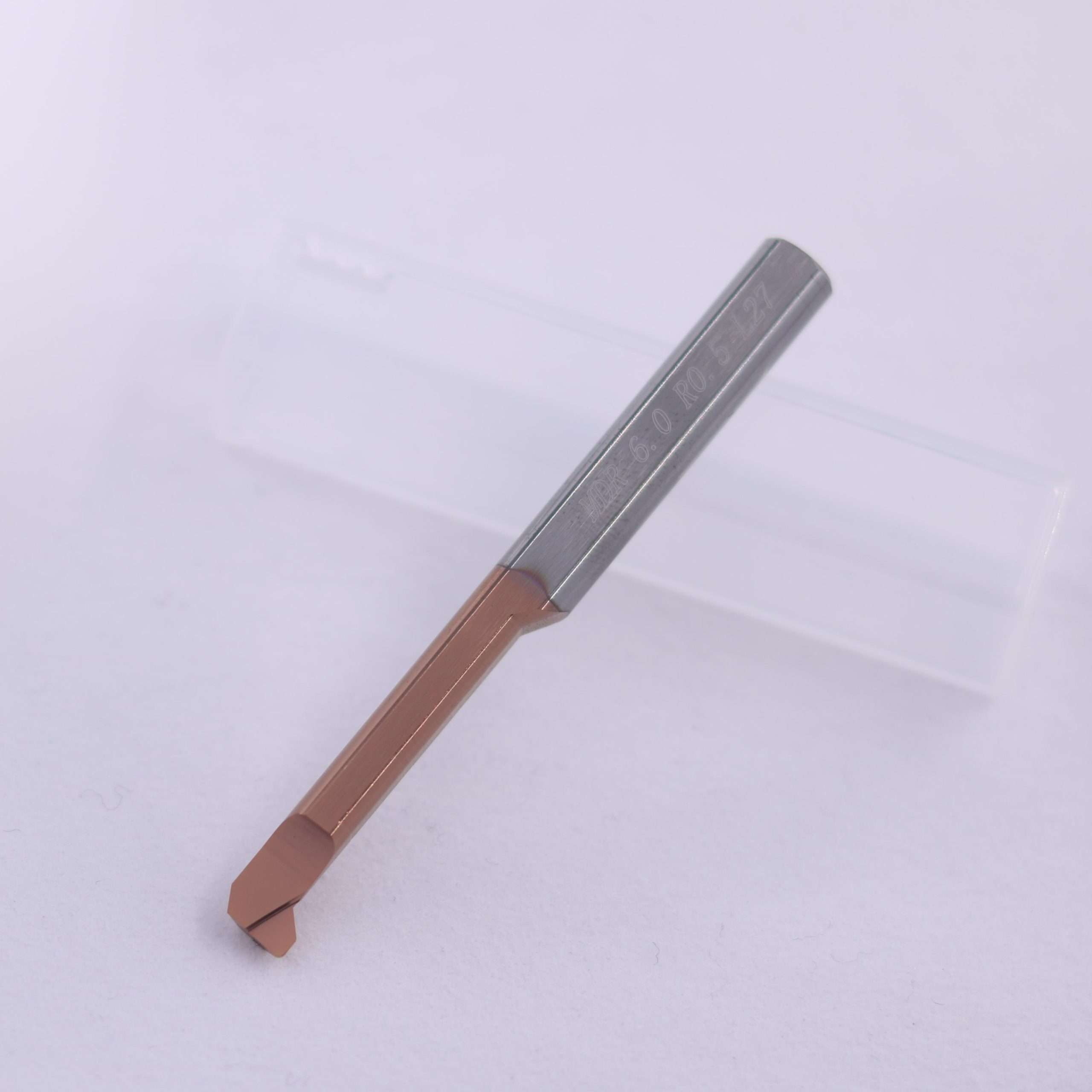

Product Detail Photo

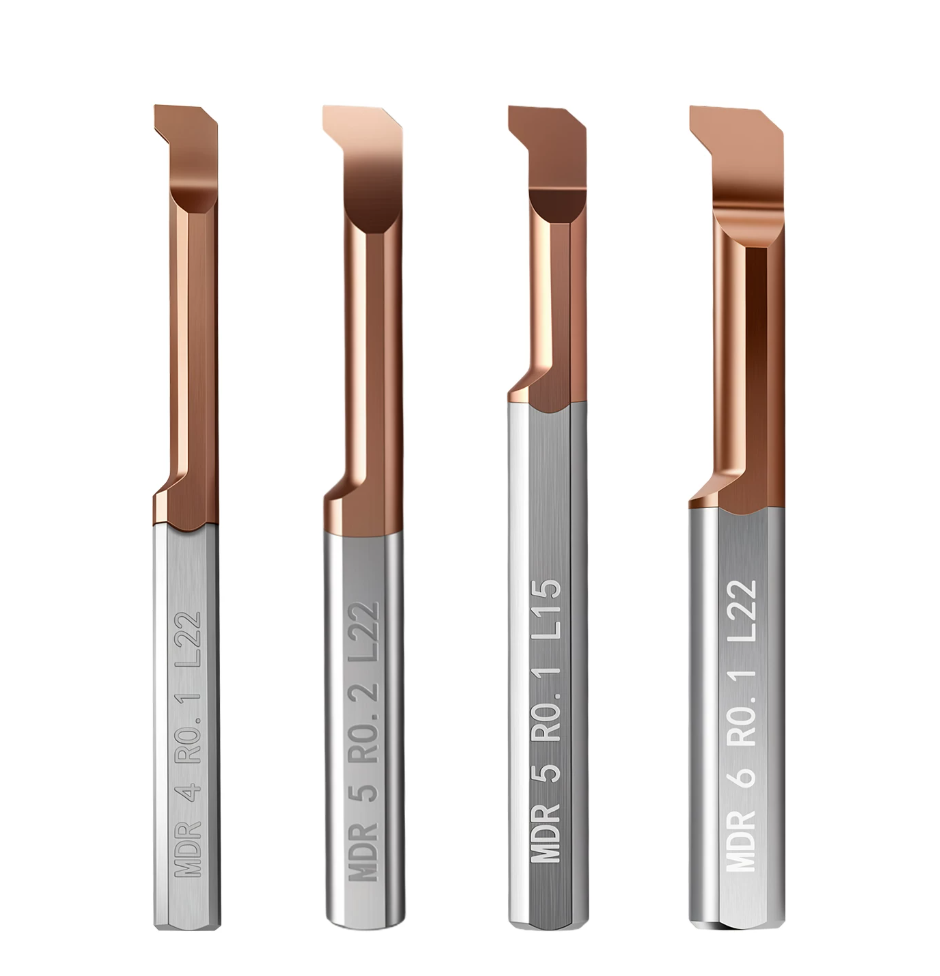

MDR Series Solid Carbide Micro internal boring bar 3pcs MDR Series Solid Carbide Micro internal boring bar real photo MDR Series Solid Carbide Micro internal boring bar real photo back sideMDR micro thread relief grooving bar cutting edge detailMDR Series Solid Carbide Micro Thread Relief Grooving Bars for Small Bore Machining 1micro boring bars carbide internal tooling all sereis Micro internal tooling selection guide for boring, grooving, threading and profiling applications

Tool Geometry & Structure

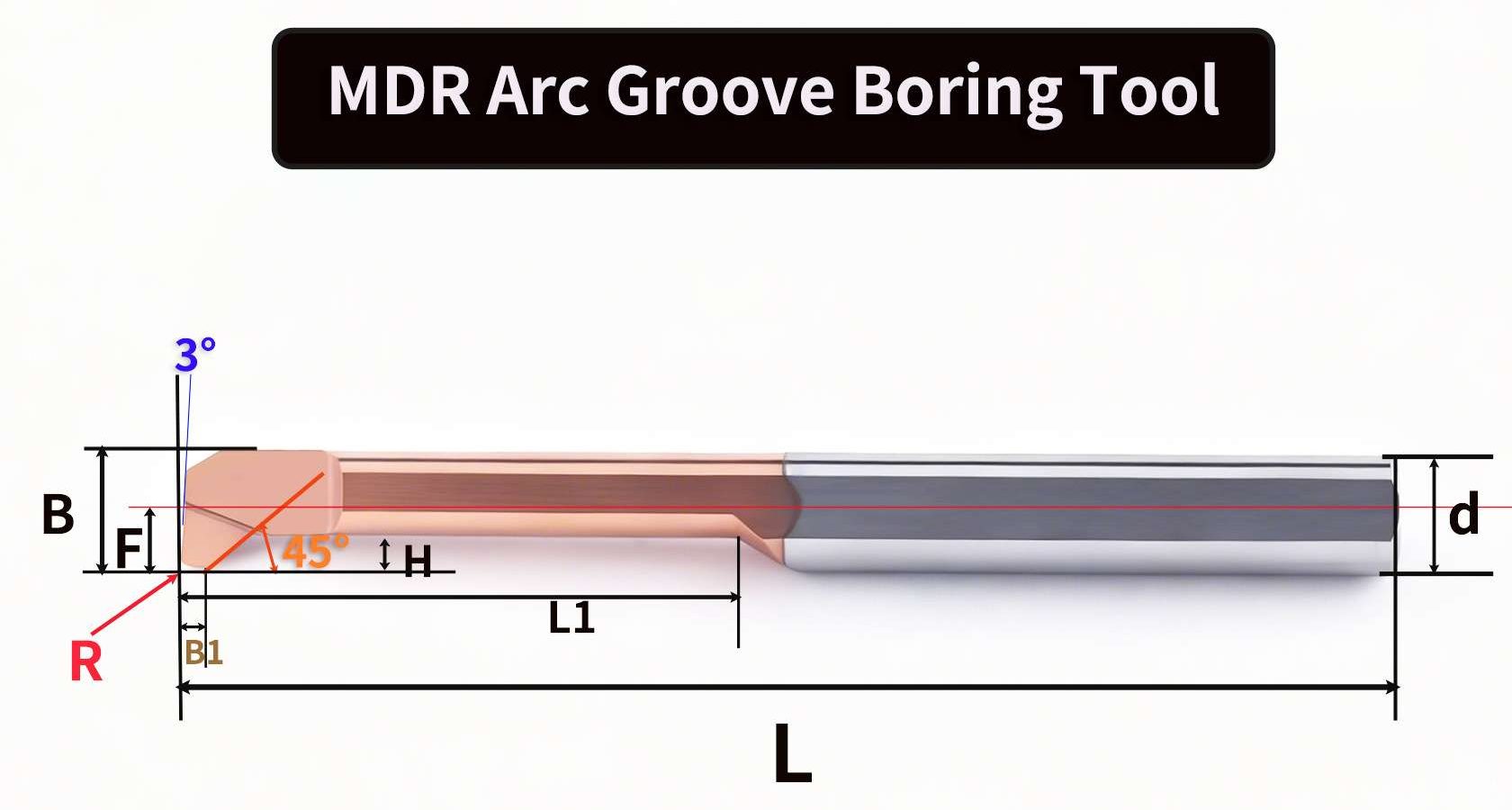

MDR micro thread relief grooving bar tool structure

The MDR cutting profile combines a 45° front transition, 3° clearance geometry, R0.5 corner radius and a 1.5 mm cutting section. This geometry provides clearance for machining narrow relief features inside restricted bores.

For best stability, select the shortest working length that can reach the groove and verify the complete approach, cutting and retraction path before machining.

Panduan Penamaan dan Pemilihan Alat

Select the MDR or MDL micro thread-relief grooving bar according to cutting direction, minimum bore diameter, working length, corner radius, workpiece material and required internal clearance.

Kode Deskripsi Contoh
MDR / MDL Cutting Direction MDR = Right Hand / MDL = Left Hand
4 / 5 / 6 Minimum Bore Size Group Minimum bore Ø4.1 / Ø5.1 / Ø6.1 mm
R0.5 Corner Radius 0.5 mm radius
L18 / L24 / L27 Working Length L1 18 / 24 / 27 mm
SSS Stainless Steel Version MDR 4 R0.5 L18 SSS

Dimensi & Ukuran yang Tersedia

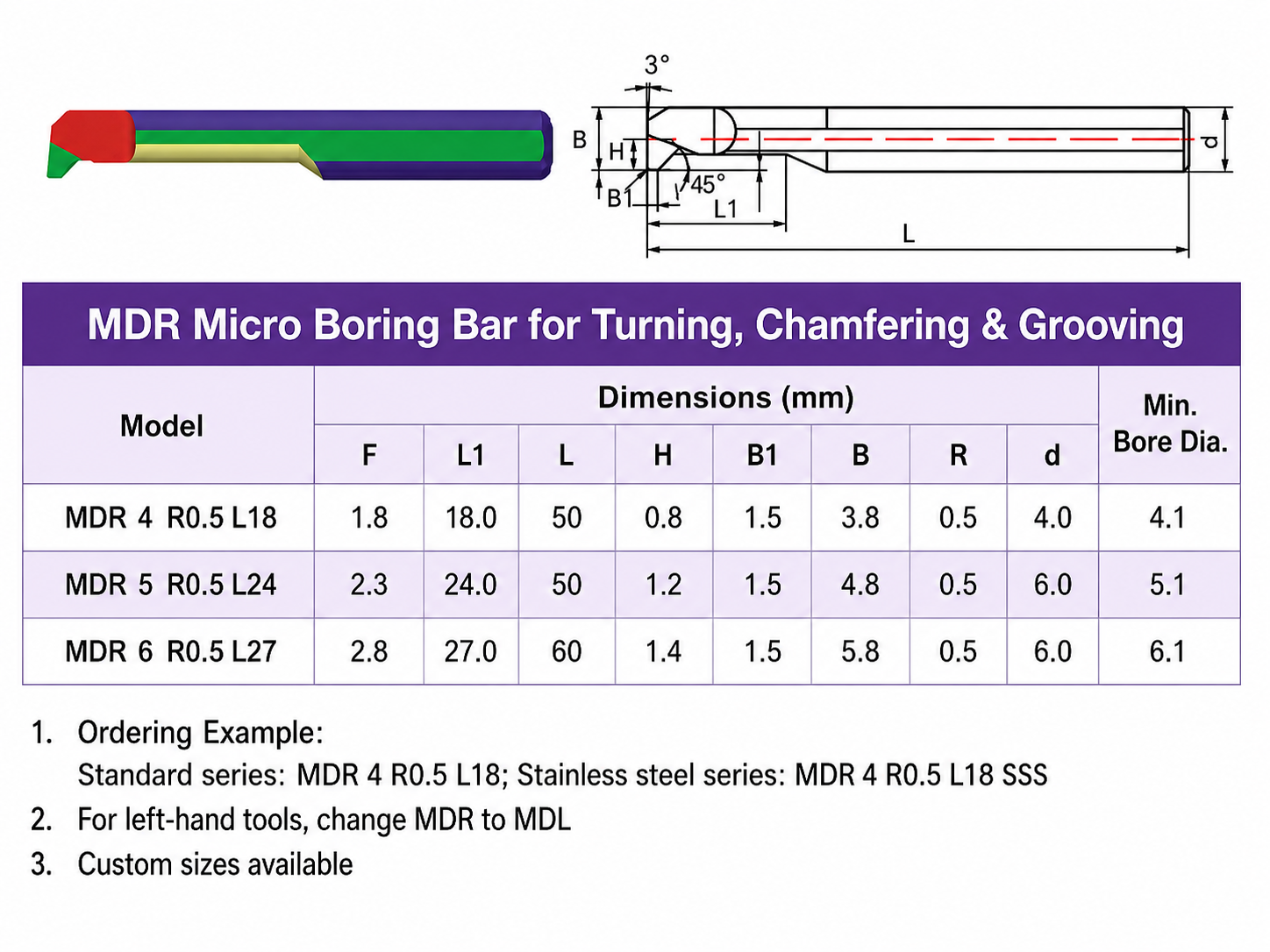

MDR micro thread relief grooving bars dimension drawing and size chart

Dimensions are shown in millimetres. Custom sizes, left-hand tools and application-specific geometries are available according to drawings.

Standard Model Dimensions

Model F L1 L H B1 B R Shank d Diameter Lubang Min.
MDR 4 R0.5 L18 1.8 18.0 50 0.8 1.5 3.8 0.5 4.0 4.1
MDR 5 R0.5 L24 2.3 24.0 50 1.2 1.5 4.8 0.5 6.0 5.1
MDR 6 R0.5 L27 2.8 27.0 60 1.4 1.5 5.8 0.5 6.0 6.1

Model Selection by Minimum Bore

Diameter Lubang Minimum Recommended Model Working Length
Ø4.1 mm or larger MDR 4 R0.5 L18 18 mm
Ø5.1 mm or larger MDR 5 R0.5 L24 24 mm
Ø6.1 mm or larger MDR 6 R0.5 L27 27 mm

Selection & Setup Guidance

Cutting Direction Use MDR for right-hand machining and MDL for left-hand machining.
Tool Reach Use the shortest working length that can safely reach the relief groove.
Tool Alignment Confirm center height, tool orientation, spindle direction and cutting path before machining.
Baja tahan karat Add the SSS suffix when ordering the stainless-steel application version.

Ordering Examples

Standard Right-Hand Tool: MDR 4 R0.5 L18

Stainless Steel Version: MDR 4 R0.5 L18 SSS

Left-Hand Version: Change MDR to MDL

Seri Perkakas Internal Mikro Terkait

Internal Threading: Seri MIR / MIL

Pembuatan Alur Internal: Seri MGR

Radius Grooving: MKR Series

Micro Boring: MTR Series

Katalog Perkakas Internal Mikro

View the complete micro boring, grooving, profiling and threading tool range in the Katalog Perkakas Internal HY Micro (PDF).

Kami mendukung para distributor, pemasok perkakas, dan mitra industri dengan solusi OEM dan merek pribadi yang fleksibel untuk produk perkakas mikro internal. Mulai dari penandaan laser dan pengemasan khusus hingga identifikasi produk dan dokumentasi teknis, kami membantu pelanggan membangun lini produk perkakas mereka sendiri dengan dukungan manufaktur yang andal.

Ruang Lingkup Produk OEM

Kami menyediakan solusi manufaktur OEM dan merek pribadi untuk produk perkakas internal mikro, serta mendukung distributor dan pemasok perkakas dengan seri standar, spesifikasi khusus, dan produksi berdasarkan gambar teknis.

● Batang Bor Mikro

Seri MPR dan alat bor berdiameter kecil yang dirancang khusus untuk pemesinan bagian dalam presisi serta aplikasi anti-getaran.

● Batang Ulir Internal Mikro

Seri MIR/MIL dengan profil ulir, dimensi, dan persyaratan identifikasi produk yang disesuaikan.

● Alat Pembuat Alur Mikro

Pembuatan alur internal dan solusi alur khusus untuk komponen presisi berukuran mini.

● Perkakas Mikro Khusus

Tersedia dimensi non-standar, geometri khusus, serta solusi perkakas berdasarkan gambar yang disediakan pelanggan.

mini boring bars

Opsi Kustomisasi

Custom laser marking for micro internal tooling

Penandaan Laser & Identifikasi Produk

Logo khusus, nomor model, dan tanda pengenal produk dapat disediakan sesuai dengan persyaratan distributor dan merek.

Custom packaging solution for micro tooling

Kemasan Khusus

Kemasan per unit, label, dan informasi produk dapat disesuaikan untuk mendukung saluran penjualan pengecer serta pengembangan merek sendiri.

Technical documentation support for tooling OEM

Dokumen Teknis & Dukungan Produk

Menyediakan gambar teknis, spesifikasi, dan informasi produk untuk membantu distributor mempromosikan dan mengelola produk perkakas mereka.

Alur Kerja OEM

01. Tinjauan Persyaratan

Pastikan gambar, spesifikasi, bahan, dan persyaratan pengemasan.

02. Konfirmasi Alat

Menyempurnakan desain alat, detail penandaan, dan persyaratan produksi.

03. Persetujuan Sampel

Sediakan sampel untuk pengujian dan persetujuan sebelum produksi massal.

04. Produksi Massal

Lakukan produksi dan pemeriksaan sesuai dengan persyaratan yang telah disepakati.

custom cutting tool process hy cutting tools

Dukungan Merek Pribadi bagi Distributor

Bagi para distributor dan pengecer perkakas, kami menyediakan dukungan merek sendiri yang fleksibel, termasuk penandaan khusus, solusi pengemasan, dan dokumentasi produk, guna membantu membangun rangkaian produk perkakas yang profesional.

Kami menerapkan prosedur pengendalian mutu yang ketat, mulai dari pemeriksaan bahan baku hingga pengiriman akhir. Setiap alat diperiksa untuk memastikan dimensi yang konsisten, kinerja pemotongan yang optimal, dan kualitas yang dapat diandalkan untuk aplikasi pemesinan industri.

Proses Pengendalian Mutu

Quality control inspection for carbide cutting tools
01 Pemeriksaan Bahan

Pastikan kualitas dan konsistensi bahan karbida sebelum proses produksi.

02 Pengendalian Penggerindaan Presisi

Mengontrol geometri alat, dimensi, dan ketepatan tepi potong selama proses produksi.

03 Pemeriksaan Terkini

Periksa kualitas tepi dan hasil akhir permukaan untuk menjaga kinerja pemotongan yang stabil.

04 Pemeriksaan Kualitas Akhir

Pastikan spesifikasi produk sebelum pengepakan dan pengiriman.

Standar Pemeriksaan

Poin Pemeriksaan Tujuan
Pemeriksaan Bahan Pastikan kualitas karbida dan konsistensi bahannya.
Pemeriksaan Dimensi Pastikan ukuran alat dan persyaratan toleransi.
Pemeriksaan Terkini Periksa geometri tepi dan kualitas permukaan.
Pemeriksaan Akhir Pastikan produk memenuhi spesifikasi yang telah ditetapkan sebelum pengiriman.

Pengemasan & Perlindungan

Carbide cutting tool packing and protection

Perlindungan individual dan kemasan ekspor membantu mencegah kerusakan alat selama penyimpanan dan pengangkutan internasional.

  • Perlindungan alat secara individual
  • Label identifikasi produk
  • Dukungan penelusuran batch
  • Perlindungan pengiriman ekspor

Alur Kerja Produksi & Pengiriman

01

Konfirmasi Pesanan

02

Penjadwalan Produksi

03

Pemeriksaan Kualitas

04

Pengemasan

05

Pengiriman

export packing way hy cutting toolsShipping and payment hy cutting tools end mill drills

Dukungan Pengiriman

Produk standar biasanya dapat dikirim dalam waktu 1–3 hari kerja setelah konfirmasi pesanan. Produk yang dipesan khusus memerlukan konfirmasi berdasarkan desain cetakan, jumlah, dan persyaratan produksi.

Pertanyaan Umum & Unduhan

Pertanyaan Umum tentang Produk

What are MDR micro thread relief grooving bars used for?
MDR series tools are designed for machining thread-relief grooves, thread runout areas and narrow internal undercuts in small bores. They can also perform light chamfering and profiling when permitted by the component geometry and machining path.
What is the difference between MDR and MDL tools?
MDR identifies the right-hand version, while MDL identifies the left-hand version. Selection depends on the spindle direction, toolholder position, approach direction and required cutting path.
What minimum bore diameters are available?
The standard MDR range supports minimum bore diameters of Ø4.1 mm, Ø5.1 mm and Ø6.1 mm. The bore must also provide sufficient clearance for the complete cutting and retraction movement.
What is the standard cutting profile of the MDR series?
The standard tools use an R0.5 corner radius, a 1.5 mm cutting section and a geometry incorporating a 45° transition and 3° clearance. Custom profiles can be produced according to the required thread-relief or undercut feature.
Is there an MDR version for stainless steel machining?
Yes. Add the SSS suffix when ordering the stainless-steel application version. For example, MDR 4 R0.5 L18 SSS identifies the stainless-steel version of the standard right-hand model.

Pertanyaan Umum (FAQ) tentang Seleksi & Pendaftaran

How do I select the correct MDR model?
Select the tool according to minimum bore diameter, required working length, cutting direction, groove profile, workpiece material and available tool clearance. Use the shortest model that can safely reach the machining position.
Does the 4, 5 or 6 in the model number indicate shank diameter?
Not in every model. The numbers 4, 5 and 6 identify the minimum bore size group. MDR 4 has a Ø4 mm shank, while both MDR 5 and MDR 6 use a Ø6 mm shank. Always confirm the shank dimension shown in the size chart.
Which MDR model should I use for my bore diameter?
Use MDR 4 R0.5 L18 for bores of Ø4.1 mm or larger, MDR 5 R0.5 L24 for bores of Ø5.1 mm or larger, and MDR 6 R0.5 L27 for bores of Ø6.1 mm or larger. Additional clearance may be required depending on the groove position and tool path.
How can I improve machining stability with an MDR tool?
Use the shortest possible working length, minimize tool overhang, confirm center height and cutting direction, and use a rigid precision holder. Cutting speed and feed should be adjusted according to the workpiece material, groove depth and machine rigidity.
How should I check tool clearance before machining?
Check the bore diameter, groove position, shoulder clearance and complete approach and retraction path. A component drawing is recommended when the relief groove is deep inside the bore or positioned close to an internal shoulder.

Pertanyaan Umum (FAQ) tentang Pemesanan & OEM

Can you manufacture custom MDR or MDL grooving bars?
Yes. The corner radius, relief width, relief depth, cutting profile, working length, minimum bore diameter, shank diameter, cutting direction and coating can be customized according to drawings or samples.
What information is required for an MDR quotation?
Please provide the standard model or component drawing, minimum bore diameter, relief-groove dimensions, machining depth, tool direction, workpiece material, required quantity and any coating, marking or packaging requirements.
Can I order mixed models or small quantities?
Yes. The standard minimum order quantity is 10 pieces. Mixed-model orders and sample quantities can be reviewed according to the selected specifications and available stock.
Is OEM marking and private-label packaging available?
Yes. Custom laser marking, model identification, labels and private-label packaging are available for distributors, tooling suppliers and industrial customers.
What is the lead time for standard and customized MDR tools?
In-stock standard models can usually be dispatched within 1–3 working days after order confirmation. Customized tools require separate lead-time confirmation according to geometry, coating, quantity and drawing approval.
