فرز چهارشیار ۱۰×۷۵ میلیمتری از جنس کاربید جامد برای فولاد آلیاژی
Consistent Quality
Consistent geometry across repeat orders.
سفارشهای انعطافپذیر
Small batches and mixed sizes available.
OEM Support
Custom marking, labels and packaging.
استاندارد و سفارشی
Standard sizes and custom configurations.

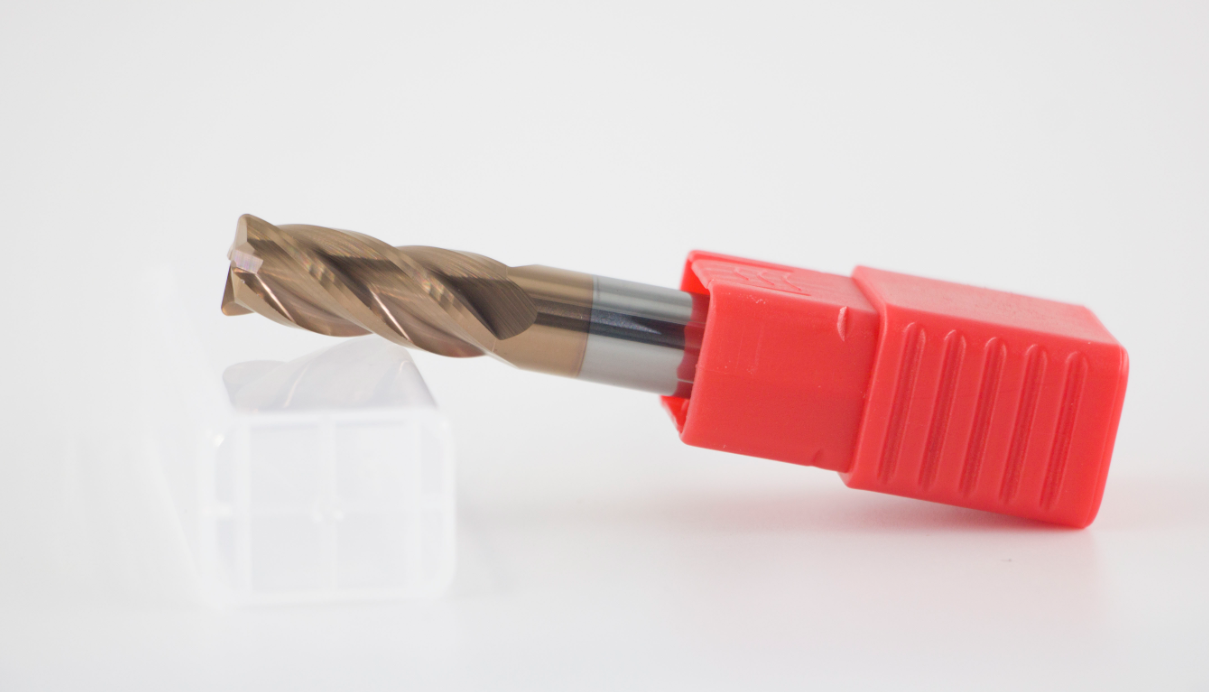

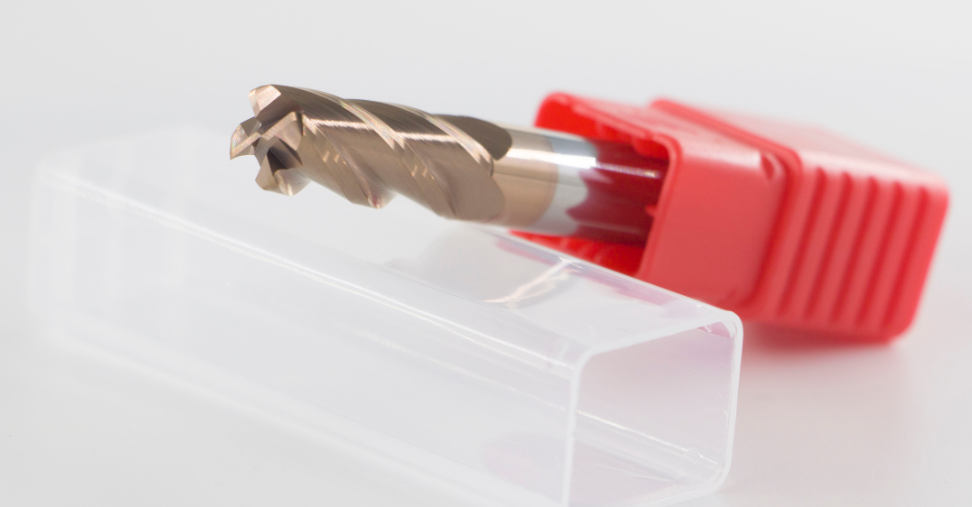

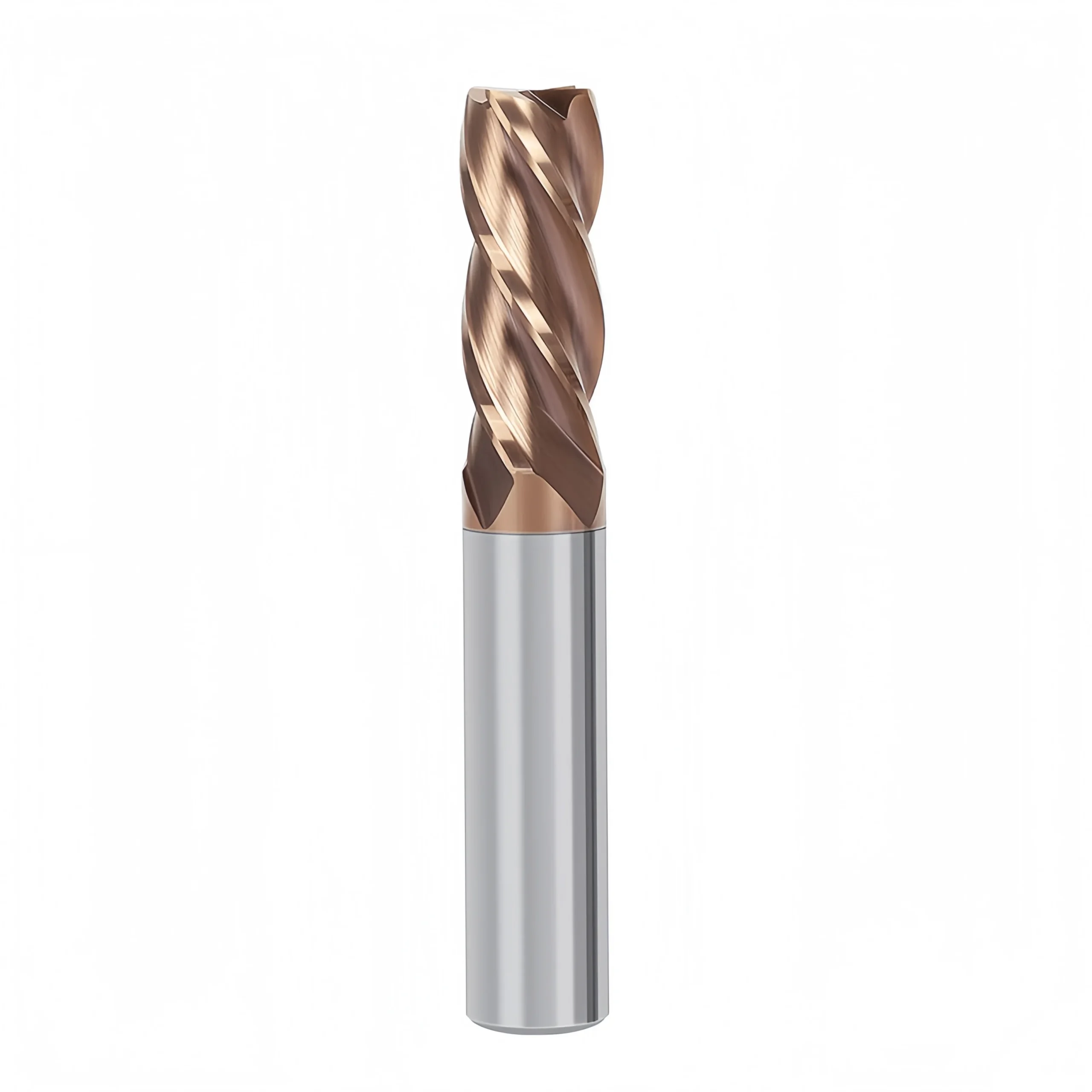

فرز چهارشیار ۱۰×۷۵ میلیمتری از جنس کاربید جامد برای فولاد آلیاژی
This HRC55-series 4-flute solid carbide square end mill uses a Ø10 mm cutting diameter, 25 mm flute length, Ø10 mm shank and 75 mm overall length. Its micro-grain carbide substrate, TiSiN coating and four-flute geometry are configured for stable side milling, profiling, shoulder milling and finishing of carbon steel, alloy steel, mold steel and confirmed pre-hardened steel under rigid CNC conditions.
Product Machining Video
TiSiN Coating Performance
Heat & Wear Resistance
The supplied TiSiN reference lists approximately 3600 HV hardness and oxidation resistance up to 1000°C, supporting controlled high-temperature steel milling.
Reduced Edge Wear
The coating helps protect cutting edges against abrasive wear and friction during stable side milling and finishing.
Key Cutting Features
Micro-Grain Carbide
The HRC55 reference substrate supports rigidity, edge strength and wear control.
Four-Flute Stability
Four cutting edges support productive side milling and consistent finishing.
Square-End Precision
Flat-bottom geometry supports pockets and defined 90° shoulders.
D10×75 Configuration
A Ø10 mm shank and 75 mm overall length support standard CNC holder compatibility.
Recommended Applications
Mold Components
Side walls, shoulders and profiles in confirmed mold and pre-hardened steels.
Precision Steel Parts
Controlled profiling and finishing of accurate alloy-steel components.
Shoulder Milling
Flat floors and defined square shoulders with controlled engagement.
Semi-Finishing
Selected light semi-finishing under rigid clamping and stable cutting data.
Technical Specifications
Reference configuration for the D10×75 mm HRC55 4-flute TiSiN-coated solid carbide square end mill.
| PARAMETER | REFERENCE CONFIGURATION |
|---|---|
| Tool Type | Solid carbide square / flat-end mill |
| Series | HRC55 |
| Substrate | Micro-grain tungsten carbide |
| Cutting Diameter D | 10 mm |
| Flute Length L1 | 25 mm |
| Shank Diameter d | 10 mm |
| Overall Length L | 75 mm |
| Flutes | 4 |
| Coating | TiSiN |
| End Profile | Square / flat end |
| Primary Workpieces | Carbon steel, alloy steel, mold steel and confirmed pre-hardened steel |

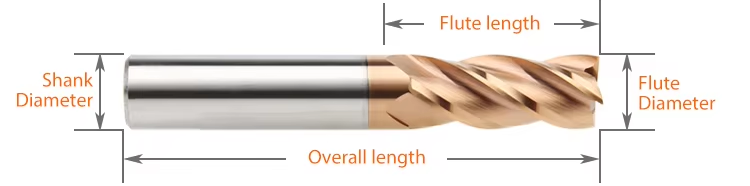

Tool Nomenclature & Dimensions
D: Cutting Diameter L1: Flute Length d: Shank Diameter L: Overall Length
Selected Model & Related Standard Sizes
All dimensions are in millimeters. The highlighted product configuration is D10 × L1 25 × d10 × L75.
| SPECIFICATION | D | L1 | d | L | FLUTES |
|---|---|---|---|---|---|
| Φ1 × 3 × 4D × 50L | 1 | 3 | 4 | 50 | 4 |
| Φ2 × 6 × 4D × 50L | 2 | 6 | 4 | 50 | 4 |
| Φ3 × 9 × 4D × 50L | 3 | 9 | 4 | 50 | 4 |
| Φ3 × 9 × 3D × 50L | 3 | 9 | 3 | 50 | 4 |
| Φ4 × 12 × 4D × 50L | 4 | 12 | 4 | 50 | 4 |
| Φ5 × 13 × 5D × 50L | 5 | 13 | 5 | 50 | 4 |
| Φ5 × 13 × 6D × 50L | 5 | 13 | 6 | 50 | 4 |
| Φ6 × 15 × 6D × 50L | 6 | 15 | 6 | 50 | 4 |
| Φ8 × 20 × 8D × 60L | 8 | 20 | 8 | 60 | 4 |
| Φ8 × 24 × 8D × 60L | 8 | 24 | 8 | 60 | 4 |
| Φ9 × 25 × 10D × 75L | 9 | 25 | 10 | 75 | 4 |
| Φ10 × 25 × 10D × 75L | 10 | 25 | 10 | 75 | 4 |
| Φ10 × 30 × 10D × 75L | 10 | 30 | 10 | 75 | 4 |
| Φ12 × 30 × 12D × 75L | 12 | 30 | 12 | 75 | 4 |
| Φ14 × 45 × 14D × 100L | 14 | 45 | 14 | 100 | 4 |
| Φ20 × 45 × 20D × 100L | 20 | 45 | 20 | 100 | 4 |
TiSiN Coating Reference
| COATING | COLOR | HARDNESS | THICKNESS | OXIDATION TEMP. | FRICTION |
|---|---|---|---|---|---|
| TiSiN | Bronze | 3600 HV | 3 μm | 1000°C | 0.45 |
Recommended Machine & Cooling Conditions
Spindle & Power
Supplied reference: spindle power ≥7.5 kW and available speed ≥12,000 rpm.
Runout Control
Target spindle and tool runout ≤0.005 mm using a precision holder.
Toolholding
Shrink-fit or hydraulic chucks are recommended in the supplied reference.
Cooling Strategy
MQL or stable oil-mist cooling; avoid intermittent coolant that may cause thermal shock.
HRC55 D10×75 mm 4-Flute TiSiN End Mill Customization
The reference configuration uses a Ø10 mm cutting diameter, 25 mm flute length, Ø10 mm shank, 75 mm overall length, four-flute square-end geometry and TiSiN coating. Cutting diameter, flute length, shank dimensions, overall length, helix angle, edge preparation and coating can be reviewed according to the steel grade, workpiece hardness, milling operation, tool engagement and required dimensional accuracy.
| PARAMETER | MANUFACTURING CAPABILITIES |
|---|---|
| Reference Configuration | D10 × L1 25 × d10 × L75 mm, 4 flutes, square end and TiSiN coating |
| Cutting Diameter | Standard Ø10 mm reference diameter, with selected Ø1–Ø20 mm series sizes and non-standard diameters reviewed according to the confirmed drawing |
| Flute Count | Standard 4-flute configuration for stable side milling, profiling, shoulder milling and selected semi-finishing or finishing operations |
| Flute Length | Standard 25 mm reference flute length, with 30 mm and selected drawing-defined cutting lengths reviewed according to feature depth and tool rigidity |
| Shank Configuration | Standard Ø10 mm precision cylindrical shank or drawing-defined shank diameter and clamping length |
| Overall Length | Standard 75 mm overall length for the reference model, with selected 50, 60, 75, 100 mm and custom configurations subject to rigidity review |
| Helix Angle | 30°, 35° or 45° options reviewed according to the steel grade, chip formation, cutting load and milling operation |
| Four-Flute Geometry | Application-matched flute form, core thickness, rake geometry and chip space reviewed to balance rigidity, cutting stability and chip evacuation |
| Square-End Geometry | Precision-ground flat-bottom profile for pockets, profiles, flat floors and defined 90° shoulders, with center-cutting capability confirmed by the selected configuration |
| Edge Preparation | Cutting-edge preparation, end-face grinding, gash geometry and corner condition reviewed according to workpiece hardness, cutting load and required surface finish |
| Coating Selection | TiSiN as the reference coating, with AlTiN, TiAlN, AlTiSiN, TiN or another application-specific coating available for engineering review |
| Workpiece & Application | Configured for carbon steel, alloy steel, mold steel and confirmed pre-hardened steel within the HRC55 series range, primarily for side milling, profiling, shoulder milling and finishing |
| Dimensional Tolerance | Standard production tolerances or drawing-defined requirements for cutting diameter, flute length, shank diameter, overall length, runout and square-end geometry |
خدمات OEM و برند خصوصی
OEM manufacturing and private-label supply options are available for industrial distributors, tooling brands and repeat-production customers. Laser identification, label content, protective packaging and coating presentation can be configured according to the approved product specification and order requirements.
Laser Etching
Custom logos, tool codes, cutting dimensions, coating identification and batch numbers can be marked according to the available shank area.
Custom Labels & Packaging
Individual protective tubes, product labels, specification details, colored packaging tubes and private-label packaging can be reviewed.
Commercial Terms
MOQ, sample evaluation, custom-size trials, repeat orders and scheduled supply programs are confirmed according to the selected configuration.
Technical Workflow
A structured review process is used to confirm standard, customized and private-label square end mill requirements before production.
Inquiry
Submit the material, hardness, milling operation, dimensions, tolerance and quantity.
Engineering
Review flute geometry, helix angle, edge preparation, coating, ap and ae.
Commercial
Confirm quotation, MOQ, sample requirements, production schedule and delivery terms.
Production
CNC grinding, end-face formation, edge preparation, coating and laser marking.
Quality Control
Inspect diameter, flute length, shank, runout, square-end geometry and cutting edges.
Quality, Inspection & Delivery
Our solid carbide square end mills are controlled through material verification, precision grinding, in-process measurement and final inspection. Key dimensions, square-end geometry, cutting-edge condition, coating appearance and product identification are reviewed according to the approved specification or drawing before packing.
Three-Stage Quality Control
Inspection checkpoints are arranged around the manufacturing process to support dimensional consistency and repeat-order control.
Incoming Material Control
Carbide substrate grade, blank dimensions and supplied material information are checked against the production requirement.
In-Process Grinding Control
Cutting diameter, flute geometry, flute length, square-end profile and shank dimensions are monitored during CNC grinding.
Final Tool Inspection
Finished tools are reviewed for specified dimensions, runout, cutting-edge condition, coating appearance, marking and packing identification.
Key Inspection Characteristics
Inspection requirements are confirmed according to the standard product specification or the approved custom drawing.
| INSPECTION ITEM | CONTROL FOCUS | CONFIRMATION BASIS |
|---|---|---|
| Cutting Diameter (DC) | Diameter and dimensional consistency | Standard specification or approved drawing |
| Flute Length (APMX) | Effective cutting length | Confirmed product size or drawing requirement |
| Shank Diameter (DCON) | Clamping-section dimension and surface condition | Applicable shank specification |
| Overall Length (OAL) | Total tool length | Standard size matrix or approved drawing |
| Radial Runout | Concentricity between cutting section and shank | Agreed inspection requirement |
| Square-End Geometry | End-face profile, corner condition and center-cutting form | Selected tool configuration |
| Flute & Helix Profile | Flute count, helix form and grinding consistency | Approved manufacturing configuration |
| Cutting Edge & Coating | Edge condition, visible defects and coating appearance | Application-specific production requirement |
| Marking & Identification | Tool code, dimensions and batch information where applicable | Confirmed order and packaging specification |
Measurement & Batch Traceability
Optical measuring systems, tool inspection equipment and appropriate dimensional gauges are selected according to the feature being checked.
Optical Measurement
Profile and dimensional review of specified cutting features.
Runout Verification
Concentricity review based on the agreed product requirement.
Edge Inspection
Magnified review of the end face, corners and cutting-edge condition.
Batch Identification
Order, product and batch information are linked where required for repeat supply.
Protective Packaging Process
Finished end mills are protected to reduce contact between cutting edges and to support clear product identification during storage and transportation.
Bulk-Order & Export Packaging
Bulk shipments can be arranged with reinforced cartons, protective wrapping, palletized loading or export cases according to order quantity, shipment weight and agreed transportation requirements.
Delivery Coordination
Production completion, packing method and dispatch arrangements are confirmed according to the approved order. Courier, air, sea or customer-designated shipping options can be reviewed according to shipment size and destination. Final lead time is confirmed after product specifications, quantity and packaging requirements are approved.
Product & Application FAQs
Answers to common questions about selecting and applying the D10×75 mm 4-Flute Solid Carbide Square End Mill for Alloy Steel.
What materials is this square end mill designed to machine?
Why use the 4-flute configuration for this application?
What milling operations are suitable for this square-end design?
What does D10×75 mm specify?
Which coating or surface treatment should be selected?
What machining conditions should be reviewed before use?
Ordering & Customization FAQs
Information for distributors, tooling brands and customers requesting standard or application-specific configurations.
What standard sizes are available?
Can non-standard dimensions or geometry be manufactured?
Are OEM marking and private-label packaging available?
What information is required for an accurate quotation?
Technical Downloads
Use the following references for product selection and starting cutting-data review.
Solid Carbide End Mill Catalog
Review related square-end, ball-nose, corner-radius and application-specific end mill series.
End Mill Speeds & Feeds Guide
Access reference starting parameters for application review and controlled machining trials.
Need a Size or Application Review?
Send the workpiece grade, hardness, required dimensions, machining operation and quantity for configuration and quotation review.
Need Sizes, Pricing or Custom Options?
Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.
Drawings, size lists and reference photos are welcome.
