Фреза из цельного твердого сплава с углом наклона 29° для нарезания внутренней резьбы по стандарту ACME

SOLID CARBIDE 29° ACME THREAD MILL

Solid carbide ACME thread mill for precision machining of 29° internal ACME power threads.

Конфигурация продукта
Стандарт резьбыACME Power Threads
Профиль темы29° Internal ACME
Диапазон резьб, указанных в списке1/4-16 to 7/8-6
Диапазон высоты тона6–16 TPI
Диаметр режущего инструментаØ4.7–Ø12 mm
Флейта4 флейты

Пользовательские опцииACME Size / TPI / Reach / Coating / OEM
Стандартная доставка1–3 рабочих дня
Минимальный объем заказаМинимальный объем заказа — 3–10 штук каждого размера
ЛУЧШИЙ ДЛЯ

Твердый карбид

29° ACME Profile

Internal Threading

Нестандартные размеры

29° ACME Thread Mill Overview

Эти solid carbide ACME thread mills machine 29° internal power threads in drive nuts and adjustment components. Six pitch-specific groups cover listed sizes from 1/4-16 to 7/8-6. Each ACME thread mill cutter must match the required pitch and thread size. Custom dimensions, coatings and private-label options are available.

Профиль темы29° Internal ACME
Указанные размеры1/4-16 to 7/8-6
Варианты наклона6–16 TPI
Construction4-Flute Solid Carbide

Основные характеристики

Pitch-Specific ACME Profile

Dedicated 29° geometry for each listed TPI.

Four-Flute Carbide Body

Rigid construction for internal thread milling.

Облегчение в области шеи

Provides clearance for internal interpolation.

Adjustable Thread Size

CNC compensation fine-tunes diameter within the listed model group; TPI remains fixed.

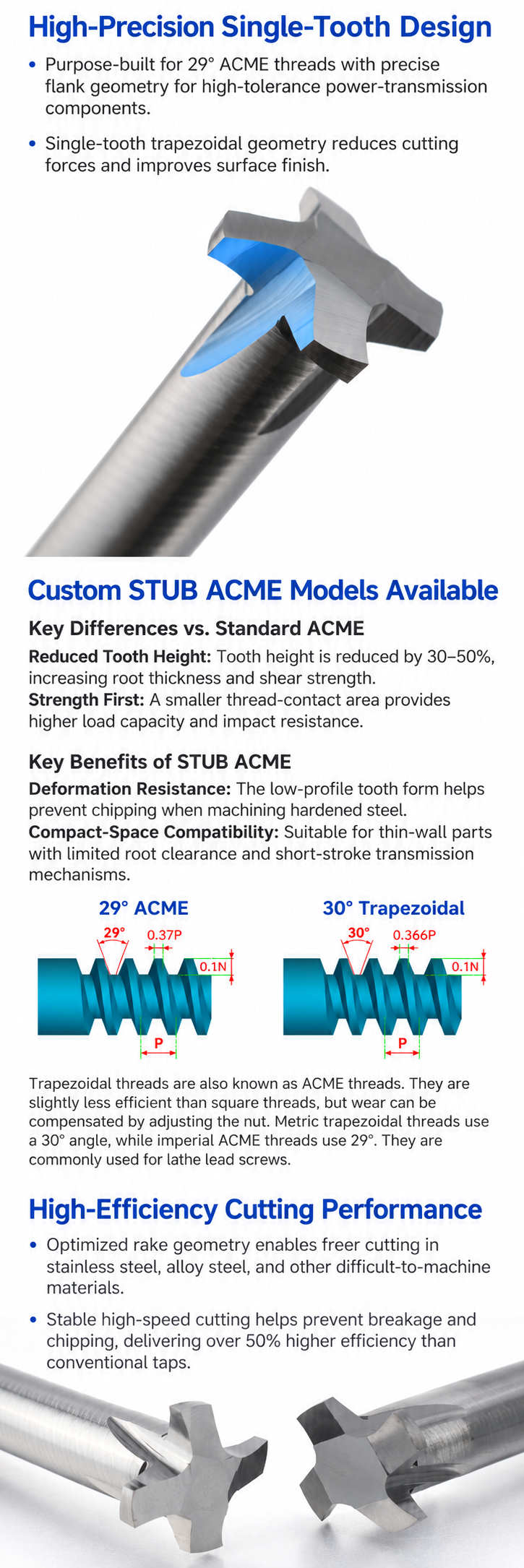

Solid carbide 29 degree ACME internal thread mill features

Материалы и области применения

For carbon steel, alloy steel, pre-hardened steel, cast iron and stainless steel. Titanium and hardened steel around 48 HRC require application review.

ISO P — Best
ISO K — Best
ISO M — Best
ISO S — Application Review

Лучшее для:
ACME internal threads in drive nuts and adjustment components.

Selection:
Confirm TPI, thread diameter, depth and clearance. Stub ACME requires separate confirmation.

Фотографии товаров

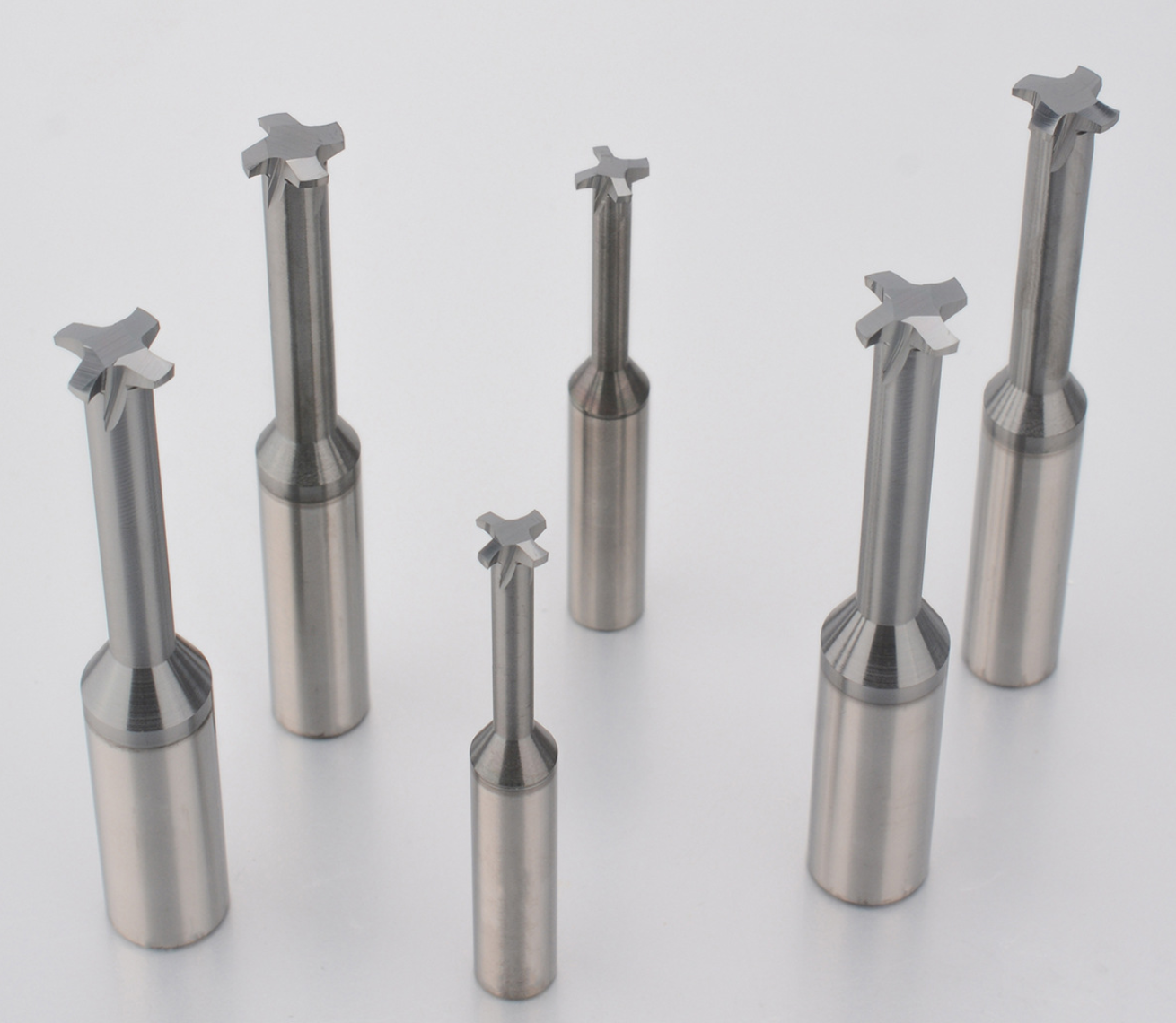

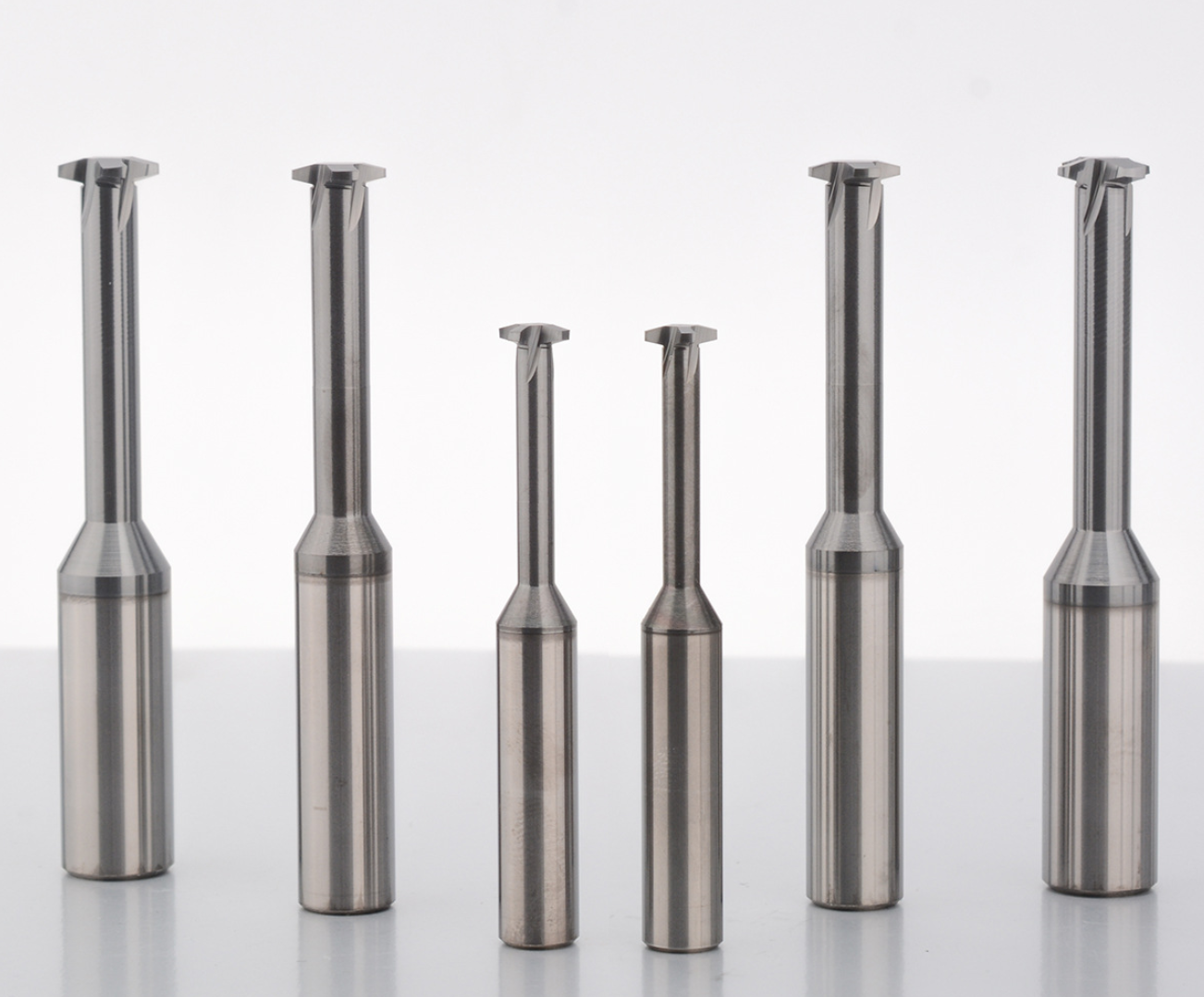

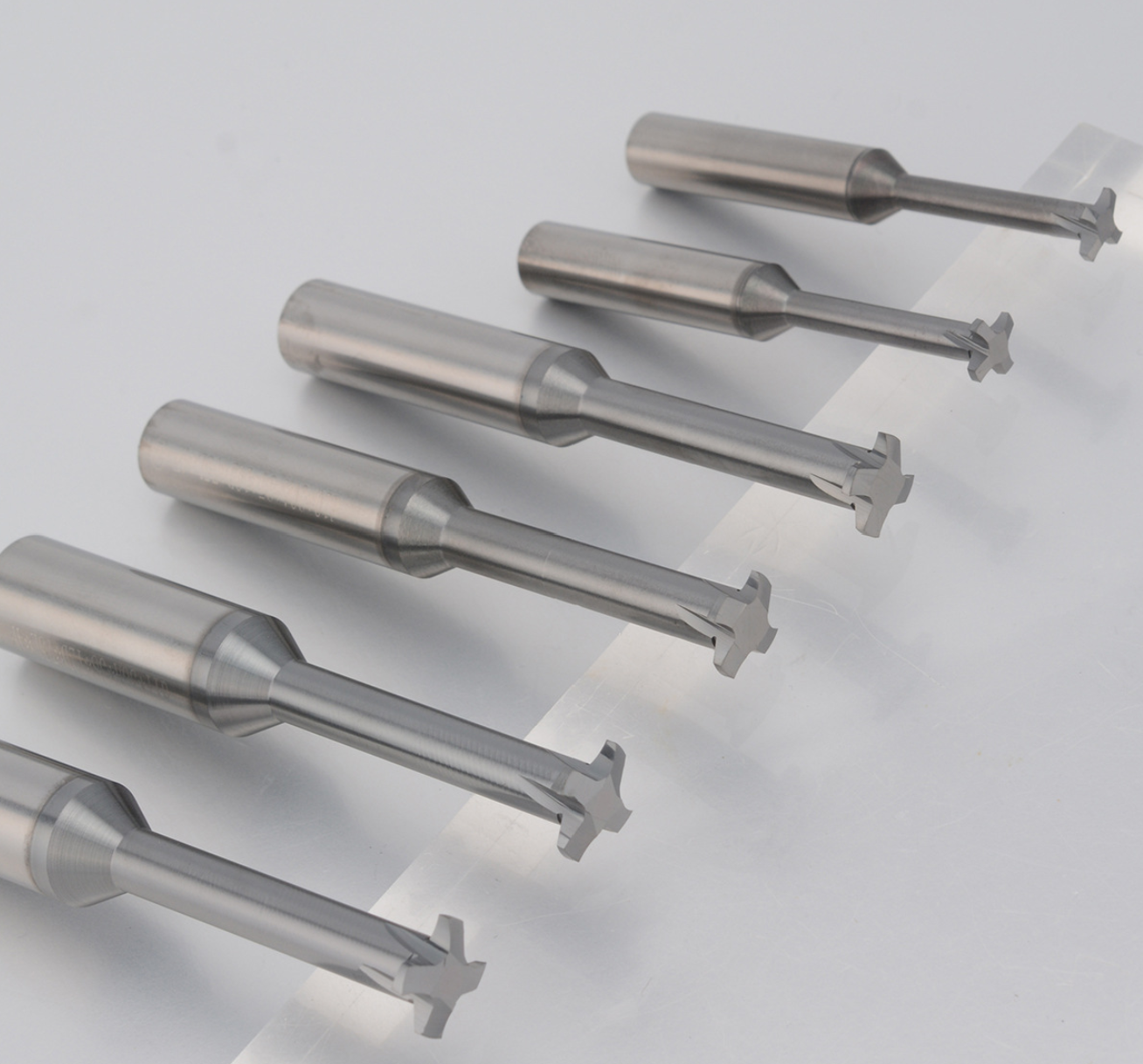

Solid Carbide 29° ACME Thread Mill for Internal Threads 1 Solid Carbide 29° ACME Thread Mill for Internal Threads 3Solid Carbide 29° ACME Thread Mill for Internal Threads 5

Application & Machining Videos

ACME Thread Milling Process

Tool Geometry & Details

29° ACME Thread Mill Specifications

Select by TPI, listed ACME size and required reach. Tool dimensions are in mm.

Профиль темы29° Internal ACME
Варианты наклона6 / 8 / 10 / 12 / 14 / 16 TPI
Диаметр режущего инструментаØ4.7–Ø12 mm
Construction4-Flute Solid Carbide

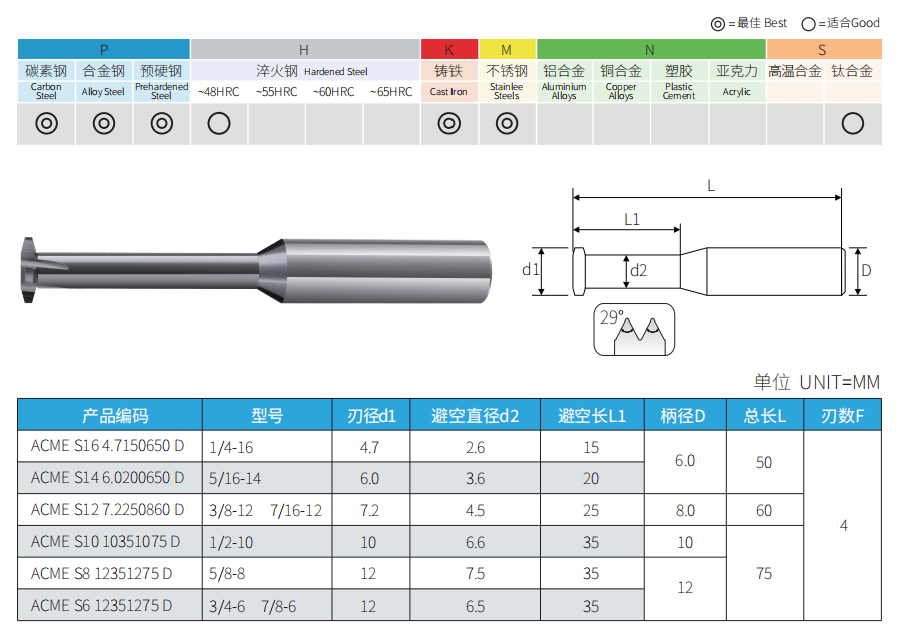

Стандартные размерыSolid carbide 29 degree ACME thread mill geometry and standard sizes

Each cutter is pitch-specific. Select only the ACME sizes listed in its row.

Код товара ACME Size d1 d2 L1 D L F
ACME S16 4.7150650 D 1/4-16 4.7 2.6 15 6 50 4
ACME S14 6.0200650 D 5/16-14 6.0 3.6 20 6 50 4
ACME S12 7.2250860 D 3/8-12 / 7/16-12 7.2 4.5 25 8 60 4
ACME S10 10351075 D 1/2-10 10 6.6 35 10 75 4
ACME S8 12351275 D 5/8-8 12 7.5 35 12 75 4
ACME S6 12351275 D 3/4-6 / 7/8-6 12 6.5 35 12 75 4

d1: cutter diameter · d2: neck diameter · L1: clearance length · D: shank diameter · L: overall length · F: flutes. ACME sizes: inches–TPI.

Примечания по выбору

  • Match the 29° ACME form, TPI and listed thread size.
  • Check bore clearance, working depth and holder access.
  • CNC compensation adjusts thread diameter; TPI remains fixed.

Confirm thread class, allowance and inspection requirements from the drawing. L1 indicates clearance length, not guaranteed thread depth.

Советы по применению

  • Prepare the bore to drawing dimensions and minimize tool overhang.
  • Match cutting data to material, coating, TPI and thread depth.
  • Inspect the first thread before batch production.

29° ACME Thread Mill Customization

Custom ACME thread mills reviewed to your thread drawing, material and machining depth, with OEM marking and packaging available.

Геометрия резьбы 29° ACME profile and pitch-specific geometry to approved requirements.
Размеры Cutter diameter, neck, reach, shank and overall length.
Твердые сплавы и покрытия Grade, edge preparation and coating matched to the application.
Проверка Требования к критическим размерам, профилю и биению согласовываются до начала производства.

Для цитирования: Send the thread drawing with size, TPI, class, allowance, depth and bore dimensions, plus material, hardness and quantity.

OEM и частные торговые марки

Branded ACME thread mills for distributors and tooling suppliers.

ACME thread mill OEM marking labels and packaging

Лазерная маркировка

Logo, product code, TPI and batch marking, subject to shank space.

Labels & Packaging

Protective tubes, size labels and private-label packaging.

Order Quantity

Standard MOQ: 10 pieces per size. Custom sample terms confirmed by specification.

Качество, контроль и доставка

Material verification, CNC grinding checks and final inspection support consistent ACME thread mill quality and repeat supply.

Quality inspection for solid carbide ACME thread mills

Key Quality Checks

Твердосплавный материал

Verify carbide grade and blank dimensions against the tool specification.

Profile & Dimensions

Check 29° geometry, TPI-specific form, cutter diameter, neck, reach and shank.

Final Inspection

Review runout, cutting edges, coating appearance, marking and labels.

Завершённые темы: Verify against the drawing-specified gauge or agreed inspection method.

Repeat Orders & Packaging

Product codes, TPI groups, coating details and approved drawing revisions support repeat orders. Tools are individually protected and checked for model, quantity and labels before dispatch.

Protective export packaging for ACME thread mills

Сроки изготовления и доставка

Стандартные инструменты

Typically dispatched in 1–2 working days, subject to stock.

Пользовательские инструменты

Lead time confirmed after drawing, coating and quantity approval.

Packing and shipping are arranged by order quantity and destination.

Варианты доставки и оплаты режущих инструментов HY

ACME Thread Mill FAQ

Size selection, custom tooling and OEM supply for 29° internal ACME threads.

Which ACME thread sizes are available?

Listed sizes are 1/4-16, 5/16-14, 3/8-12, 7/16-12, 1/2-10, 5/8-8, 3/4-6 and 7/8-6. Match the required size and TPI to the corresponding product code.

Can one ACME thread mill cut different diameters?

Yes, for diameters listed within the same cutter group. For example, the 12-TPI model covers 3/8-12 and 7/16-12. CNC interpolation changes the thread diameter; the cutter's TPI remains fixed.

Is this cutter suitable for my internal thread drawing?

Send the ACME size, TPI, class, allowance, bore diameter and thread depth for review. Blind holes require sufficient bottom clearance. This series uses a 29° ACME profile; 30° metric TR and Stub ACME requirements need separate selection.

Can you supply custom ACME thread mills?

Yes. Custom pitch, cutter diameter, neck, reach, shank and coating can be reviewed against your drawing. Include workpiece material, hardness, quantity and inspection requirements for quotation.

Предлагаете ли вы поставки под собственной торговой маркой для дистрибьюторов?

Yes. Options include logo and product-code marking, size labels and branded protective packaging. Approved specifications and identification details support repeat orders.

Каковы минимальный объем заказа (MOQ), условия предоставления образцов и сроки изготовления?

Standard MOQ is 10 pieces per size. In-stock tools typically dispatch in 1–2 working days. Custom sample quantities and lead times are confirmed after specification review.
