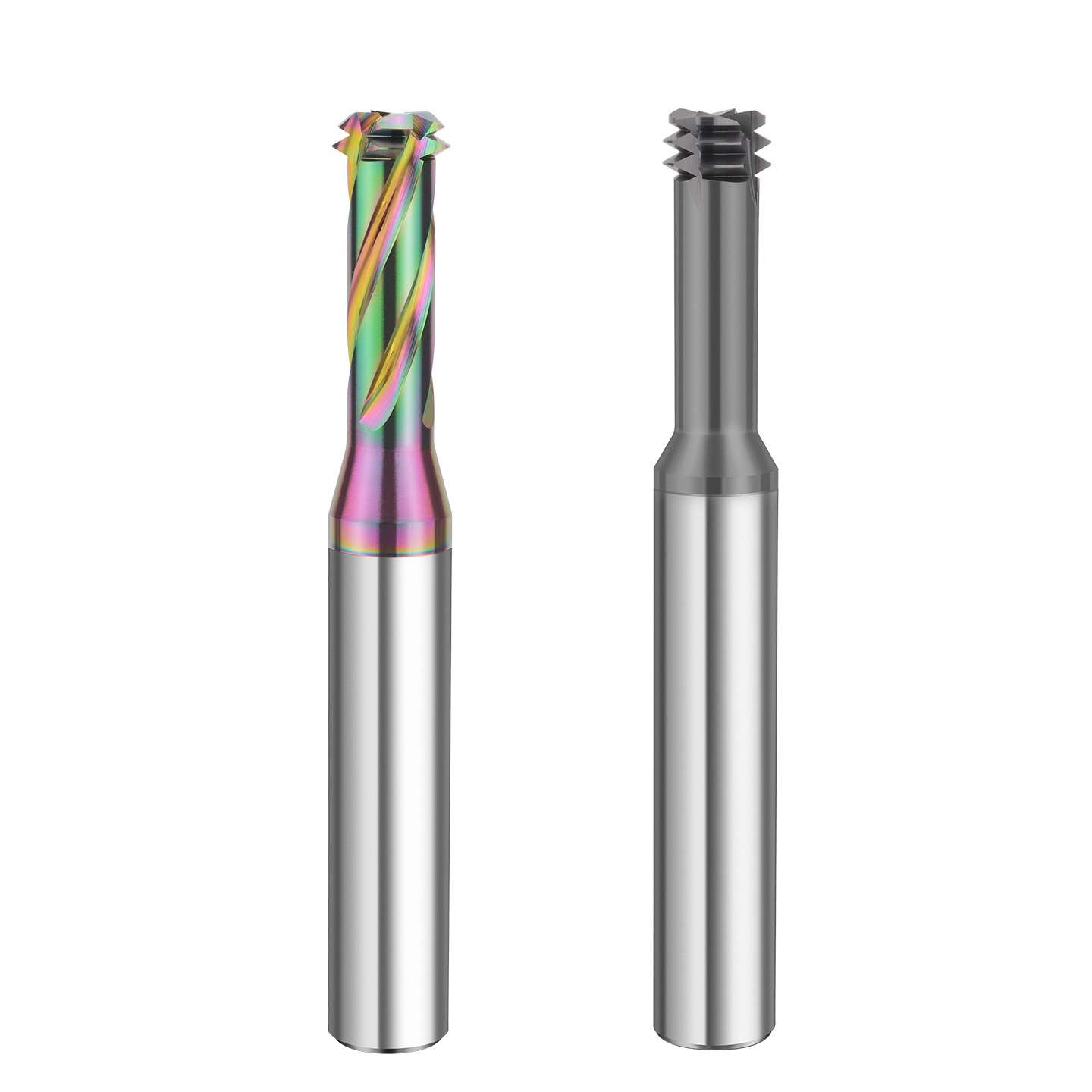

Резьбонарезная фреза из цельного твердого сплава без направляющего отверстия
SOLID CARBIDE NO-PILOT-HOLE THREAD MILL
Solid carbide drill thread mills combine hole making and 60° internal metric threading without separate pre-drilling, helping reduce tool changes.
Конфигурация продукта
No Pilot Hole
Multi-Op
Fewer Tool Changes
Индивидуальные заказы и OEM-производство
No-Pilot-Hole Thread Mill Overview
Эти solid carbide drill thread mills combine hole making and 60° internal metric thread milling without separate pre-drilling. Each combined drill and thread mill helps reduce tool changes in repeat CNC production.
Характеристики товара

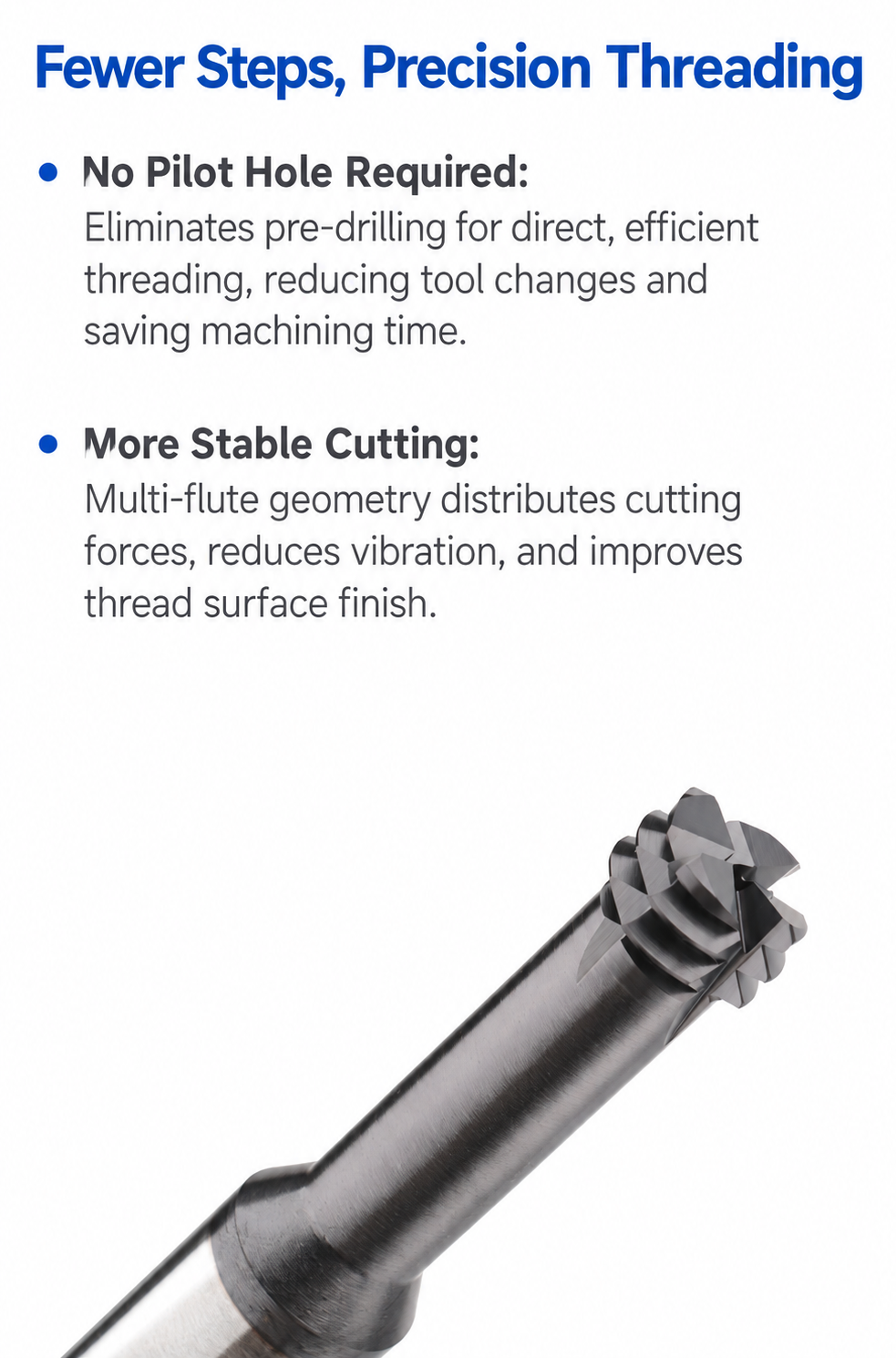

- Hole making and thread milling in one tool.
- No separate pilot-drilling tool required.
- Steel and DLC-coated versions matched to the material.
DLC-Coated No-Pilot-Hole Thread Mill
Choose by Workpiece Material
Steel Series · M3–M12
Four-flute models for carbon, alloy and pre-hardened steels. External coolant for M3–M6; internal coolant for M8–M12. Confirm stainless-steel suitability.

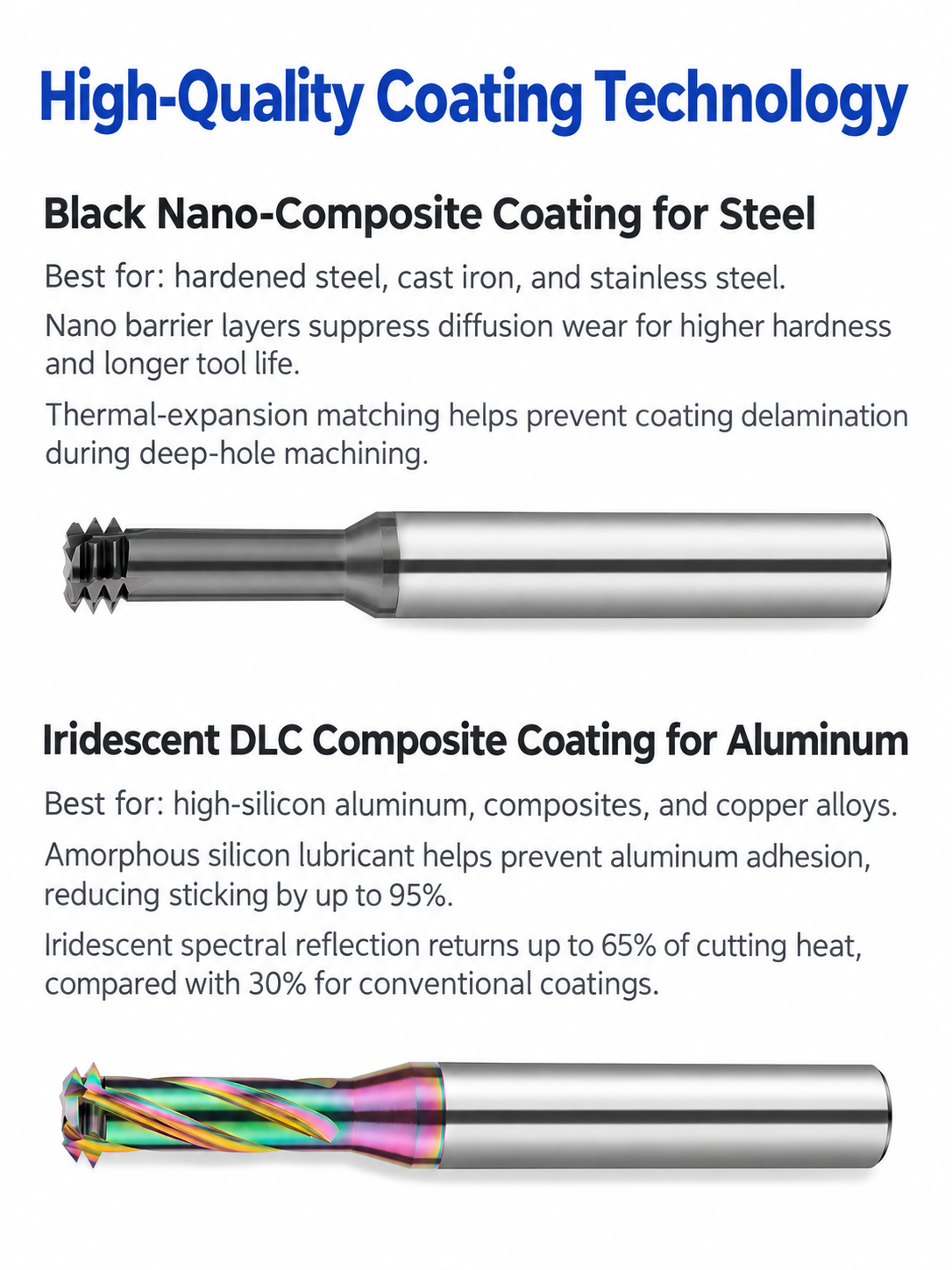

DLC-Coated Series · M1.6–M12
For aluminum, copper and selected plastics. DLC helps reduce friction and adhesion; flute count varies by model.

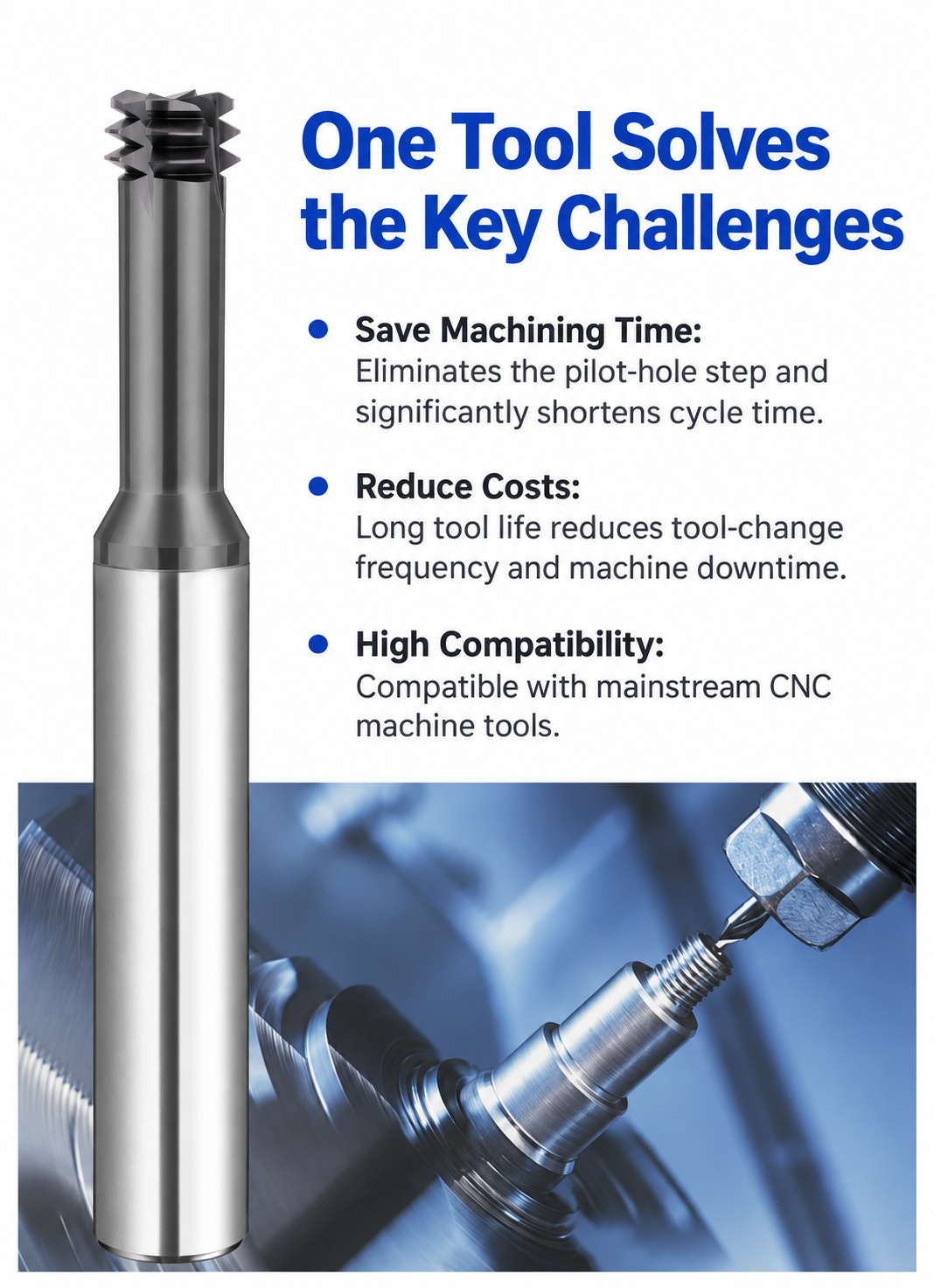

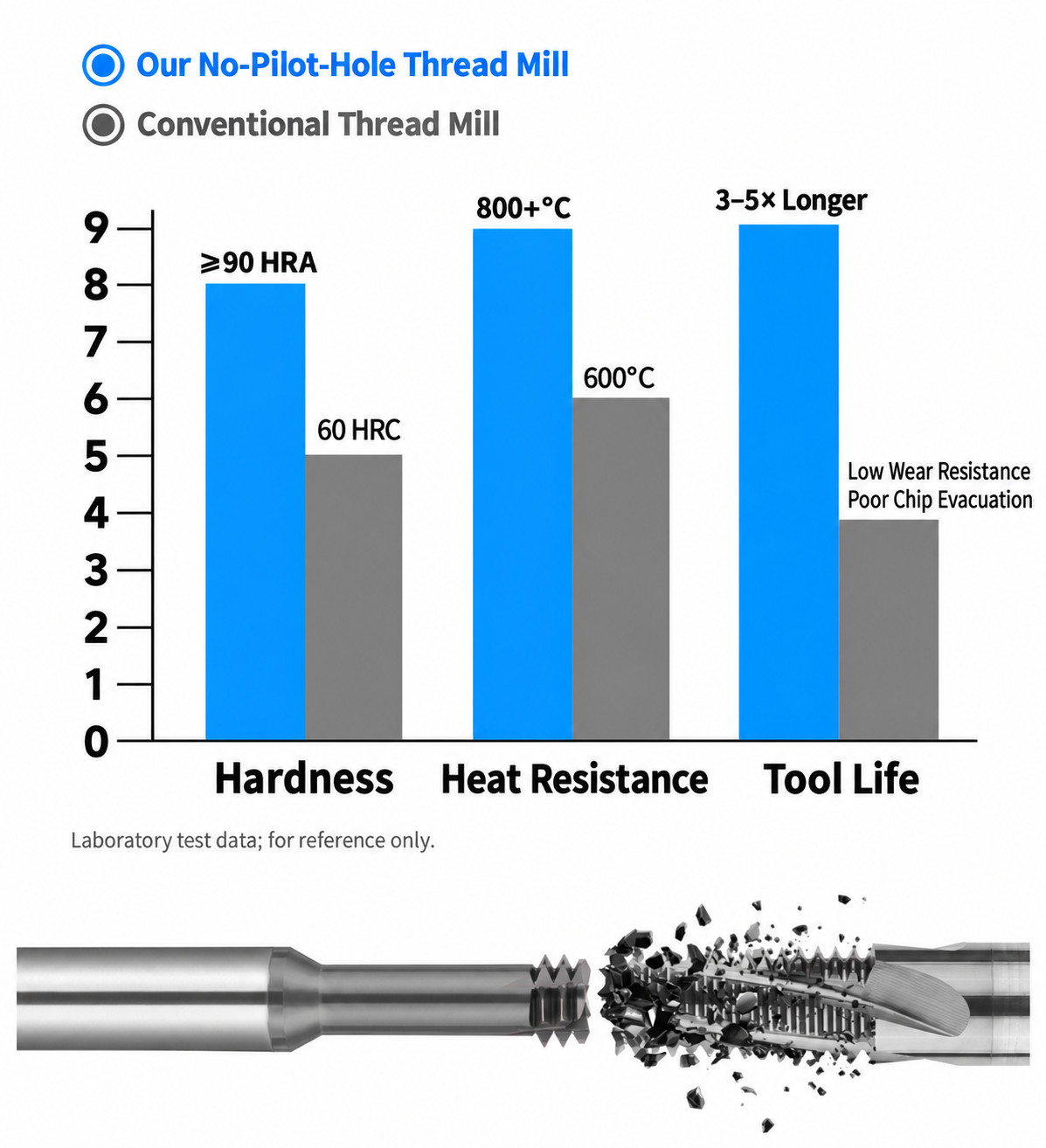

Fewer Tools for Threaded-Hole Production
Combine operations to simplify tool stocking and reduce changeovers on repeat jobs.





DLC-Coated Tool Details



Is It Right for Your Application?
Идеально подходит для
Repeat internal-thread production where combining operations can reduce tool changes.
Not Ideal for
Machines without suitable CNC interpolation, or jobs beyond the model’s material and depth limits.
- Confirm thread size, pitch, material and depth.
- Use the specified toolpath and coolant arrangement, rather than assuming a conventional drilling cycle.
- Gauge the first thread before batch production.
No-Pilot-Hole Thread Mill Specifications
Select the material series, then match the listed thread size, pitch and working length. All dimensions are in mm.
Steel Series · M3–M12
Four-flute models for steel. External coolant for M3–M6; internal coolant for M8–M12.

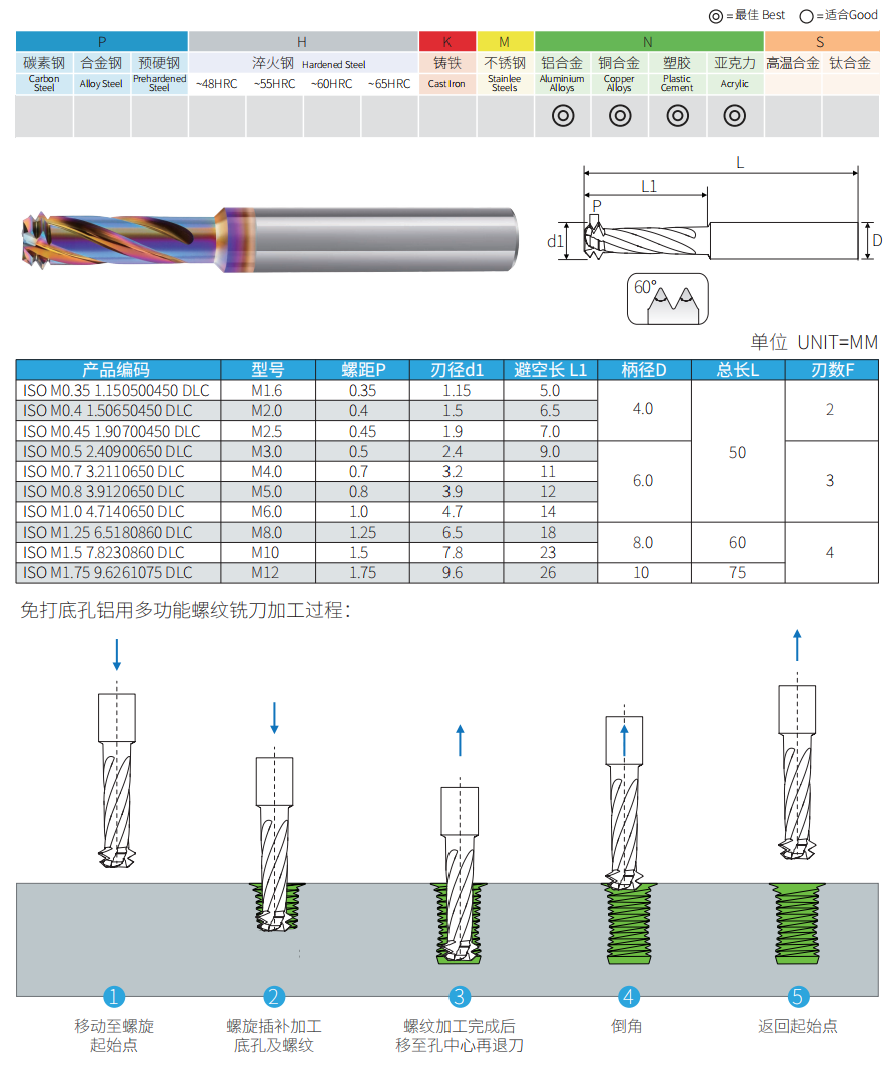

DLC-Coated Series · M1.6–M12
For aluminum, copper and selected plastics. Two, three or four flutes according to model; confirm coolant requirements for your application.
P: Тон · d1: Диаметр резака · L1: Working length · D: Диаметр хвостовика · L: Общая длина · F: Флейты
Confirm Before Ordering
- Material & thread: Match the series and exact listed size and pitch.
- Depth & clearance: Check working length, required thread depth, bottom clearance and holder access.
- Machine & coolant: Confirm CNC helical interpolation and the selected model's coolant requirements.
Use the model-specific toolpath and cutting data for combined hole making and thread milling. Gauge the first completed thread before batch production.
Вам нужны размеры, цены или индивидуальные варианты?
Send your product code and quantity, or a drawing with thread size, pitch, hole depth and material. Custom dimensions and OEM options are available for review.
Запрос ЦитироватьNo-Pilot-Hole Thread Mill Customization
Custom thread size, pitch, working length, shank, coolant features and coating can be reviewed for your combined hole-making and thread-milling application.
Для цитирования: Send your drawing, thread depth, bottom clearance, material, machine and coolant details, plus quantity.
OEM и частные торговые марки
Logo marking, product codes, branded labels and protective packaging for distributors and tooling brands.
Процесс оформления индивидуального заказа
Drawing review → Quotation & approval → Production → Inspection & delivery.
Контроль качества
Hole-making geometry, 60° thread profile, dimensions, runout and cutting edges are checked against the selected model or approved drawing. Inspection documentation can be reviewed with your order.
Защитная упаковка
Individual protection shields the bottom and thread-cutting edges. Model and batch labels support stock identification and repeat orders.
Упаковка и доставка экспортных грузов
Packing is arranged by order quantity and shipping method. MOQ: 10 pieces per size. In-stock tools normally dispatch within 1–2 working days; custom lead times are confirmed after specification approval.
No-Pilot-Hole Thread Mill FAQ
Does this tool require a pre-drilled hole?
No separate pilot drilling is required within the approved application. The tool combines hole making and internal thread milling using a model-specific CNC interpolation cycle.
Which series should I choose?
Choose the steel series for carbon, alloy and pre-hardened steels, or the DLC-coated series for aluminum, copper and selected plastics. Stainless-steel applications require confirmation.
Can one tool machine different thread sizes?
Each listed model is dedicated to a specific metric size and pitch. Select the matching product code, then confirm working length and clearance.
What machine and coolant arrangements are required?
The machine must support the required helical interpolation cycle. Steel M3–M6 models use external coolant; M8–M12 use internal coolant. Confirm DLC coolant requirements and blind-hole bottom clearance for your application.
Are custom tools and private labels available?
Yes. Custom dimensions, geometry, coolant features, coatings and OEM packaging can be reviewed. Send your drawing, material, thread depth, machine details and quantity.
Каковы минимальный объем заказа (MOQ) и срок выполнения заказа?
MOQ: 10 pieces per size. In-stock tools normally dispatch within 1–2 working days. Custom lead times are confirmed after specification approval.
Каталог и данные по резке
Confirm cutting data for the combined hole-making cycle and selected model. Gauge the first thread before batch production.
