Solid Carbide PCB Slot Drill for Precision Slot Routing and Narrow Slot Machining
Solid carbide PCB slot drills designed for high-precision slot routing and narrow slot machining applications. Featuring ultra-fine grain carbide construction and optimized cutting geometry, they provide stable cutting performance, clean slot edges and consistent machining quality for PCB manufacturing.
- ◆ Optimized Cutting Edge Design
- ◆ Ultra-Fine Grain Solid Carbide Construction
- ◆ Flexible Specification Options
Ø0.50–2.50 mm
Fine-Grain Solid Carbide
Ø3.175 mm
PCB Slot Routing / Narrow Slot Machining
Consistent Quality
Consistent geometry across repeat orders.
Flexible Orders
Small batches and mixed sizes available.
OEM Support
Custom marking, labels and packaging.
Standard & Custom
Standard sizes and custom configurations.
Solid Carbide PCB Slot Drill Overview
HY Cutting Tools solid carbide PCB slot drills are designed for high-precision slot routing and narrow slot machining applications in PCB manufacturing. Manufactured from fine-grain carbide with precision-ground cutting edges, these tools provide stable cutting performance, clean slot edges and consistent machining quality for PCB manufacturers, distributors and industrial suppliers. Customized diameters, flute lengths and special geometries are available according to different PCB materials, machine conditions and production requirements.
TOOL TYPE
Solid Carbide PCB Slot Drill
DIAMETER RANGE
Ø0.50–2.50 mm
APPLICATION
PCB Slot Routing
MATERIAL
Fine-Grain Solid Carbide
PCB Slot Drill Design & Performance
PCB slot machining requires excellent tool rigidity, accurate slot dimensions and reliable cutting performance during continuous production. HY Cutting Tools PCB slot drills are manufactured with optimized flute geometry, precision grinding technology and strict dimensional control to achieve clean slot quality, stable cutting performance and extended tool life.
- Precision Cutting Edge:Optimized edge geometry improves cutting stability, reduces burr formation and helps maintain accurate slot dimensions.
- Fine-Grain Carbide Substrate:High-quality carbide provides excellent rigidity, wear resistance and reliable performance during high-speed PCB routing operations.
- Optimized Slot Cutting Geometry:Special flute design improves chip evacuation, reduces cutting resistance and supports smooth slot machining.
- Flexible Product Supply:Standard slot drill sizes are available with customized specifications for different PCB materials and production requirements.
Key Product Advantages
HY Cutting Tools PCB slot drills combine high-rigidity carbide performance, optimized cutting geometry and precision manufacturing processes to support stable PCB routing production.
Clean Slot Quality
Sharp cutting edges and optimized flute design help reduce burrs and improve slot surface quality.
Stable Routing Performance
Fine-grain carbide construction maintains tool rigidity and dimensional stability during repeated machining operations.
Customized Machining Solutions
Diameter, flute length and special tool configurations can be customized according to PCB production requirements.
PCB Slot Drill Applications
HY Cutting Tools solid carbide PCB slot drills are suitable for precision slot routing applications in PCB manufacturing. Different diameter ranges and configurations can be selected according to slot dimensions, PCB material characteristics and production requirements.
| APPLICATION | TYPICAL USE | MACHINING REQUIREMENT |
|---|---|---|
| PCB Slot Routing | Slot cutting and contour routing for printed circuit boards. | Clean slot edges, accurate dimensions and stable cutting performance. |
| Copper-Clad Laminate Processing | Precision slot machining for copper-clad PCB materials. | Low cutting resistance and reliable tool life during continuous production. |
| Electronic Components | Precision routing for electronic parts and PCB assemblies. | High machining accuracy and consistent batch quality. |
| Prototype & Small Batch PCB Production | Flexible PCB routing requirements with different slot specifications. | Multiple size options and customized configurations. |

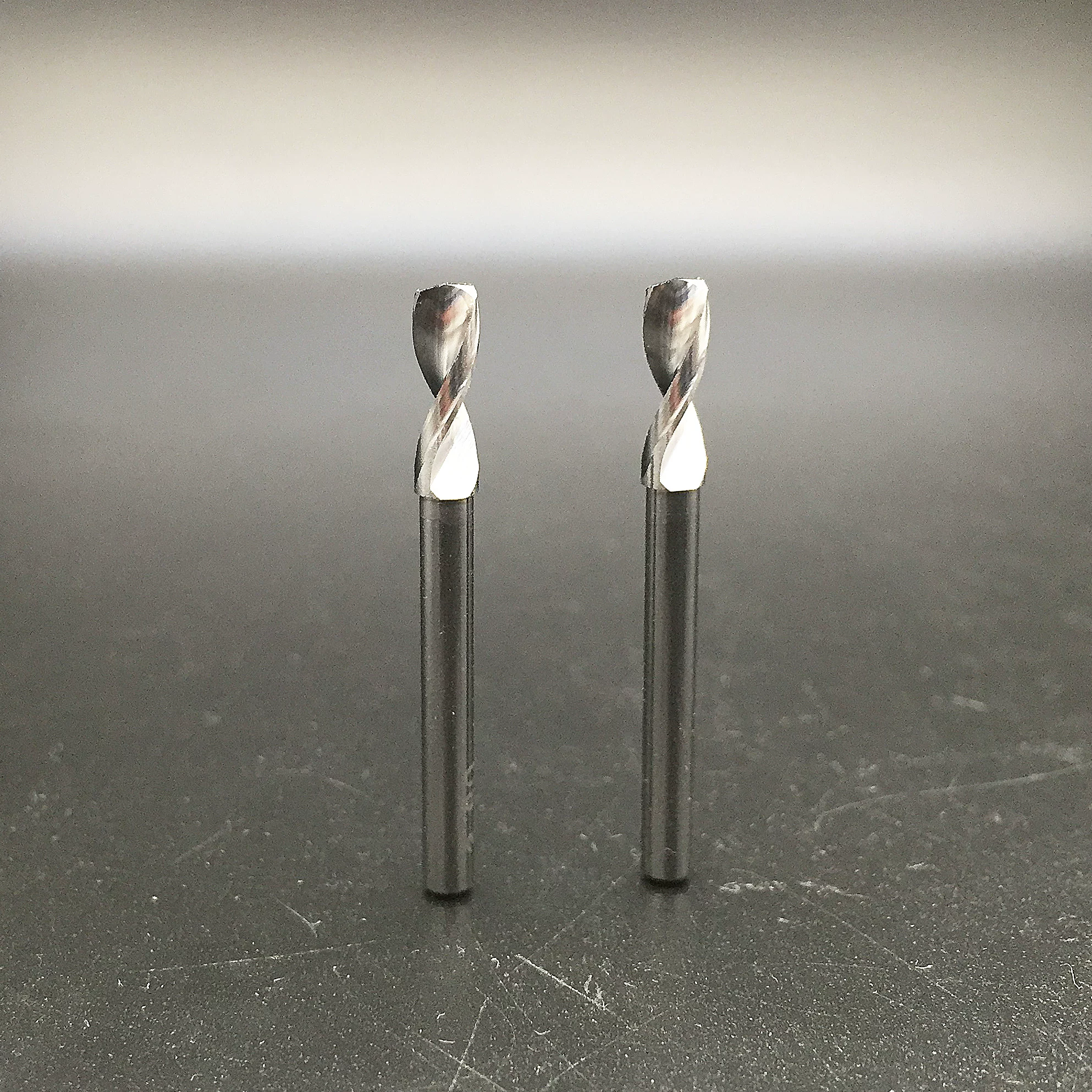

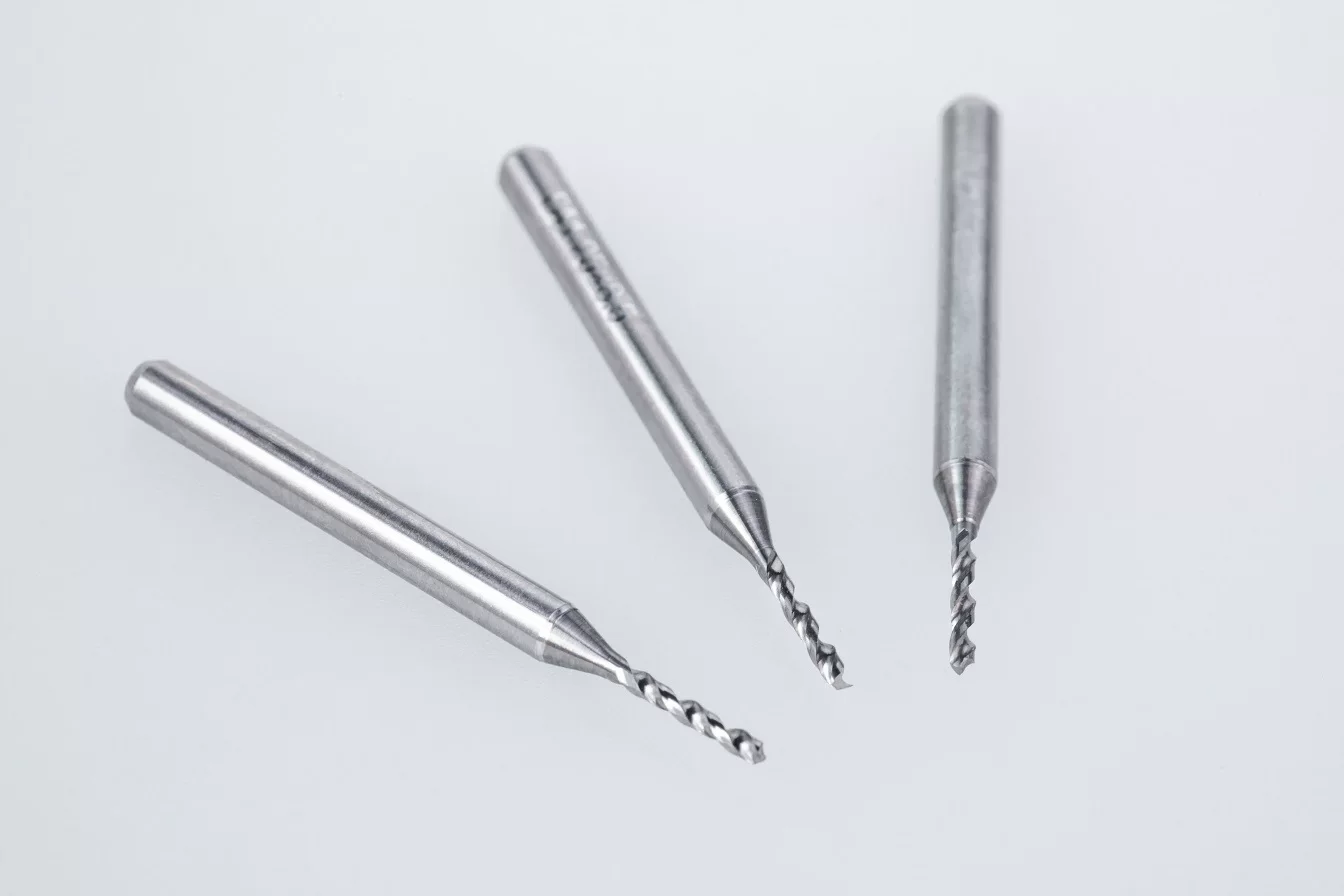

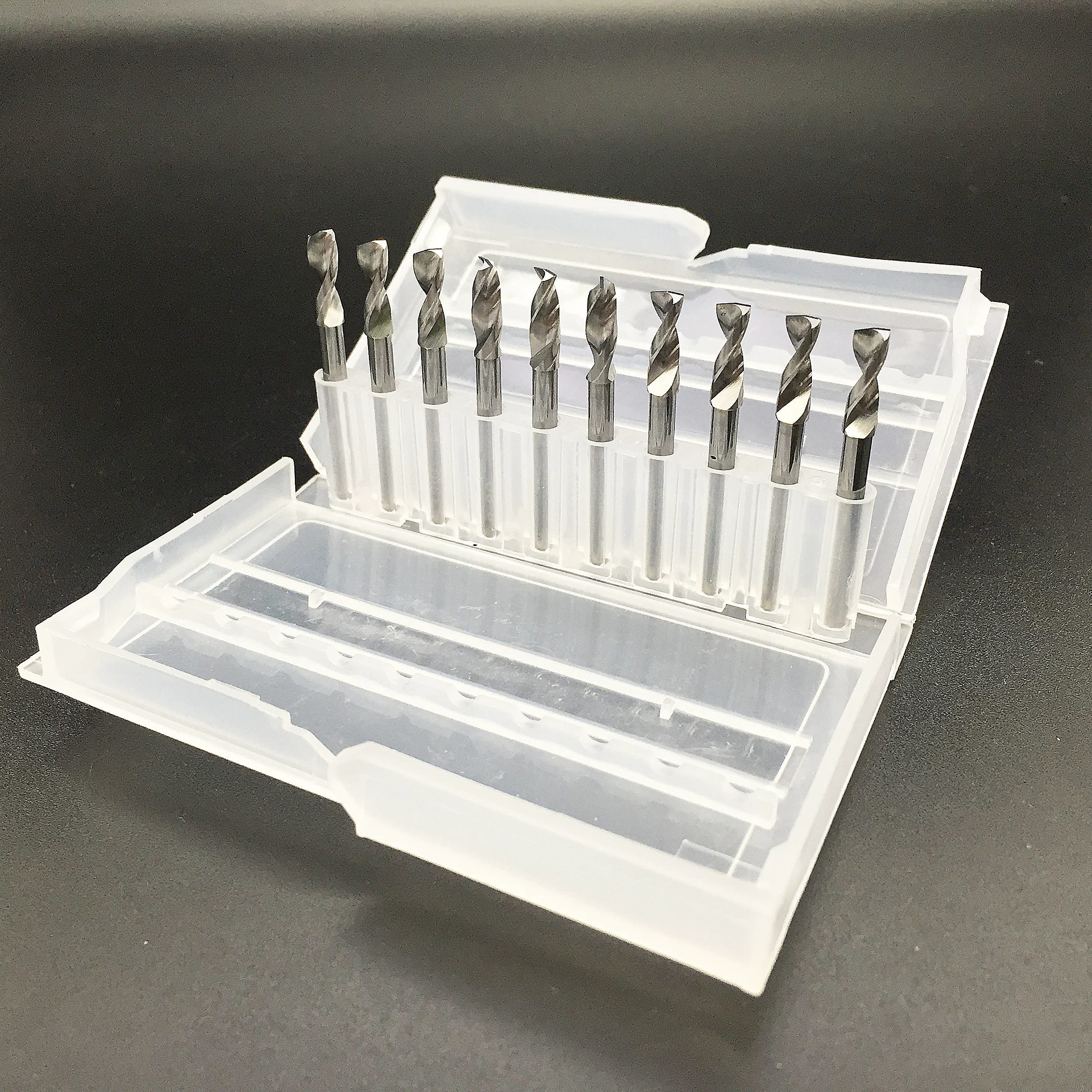

Product Details & Packaging
HY Cutting Tools provides multiple PCB slot drill configurations and packaging solutions to support distributor inventory, PCB manufacturers and customized production requirements.

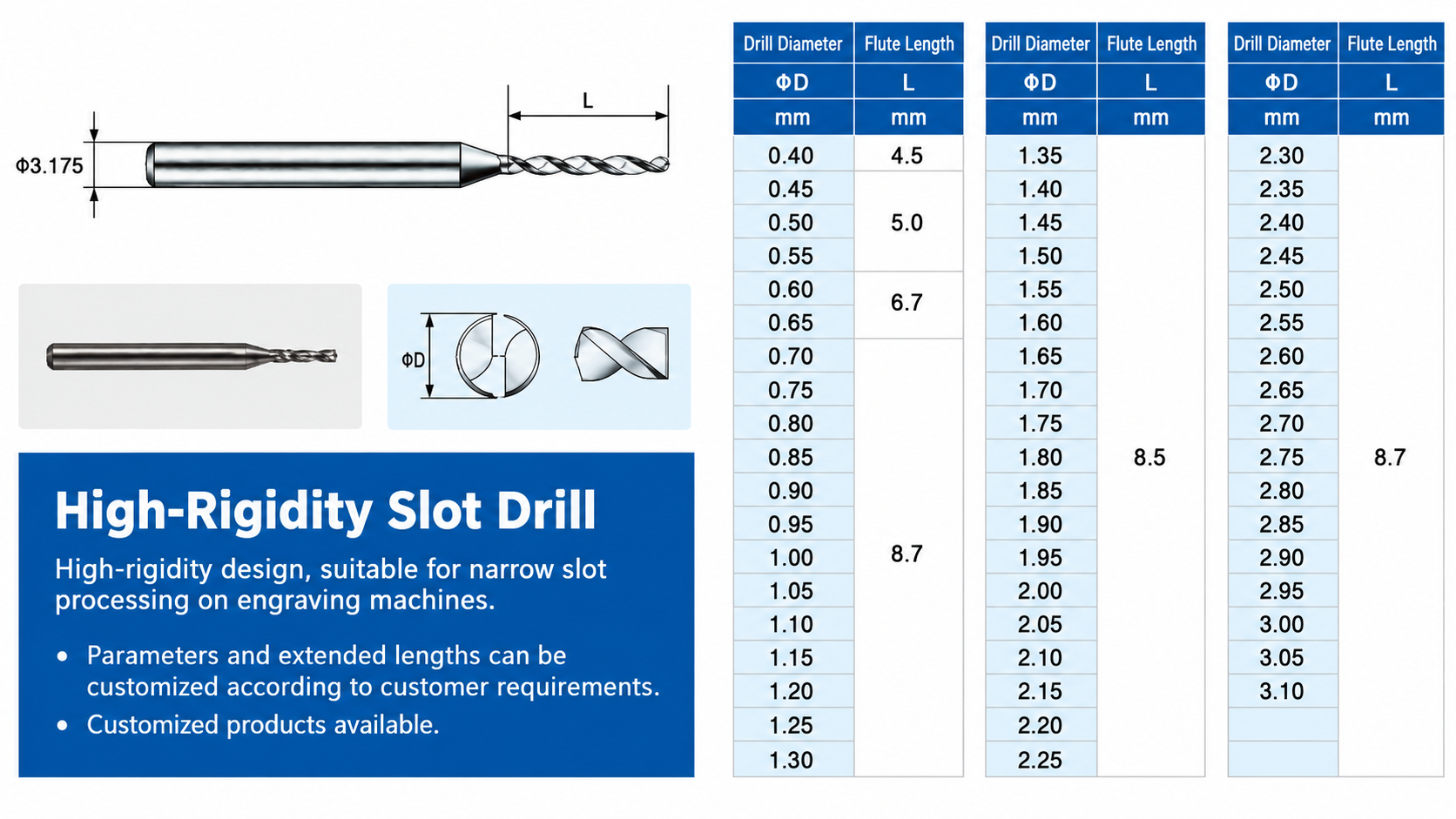

Carbide PCB Slot Drill Specifications & Sizes
HY Cutting Tools solid carbide PCB slot drills are designed for precision slot routing and narrow slot machining applications. The reference range includes Ø0.50–2.50 mm cutting diameters with Ø3.175 mm shank diameter and 38 mm overall length configuration. Customized diameters, flute lengths and special geometries are available according to PCB material, slot requirements and production conditions.
Technical Configuration
PCB Slot Drill Customization & OEM Solutions
For distributors, wholesalers and brand owners, HY Cutting Tools provides flexible PCB slot drill OEM solutions including customized dimensions, laser marking, private label packaging and product identification options. Standard solid carbide slot drills can be supplied with different diameters, flute lengths and cutting configurations to support your PCB routing product line and market requirements.
OEM Service Options
Quality, Inspection & Delivery
Our solid carbide PCB drills are controlled through material verification, precision grinding, in-process measurement and final inspection. Key dimensions, drill-point geometry, flute condition, ring position, surface finish and product identification are reviewed according to the approved specification or drawing before packing.
Three-Stage Quality Control
Inspection checkpoints are arranged around the manufacturing process to support dimensional consistency, stable hole quality and repeat-order control.
Incoming Material Control
Carbide grade, drill blanks, positioning rings and supplied material information are checked against the production requirement.
In-Process Grinding Control
Drill diameter, point geometry, flute profile, flute length, shank dimensions and ring position are monitored during precision grinding and assembly.
Final Drill Inspection
Finished PCB drills are reviewed for specified dimensions, runout, drill-point and cutting-edge condition, ring position, marking and packing identification.
Key Inspection Characteristics
Inspection requirements are confirmed according to the standard PCB drill specification or the approved custom drawing.
| INSPECTION ITEM | CONTROL FOCUS | CONFIRMATION BASIS |
|---|---|---|
| Drill Diameter | Cutting diameter and dimensional consistency | Standard specification or approved drawing |
| Flute Length | Effective drilling length and flute consistency | Confirmed product size or drawing requirement |
| Shank Diameter | Clamping-section dimension and surface condition | Applicable shank specification |
| Overall Length | Total drill length | Standard size matrix or approved drawing |
| Radial Runout | Concentricity between drill section and shank | Agreed inspection requirement |
| Drill-Point Geometry | Point angle, lip symmetry, chisel edge and tip condition | Selected drill configuration |
| Flute Profile | Flute form, chip-space condition and grinding consistency | Approved manufacturing configuration |
| Cutting Edge & Surface | Edge condition, visible defects and surface finish | Application-specific production requirement |
| Ring & Identification | Ring position, color coding, drill size and batch information | Confirmed order and packaging specification |
Measurement & Batch Traceability
Optical measuring systems, tool inspection equipment and appropriate dimensional gauges are selected according to the PCB drill feature being checked.
Optical Measurement
Profile and dimensional review of the drill point, flutes and specified cutting features.
Runout Verification
Concentricity review based on the agreed PCB drill requirement.
Point & Edge Inspection
Magnified review of point geometry, lip symmetry and cutting-edge condition.
Batch Identification
Order, drill size and batch information are linked where required for repeat supply.

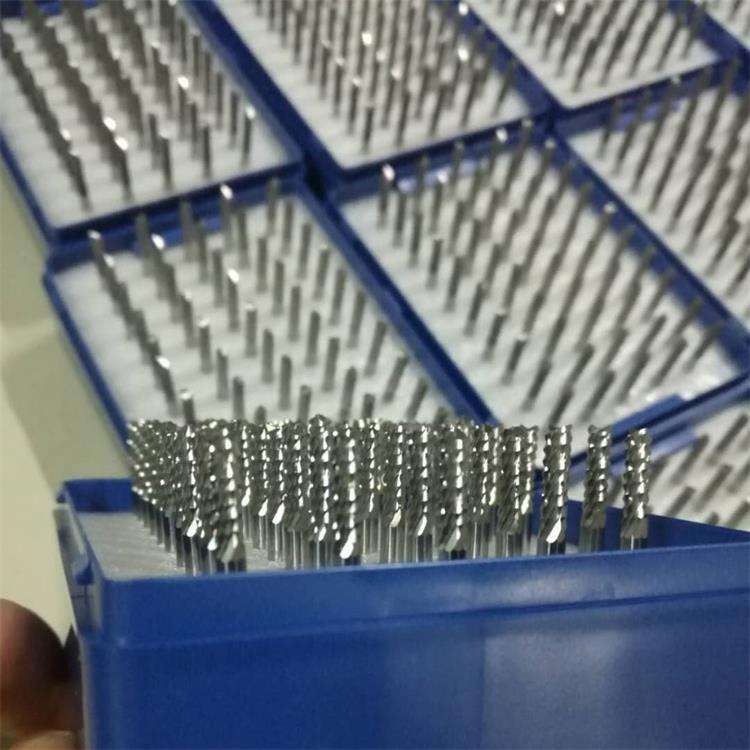

Protective Packaging Process
Finished PCB drills are organized and protected to reduce contact with drill points, maintain size identification and support convenient handling during storage and transportation.
Bulk-Order & Export Packaging
PCB drill shipments can be arranged in standard 50-piece packs, reinforced cartons, protective wrapping or export cases according to drill size, order quantity, shipment weight and agreed transportation requirements.
Delivery Coordination
Production completion, pack quantity, labeling and dispatch arrangements are confirmed according to the approved PCB drill order. Courier, air, sea or customer-designated shipping options can be reviewed according to shipment size and destination. Final lead time is confirmed after drill specifications, quantity, ring requirements and packaging details are approved.
Product & Application FAQs
Common questions about solid carbide PCB slot drills for precision slot routing, narrow slot machining and PCB manufacturing applications.
What is this solid carbide PCB slot drill mainly used for?
Which materials can this PCB slot drill machine?
What diameter range is available?
Why choose solid carbide for PCB slot routing?
What factors affect PCB slot drill performance and tool life?
Can the slot drill be customized for different slot requirements?
Ordering & Customization FAQs
Ordering information for PCB manufacturers, distributors, tooling suppliers and OEM customers.
Can PCB slot drill specifications be customized?
Can OEM and private-label services be provided?
What information should I provide for quotation?
Can mixed sizes be ordered for PCB slot drill requirements?
What is the typical lead time?
Need Sizes, Pricing or Custom Options?
Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.
Drawings, size lists and reference photos are welcome.
