Solid Carbide Corn-Cut Router Bit for CNC Milling and Engraving
Solid carbide corn-cut router bits for CNC milling, routing and engraving applications. The serrated corn-type cutting geometry is designed for efficient chip breaking and fast material removal, while the rigid carbide body supports stable machining in wood, MDF, plywood and composite materials. Standard Ø10 mm and Ø12 mm configurations are available, with custom diameters, lengths, flute geometry and cutting profiles available for OEM and application-specific requirements.
- ◆Serrated corn-type cutting geometry for efficient chip breaking and material removal
- ◆Designed for CNC milling, engraving, routing and rough-profile machining
- ◆Solid carbide construction with standard and custom configurations for different applications
Consistent Quality
Consistent geometry across repeat orders.
Flexible Orders
Small batches and mixed sizes available.
OEM Support
Custom marking, labels and packaging.
Standard & Custom
Standard sizes and custom configurations.

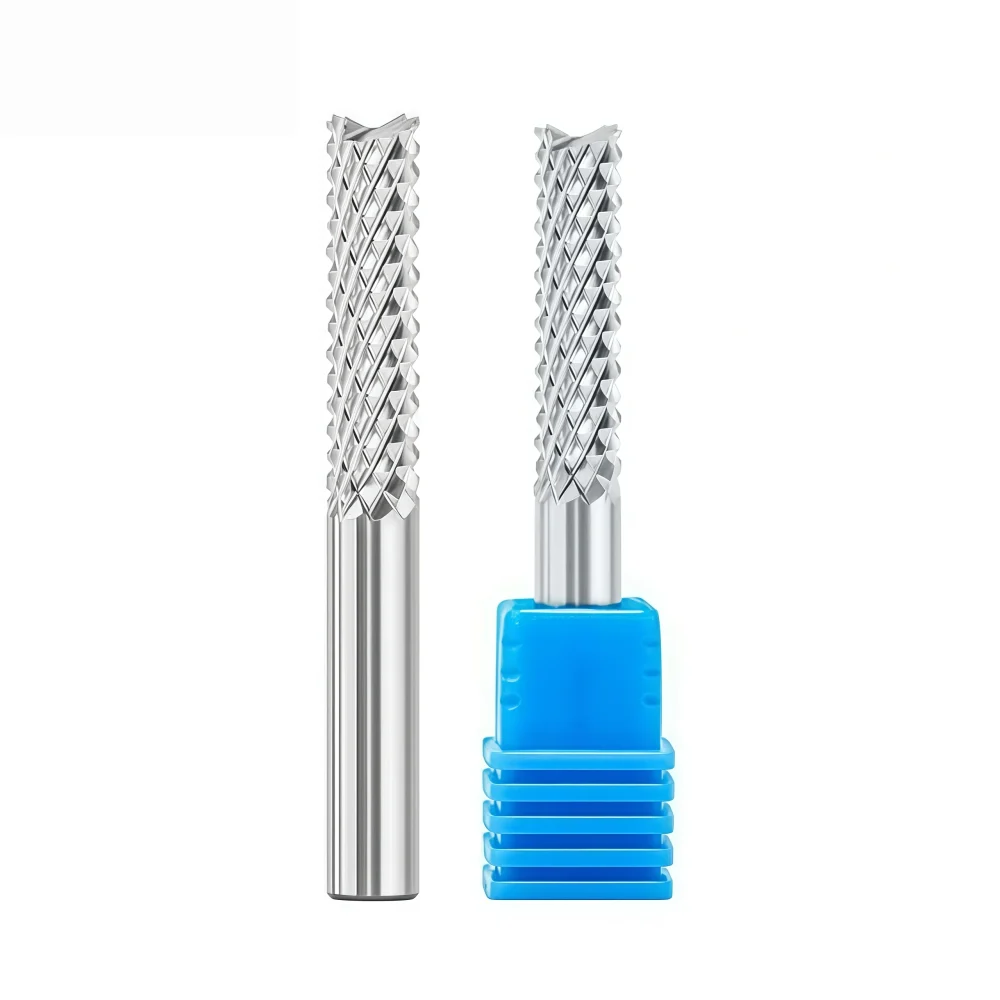

Solid Carbide Corn-Cut Router Bit Overview
This solid carbide corn-cut router bit is designed for CNC milling, routing and engraving applications requiring efficient material removal and controlled chip evacuation. The serrated corn-type cutting geometry combines multiple cutting contacts with a rigid micro-grain carbide body, making the tool suitable for woodworking, plastics, non-ferrous materials, composites, sign making and profile machining. Standard 10 mm and 12 mm configurations are available, with custom dimensions, flute geometry, coatings and OEM options available according to the workpiece material and machining requirement.
Corn-Cut Router Bit
Ø10 / Ø12 mm
2F Standard / 3F Optional
Micro-Grain Carbide
Corn-Type Cutting Geometry

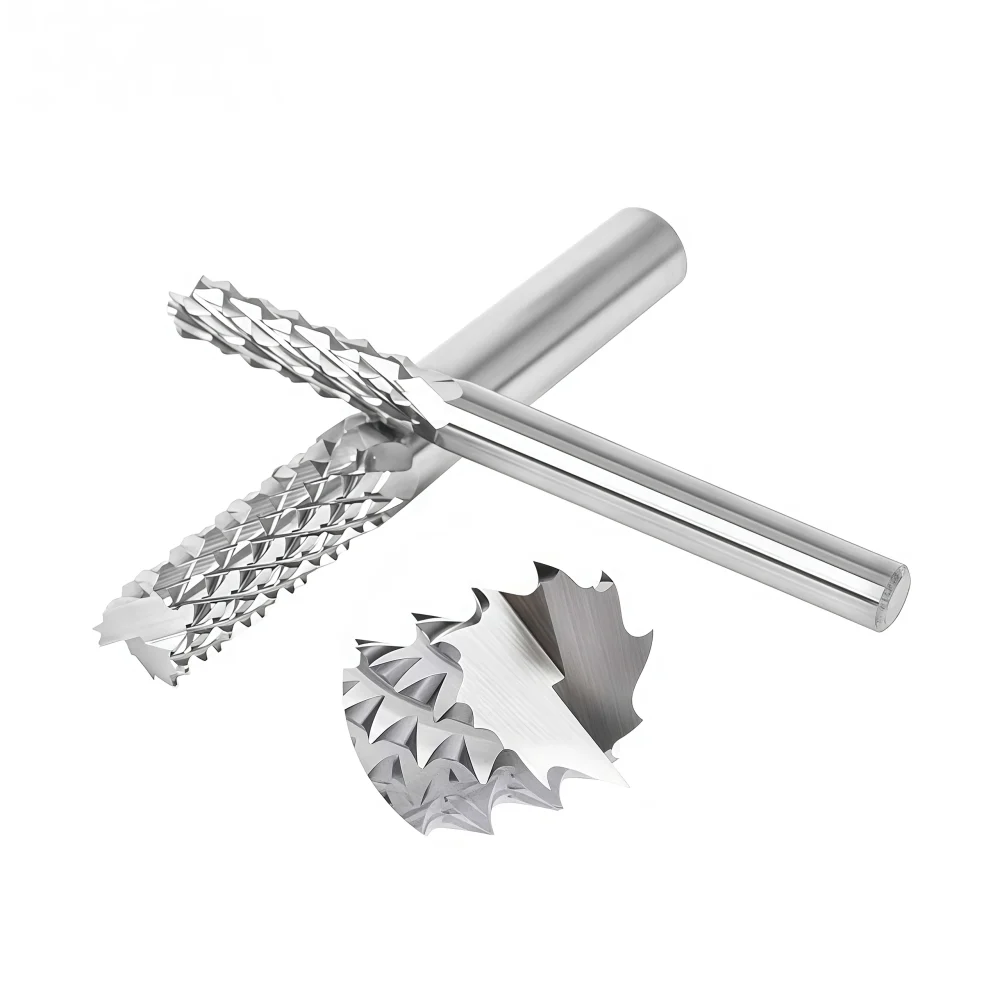

Serrated Corn-Cut Edge
The serrated cutting profile divides the cutting edge into multiple sections for chip breaking and material-removal operations.
Square-End Configuration
The documented square-end configuration is suitable for profile routing, slots and flat-bottom machining where the selected tool geometry permits.
Rigid Carbide Body
Micro-grain solid carbide construction provides a rigid tool body for CNC routing, milling and engraving applications.
Application-Specific Options
Flute configuration, helix angle, overall length and coating can be selected according to the material and machining operation.
Typical Applications
| APPLICATION | TYPICAL USE |
|---|---|
| Wood & MDF | Routing, grooves, furniture components and panel machining |
| Plastics | Acrylic, PVC, polycarbonate and profile-routing applications |
| Aluminum & Non-Ferrous | Aluminum, brass and copper with application-matched tool configuration |
| Composite Materials | GFRP, CFRP and abrasive composite routing applications |
| Sign Making & Engraving | Lettering, decorative features and profile machining |
| Mold & Pattern Making | Cavity machining, profiles and prototype material removal |
Product Details
Corn-Cut Router Bit Specifications & Sizes
The current product series is centered on 10 mm and 12 mm solid carbide corn-cut router bits for CNC milling and engraving. Standard configurations use matching straight shanks, with multiple overall-length, flute and helix options available. Non-standard diameters, lengths and geometry can be reviewed according to the machining application and customer drawing.
Technical Configuration
| PARAMETER | REFERENCE CONFIGURATION |
|---|---|
| Product Type | Corn-Type Solid Carbide Router Bit / End Mill |
| Standard Diameters | Ø10 mm / Ø12 mm |
| Tool Material | Premium Micro-Grain Solid Carbide |
| Cutting Edge Type | Square-End Corn-Type Geometry |
| Flute Configuration | 2 Flutes Standard / 3 Flutes Optional for selected finishing applications |
| Shank Type | Straight Cylindrical Shank |
| Shank Diameter | Ø10 mm / Ø12 mm matching standard cutting diameter |
| Overall Length | 50 / 75 / 100 mm / Custom |
| Helix Angle | 30° General-Purpose / 45° High-Shear Option |

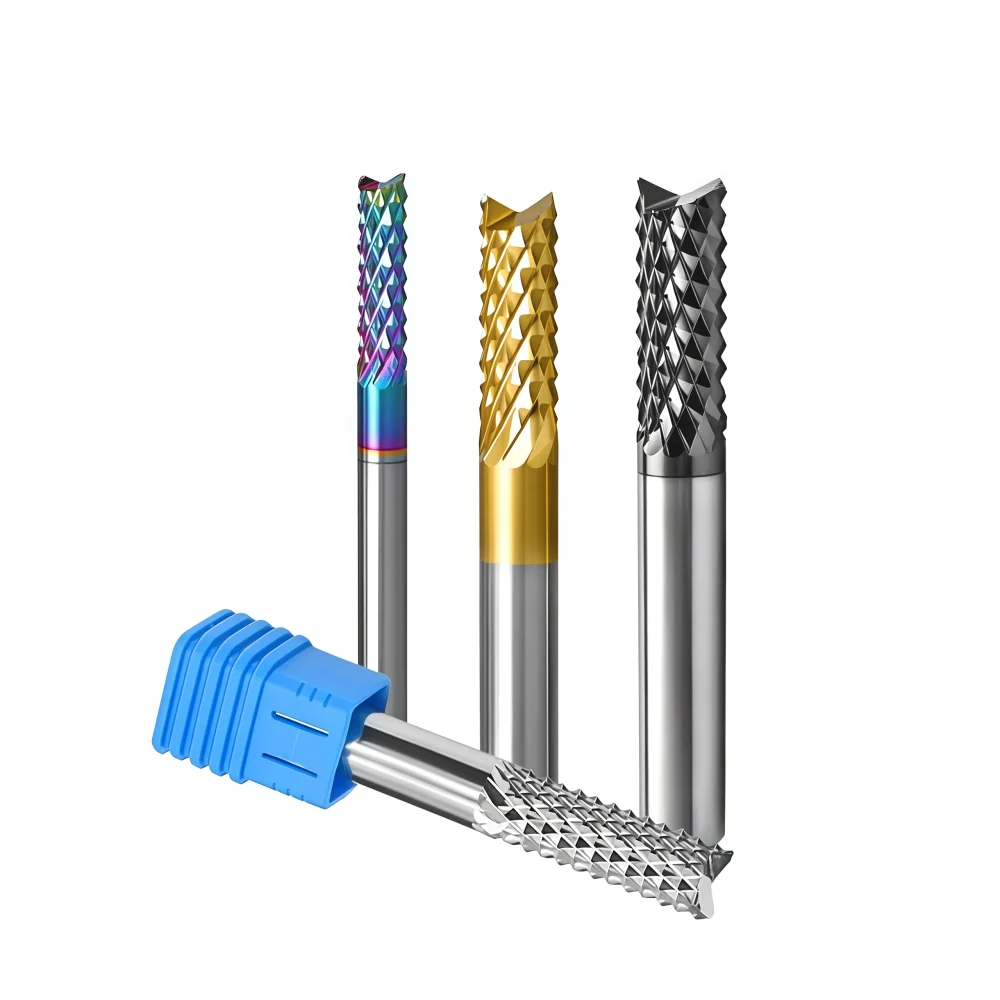

| Coating Options | Uncoated / TiN / TiAlN / AlCrN |
| Primary Applications | CNC Milling / Routing / Engraving / Profile Machining / Material Removal |
| Customization | Diameter / Flute Length / OAL / Helix / Corner Geometry / Coating / OEM Branding |
Standard Series Configuration
| CUTTING DIA. | SHANK DIA. | FLUTES | OAL OPTIONS | HELIX OPTIONS |
|---|---|---|---|---|
| Ø10 mm | Ø10 mm | 2F / 3F Option | 50 / 75 / 100 mm | 30° / 45° |
| Ø12 mm | Ø12 mm | 2F / 3F Option | 50 / 75 / 100 mm | 30° / 45° |
Material & Coating Guidance
| WORKPIECE | CONFIGURATION GUIDANCE |
|---|---|
| Wood / MDF | Select geometry according to routing depth, edge finish and chip-clearance requirements |
| Plastics | Prioritize chip evacuation and heat control according to plastic type and machining depth |
| Aluminum / Brass / Copper | Use application-matched geometry and coating or uncoated configuration according to the non-ferrous material |
| GFRP / CFRP | Abrasive composite applications should be reviewed for suitable edge geometry and coating selection |
Selection & Ordering Guidance
- Diameter: Confirm Ø10 mm, Ø12 mm or the required non-standard cutting diameter.
- Flute Configuration: Specify whether the standard 2-flute or optional configuration is required.
- Tool Length: Provide the required flute length, machining depth and overall length.
- Workpiece Material: Specify wood, plastic, aluminum, composite or other material so the geometry and coating can be reviewed accordingly.
- Custom Tools: For non-standard diameters, lengths or profiles, provide a tool drawing, component drawing or existing tool sample.
Carbide Corn-Cut Router Bit Customization
Cutting diameter, flute length, overall length, flute configuration, helix angle, corn-type cutting geometry and coating can be configured for CNC milling, routing and engraving applications. Standard configurations are based on Ø10 mm and Ø12 mm solid carbide tools with 2-flute or selected 3-flute options, while non-standard dimensions and geometry can be reviewed according to the workpiece material, machining depth, required edge quality and machine setup.
| PARAMETER | MANUFACTURING CAPABILITIES |
|---|---|
| Cutting Diameter | Standard Ø10 mm and Ø12 mm configurations, with other diameters available for review according to the machining application and customer drawing. |
| Flute Configuration | Standard 2-flute configuration, with selected 3-flute options available for applications requiring a different balance between chip space and finishing capability. |
| Corn-Type Cutting Geometry | Serrated corn-type cutting geometry can be reviewed for routing, milling, engraving, profile machining and material-removal applications. |
| Square-End Geometry | Standard square-end configurations are available for slots, profiles and flat-bottom machining, with modified corner geometry available for selected custom applications. |
| Flute Length | Standard and drawing-defined flute lengths can be reviewed according to machining depth, material thickness, tool engagement and required rigidity. |
| Overall Length | 50 mm, 75 mm and 100 mm reference overall lengths are available, with extended-reach or custom-length configurations reviewed according to the application. |
| Shank Configuration | Straight cylindrical shanks are standard, with Ø10 mm and Ø12 mm matching-shank configurations documented for the current series. Custom shank dimensions can be reviewed when required. |
| Helix Angle | 30° general-purpose and 45° high-shear helix options can be selected according to the workpiece material, chip formation, cutting load and desired edge quality. |
| Rake & Edge Geometry | Rake geometry, serration profile and cutting-edge preparation can be reviewed according to the material, feed condition, chip evacuation and machining objective. |
| Coating Selection | Uncoated, TiN, TiAlN and AlCrN options are documented for the current series. Final coating selection should be matched to the actual workpiece material and machining conditions. |
| Workpiece Material | Tool geometry can be reviewed for wood and MDF, plastics, aluminum and other non-ferrous materials, and composite materials including GFRP and CFRP. |
| Machining Application | Configurations can be reviewed for CNC routing, profile milling, engraving, slotting, cavity machining, sign making and general material-removal operations. |
| Dimensional Requirements | Drawing-defined requirements can be reviewed for cutting diameter, flute length, shank diameter, overall length, corner geometry and other critical tool dimensions. |
| Replacement Tool Matching | Existing corn-cut router bits can be reviewed from a tool drawing, dimensional specification or physical sample for equivalent or modified replacement production. |
| OEM & Private Label | Custom laser marking, product identification, labels, packaging and private-brand requirements can be reviewed for distributors and OEM customers. |
OEM & Private Label Services
OEM manufacturing and private-label supply options are available for industrial distributors, tooling brands and repeat-production customers. Laser identification, label content, protective packaging and coating presentation can be configured according to the approved product specification and order requirements.
Laser Etching
Custom logos, tool codes, cutting dimensions, coating identification and batch numbers can be marked according to the available shank area.

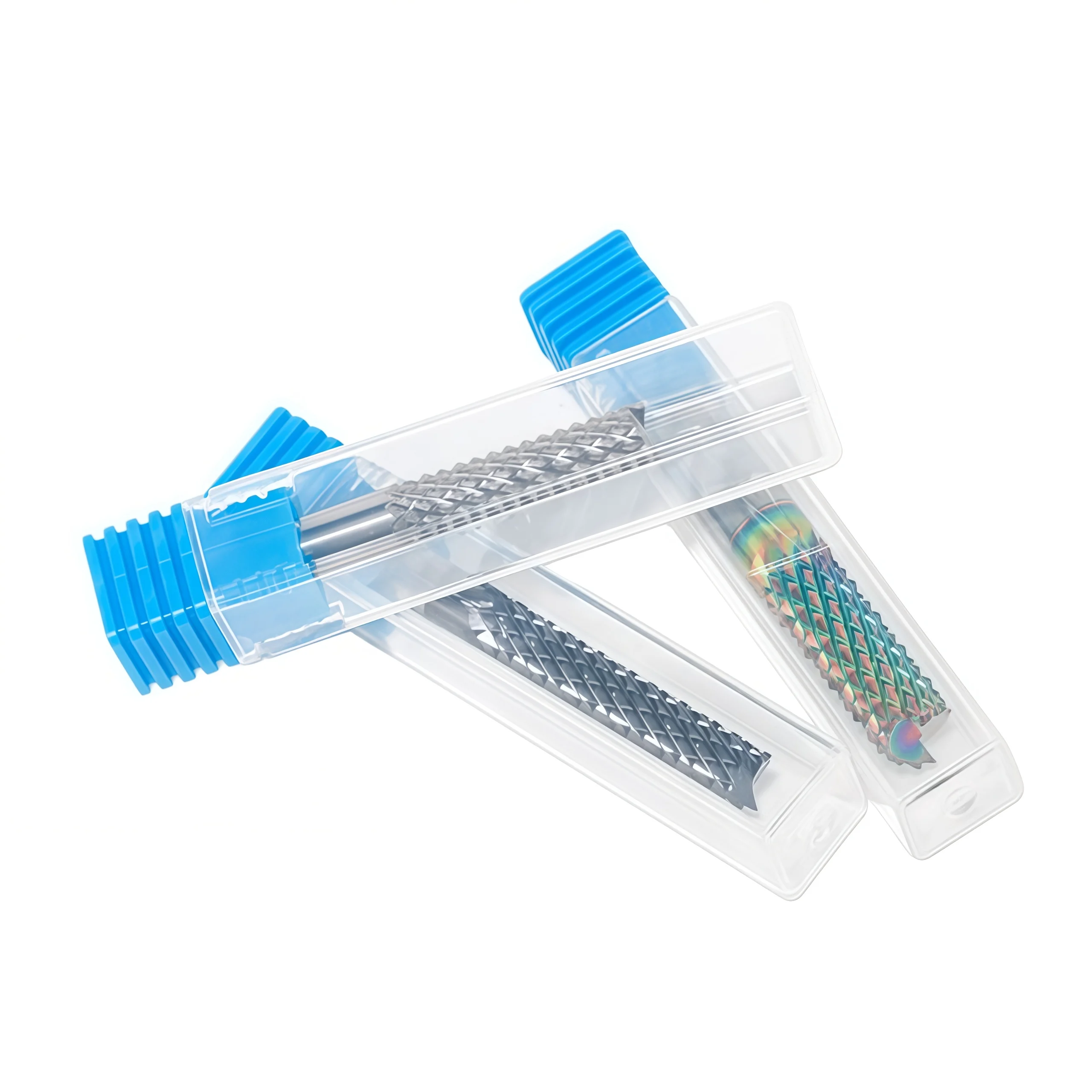

Custom Labels & Packaging
Individual protective tubes, product labels, specification details, colored packaging tubes and private-label packaging can be reviewed.
Commercial Terms
MOQ, sample evaluation, custom-size trials, repeat orders and scheduled supply programs are confirmed according to the selected configuration.
Technical Workflow
A structured review process is used to confirm standard, customized and private-label square end mill requirements before production.
Inquiry
Submit the material, hardness, milling operation, dimensions, tolerance and quantity.
Engineering
Review flute geometry, helix angle, edge preparation, coating, ap and ae.
Commercial
Confirm quotation, MOQ, sample requirements, production schedule and delivery terms.
Production
CNC grinding, end-face formation, edge preparation, coating and laser marking.
Quality Control
Inspect diameter, flute length, shank, runout, square-end geometry and cutting edges.
Quality, Inspection & Delivery
Our solid carbide square end mills are controlled through material verification, precision grinding, in-process measurement and final inspection. Key dimensions, square-end geometry, cutting-edge condition, coating appearance and product identification are reviewed according to the approved specification or drawing before packing.
Three-Stage Quality Control
Inspection checkpoints are arranged around the manufacturing process to support dimensional consistency and repeat-order control.
Incoming Material Control
Carbide substrate grade, blank dimensions and supplied material information are checked against the production requirement.
In-Process Grinding Control
Cutting diameter, flute geometry, flute length, square-end profile and shank dimensions are monitored during CNC grinding.
Final Tool Inspection
Finished tools are reviewed for specified dimensions, runout, cutting-edge condition, coating appearance, marking and packing identification.
Key Inspection Characteristics
Inspection requirements are confirmed according to the standard product specification or the approved custom drawing.
| INSPECTION ITEM | CONTROL FOCUS | CONFIRMATION BASIS |
|---|---|---|
| Cutting Diameter (DC) | Diameter and dimensional consistency | Standard specification or approved drawing |
| Flute Length (APMX) | Effective cutting length | Confirmed product size or drawing requirement |
| Shank Diameter (DCON) | Clamping-section dimension and surface condition | Applicable shank specification |
| Overall Length (OAL) | Total tool length | Standard size matrix or approved drawing |
| Radial Runout | Concentricity between cutting section and shank | Agreed inspection requirement |
| Square-End Geometry | End-face profile, corner condition and center-cutting form | Selected tool configuration |
| Flute & Helix Profile | Flute count, helix form and grinding consistency | Approved manufacturing configuration |
| Cutting Edge & Coating | Edge condition, visible defects and coating appearance | Application-specific production requirement |
| Marking & Identification | Tool code, dimensions and batch information where applicable | Confirmed order and packaging specification |
Measurement & Batch Traceability
Optical measuring systems, tool inspection equipment and appropriate dimensional gauges are selected according to the feature being checked.
Optical Measurement
Profile and dimensional review of specified cutting features.
Runout Verification
Concentricity review based on the agreed product requirement.
Edge Inspection
Magnified review of the end face, corners and cutting-edge condition.
Batch Identification
Order, product and batch information are linked where required for repeat supply.
Protective Packaging Process
Finished end mills are protected to reduce contact between cutting edges and to support clear product identification during storage and transportation.
Bulk-Order & Export Packaging
Bulk shipments can be arranged with reinforced cartons, protective wrapping, palletized loading or export cases according to order quantity, shipment weight and agreed transportation requirements.
Delivery Coordination
Production completion, packing method and dispatch arrangements are confirmed according to the approved order. Courier, air, sea or customer-designated shipping options can be reviewed according to shipment size and destination. Final lead time is confirmed after product specifications, quantity and packaging requirements are approved.
Product & Application FAQs
Common questions about solid carbide corn-cut router bits for CNC milling, routing, engraving and profile-machining applications.
What is a corn-cut router bit used for?
What are the standard diameters for this series?
Is this a 2-flute or 3-flute router bit?
Which materials can this tool machine?
Which helix angles are available?
Which coatings are available?
Can the tool be used for engraving?
Ordering & Customization FAQs
Ordering information for distributors, CNC tooling suppliers, woodworking-tool companies and OEM customers.
Can non-standard diameters be customized?
Can the flute length and overall length be customized?
Can the geometry be modified for a specific application?
Are OEM and private-label services available?
What information should I provide for quotation?
What is the typical lead time?
Technical Downloads
Reference documents for solid carbide milling-tool selection and machining-data review.
Solid Carbide End Mill Catalog
Review corn-cut router bits and related solid carbide milling tools.
End Mill Speeds & Feeds Guide
Use as a general reference before confirming final machining parameters.
Need Sizes, Pricing or Custom Options?
Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.
Drawings, size lists and reference photos are welcome.
