Solid Carbide PCB Drill Bits for High-Precision Circuit Board Machining
Solid carbide PCB drill bits designed for high-precision circuit board machining, including micro-hole drilling, through-hole drilling and HDI PCB applications.
- ◆High-precision cutting edges for stable hole quality and reduced drilling deviation
- ◆Fine-grain solid carbide construction for excellent wear resistance and consistent drilling performance
- ◆Wide diameter range with standard and customized specifications for different PCB production requirements
Ø0.10–3.20 mm
Fine-Grain Solid Carbide
Ø3.175 mm
PCB / HDI PCB / Electronic Substrate
Consistent Quality
Consistent geometry across repeat orders.
Flexible Orders
Small batches and mixed sizes available.
OEM Support
Custom marking, labels and packaging.
Standard & Custom
Standard sizes and custom configurations.
Solid Carbide PCB Drill Bits Overview
HY Cutting Tools solid carbide PCB drill bits are designed for high-precision circuit board machining, including HDI boards, multilayer PCBs and electronic component manufacturing. Manufactured from fine-grain carbide with precision-ground cutting edges, these drills provide stable drilling performance, accurate hole dimensions and consistent quality for PCB manufacturers, distributors and industrial suppliers.
TOOL TYPE
Solid Carbide PCB Drill Bit
DIAMETER RANGE
Ø0.10–3.20 mm
APPLICATION
PCB Hole Drilling
MATERIAL
Fine-Grain Solid Carbide
PCB Drill Design & Performance
PCB drilling requires extremely accurate cutting performance, stable tool geometry and reliable consistency during continuous production. HY Cutting Tools PCB drills are manufactured with optimized flute geometry, precision grinding technology and strict dimensional control to achieve clean drilling results and dependable tool performance.
- Precision Cutting Edge:
Optimized edge geometry helps improve drilling stability and maintain accurate hole dimensions. - Fine-Grain Carbide Substrate:
High-quality carbide provides excellent rigidity and wear resistance for long production cycles. - Controlled Manufacturing Process:
Precision grinding and inspection ensure consistent size accuracy and reliable batch performance. - Flexible Product Supply:
Standard PCB drill sizes are available with customized specifications for different production requirements.

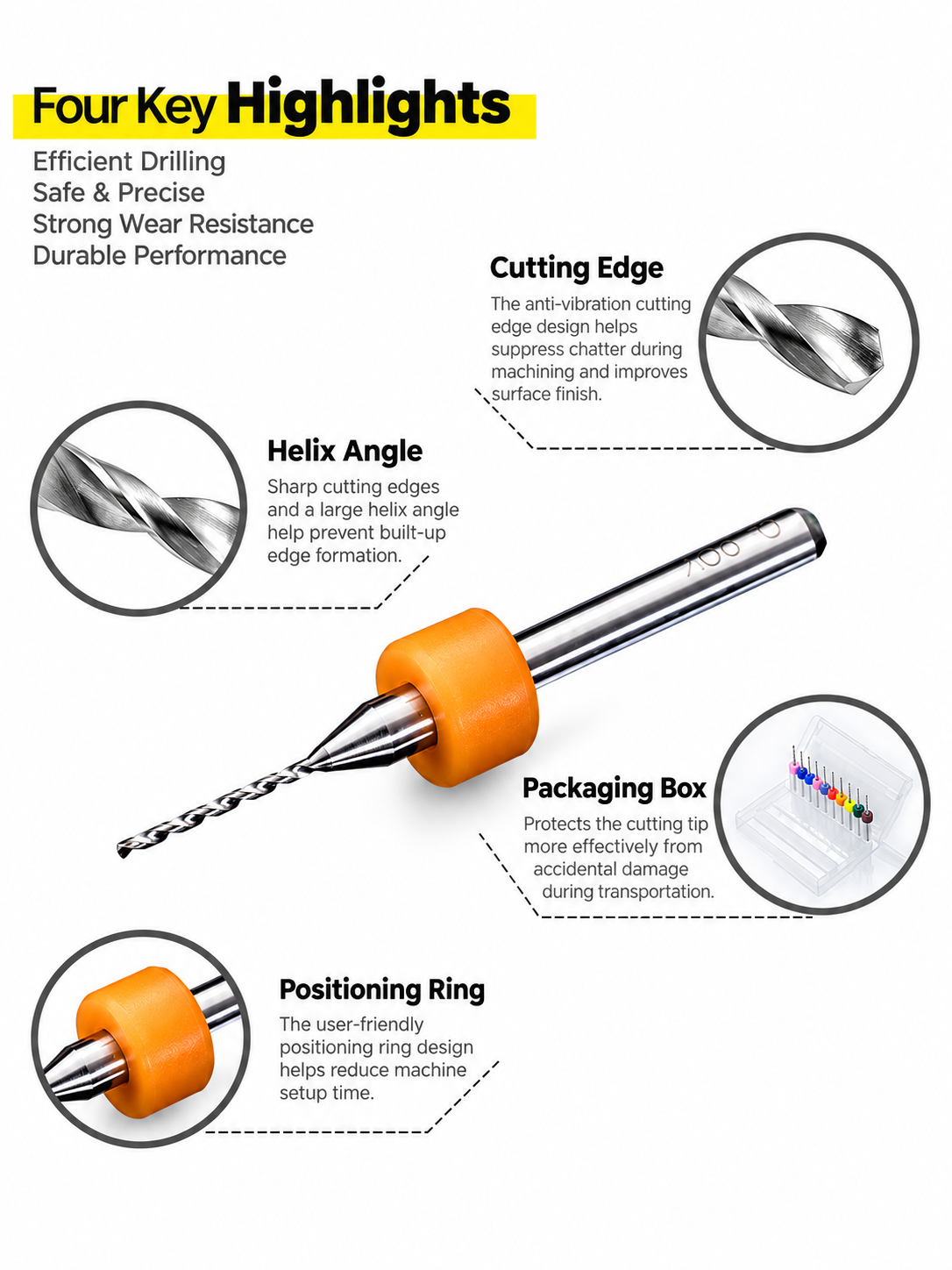

Key Product Advantages
HY Cutting Tools PCB drill bits combine optimized cutting geometry, stable carbide performance and protective design features to support precision PCB manufacturing and long-term production reliability.
Clean Hole Quality
Sharp cutting edges and optimized helix design help reduce burr formation and improve hole wall quality.
Stable Drilling Performance
Fine-grain carbide construction maintains rigidity and wear resistance during repeated PCB drilling operations.
Efficient Handling & Protection
Positioning ring options and protective packaging solutions improve tool identification, storage and transportation safety.
PCB Drilling Applications
HY Cutting Tools solid carbide PCB drill bits are suitable for a wide range of circuit board manufacturing applications, from micro hole drilling to standard PCB production. Different diameter ranges and configurations can be selected according to board structure, hole requirements and production conditions.
| APPLICATION | TYPICAL USE | DRILLING REQUIREMENT |
|---|---|---|
| HDI PCB | Micro hole drilling and high-density interconnection applications. | High accuracy and stable small diameter drilling. |
| Multilayer PCB | Through-hole drilling for multilayer circuit board production. | Consistent hole quality during repeated machining. |
| Rigid PCB | General circuit board manufacturing and industrial PCB production. | Reliable drilling performance and stable tool life. |
| Electronic Components | Precision hole machining for electronic applications. | Clean hole quality and dimensional consistency. |

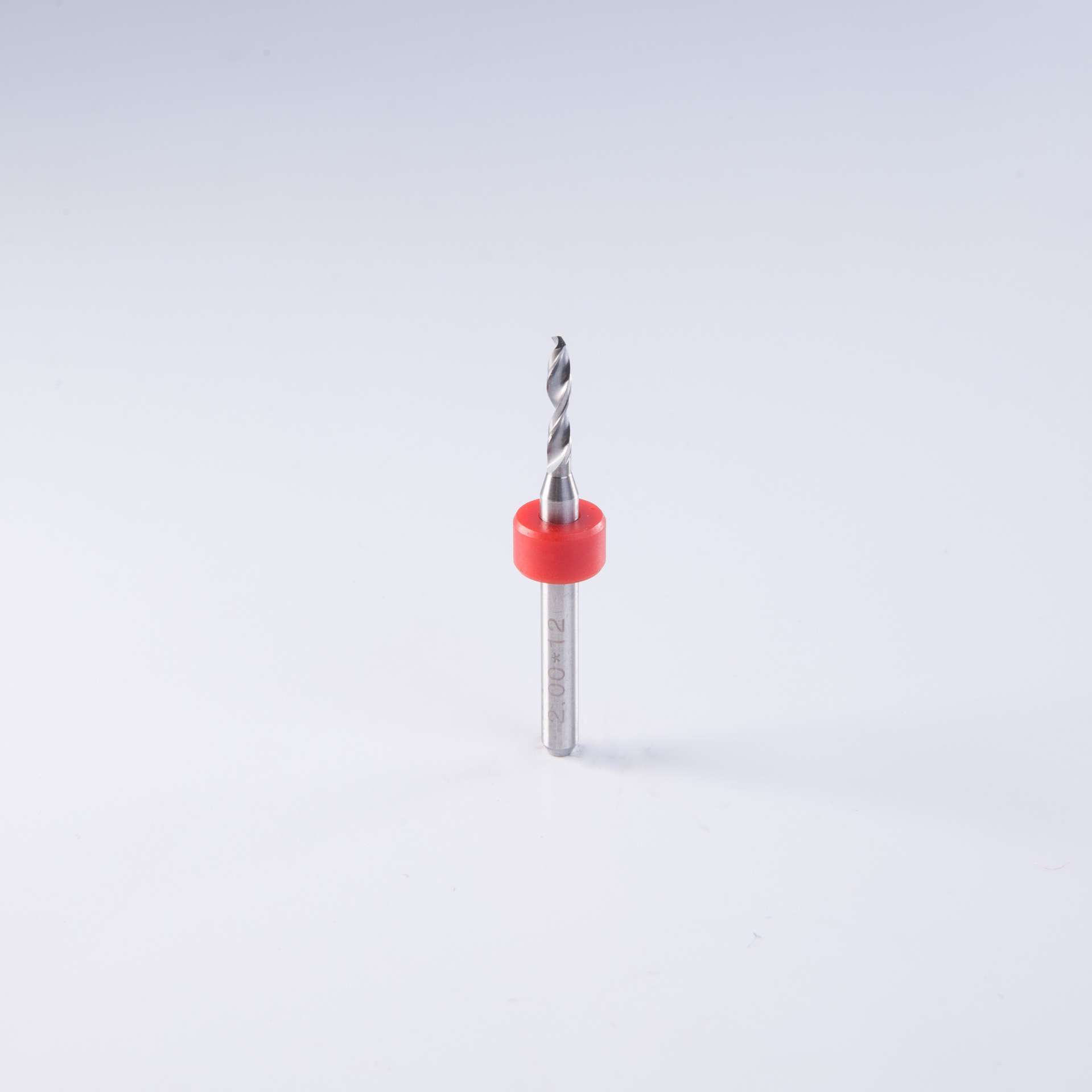

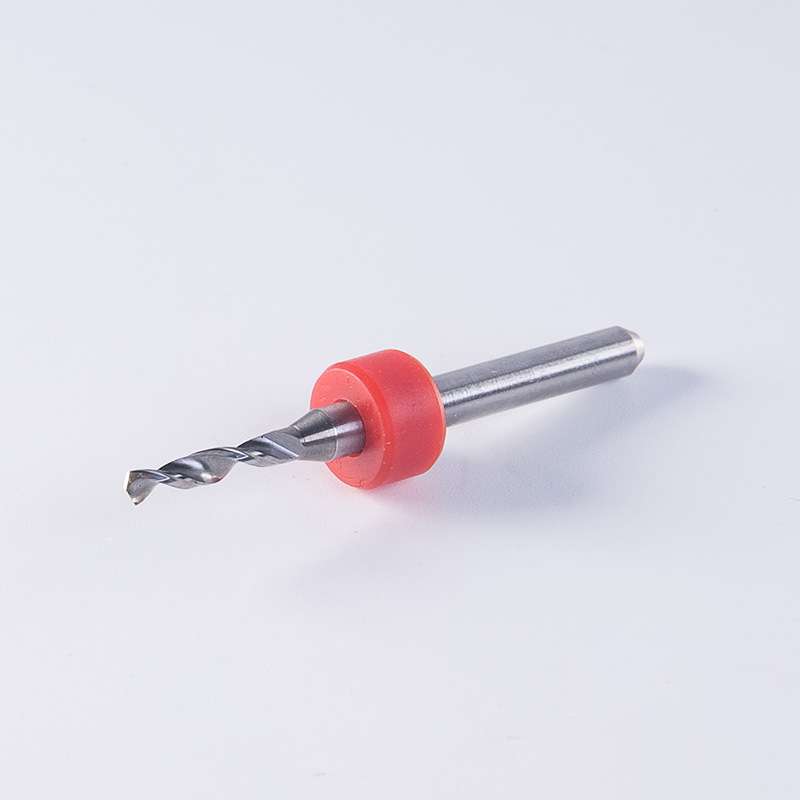

Product Details & Packaging
HY Cutting Tools provides multiple PCB drill configurations and packaging solutions to support different purchasing requirements, including standard production supply, distributor inventory and customized orders.
PCB Drill Product Video

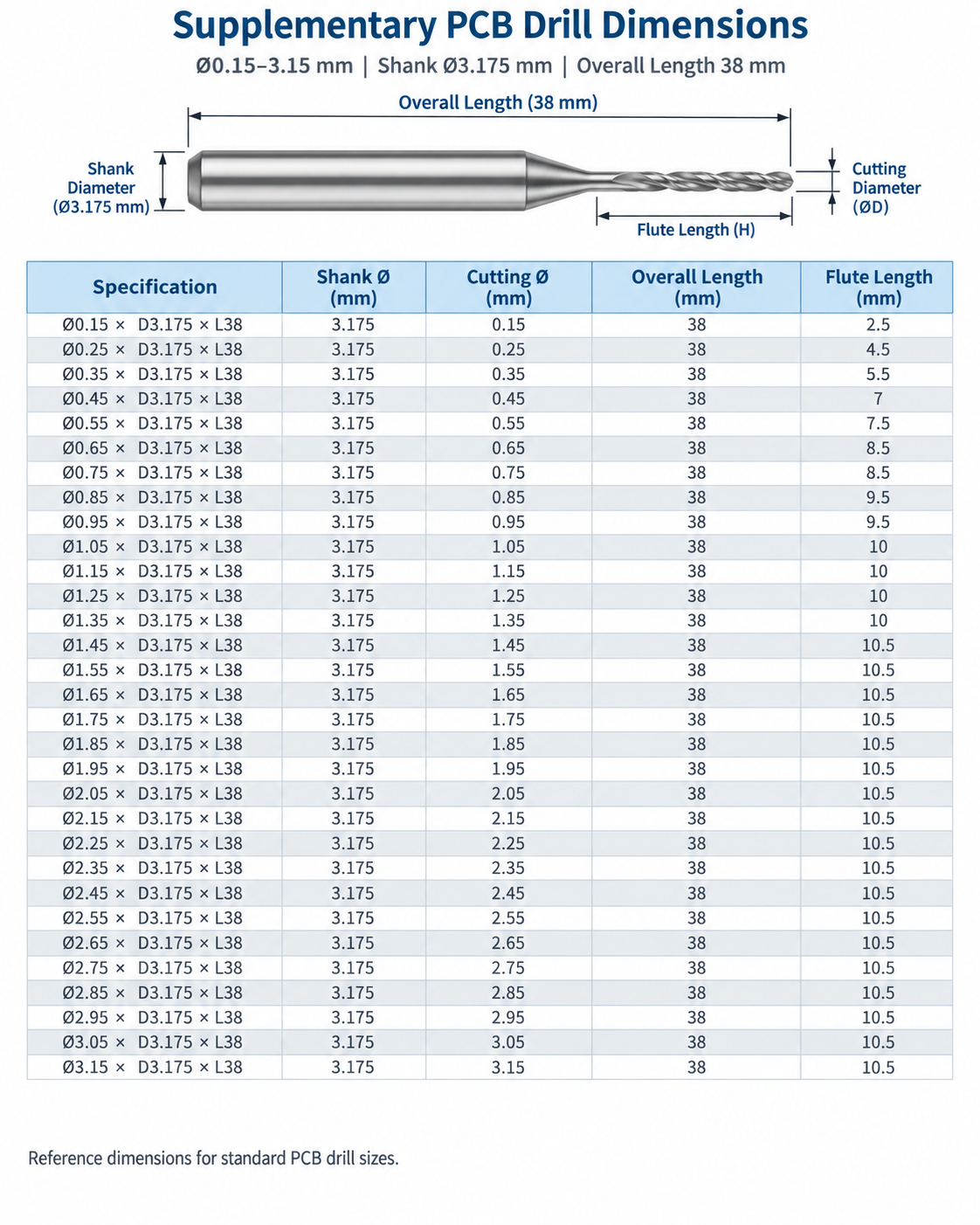

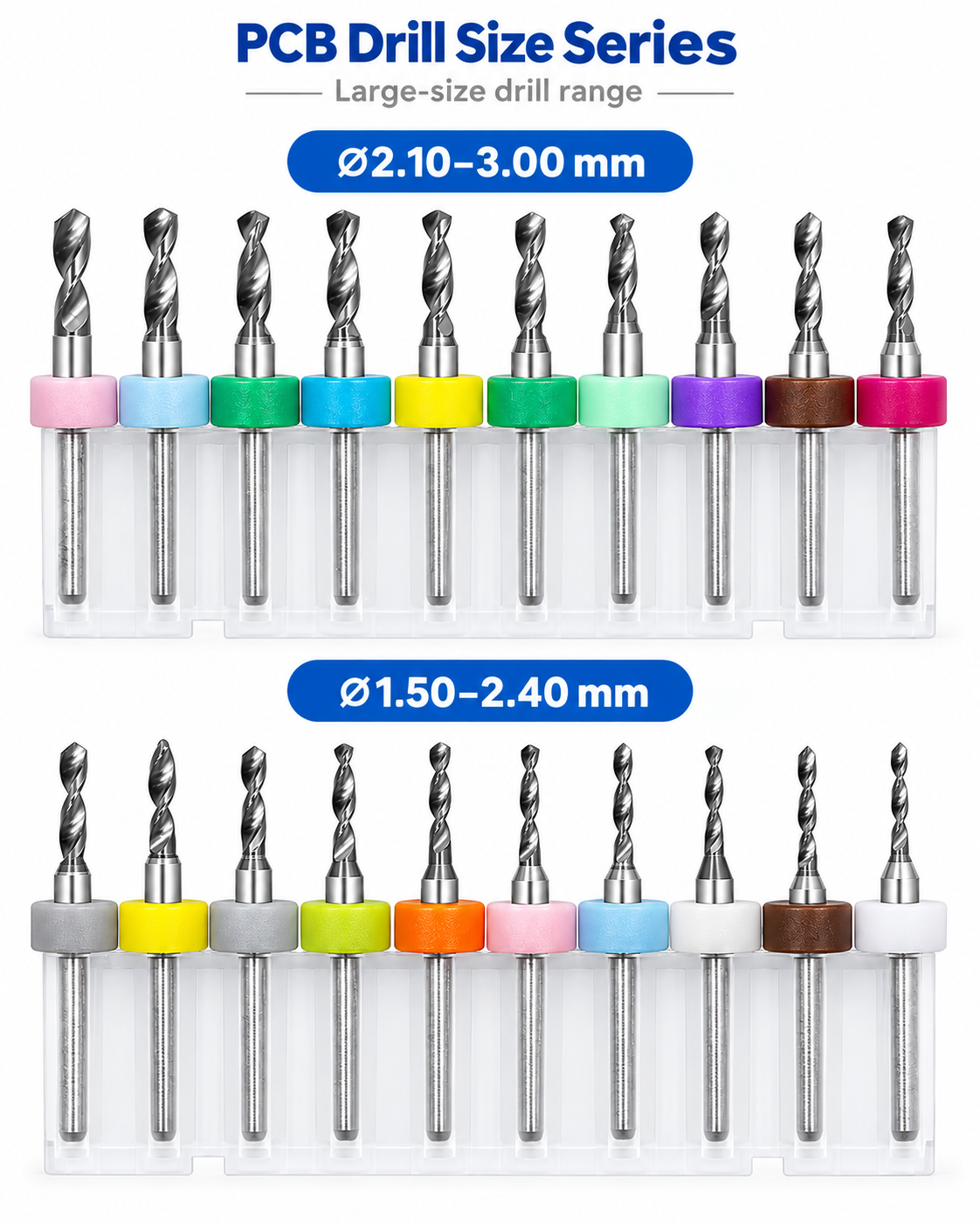

Solid Carbide PCB Drill Specifications & Sizes
HY Cutting Tools solid carbide PCB drill bits are designed for high-precision circuit board machining, covering standard and micro-hole drilling applications. The reference range includes Ø0.10–3.20 mm cutting diameters with Ø3.175 mm shank diameter and 38 mm overall length configurations. Custom diameters, flute lengths and special geometries are available according to PCB material, hole requirements and production conditions.
Technical Configuration
Size Selection Guidance
PCB Drill Customization & OEM Solutions
For distributors, wholesalers and brand owners, HY Cutting Tools provides flexible PCB drill OEM solutions including laser marking, private label packaging and customized product identification options. Standard PCB drill sizes can be supplied with professional branding support to help build your own PCB tooling product line.
OEM Service Options
Quality, Inspection & Delivery
Our solid carbide PCB drills are controlled through material verification, precision grinding, in-process measurement and final inspection. Key dimensions, drill-point geometry, flute condition, ring position, surface finish and product identification are reviewed according to the approved specification or drawing before packing.
Three-Stage Quality Control
Inspection checkpoints are arranged around the manufacturing process to support dimensional consistency, stable hole quality and repeat-order control.
Incoming Material Control
Carbide grade, drill blanks, positioning rings and supplied material information are checked against the production requirement.
In-Process Grinding Control
Drill diameter, point geometry, flute profile, flute length, shank dimensions and ring position are monitored during precision grinding and assembly.
Final Drill Inspection
Finished PCB drills are reviewed for specified dimensions, runout, drill-point and cutting-edge condition, ring position, marking and packing identification.
Key Inspection Characteristics
Inspection requirements are confirmed according to the standard PCB drill specification or the approved custom drawing.
| INSPECTION ITEM | CONTROL FOCUS | CONFIRMATION BASIS |
|---|---|---|
| Drill Diameter | Cutting diameter and dimensional consistency | Standard specification or approved drawing |
| Flute Length | Effective drilling length and flute consistency | Confirmed product size or drawing requirement |
| Shank Diameter | Clamping-section dimension and surface condition | Applicable shank specification |
| Overall Length | Total drill length | Standard size matrix or approved drawing |
| Radial Runout | Concentricity between drill section and shank | Agreed inspection requirement |
| Drill-Point Geometry | Point angle, lip symmetry, chisel edge and tip condition | Selected drill configuration |
| Flute Profile | Flute form, chip-space condition and grinding consistency | Approved manufacturing configuration |
| Cutting Edge & Surface | Edge condition, visible defects and surface finish | Application-specific production requirement |
| Ring & Identification | Ring position, color coding, drill size and batch information | Confirmed order and packaging specification |
Measurement & Batch Traceability
Optical measuring systems, tool inspection equipment and appropriate dimensional gauges are selected according to the PCB drill feature being checked.
Optical Measurement
Profile and dimensional review of the drill point, flutes and specified cutting features.
Runout Verification
Concentricity review based on the agreed PCB drill requirement.
Point & Edge Inspection
Magnified review of point geometry, lip symmetry and cutting-edge condition.
Batch Identification
Order, drill size and batch information are linked where required for repeat supply.
Protective Packaging Process
Finished PCB drills are organized and protected to reduce contact with drill points, maintain size identification and support convenient handling during storage and transportation.

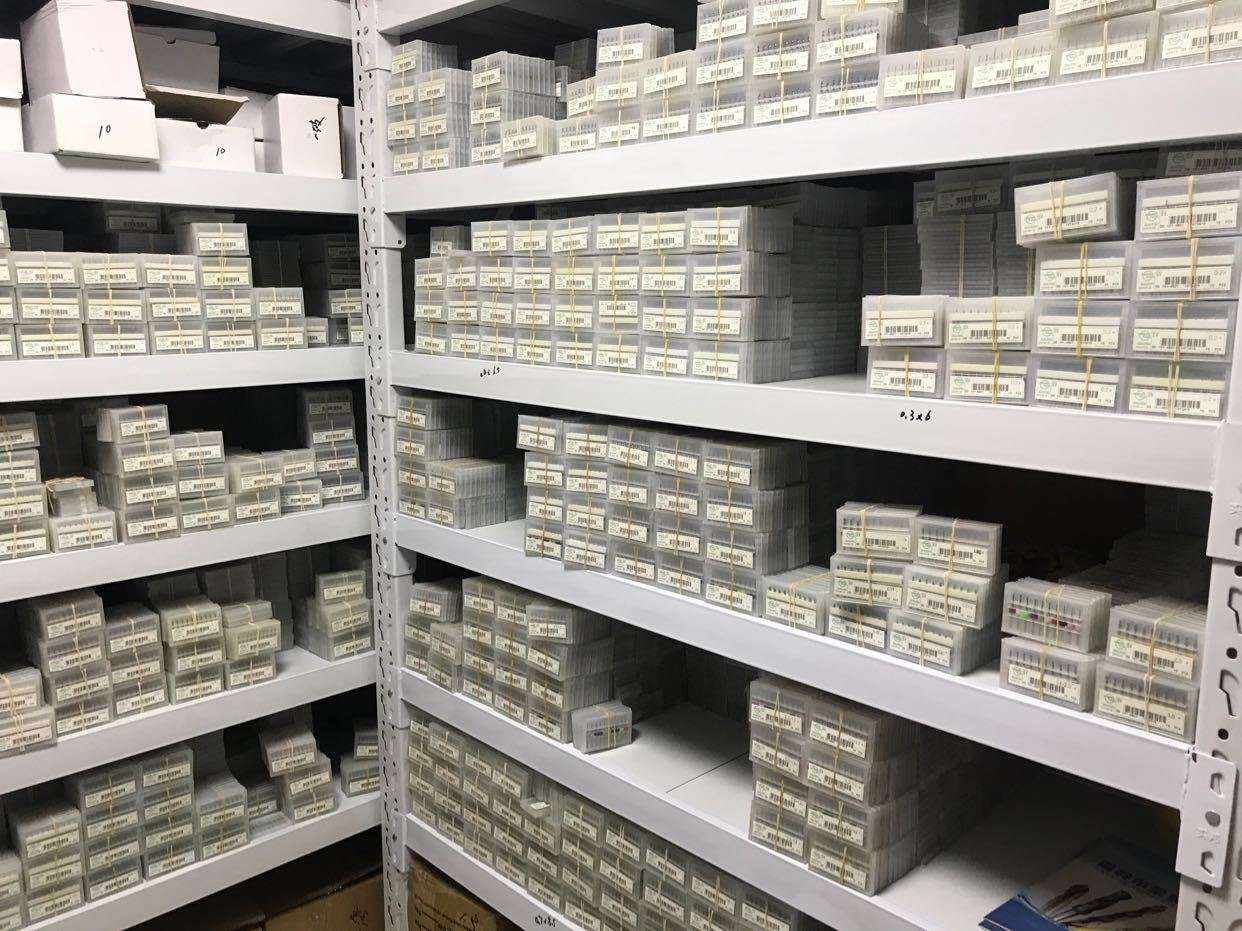

Bulk-Order & Export Packaging
PCB drill shipments can be arranged in standard 50-piece packs, reinforced cartons, protective wrapping or export cases according to drill size, order quantity, shipment weight and agreed transportation requirements.
Delivery Coordination
Production completion, pack quantity, labeling and dispatch arrangements are confirmed according to the approved PCB drill order. Courier, air, sea or customer-designated shipping options can be reviewed according to shipment size and destination. Final lead time is confirmed after drill specifications, quantity, ring requirements and packaging details are approved.
Product & Application FAQs
Common questions about solid carbide PCB drill bits for precision circuit board drilling, micro-hole machining and PCB production applications.
What is this solid carbide PCB drill bit mainly used for?
Which PCB materials can this drill machine?
What diameter range is available?
Why use solid carbide material for PCB drilling?
What factors affect PCB drill performance and tool life?
Can this PCB drill be supplied with positioning rings?
Ordering & Customization FAQs
Ordering information for PCB manufacturers, distributors, tooling suppliers and OEM customers.
Can PCB drill specifications be customized?
Can OEM and private-label services be provided?
What information should I provide for quotation?
Can I order mixed sizes for PCB drill requirements?
What is the typical lead time?
Technical Resources
Reference information for PCB drill selection, dimensions and customized requirement.
Need Sizes, Pricing or Custom Options?
Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.
Drawings, size lists and reference photos are welcome.
