CCMT 060204/09T304/120408 Carbide Turning Inserts for Finishing and Boring
CCMT positive carbide turning inserts are available in several sizes for external finishing, internal boring and light general turning. Their positive cutting geometry helps reduce cutting forces and supports stable machining with smaller toolholders and boring bars. Multiple grades and chipbreakers allow distributors to cover steel, stainless steel and grade-dependent materials.
Consistent Quality
Consistent geometry across repeat orders.
Flexible Orders
Small batches and mixed sizes available.
OEM Support
Custom marking, labels and packaging.
Standard & Custom
Standard sizes and custom configurations.
◆Product Overview

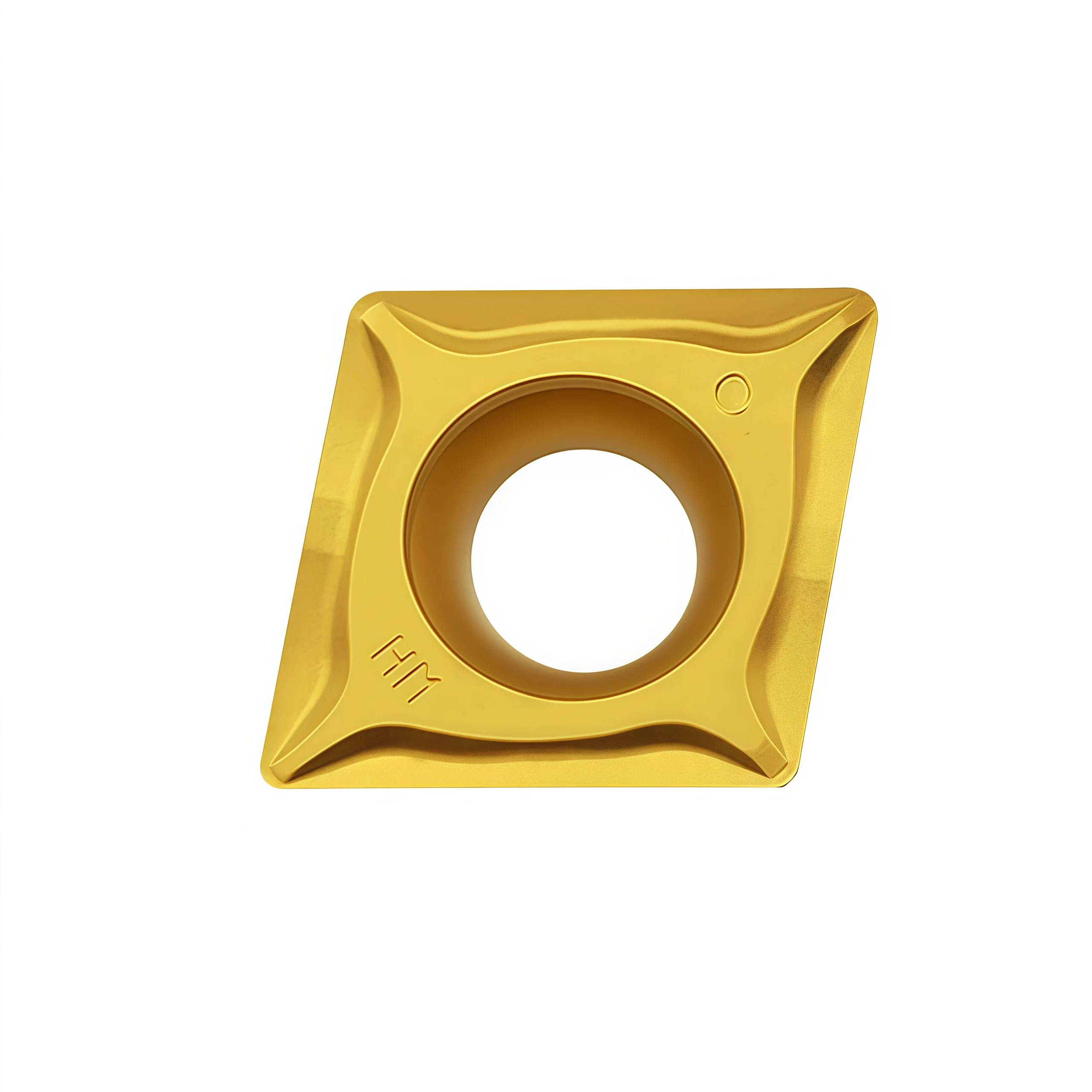

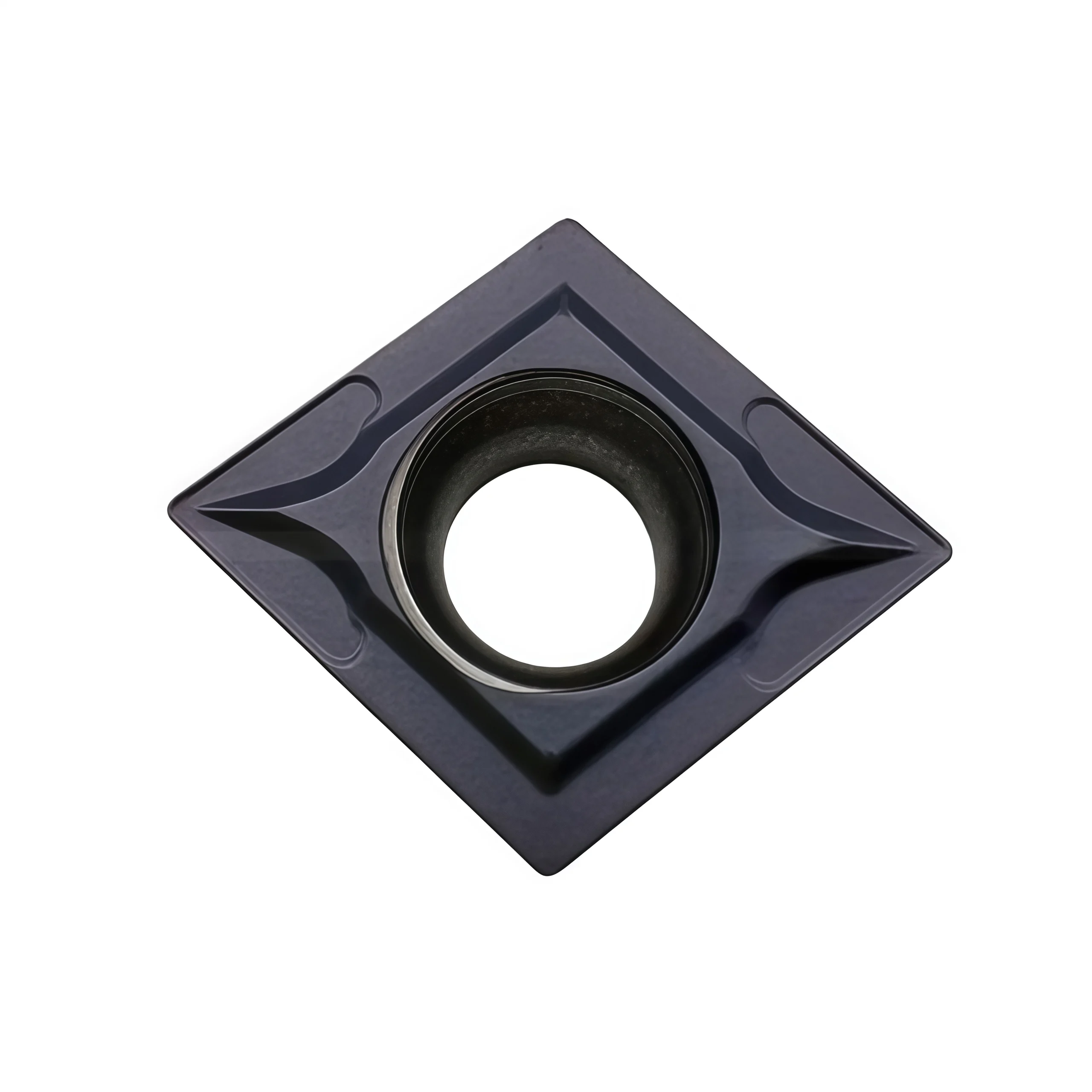

The CCMT 060204, CCMT 09T304 and CCMT 120408 carbide turning inserts are designed for precision boring, internal profiling and light external finishing on CNC lathes. Their positive cutting geometry helps reduce cutting forces, making the series suitable for small-diameter boring bars, slender workpieces and machining conditions where smooth cutting is important.
Multiple carbide grades, coatings and chipbreakers can be supplied according to the workpiece material and operation. Customers building a wider CNC insert range can also compare these products with DCMT and TCMT finishing inserts.
| Insert Series | CCMT | Available Models | 060204 / 09T304 / 120408 |
|---|---|---|---|
| Insert Geometry | 80° diamond, positive clearance | Primary Operations | Boring / Profiling / Finishing |
| Grades & Coatings | PVD / CVD / Uncoated options | Workpiece Materials | Grade dependent |
| Standard Pack | 10 pieces per box | Supply Options | Standard / Mixed models / Private label |
Available grades, chipbreakers, material compatibility and stock status should be confirmed using the complete insert code.
◆Model and Size Selection
| Model | General Size Position | Corner Radius | Typical Selection |
|---|---|---|---|
| CCMT 060204 | Compact size | 0.4 mm | Small-diameter boring and light finishing |
| CCMT 09T304 | Medium size | 0.4 mm | General boring, profiling and finishing |
| CCMT 120408 | Larger, stronger size | 0.8 mm | Larger bores and more stable cutting conditions |
Nominal dimensions should be verified against the complete ISO insert code and compatible boring-bar pocket before ordering.
Use the following reference diagrams to compare insert dimensions and available model combinations. Send the complete existing model code when requesting replacement matching.
For other positive turning geometries, compare the CCMT, DCMT and TCMT insert series according to holder style, approach angle and workpiece accessibility.

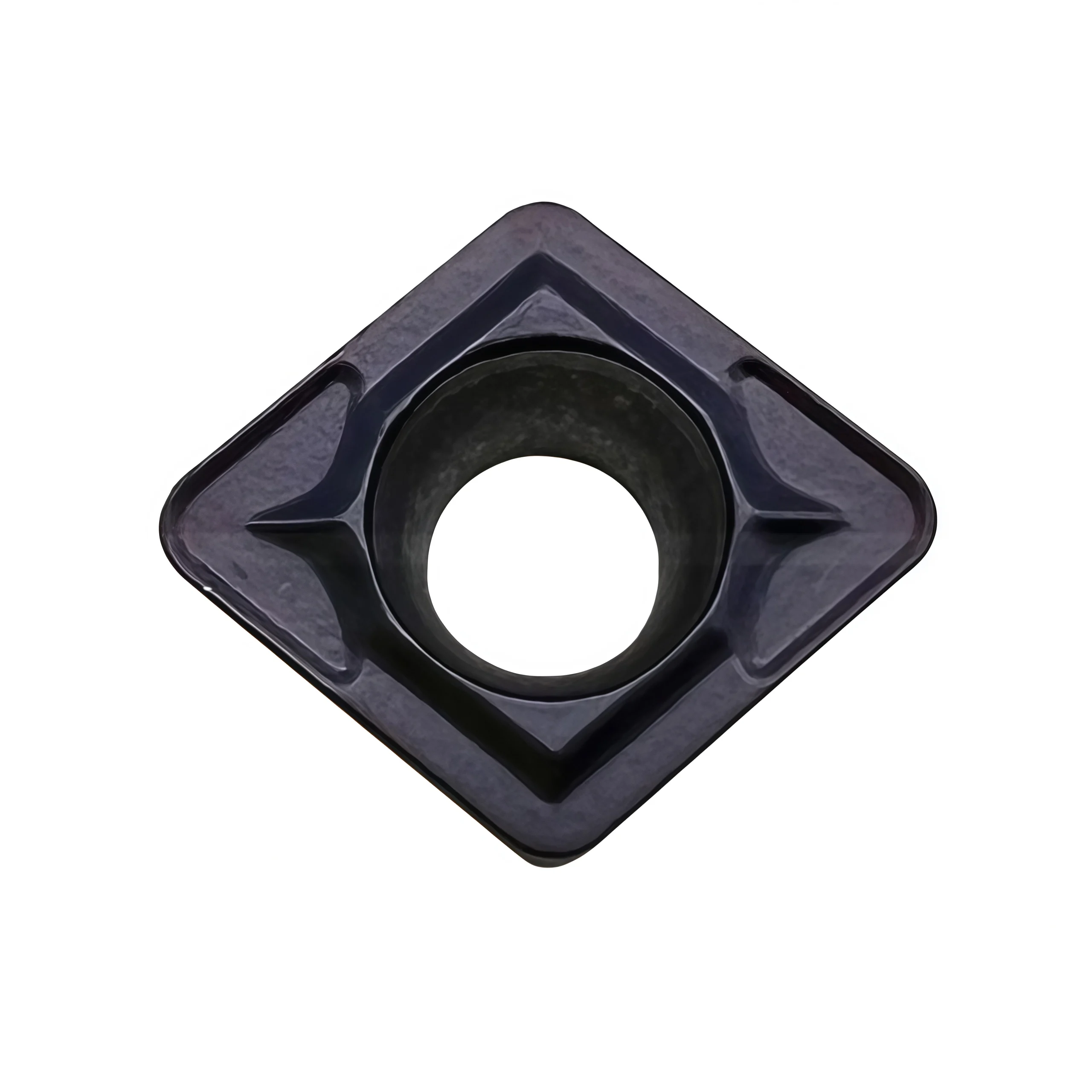

◆Product and Cutting-Edge Details

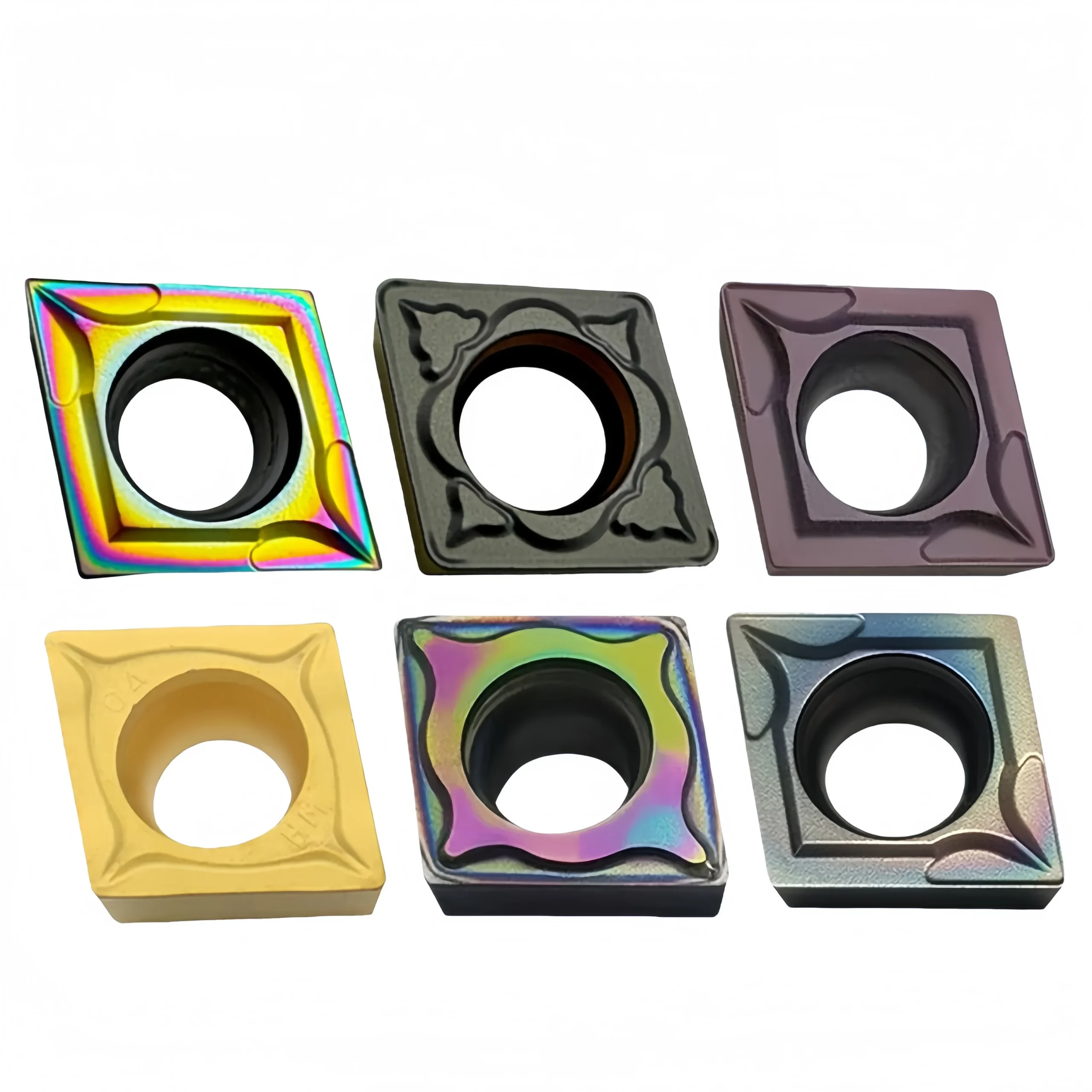

The same CCMT size may be supplied in different grades and chipbreakers. Selection should be based on the workpiece material, bore diameter, depth of cut, feed rate, rigidity and coolant condition.
Do not select an insert using only its color or size. The complete code is required to identify the correct grade and cutting geometry.
Inserts are normally packed in protective compartment boxes to reduce cutting-edge contact during storage and transportation. Packaging details are confirmed according to the insert model and order quantity.
- Complete insert model, grade and chipbreaker code
- Boring-bar or tool-holder model
- Workpiece material and hardness
- Bore diameter and machining operation
- Required quantity and packaging preference
If the full code is unavailable, send clear photographs of the insert’s top marking, cutting edge, side profile and compatible boring bar.
Size Chart & Specifications
The supplied charts list CCMT turning inserts in 06, 09 and 12 size families, including the 060204, 09T304 and 120408 sizes named in this product title. The table below transcribes the CCMT MM, FP, GP and KM ordering codes and their LE, IC, S, D1 and RE dimensions. Dimensions are in millimeters. Check the complete ordering code, chipbreaker and grade for the selected insert before ordering.
| Ordering Code | Geometry | LE (mm) | IC (mm) | S (mm) | D1 (mm) | RE (mm) |
|---|---|---|---|---|---|---|
| CCMT060202-MM | MM | 6.5 | 6.35 | 2.38 | 2.8 | 0.2 |
| CCMT060204-MM | MM | 6.5 | 6.35 | 2.38 | 2.8 | 0.4 |
| CCMT060208-MM | MM | 6.5 | 6.35 | 2.38 | 2.8 | 0.8 |
| CCMT09T302-MM | MM | 9.7 | 9.525 | 3.97 | 4.4 | 0.2 |
| CCMT09T304-MM | MM | 9.7 | 9.525 | 3.97 | 4.4 | 0.4 |
| CCMT09T308-MM | MM | 9.7 | 9.525 | 3.97 | 4.4 | 0.8 |
| CCMT120404-MM | MM | 12.9 | 12.7 | 4.76 | 5.56 | 0.4 |
| CCMT120408-MM | MM | 12.9 | 12.7 | 4.76 | 5.56 | 0.8 |
| CCMT060204-FP | FP | 6.5 | 6.35 | 2.38 | 2.8 | 0.4 |
| CCMT09T302-FP | FP | 9.7 | 9.525 | 3.97 | 4.4 | 0.2 |
| CCMT09T304-FP | FP | 9.7 | 9.525 | 3.97 | 4.4 | 0.4 |
| CCMT09T308-FP | FP | 9.7 | 9.525 | 3.97 | 4.4 | 0.8 |
| CCMT060202-GP | GP | 6.5 | 6.35 | 2.38 | 2.8 | 0.2 |
| CCMT060204-GP | GP | 6.5 | 6.35 | 2.38 | 2.8 | 0.4 |
| CCMT060208-GP | GP | 6.5 | 6.35 | 2.38 | 2.8 | 0.8 |
| CCMT09T302-GP | GP | 9.7 | 9.525 | 3.97 | 4.4 | 0.2 |
| CCMT09T304-GP | GP | 9.7 | 9.525 | 3.97 | 4.4 | 0.4 |
| CCMT09T308-GP | GP | 9.7 | 9.525 | 3.97 | 4.4 | 0.8 |
| CCMT120404-GP | GP | 12.9 | 12.7 | 4.76 | 5.56 | 0.4 |
| CCMT120408-GP | GP | 12.9 | 12.7 | 4.76 | 5.56 | 0.8 |
| CCMT120412-GP | GP | 12.9 | 12.7 | 4.76 | 5.56 | 1.2 |
| CCMT060204-KM | KM | 6.5 | 6.35 | 2.38 | 2.8 | 0.4 |
| CCMT09T304-KM | KM | 9.7 | 9.525 | 3.97 | 4.4 | 0.4 |
| CCMT09T308-KM | KM | 9.7 | 9.525 | 3.97 | 4.4 | 0.8 |
| CCMT120404-KM | KM | 12.9 | 12.7 | 4.76 | 5.56 | 0.4 |
| CCMT120408-KM | KM | 12.9 | 12.7 | 4.76 | 5.56 | 0.8 |
| CCMT120412-KM | KM | 12.9 | 12.7 | 4.76 | 5.56 | 1.2 |
Grade & Geometry Availability
The original charts show grade columns and availability marks for each ordering code. Use the images below to check the particular code and grade combination. The images do not provide a legend explaining filled versus open circles; confirm the meaning of each mark, current availability and the exact coating with the quotation.
How to Select a CCMT Insert
1. Check holder fit: Match the CCMT size, IC, thickness and fixing-hole dimensions to the holder specification. A matching nominal size alone does not confirm the complete grade and geometry.
2. Choose the cutting edge: Select the available geometry and RE value for the finishing or boring operation, required surface finish and machine rigidity.
3. Confirm the grade: Specify workpiece material, hardness, cut type and coolant, then confirm the complete ordering code and marked grade combination.
Starting Cutting Data
The supplied charts are dimensional and grade-availability references; they do not give cutting-speed, feed or depth-of-cut values. Set starting parameters only after confirming the selected grade, chipbreaker, workpiece grade and hardness, holder overhang, coolant and finishing allowance.
Carbide Insert Customization & OEM
Specify the insert around the machining operation, workpiece and holder. We can review standard replacements, application-specific geometry and private-label requirements using your insert designation, drawing or sample. Available grades, coatings, dimensions and order quantities are confirmed for each requested series.
Geometry & Chip Control
Review chipbreaker, rake, cutting-edge preparation, nose radius and corner design for the operation and workpiece. Confirm holder compatibility before approving a modified geometry.
Substrate & Coating
Select an available carbide grade and coating for the workpiece material, cutting conditions and desired balance of wear resistance and edge toughness.
Dimensions & OEM
Review insert size, thickness, locating and clamping features, tolerances, laser marking and private-label packaging against the approved specification.
Customization Options
Use the fields below when sending an inquiry. The exact options depend on the insert family and are confirmed in the quotation or approved drawing.
| Specification | Details to Confirm |
|---|---|
| Insert Type | Turning, milling, threading, grooving or drilling insert; send the designation or drawing. |
| Size & Fit | Shape, size, thickness, inscribed circle or edge length, hole or clamping form, and holder model. |
| Cutting Geometry | Chipbreaker, nose or corner radius, edge preparation, cutting direction and application-specific profile. |
| Grade & Coating | Workpiece group and grade, carbide substrate, coating system and wet or dry cutting conditions. |
| Tolerance & Inspection | Critical dimensions, profile requirements, inspection method and any required report. |
| OEM Presentation | Insert or box marking, label content, packaging format and quantity per pack. |
How to Request a Custom Insert
Send your insert requirements through our contact form or review our OEM and private-label service.
Carbide Insert Quality Control
Insert quality depends on the approved grade, geometry, coating and dimensional specification. We review the requirements at order confirmation and align the inspection scope with the insert series and any customer drawing. Share critical dimensions or documentation needs before production so they can be included in the agreed inspection plan.
01 · Incoming Material
Confirm the specified carbide grade or material documentation against the order requirements.
02 · In-Process Checks
Review dimensions and cutting-edge features during production against the approved specification.
03 · Final Inspection
Check the agreed dimensions, appearance, edge condition, coating identification and marking as applicable.
04 · Packing Review
Verify the item code, quantity, labels and protective packing against the approved order.
Inspection & Documentation
Inspection points and acceptance criteria should be agreed for the ordered series. For custom inserts, the approved drawing takes priority over a generic catalogue description.
| Check Area | What to Confirm |
|---|---|
| Dimensions & Fit | Insert size, thickness, corner radius, clamping features and any drawing tolerances. |
| Cutting Geometry | Chipbreaker, edge preparation, usable corners and profile where applicable. |
| Grade & Coating | Approved grade and coating designation; any requested verification method. |
| Appearance & Packing | Visible edge damage, marking, item code, count and packing format. |
| Requested Records | Inspection report, material or coating documentation, sample approval or batch identification when agreed. |
Order & Delivery
Share a line-by-line list of insert codes and quantities for a mixed-size quotation. Stock status, minimum quantity, sample requirements and production lead time are confirmed for each grade, coating and configuration.
Send your item list and quality requirements through our contact form for specification, availability and delivery confirmation.
Product FAQs
Which CCMT sizes are included in this range?
The supplied charts list CCMT 06, 09 and 12 size families. The dimension table covers 27 CCMT carbide entries with MM, FP, GP and KM geometry suffixes, including CCMT060204, CCMT09T304 and CCMT120408. Specify the complete ordering code, including nose radius and geometry suffix, when requesting a size.
What do 060204, 09T304 and 120408 indicate?
They identify different insert sizes and corner radii. In the supplied table, CCMT060204 has IC 6.35 mm, S 2.38 mm and RE 0.4 mm; CCMT09T304 has IC 9.525 mm, S 3.97 mm and RE 0.4 mm; CCMT120408 has IC 12.7 mm, S 4.76 mm and RE 0.8 mm. Check the full dimensions and the holder specification before choosing a replacement.
Are these inserts suitable for both external finishing and internal boring?
A suitable CCMT insert may be used for either operation when paired with a compatible turning holder or boring bar. Check holder orientation, insert seat and clamping, boring-bar clearance and overhang, and the selected geometry and grade for the workpiece. The dimensions alone do not establish suitability for every setup.
How should I choose the nose radius?
The listed RE values range from 0.2 to 1.2 mm, depending on the ordering code. Select the radius in relation to the required profile and surface finish, feed, cutting allowance and setup rigidity. For a boring operation, also check tool clearance and vibration before selecting a larger radius.
What is the difference between MM, FP, GP and KM?
These suffixes identify different geometries in the supplied product charts. Their exact chipbreaker design and application limits are not defined by the dimensional table. Provide the workpiece material, operation and target finish so the geometry and grade can be confirmed for the complete ordering code.
Are the cermet and CCGT/CCGX entries in the images part of this product?
No. The original images also show CCMT 5PL and TP cermet entries and separate CCGT/CCGX codes. The specification table for this page covers the listed carbide CCMT MM, FP, GP and KM entries. Confirm the material and complete code if you need one of the other insert types.
Ordering & OEM FAQs
What information should I send for a quotation?
Send the complete insert code and quantity, workpiece material and hardness, external turning or boring operation, holder or boring-bar model, target finish, coolant use and any required grade or coating. Include the existing insert marking or a drawing if you need a direct replacement.
Can I specify a grade, coating or custom packaging?
Provide the requested grade or performance target, coating and packaging or branding details for a feasibility review. The chart's grade marks do not define every available combination; confirm the selected code, grade, MOQ and lead time in the quotation.
Are all charted combinations currently available?
Confirm availability by complete ordering code and grade. The charts do not explain the distinction between filled and open grade marks, and the CCMT09T302-FP dimension row has no clearly marked grade. Ask for current stock or production details before placing an order.
Downloads & Technical Reference
See the two original CCMT dimension and grade charts (part 1) and (part 2). These charts do not provide cutting-speed, feed or depth-of-cut recommendations; request cutting data for the confirmed grade and workpiece.
Downloads & Technical Reference
For help choosing the insert shape, nose radius, chipbreaker and grade, read our CNC Insert Selection Guide. Check the complete insert code and holder compatibility before selecting a replacement.
For model dimensions and grade markings, see the original CCMT chart (part 1) and CCMT chart (part 2). Confirm cutting data for the selected grade and workpiece before machining.
