120° 3-Flute DLC-Coated Solid Carbide V-Groove Chamfer Mill for Aluminum
- ◆120° precision-ground V-profile for consistent chamfers and angled grooves
- ◆3-flute geometry supports stable cutting engagement and clean edge finishing
- ◆DLC coating helps reduce aluminum adhesion during repeated machining
- ◆Solid carbide construction provides rigidity for CNC chamfering and V-groove milling
Designed mainly for aluminum alloys and compatible non-ferrous materials. The DLC-coated surface helps reduce material adhesion and supports cleaner cutting during chamfering and V-groove machining.
Consistent Quality
Consistent geometry across repeat orders.
Flexible Orders
Small batches and mixed sizes available.
OEM Support
Custom marking, labels and packaging.
Standard & Custom
Standard sizes and custom configurations.
120° DLC-Coated Chamfer Mill Overview
This 120° 3-flute DLC-coated solid carbide V-groove chamfer mill is designed for CNC chamfering, V-groove milling, edge deburring and profile finishing in aluminum and other non-ferrous materials. The precision-ground 120° cutting profile supports controlled chamfer geometry, while the 3-flute configuration provides multiple cutting edges for stable engagement during repeated machining. DLC coating helps reduce material adhesion and supports smoother chip flow when machining aluminum alloys, making this configuration suitable for clean edge preparation and consistent batch production.
120°
3 Flutes
DLC
Ø6–Ø20 mm
120° Aluminum-Machining Configuration
Precision 120° V-Profile
Precision-ground 120° geometry supports controlled chamfer formation, angled edge preparation and matching V-groove features in CNC machining.
3-Flute Cutting Geometry
Three cutting edges provide repeated engagement around the tool profile, supporting stable chamfering and consistent edge-finishing operations.
DLC for Non-Ferrous Materials
The low-adhesion DLC-coated surface is intended for aluminum and other non-ferrous applications where built-up material on the cutting edge needs to be controlled.
Application-Specific Advantages
Defined Chamfer Geometry
Fixed 120° included geometry simplifies selection for matching chamfer and angled-groove features.
Stable Edge Engagement
Three cutting edges support repeated engagement during CNC chamfering and edge-finishing operations.
Reduced Material Adhesion
DLC coating helps limit aluminum adhesion to the cutting surface during repeated machining.
Custom Size Supply
Cutting diameter, flute length, shank diameter, overall length and related geometry can be reviewed for OEM requirements.
Recommended Machining Operations
RECOMMENDED
RECOMMENDED
RECOMMENDED
SUITABLE
Application Note:
Final chamfer width and V-groove dimensions depend on cutter diameter, axial engagement and tool position. Use the shortest practical tool overhang and confirm holder runout when consistent edge dimensions are required.
Workpiece Material Compatibility
| MATERIAL GROUP | CONFIGURATION | APPLICATION LEVEL |
|---|---|---|
| N Aluminum Alloys | DLC-coated solid carbide configuration for chamfering and V-groove machining | Primary application |
| N Copper & Non-Ferrous | DLC or material-specific low-adhesion configuration according to alloy and cutting conditions | Suitable |
| Engineering Plastics | Application-specific sharp-edge configuration should be reviewed according to material type | Application review |
Product Details

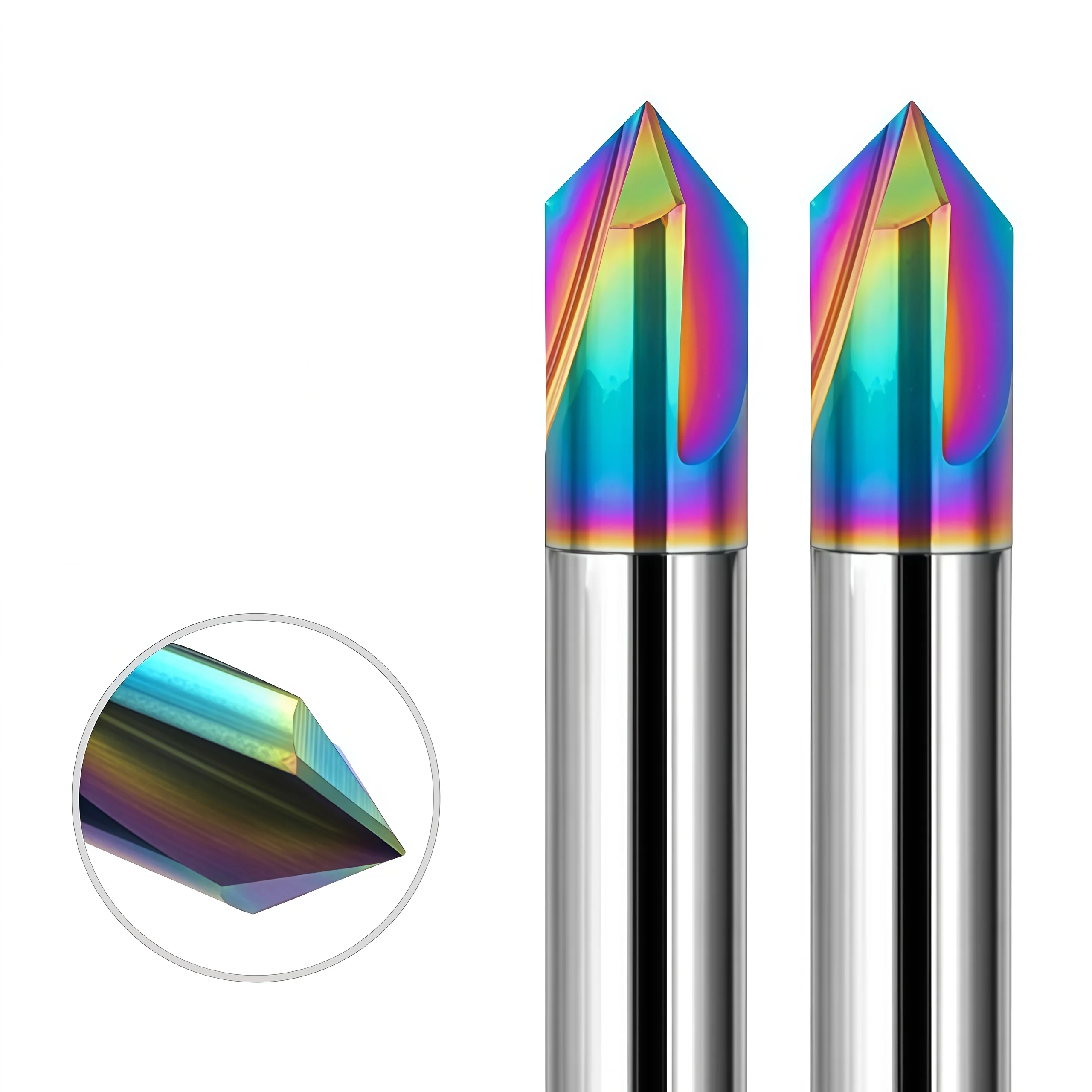

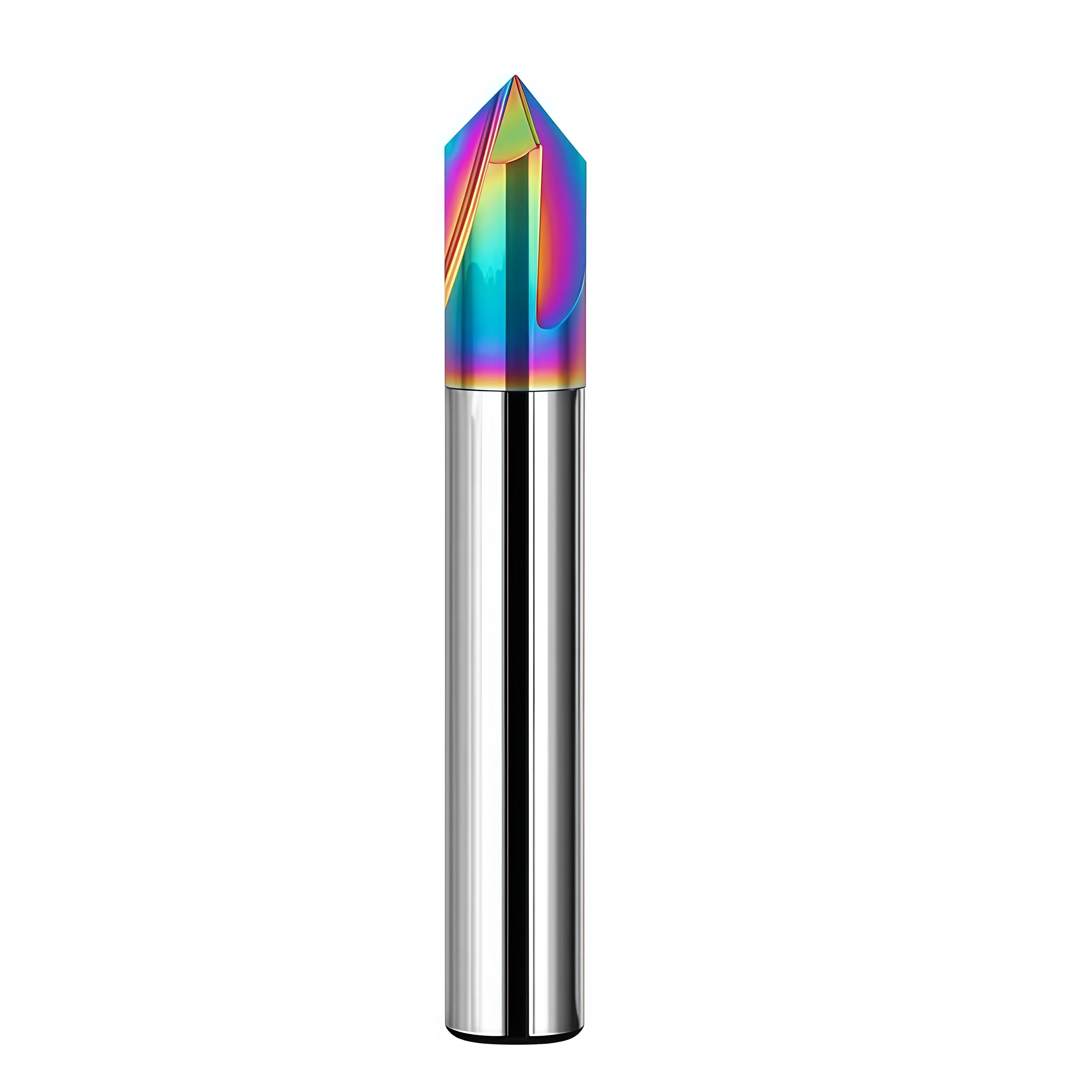

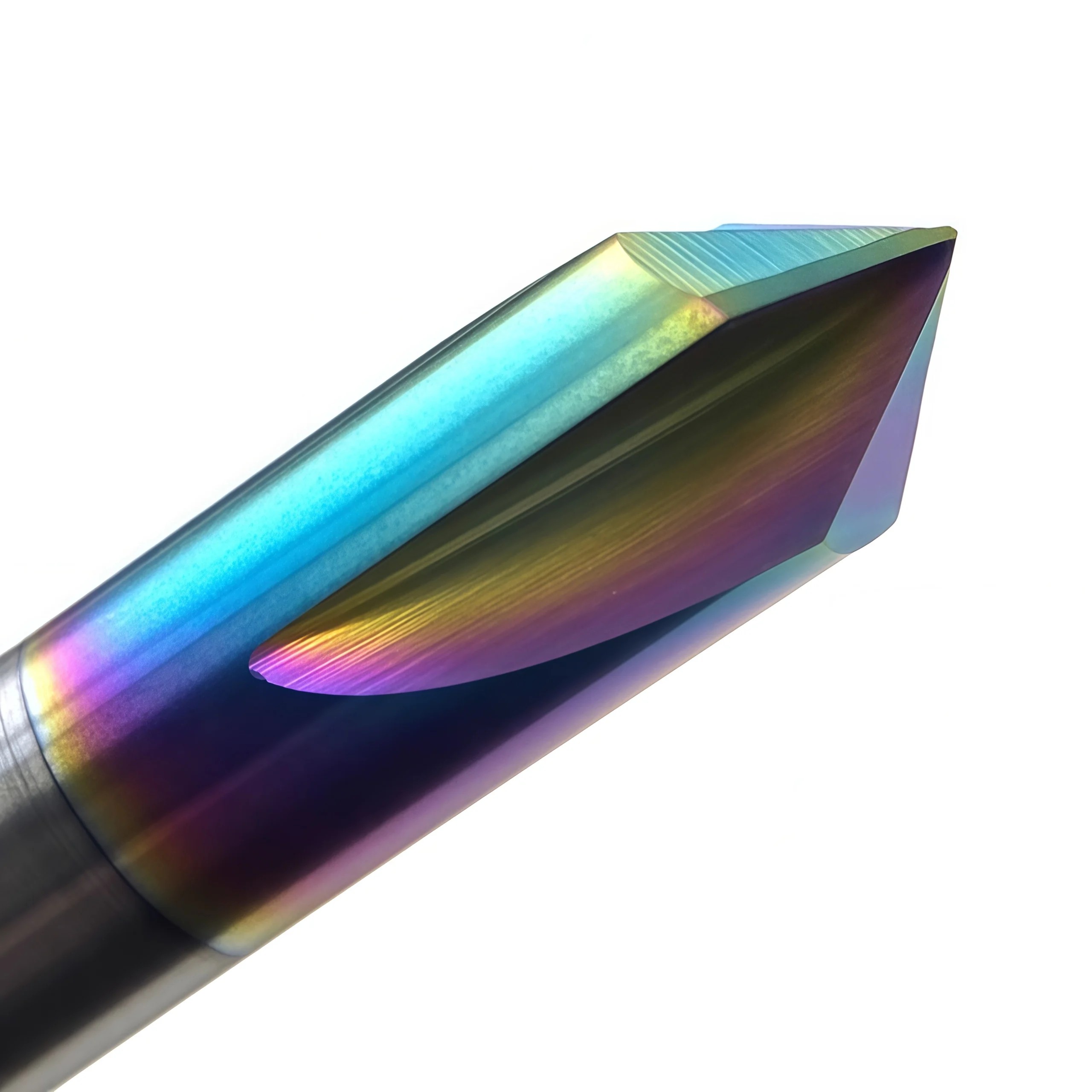

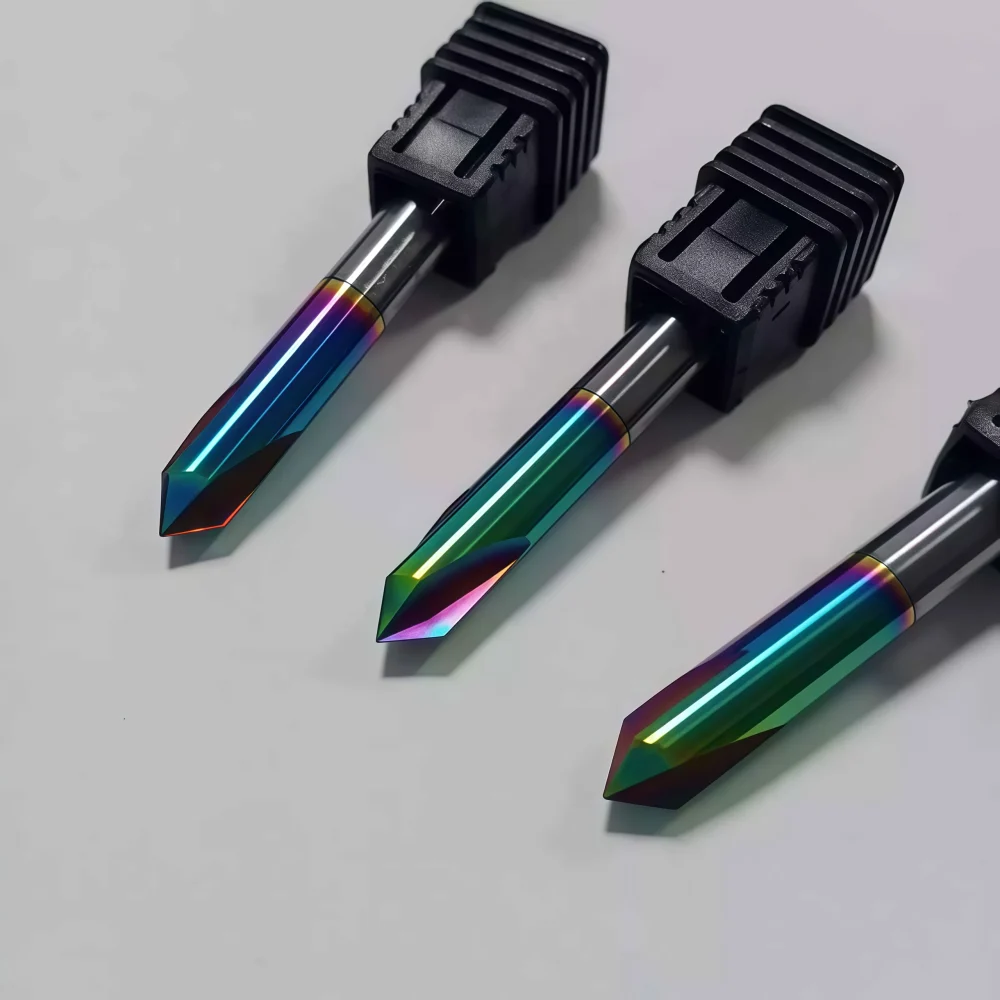

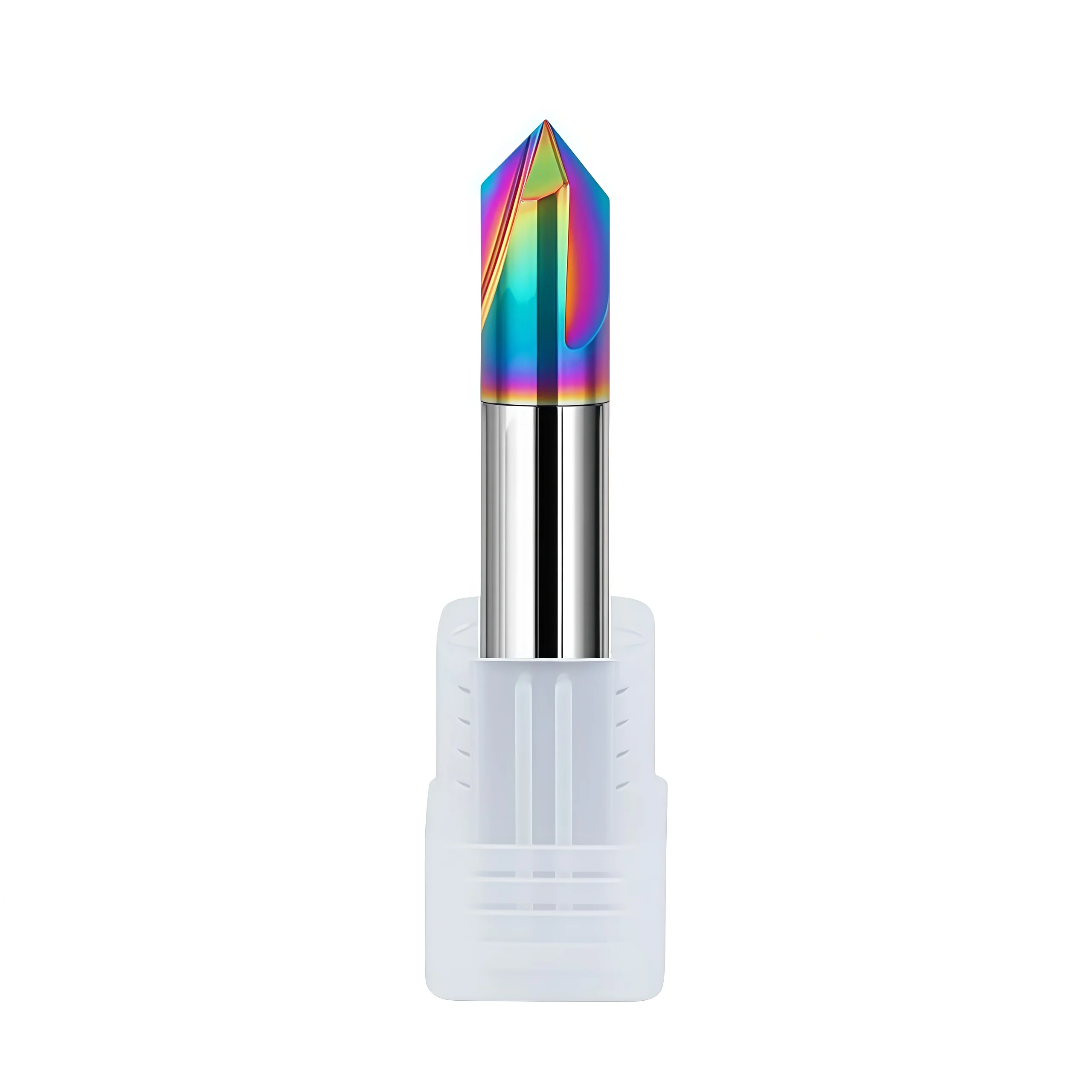

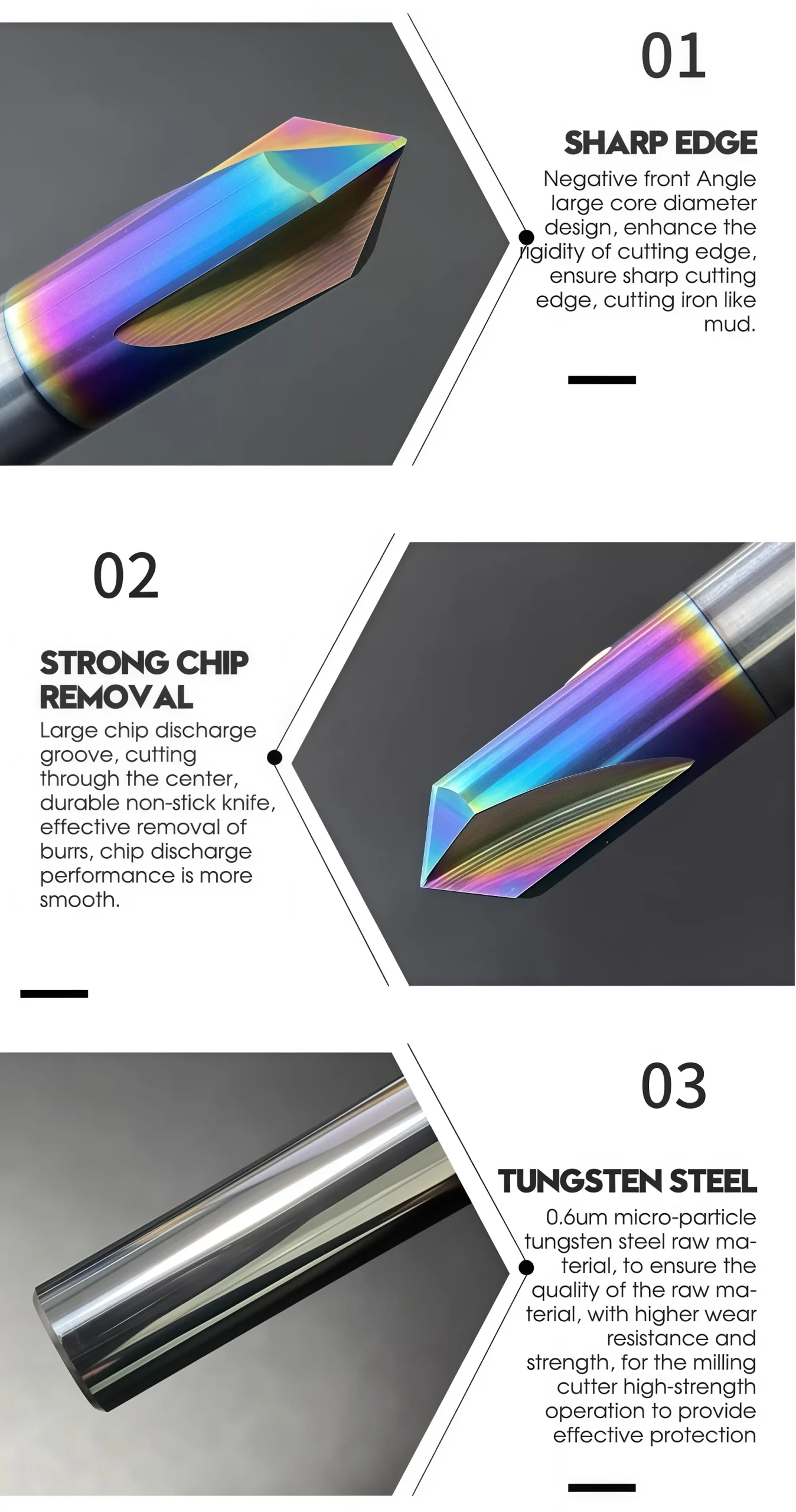

Product views showing the 120° chamfer profile, solid carbide construction and available tool configurations.
Tool Nomenclature & Dimensions
Reference dimensions for the 120° 3-flute DLC-coated solid carbide V-groove chamfer mill for aluminum. Confirm cutting diameter, flute length, shank diameter and overall length according to the required chamfer width, groove depth, machining clearance and holder configuration. All listed dimensions are in millimeters.

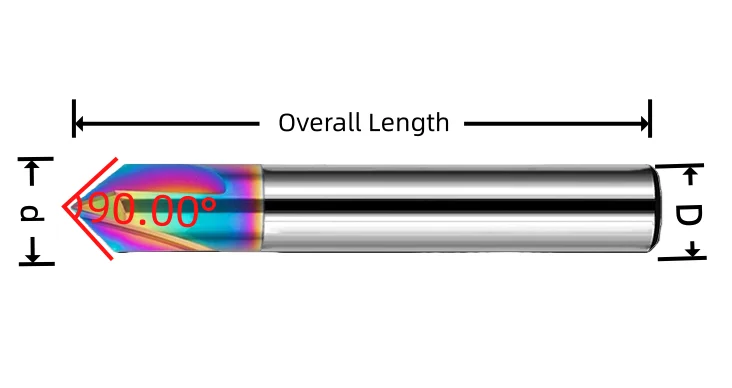

D: Cutting Diameter A: Included Angle L1: Flute Length d: Shank Diameter L: Overall Length
Technical Configuration
| PARAMETER | REFERENCE CONFIGURATION |
|---|---|
| Tool Type | V-Groove Chamfer Mill / Chamfer Milling Cutter |
| Tool Material | Solid Carbide |
| Flute Count | 3 Flutes |
| Included Angle | 120° |
| Standard Diameter Range | Ø6–Ø20 mm |
| Coating | DLC |
| Primary Workpiece Material | Aluminum & Non-Ferrous Metals |
| Shank Type | Straight Cylindrical Shank |
| Overall Length | 50 / 60 / 75 / 100 mm according to diameter |
| Machining Operations | 120° Chamfering / V-Groove Milling / Deburring / Edge Finishing |
| Customization | Cutting diameter, flute length, shank diameter, overall length, edge preparation, coating and marking can be reviewed according to application requirements. |
Standard 120° Size Matrix
Reference sizes for the 120° DLC-coated solid carbide V-groove chamfer mill series. Standard availability should be confirmed for the selected diameter and flute configuration.
| CUTTING DIA. D | ANGLE A | FLUTE LENGTH L1 | SHANK DIA. d | OVERALL LENGTH L |
|---|---|---|---|---|
| 6 | 120° | 15 | 6 | 50 |
| 7 | 120° | 16 | 7 | 60 |
| 8 | 120° | 17 | 8 | 60 |
| 9 | 120° | 19 | 9 | 75 |
| 10 | 120° | 20 | 10 | 75 |
| 11 | 120° | 23 | 11 | 75 |
| 12 | 120° | 25 | 12 | 75 |
| 14 | 120° | 30 | 14 | 100 |
| 16 | 120° | 35 | 16 | 100 |
| 18 | 120° | 38 | 18 | 100 |
| 20 | 120° | 40 | 20 | 100 |
Aluminum Chamfering & V-Groove Application Guidance
- 120° Geometry: Match the included angle to the required component chamfer or V-groove profile before machining.
- Chamfer Width: Control axial tool position carefully because chamfer width changes with cutting depth.
- Chip Evacuation: Maintain effective chip removal when machining aluminum to reduce recutting and material accumulation around the cutting edge.
- Toolholding: Use a clean, low-runout precision holder and the shortest practical tool overhang.
- DLC Configuration: Use the DLC-coated version mainly for aluminum and compatible non-ferrous materials where low material adhesion is beneficial.
120° DLC-Coated Chamfer Mill Customization
Cutting diameter, flute length, shank diameter, overall length, 120° V-profile geometry, cutting-edge preparation and DLC coating can be configured for aluminum chamfering, V-groove milling, edge deburring and profile finishing. Reference configurations use a 3-flute solid carbide design with Ø6–Ø20 mm cutting diameters and a 120° included cutting angle. Non-standard dimensions and application-specific geometry can be reviewed according to the aluminum alloy, required chamfer width, V-groove profile, machining depth, tool reach, holder clearance and dimensional requirements.
| PARAMETER | MANUFACTURING CAPABILITIES |
|---|---|
| Cutting Diameter | Reference cutting diameters range from Ø6 to Ø20 mm. Intermediate and non-standard diameters can be reviewed according to the required chamfer width, V-groove geometry and component drawing. |
| Included Angle | The standard configuration uses a 120° included cutting angle for matching chamfer and V-groove features. The required angle should be confirmed from the component geometry before production. |
| 3-Flute Configuration | The standard 3-flute geometry provides multiple cutting edges for stable engagement during aluminum chamfering, V-groove milling, deburring and edge-finishing operations. |
| 120° V-Profile | The precision-ground V-profile can be manufactured according to the required 120° chamfer or groove geometry. Critical profile dimensions can be reviewed from a component drawing or existing tool sample. |
| Chamfer Width | Cutter diameter and cutting profile can be selected according to the required chamfer width and available axial engagement. Final chamfer dimensions are controlled by tool position and machining depth. |
| V-Groove Geometry | Groove width, groove depth and available tool clearance can be reviewed together with cutter diameter and flute length to match drawing-defined 120° V-groove features. |
| Flute Length | Reference flute lengths vary according to cutter diameter. Non-standard flute lengths can be reviewed where additional feature depth, machining access or clearance is required. |
| Shank Configuration | Straight cylindrical shanks are used for standard configurations. Drawing-defined shank diameter and clamping length can be reviewed according to holder compatibility and machine setup. |
| Overall Length | Reference overall lengths include 50, 60, 75 and 100 mm according to cutter diameter. Custom overall length can be reviewed where additional reach or fixture clearance is required. |
| Cutting-Edge Preparation | Rake geometry, relief, edge preparation and flute finishing can be reviewed according to the aluminum alloy, cutting load, chamfer width, chip formation and required edge quality. |
| DLC Coating | DLC coating is available for aluminum and compatible non-ferrous materials where low friction and reduced material adhesion are beneficial during repeated machining. |
| Workpiece Material | The DLC-coated configuration is intended mainly for aluminum alloys and compatible non-ferrous materials. The final cutting-edge geometry should be reviewed according to the specific material grade and machining condition. |
| Machining Application | Geometry can be reviewed for 120° chamfering, V-groove milling, edge deburring and edge finishing on CNC machining centers and milling machines. |
| Dimensional Requirements | Drawing-defined requirements can be reviewed for cutting diameter, 120° included angle, flute length, shank diameter, overall length, V-profile geometry, chamfer dimensions and tool runout. |
| OEM & Private Label | Laser marking, custom tool codes, private labels and packaging can be reviewed for distributor and OEM orders according to specification and order quantity. |
OEM & Private Label Services
OEM manufacturing and private-label supply options are available for industrial distributors, tooling brands and repeat-production customers. Laser identification, label content, protective packaging and coating presentation can be configured according to the approved product specification and order requirements.
Laser Etching
Custom logos, tool codes, cutting dimensions, coating identification and batch numbers can be marked according to the available shank area.
Custom Labels & Packaging
Individual protective tubes, product labels, specification details, colored packaging tubes and private-label packaging can be reviewed.
Commercial Terms
MOQ, sample evaluation, custom-size trials, repeat orders and scheduled supply programs are confirmed according to the selected configuration.
Technical Workflow
A structured review process is used to confirm standard, customized and private-label square end mill requirements before production.
Inquiry
Submit the material, hardness, milling operation, dimensions, tolerance and quantity.
Engineering
Review flute geometry, helix angle, edge preparation, coating, ap and ae.
Commercial
Confirm quotation, MOQ, sample requirements, production schedule and delivery terms.
Production
CNC grinding, end-face formation, edge preparation, coating and laser marking.
Quality Control
Inspect diameter, flute length, shank, runout, square-end geometry and cutting edges.
Quality, Inspection & Delivery
Our solid carbide square end mills are controlled through material verification, precision grinding, in-process measurement and final inspection. Key dimensions, square-end geometry, cutting-edge condition, coating appearance and product identification are reviewed according to the approved specification or drawing before packing.
Three-Stage Quality Control
Inspection checkpoints are arranged around the manufacturing process to support dimensional consistency and repeat-order control.
Incoming Material Control
Carbide substrate grade, blank dimensions and supplied material information are checked against the production requirement.
In-Process Grinding Control
Cutting diameter, flute geometry, flute length, square-end profile and shank dimensions are monitored during CNC grinding.
Final Tool Inspection
Finished tools are reviewed for specified dimensions, runout, cutting-edge condition, coating appearance, marking and packing identification.
Key Inspection Characteristics
Inspection requirements are confirmed according to the standard product specification or the approved custom drawing.
| INSPECTION ITEM | CONTROL FOCUS | CONFIRMATION BASIS |
|---|---|---|
| Cutting Diameter (DC) | Diameter and dimensional consistency | Standard specification or approved drawing |
| Flute Length (APMX) | Effective cutting length | Confirmed product size or drawing requirement |
| Shank Diameter (DCON) | Clamping-section dimension and surface condition | Applicable shank specification |
| Overall Length (OAL) | Total tool length | Standard size matrix or approved drawing |
| Radial Runout | Concentricity between cutting section and shank | Agreed inspection requirement |
| Square-End Geometry | End-face profile, corner condition and center-cutting form | Selected tool configuration |
| Flute & Helix Profile | Flute count, helix form and grinding consistency | Approved manufacturing configuration |
| Cutting Edge & Coating | Edge condition, visible defects and coating appearance | Application-specific production requirement |
| Marking & Identification | Tool code, dimensions and batch information where applicable | Confirmed order and packaging specification |
Measurement & Batch Traceability
Optical measuring systems, tool inspection equipment and appropriate dimensional gauges are selected according to the feature being checked.
Optical Measurement
Profile and dimensional review of specified cutting features.
Runout Verification
Concentricity review based on the agreed product requirement.
Edge Inspection
Magnified review of the end face, corners and cutting-edge condition.
Batch Identification
Order, product and batch information are linked where required for repeat supply.
Protective Packaging Process
Finished end mills are protected to reduce contact between cutting edges and to support clear product identification during storage and transportation.
Bulk-Order & Export Packaging
Bulk shipments can be arranged with reinforced cartons, protective wrapping, palletized loading or export cases according to order quantity, shipment weight and agreed transportation requirements.
Delivery Coordination
Production completion, packing method and dispatch arrangements are confirmed according to the approved order. Courier, air, sea or customer-designated shipping options can be reviewed according to shipment size and destination. Final lead time is confirmed after product specifications, quantity and packaging requirements are approved.
Product & Application FAQs
Common questions about selecting and applying the 120° 3-Flute DLC-Coated Solid Carbide V-Groove Chamfer Mill for aluminum and non-ferrous machining.
What operations is this 120° chamfer mill designed for?
What does the 120° included angle mean?
Why use DLC coating for aluminum machining?
What is the advantage of the 3-flute configuration?
Can this tool be used for V-groove milling?
How is the final chamfer width controlled?
Ordering & Customization FAQs
Ordering information for distributors, tooling suppliers and OEM customers requiring standard or customized 120° DLC-coated chamfer mills.
What standard sizes are available?
Can non-standard dimensions be customized?
Is DLC recommended for steel or stainless steel?
Are OEM marking and private-label packaging available?
What is the typical lead time?
What information should I provide for quotation?
Technical Downloads
Reference documents for solid carbide cutter selection and starting machining-data review.
Solid Carbide End Mill Catalog
Review chamfer mills and other solid carbide milling cutter series.
End Mill Speeds & Feeds Guide
Access reference starting parameters for machining trials and application review.
Need Sizes, Pricing or Custom Options?
Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.
Drawings, size lists and reference photos are welcome.
