Fresa a testa quadrata in carburo monoblocco a 3 taglienti non rivestita per alluminio

Aluminum Square End Mill Series
3-flute uncoated solid carbide square end mill for aluminum, featuring mirror-polished flutes for smooth chip evacuation and reduced material adhesion. Available in Ø1–Ø20 mm.
· Mirror-Polished Flutes: Help reduce aluminum adhesion and support smooth chip evacuation.
· Sharp Cutting Edges: Designed for clean cutting and stable surface finish in aluminum machining.
· 3-Flute Geometry: Balances chip space and cutting-edge engagement for efficient aluminum milling.
Substrate:Fine-Grain Solid Carbide
Tipo di utensile:End Mill for Aluminum
End Profile:Estremità piatta/quadrata
Flauto Conte:3 Flutes
Flute Finish:Mirror Polished
Helix Angle:35°
Dia. Range:Ø1–Ø20 mm
Rivestimento:Uncoated/ DLC Optional
Application / Material
N Aluminum AlloysN Copper & BrassN Other Non-Ferrous Metals
Richiedi un preventivo Chat On WhatsApp

Qualità costante

Consistent geometry across repeat orders.

Ordini flessibili

Small batches and mixed sizes available.

OEM Support

Custom marking, labels and packaging.

Standard e personalizzati

Standard sizes and custom configurations.

3-Flute Uncoated Solid Carbide Square End Mill for Aluminum Overview

This polished, uncoated 3-flute solid carbide square end mill for aluminum is designed for slotting, side milling, shoulder milling and pocketing. Mirror-polished flutes support smooth chip evacuation and help reduce aluminum adhesion. Available in selected diameters from Ø1–Ø20 mm.

End Profile

Square / Flat End

Flute Design

3 Flutes

Angolo dell'elica

35°

Flute Finish

Mirror Polished

Rivestimento

Non rivestito

Gamma di diametri

Ø1–Ø20 mm

Key Configuration

Geometria di taglio 3 FLUTES

3-Flute Aluminum Geometry

Three-flute geometry provides chip space and cutting-edge support for general aluminum milling.

Angolo dell'elica 35°

35° Helix Angle

Supports smooth cutting in slotting, side milling, shoulder milling e pocketing.

Flute Finish POLISHED

Mirror-Polished Flutes

Polished flute surfaces help reduce aluminum adhesion and support smooth chip evacuation.

Design Details
01
Core Structure

Large Core Diameter

Larger core section supports tool rigidity and helps maintain cutting stability during aluminum milling.

large core diameter design of square end mill for aluminum

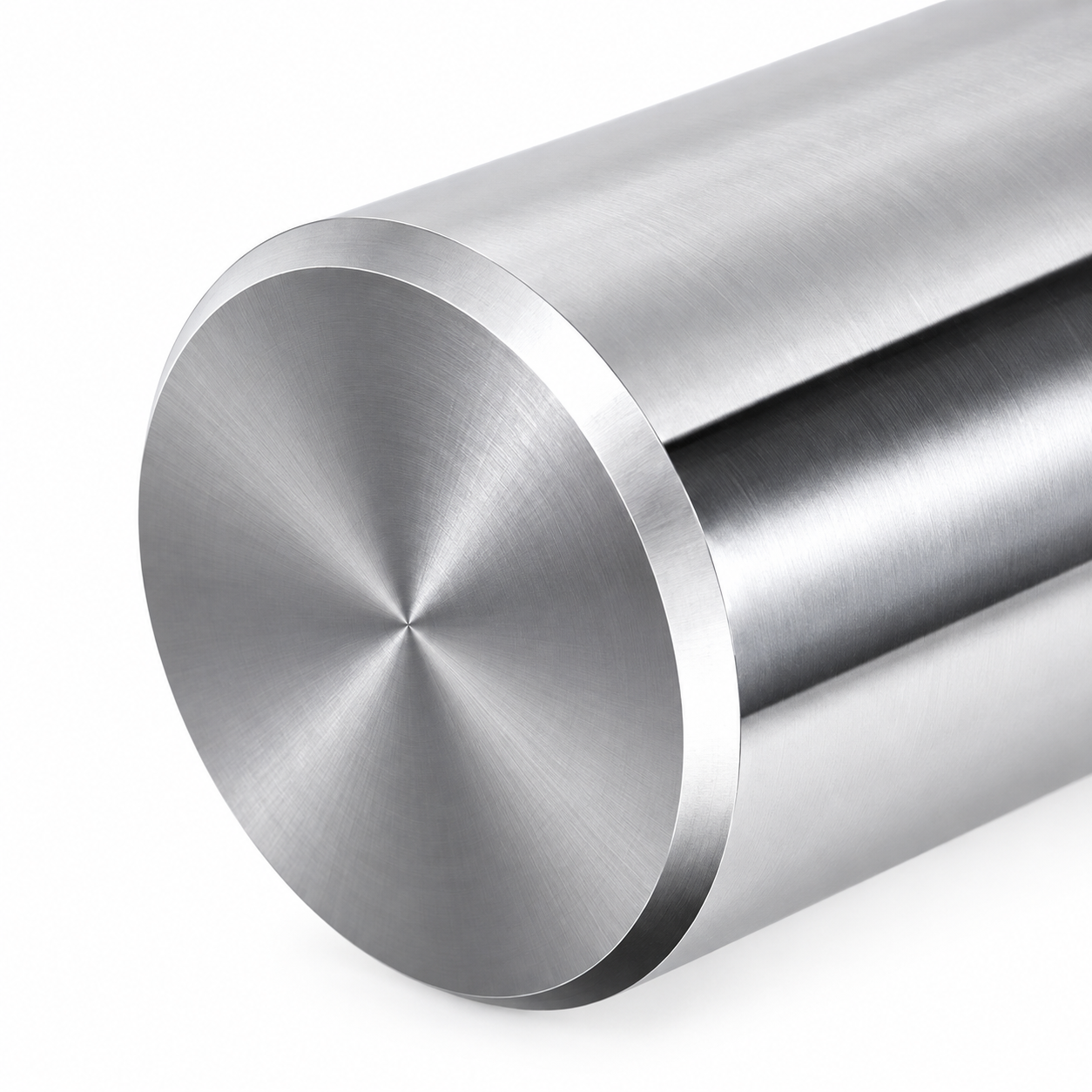

chamfered shank end of square end mill for aluminum
02
Shank Design

Chamfered Shank End

Chamfered shank entry supports smoother holder insertion and stable clamping with a correctly matched toolholder.

03
Flute Finish

Mirror-Polished Flutes

Polished flute surfaces help reduce aluminum adhesion and support smoother chip evacuation.

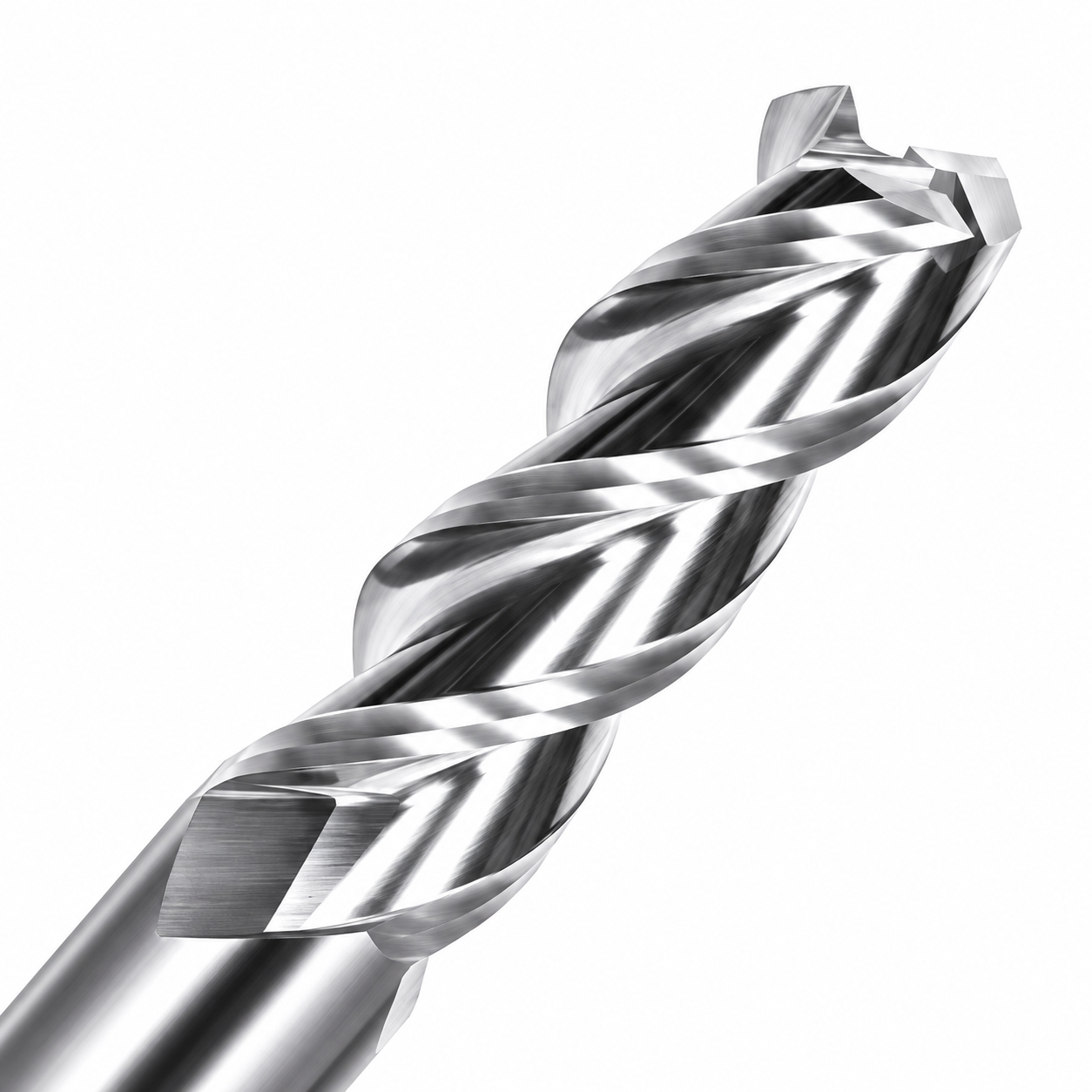

mirror polished flutes of square end mill for aluminum

Vantaggi del prodotto

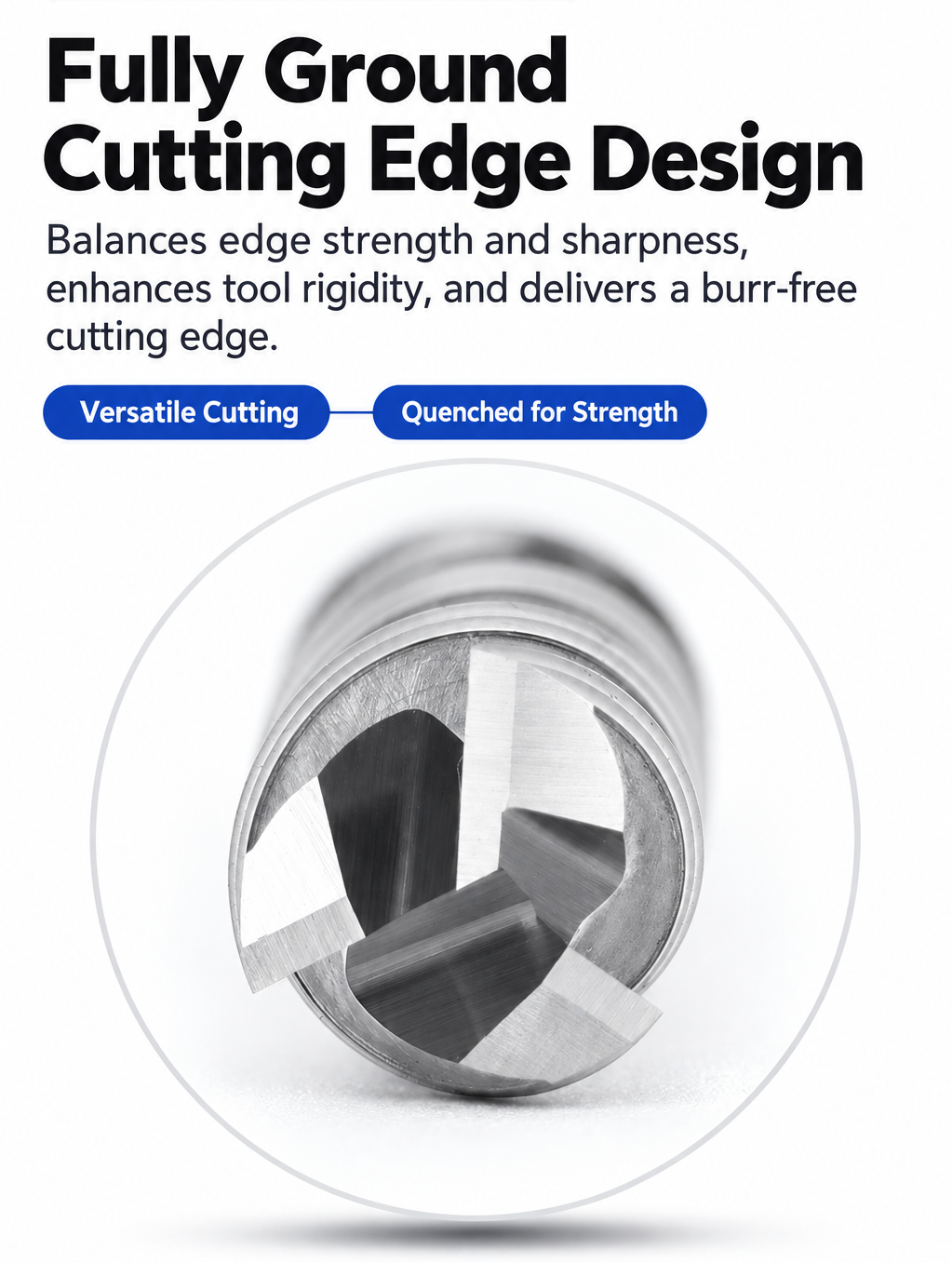

3-flute solid carbide square end mill for aluminum cutting edge design

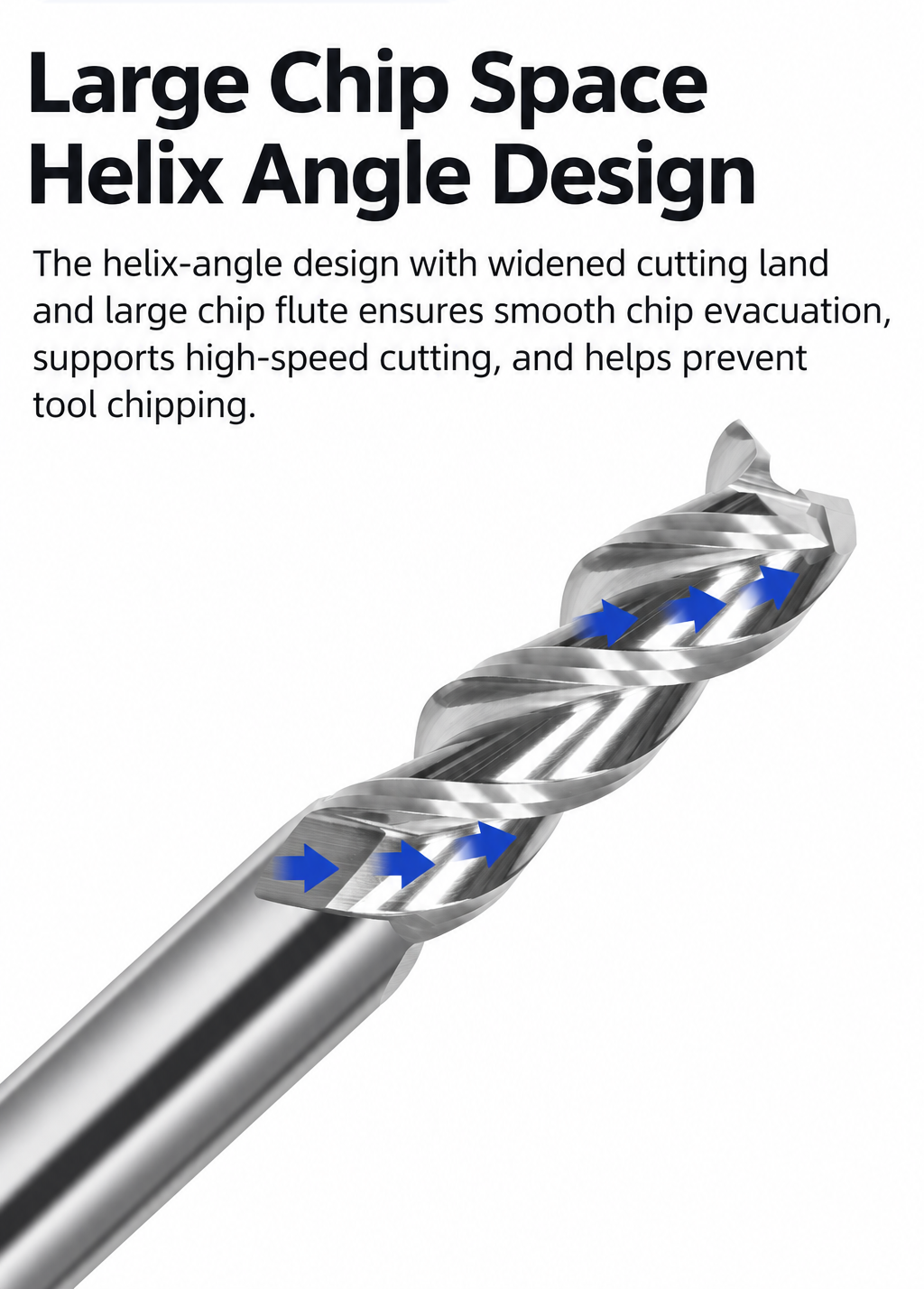

35 degree helix solid carbide end mill for aluminum

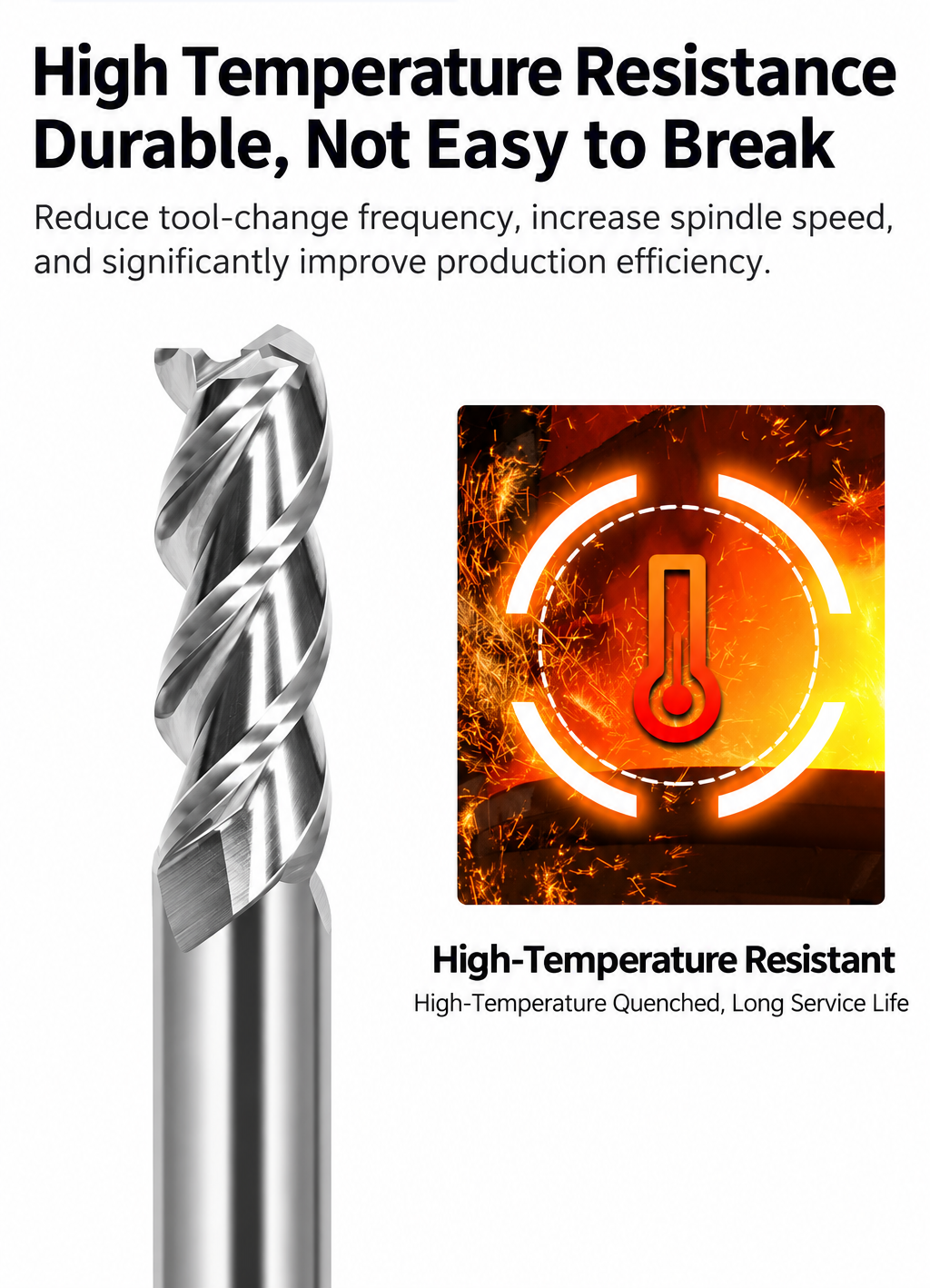

mirror polished flute solid carbide end mill for aluminum

Milling Operations

Suitable for common aluminum milling operations including side milling, slotting, pocketing and face milling. Confirm ramping capability for helical entry.

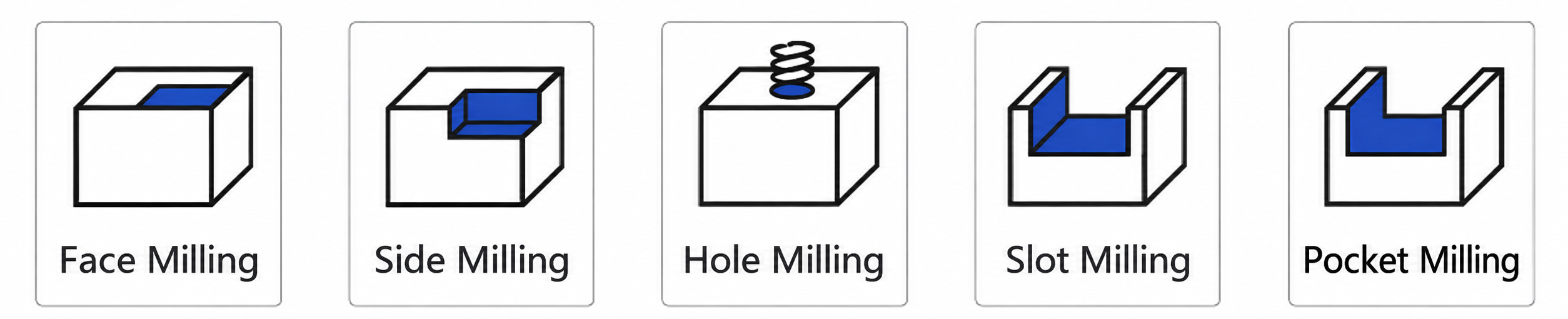

Suitable milling operations for 3-flute solid carbide square end mill for aluminum

Side MillingRecommended
Slot MillingRecommended
Pocket MillingSuitable
Face MillingSuitable
Helical EntryConfirm
Operation Note: Match cutting conditions to tool diameter, flute length, engagement and machine rigidity.

Materiali consigliati per i pezzi da lavorare

workpiece materials for solid carbide square end mill for aluminum

ISO Gruppo di materiali Typical Materials Suitability
N Aluminum & Aluminum Alloys Aluminum alloys and extruded profiles Primary
N Magnesium Alloys Common magnesium alloys Suitable
N Zinc Alloys Common zinc alloys Suitable
N Copper Selected copper grades Suitable
— Plastics & Acrylic Selected plastics and PMMA Application Review
Material Note: Aluminum alloys are the primary application. Other non-ferrous materials require suitable cutting conditions.

Product Details & Video

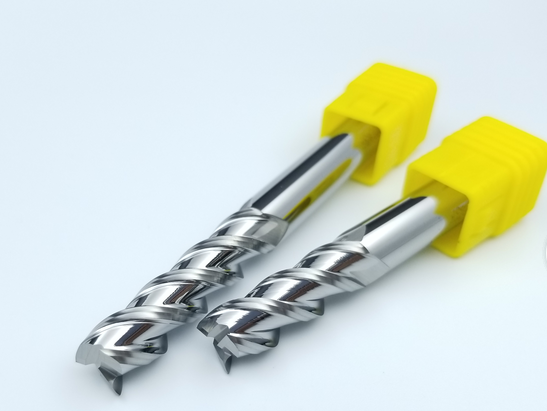

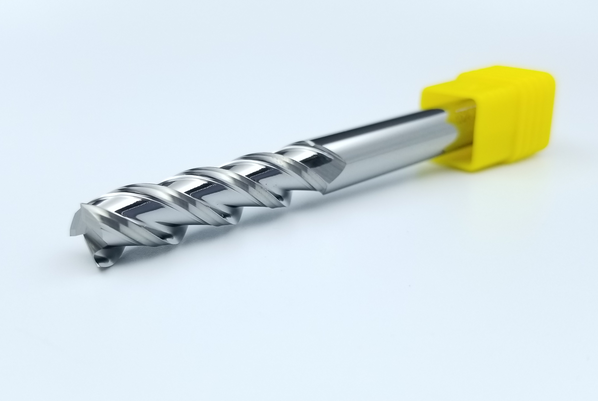

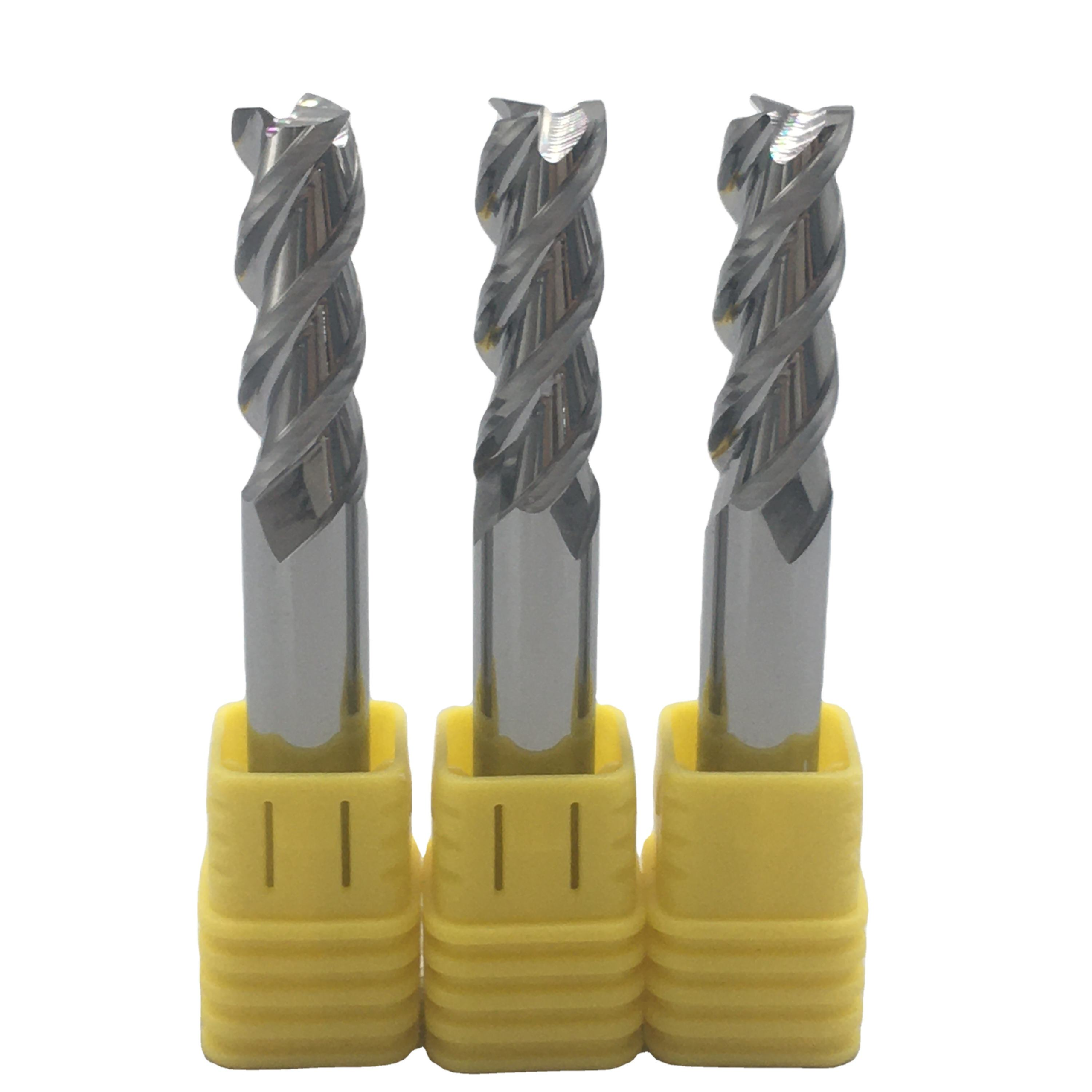

solid carbide square end mill 3 flute for aluminum product show

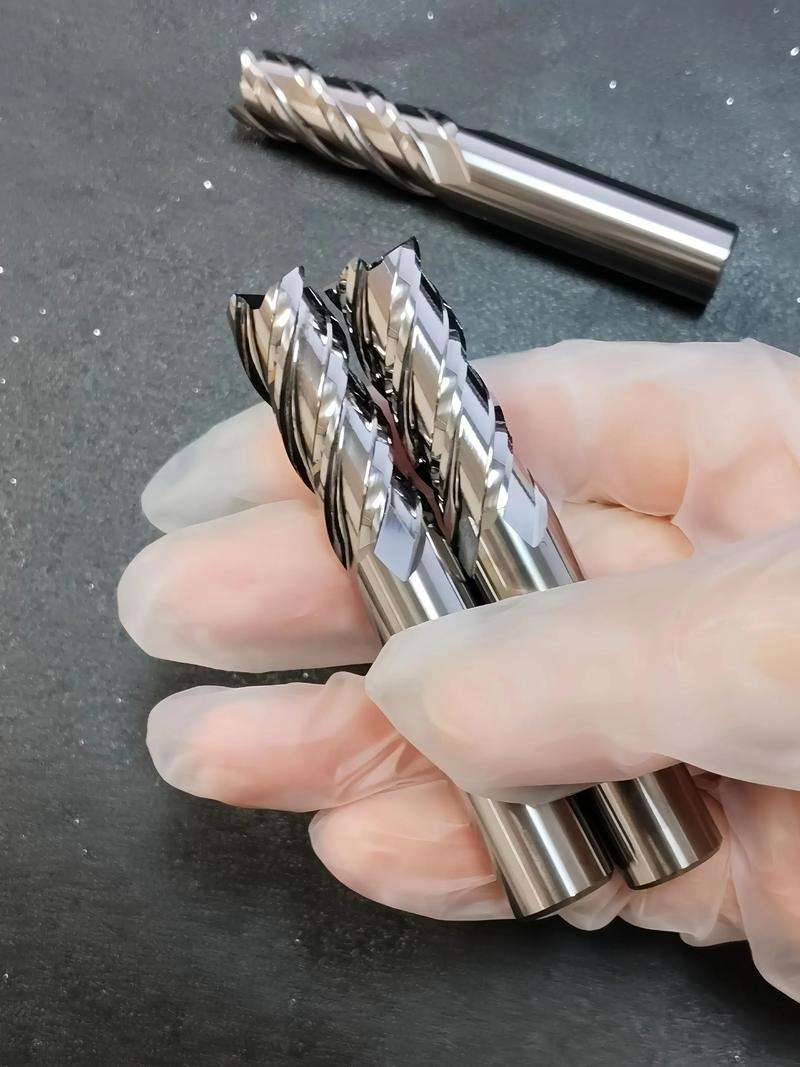

solid carbide square end mill 3 flute for aluminum product photo

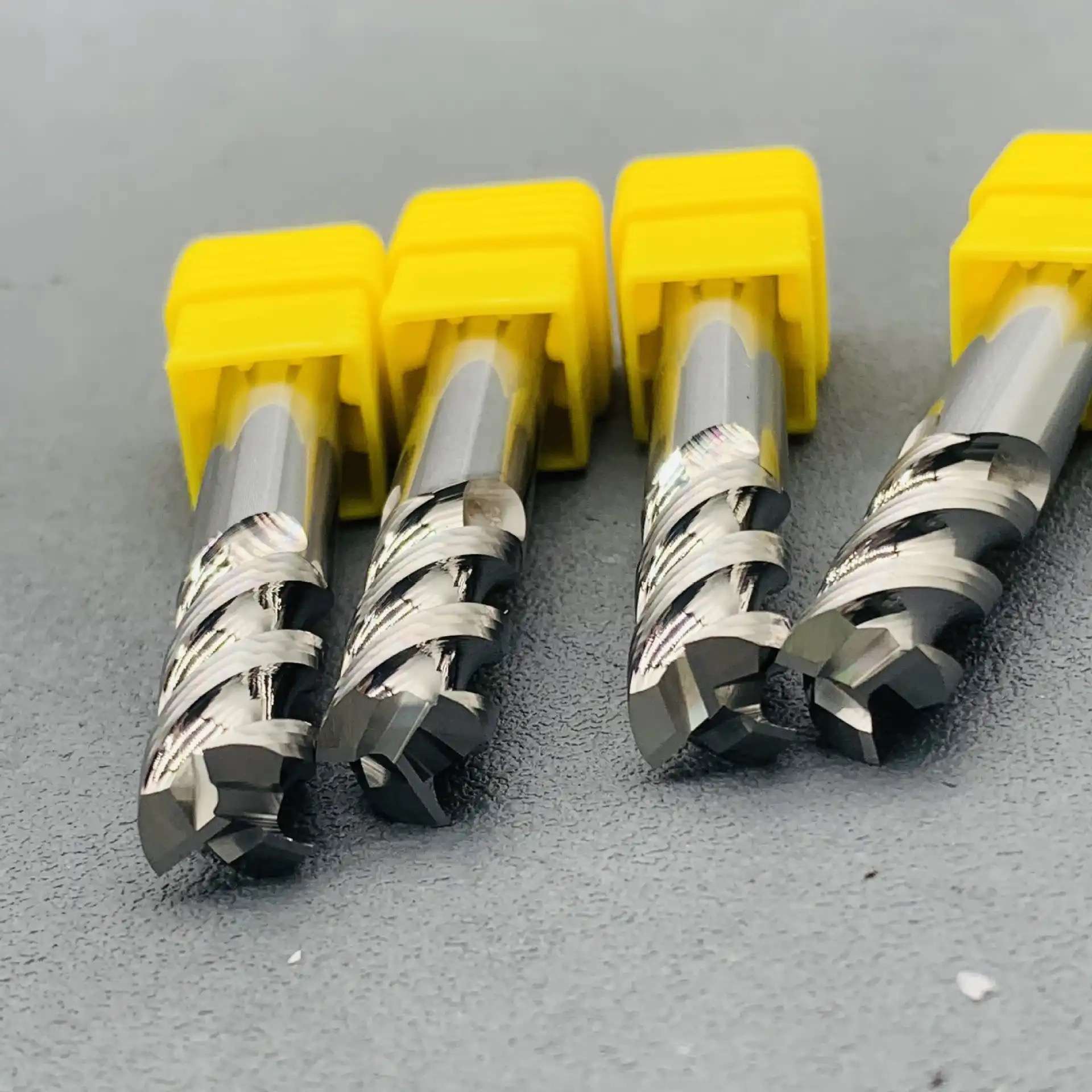

solid carbide end mill for aluminum cutting edge detail

Long-Reach 3-Flute End Mill for Aluminum

Product video showing a longer-reach 3-flute aluminum end mill configuration for applications requiring extended tool access. Suitable for deeper pockets, taller side walls and aluminum machining where additional reach is required.

Explore more carbide end mills for aluminum, compare our DLC-coated end mills for aluminum, or review our OEM & private-label services.

Specifiche tecniche

Specifications and available sizes for the polished, uncoated 3-flute solid carbide square end mill for aluminum.

PARAMETER REFERENCE CONFIGURATION
Materiale dell'utensile Fine-grain solid carbide
Tipo di strumento Square / flat-end mill
Conteggio dei flauti 3 flauti
Angolo dell'elica 35° standard helix angle
Surface Treatment Mirror-polished, uncoated standard configuration
Cutting Diameter Range Standard: Ø1-Ø20 mm; extended-length: Ø3-Ø18 mm
Overall Length Range Standard: 50-100 mm; extended-length: 75-150 mm
Primary Workpiece Aluminum alloys; confirm alloy and machining operation before use.

For a coated alternative, see our DLC-coated 3-flute square end mill for aluminum .

Standard Sizes

Standard configurations from Ø1-Ø20 mm, with flute lengths of 3-45 mm and overall lengths of 50-100 mm.

Configuration: 3 Flutes / Square End  All dimensions in mm.square end mill for aluminum dimension photo

Size Note: Ø3 mm tools are available with Ø3 or Ø4 mm shanks, and Ø5 mm tools with Ø5 or Ø6 mm shanks. Specify all four dimensions when ordering.

Extended-Length Sizes

Extended configurations from Ø3-Ø18 mm, with overall lengths from 75-150 mm.

View Extended-Length Sizes 17 configurations / Ø3-Ø18 mm / OAL 75-150 mm

Configuration: 3 Flutes / Square End  All dimensions in mm.

D CEL SHK OAL
3 9 3 75
3 12 3 100
4 12 4 75
4 20 4 100
5 18 5 75
6 25 6 75
6 45 6 150
8 30 8 75
8 35 8 100
8 50 8 150
10 40 10 100
10 55 10 150
12 45 12 100
12 55 12 150
14 80 14 150
16 80 16 150
18 80 18 150
Extended-Length Note: Confirm flute length, overall length and required tool overhang for each application.

For additional profiles and configurations, explore our carbide end mills for aluminum.

Aluminum Milling Speed & Feed Reference

Starting reference values for Ø1-Ø16 mm tools. Adjust for alloy, tool overhang, engagement, coolant and machine rigidity.

TOOL DIAMETER (mm) SPINDLE SPEED (RPM)* TABLE FEED (mm/min)*
1 24,000 600
2 24,000 800
3 20,000 1,000
4 18,000 1,200
6 16,000 1,400
8 12,000 1,500
10 8,000 1,800
12 6,000 2,000
14 4,800 2,200
16 4,000 2,400
Reference Note: These are starting reference values, not validated cutting data for every size or operation. Extended-length tools and longer overhangs require separate parameter review.

Feed per Tooth: For this 3-flute tool, fz = Vf / (n x 3). At Ø6 mm, 16,000 RPM e 1,400 mm/min correspond to approximately 0.029 mm/tooth.

Changing Spindle Speed: Recalculate feed when RPM changes to maintain the selected feed per tooth.

Aluminum Milling Guidance

  • Chip Evacuation: Keep chips clear from slots and pockets.
  • Tool Holding: Minimize runout and unnecessary overhang.
  • Entry Method: Confirm center-cutting geometry before plunging or aggressive ramp entry.
  • Material Review: Confirm the aluminum alloy and machining operation before selecting the tool.

Selection Guide: For flute count, cutting geometry, coating and tool-reach selection, see our

Solid Carbide End Mill Selection Guide.

Personalizzazione

• Dimensions: Diameter / Flute Length / Neck / Shank / Overall Length

• Geometry: Flutes / Helix / End Profile

• Surface: Polished Uncoated / Selected DLC Coating

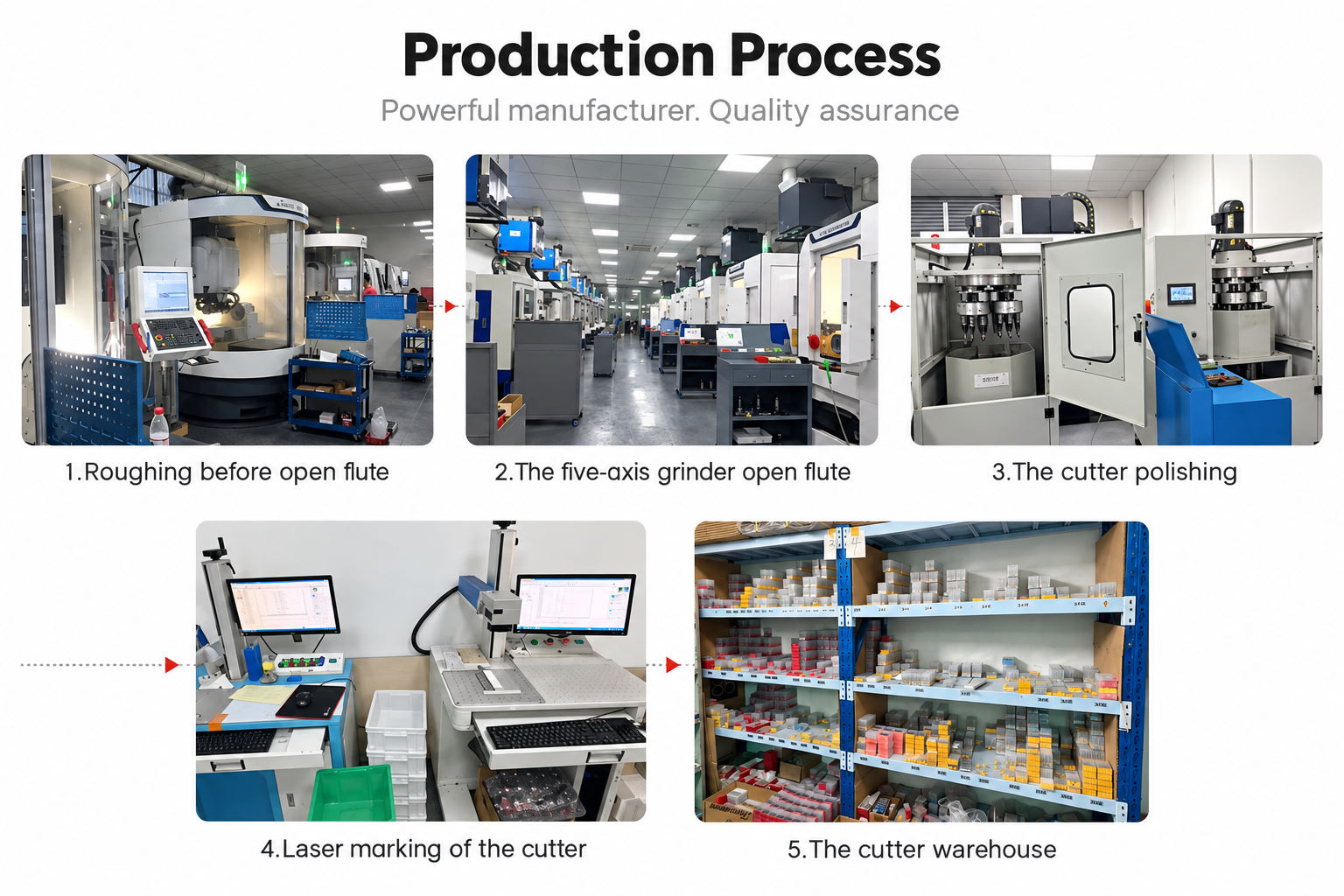

production process hy cutting tools manufacturer

• OEM & Private Label: Laser Marking / Logo / Labels / Packaging

OEM and private-label solutions for solid carbide aluminum end mills

• Custom Orders: Drawing / Aluminum Grade / Quantity

• Workflow: Requirements / Confirmation / Production / Inspection

hy cutting tools custom tooling process tools photo

Quality & Delivery

• Quality Control: Incoming Material / In-Process Checks / Final Inspection

• Inspection: Dimensions / Runout / Geometry / Cutting Edges / Surface Finish

• Equipment: WALTER CNC Grinding / ZOLLER Inspection

Controlled manufacturing and final inspection for solid carbide square end mills solid carbie square end mill for aluminum uncoated with package hy cutting tools

• Imballaggio: Protective Tubes / Labels / Cushioned Cartons

• Export Packing: Reinforced Cartons / Pallets / Export Cases — as agreed

• Dispatch: In-stock sizes usually 1–3 days; bulk and custom orders confirmed per order. Transit time separate.

• Shipping: Courier / Air / Sea / Customer-Designated

Bulk-order and export packaging for HY Cutting Tools shipments Shipping and payment hy cutting tools end mill drills

• More Information: Produzione e qualità / Customer Support FAQs

Manufacturer & Product FAQs

Manufacturing, aluminum applications, samples and custom sizes.

Are you a manufacturer of carbide end mills for aluminum?
Yes. HY Cutting Tools manufactures standard and custom solid carbide end mills, including this polished, uncoated 3-flute aluminum series. We use WALTER five-axis CNC grinding machines and ZOLLER equipment for applicable dimensional and profile checks.
Is this 3-flute end mill suitable for my aluminum alloy and application?
This polished, uncoated square end mill is designed for aluminum slotting, pocketing and side milling. Send your alloy grade, machining operation and required dimensions so we can review the configuration; plunging and ramping capability must be confirmed for the selected tool.
Can I order samples before placing a bulk order?
Yes. Samples or small trial orders can be arranged, subject to availability, and are generally charged with shipping paid by the customer. Most standard tools have a 10-piece MOQ; sample quantities and custom-tool minimums are confirmed separately.
Can you manufacture custom sizes or long-reach end mills?
Yes. We can review cutting diameter, flute length, shank diameter, overall length and neck clearance from your drawing, specification or sample. Feasibility, tolerances, quantity and surface treatment are confirmed before production.

Ordering & Quality FAQs

OEM branding, quality control, lead times and quotations.

Do you offer OEM branding and private-label packaging?
Yes. We offer laser marking of customer logos and tool codes, together with neutral or private-label packaging. Artwork, marking space, label details and packaging quantities are confirmed for each order; see our OEM and private-label services.
How do you check tool quality and batch consistency?
Incoming, in-process and final checks cover material requirements, dimensions, geometry, cutting edges and surface condition against the approved specification. Confirmed drawings and order records are retained for repeat production; see our manufacturing and quality control.
What are the lead times for standard and custom orders?
In-stock standard tools can usually be ready for dispatch within 1–3 days. Bulk, out-of-stock and custom orders are scheduled according to quantity and manufacturing requirements, with dispatch timing confirmed in the quotation or order confirmation. Shipping transit time is separate.
What information do you need to recommend a tool and provide a quotation?
Send the aluminum alloy, milling operation, cutting diameter, flute length, shank diameter, overall length, quantity and destination country. A drawing or reference tool code is helpful; include machine, coolant and current cutting conditions if you need application advice.

For general ordering, payment and shipping questions, see our Cutting Tool FAQs.

Technical Downloads

Use the following references for product selection and starting cutting-data review.

Solid Carbide End Mill Catalog

Review related square-end, ball-nose, corner-radius and application-specific end mill series.

View Catalog

End Mill Speeds & Feeds Guide

Access reference starting parameters for application review and controlled machining trials.

View Guide

To compare our aluminum and other end mill series, review the HY Tools End Mill Series Guide.

Need Sizes, Pricing or Custom Options?

Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.

Standard Sizes Small Trial Orders Mixed Sizes OEM & Custom Options
Request Price & Specifications Chat on WhatsApp

Drawings, size lists and reference photos are welcome.
