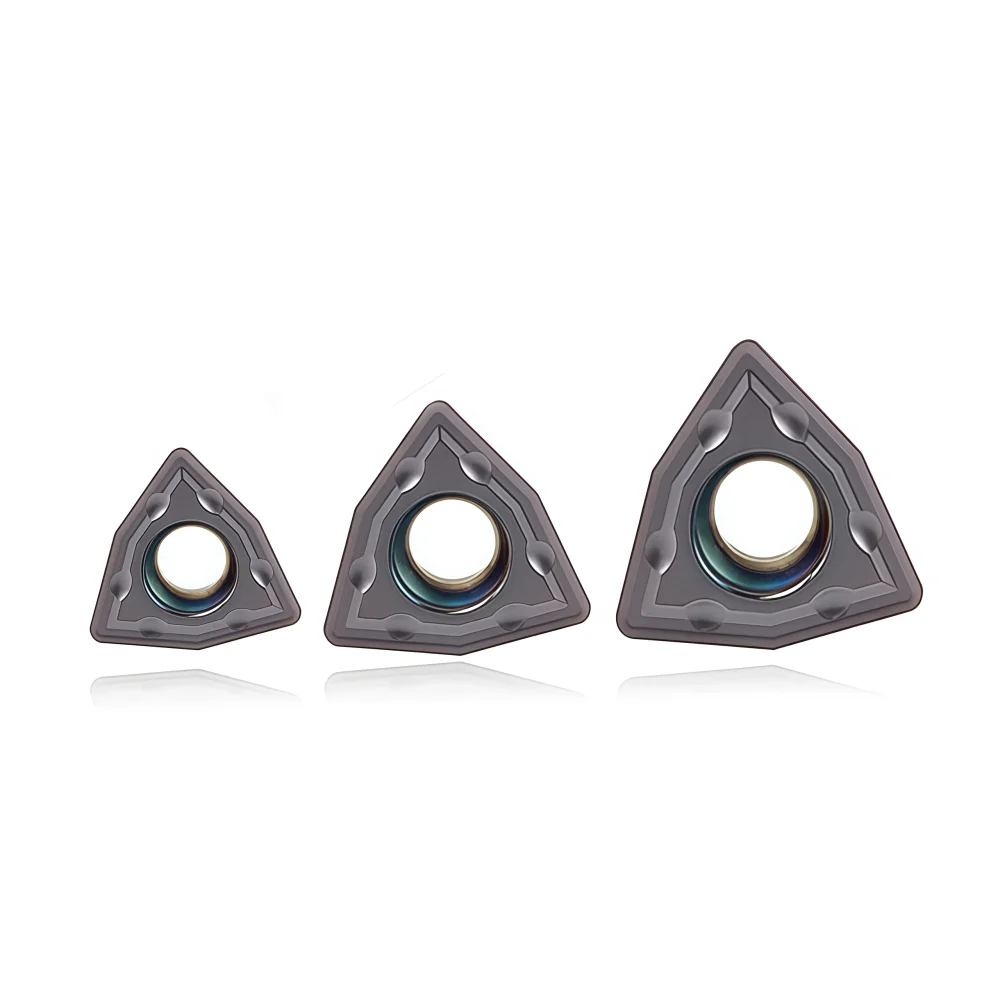

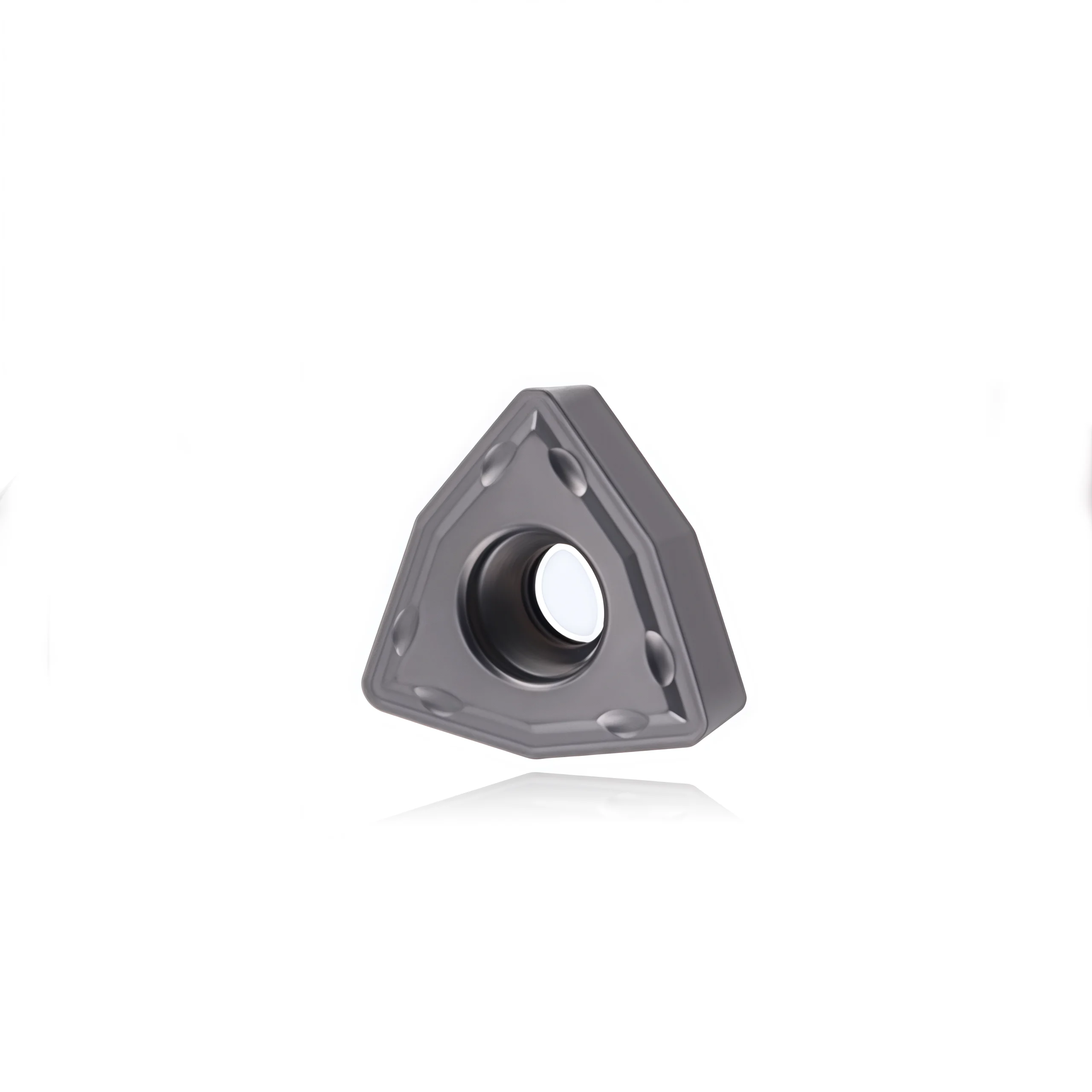

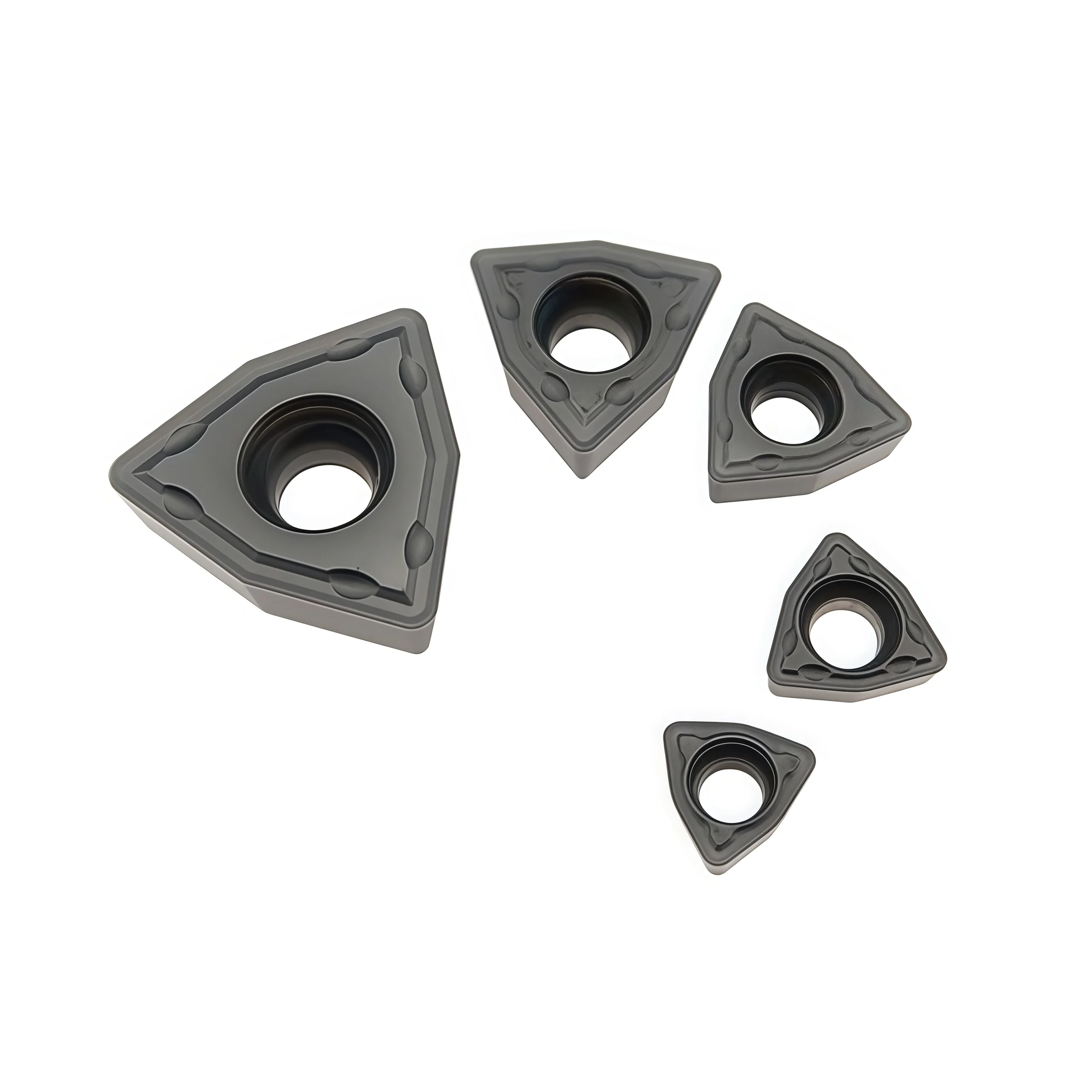

WCMX 050308 and WCMT 06T308 Carbide Inserts for Indexable U-Drills
WCMX050308 and WCMT06T308 carbide inserts are replaceable cutting components for compatible indexable U-drills. Their trigon-style geometry provides multiple cutting edges, while application-specific grades and coatings support stable holemaking in steel, stainless steel, cast iron and selected non-ferrous materials.
Consistent Quality
Consistent geometry across repeat orders.
سفارشهای انعطافپذیر
Small batches and mixed sizes available.
OEM Support
Custom marking, labels and packaging.
استاندارد و سفارشی
Standard sizes and custom configurations.
Product Description
The WCMX050308 and WCMT06T308 Tungsten Carbide U-Drill Inserts are engineered for high-efficiency CNC drilling and turning applications. Designed for indexable U-drill systems, these inserts deliver stable cutting performance, superior chip control, and outstanding durability. Manufactured using premium ultra-fine grain tungsten carbide, the inserts offer excellent hardness, wear resistance, and thermal stability, ensuring consistent accuracy even under demanding high-speed machining conditions.
Key Features
-
-
Precision-ground cutting edges for smooth and accurate drilling
-
Specifically optimized for U-drill applications
-
-
Ultra-fine grain tungsten carbide for extended tool life
-
Stable chip-breaker design ensures reliable chip evacuation
-
Excellent performance at high cutting speeds
-
Compatible with standard WCMX / WCMT U-drill holders
Advantages
-
High hole accuracy and superior surface finish
-
Reduced cutting force and minimized spindle load
-
Longer service life with consistent performance
-
Ideal for continuous and mass-production drilling
-
Cost-effective indexable solution with quick insert changeover
Technical Parameters
Insert Models
| Model | Shape | Size Code | Application | Compatible Holder |
|---|---|---|---|---|
| WCMX050308 | Trigon (80°) | 05×03×08 | U-drill drilling & turning | WCMX U-drill holders |
| WCMT06T308 | Trigon (80°) | 06×T3×08 | High-precision drilling | WCMT U-drill holders |
| Parameter | Description |
|---|---|
| Model | WCMT03 / 04 / 05 / 06 / 08 U Drill Insert |
| Material | Carbide |
| Workpiece | Aluminum / Copper / Steel / Hardened Steel / Stainless Steel / Cast Iron |
| Processing | Finishing, Semi-finishing, Roughing |
| Coating | CVD / PVD Coating |
| Color | Gray |
| MOQ Quantity | 10 Pieces |
| Package | 10 pcs / box |
Material & Coating
-
Substrate: Ultra-fine grain tungsten carbide
-
Coating Options: PVD / CVD (TiN, TiAlN, AlTiN depending on application)
-
Hardness: HRA 91–93
-
Toughness: High fracture resistance for stable drilling
Cutting Performance
-
Suitable Materials:
Steel (≤45–55HRC), cast iron, stainless steel, alloy steel, aluminum alloys -
Cutting Speed (Vc):
80–180 m/min (steel), 120–250 m/min (stainless steel), 200–400 m/min (aluminum) -
Feed Rate (Fz):
0.05–0.20 mm/rev depending on material & drill diameter
Applications
-
CNC U-drill hole machining
-
Automotive components manufacturing
-
General machinery and mold industry
-
Aerospace structural parts
-
High-speed industrial production lines
WCMX/WCMT U-Drill Insert Specifications
This page lists WCMX050308 and WCMT06T308 carbide inserts for compatible indexable U-drills. Select the complete insert designation together with the drill-body model, pocket position, carbide grade and chipbreaker. An insert model alone does not identify the finished hole diameter or guarantee fit in another drill body.
| Parameter | Specification / selection check |
|---|---|
| Listed models | WCMX050308 and WCMT06T308. |
| Insert form | W-style trigon indexable insert; confirm pocket geometry and locating features for each model. |
| Tool material | Carbide. Substrate grade, edge preparation, chipbreaker and coating depend on the ordered configuration. |
| Operation | Indexable drilling in a compatible U-drill body. Other operations require an approved holder and application data. |
| Workpiece groups | Grade-dependent choices for steel (ISO P), stainless steel (M), cast iron (K) and selected non-ferrous materials (N). |
| Fit checks | Drill-body code, pocket designation, center/peripheral position, seating, clamp screw and approved insert list. |
| Supply reference | Listed MOQ: 10 pieces; listed pack: 10 pieces per box. Confirm by complete item code. |
Model & Drawing Confirmation
| Listed model | Family | Confirm against the approved drawing |
|---|---|---|
| WCMX050308 | WCMX05 | Actual size, thickness, corner radius, hole and seating geometry, grade and chipbreaker. |
| WCMT06T308 | WCMT06 | Actual size, thickness, corner radius, hole and seating geometry, grade and chipbreaker. |
A dimensioned drawing for either model is not provided on this page. WCMT03/04/05/08 are family references, not complete order codes for the two listed models. Request the approved product drawing before checking a replacement against the drill-body pocket.
How to Select the Insert
1. Identify the drill body: record its manufacturer, complete designation, nominal hole diameter and drilling depth.
2. Match the pocket: verify WCMX or WCMT, insert size, center/peripheral position and clamping components using the drill maker's approved list.
3. Choose the cutting configuration: specify the workpiece grade and hardness, carbide grade, chipbreaker, coating and coolant conditions.
4. Validate the setup: trial the complete assembly and check chip evacuation, hole size, edge wear and finish.
Cutting Data & Technical Notes
Cutting-speed and feed values require a specific grade, drill diameter, pocket combination and workpiece hardness. Use the approved drill-body and insert-grade data for starting settings; verify the result on the actual machine. Hardened-steel suitability, coating chemistry and substrate hardness require product-specific confirmation.
For a model-specific drawing or quotation, send the drill body and full insert codes with your material, hole diameter/depth, current insert photos and required quantity.
◆Carbide Insert Customization & OEM
Specify the insert around the machining operation, workpiece and holder. We can review standard replacements, application-specific geometry and private-label requirements using your insert designation, drawing or sample. Available grades, coatings, dimensions and order quantities are confirmed for each requested series.
Geometry & Chip Control
Review chipbreaker, rake, cutting-edge preparation, nose radius and corner design for the operation and workpiece. Confirm holder compatibility before approving a modified geometry.
Substrate & Coating
Select an available carbide grade and coating for the workpiece material, cutting conditions and desired balance of wear resistance and edge toughness.
Dimensions & OEM
Review insert size, thickness, locating and clamping features, tolerances, laser marking and private-label packaging against the approved specification.
◆Customization Options
Use the fields below when sending an inquiry. The exact options depend on the insert family and are confirmed in the quotation or approved drawing.
| Specification | Details to Confirm |
|---|---|
| Insert Type | Turning, milling, threading, grooving or drilling insert; send the designation or drawing. |
| Size & Fit | Shape, size, thickness, inscribed circle or edge length, hole or clamping form, and holder model. |
| Cutting Geometry | Chipbreaker, nose or corner radius, edge preparation, cutting direction and application-specific profile. |
| Grade & Coating | Workpiece group and grade, carbide substrate, coating system and wet or dry cutting conditions. |
| Tolerance & Inspection | Critical dimensions, profile requirements, inspection method and any required report. |
| OEM Presentation | Insert or box marking, label content, packaging format and quantity per pack. |
◆How to Request a Custom Insert
Send your insert requirements through our contact form or review our OEM and private-label service.
◆Carbide Insert Quality Control
Insert quality depends on the approved grade, geometry, coating and dimensional specification. We review the requirements at order confirmation and align the inspection scope with the insert series and any customer drawing. Share critical dimensions or documentation needs before production so they can be included in the agreed inspection plan.
01 · Incoming Material
Confirm the specified carbide grade or material documentation against the order requirements.
02 · In-Process Checks
Review dimensions and cutting-edge features during production against the approved specification.
03 · Final Inspection
Check the agreed dimensions, appearance, edge condition, coating identification and marking as applicable.
04 · Packing Review
Verify the item code, quantity, labels and protective packing against the approved order.
◆Inspection & Documentation
Inspection points and acceptance criteria should be agreed for the ordered series. For custom inserts, the approved drawing takes priority over a generic catalogue description.
| Check Area | What to Confirm |
|---|---|
| Dimensions & Fit | Insert size, thickness, corner radius, clamping features and any drawing tolerances. |
| Cutting Geometry | Chipbreaker, edge preparation, usable corners and profile where applicable. |
| Grade & Coating | Approved grade and coating designation; any requested verification method. |
| Appearance & Packing | Visible edge damage, marking, item code, count and packing format. |
| Requested Records | Inspection report, material or coating documentation, sample approval or batch identification when agreed. |
◆Order & Delivery
Share a line-by-line list of insert codes and quantities for a mixed-size quotation. Stock status, minimum quantity, sample requirements and production lead time are confirmed for each grade, coating and configuration.
Send your item list and quality requirements through our contact form for specification, availability and delivery confirmation.
Product FAQs
What is the difference between WCMX050308 and WCMT06T308?
They are different insert designations and sizes. Match each full code to the U-drill body's specified pocket; the shared W-style trigon outline does not make the two inserts interchangeable. Request the individual drawings to compare dimensions and seating features.
Can I use either insert in any WCMX or WCMT U-drill?
No. Confirm the drill manufacturer and complete body code, pocket size, center/peripheral position, seat and screw against the body's approved insert list. A matching family name alone is insufficient.
Does the insert code tell me the finished drilling diameter?
No. The U-drill body establishes the nominal hole diameter. The insert designation identifies the replaceable cutting component; verify actual hole size in a trial cut.
Are the center and peripheral inserts always the same?
That depends on the drill design. Some bodies specify different grades, chipbreakers or inserts for the center and outer pockets. Use the recommended combination for the exact drill body and workpiece.
Which materials and coatings are available?
The range can be reviewed for steel, stainless steel, cast iron and selected non-ferrous alloys using material-specific carbide grades. PVD and CVD are listed as options, but a coating and grade must be confirmed for each full code. Hardened-steel use needs separate validation.
What cutting speed and feed should I start with?
Use grade-specific data for the complete drill body, nominal diameter, hole depth, workpiece and coolant system. Confirm the starting values for the selected insert grade and setup, then check chip evacuation, hole size and insert wear in a controlled trial.
Ordering & OEM FAQs
What should I send for a replacement-insert quotation?
Send the complete drill-body and current insert codes, photos of the box label, insert and pocket, center/outer position, workpiece grade, hole diameter/depth and required quantity.
Can WCMX and WCMT models be included in one inquiry?
Yes. List each full insert code, grade, chipbreaker and quantity separately. Mixed-model supply and availability are confirmed by item.
What are the MOQ and standard box quantity?
The listed minimum is 10 pieces and the listed pack is 10 pieces per box. Confirm the actual terms for the selected insert, grade and packaging in the quotation.
Can I request samples or private-label packaging?
Include the exact item code, trial conditions, quantity and artwork requirements. Sample availability, marking and packaging are reviewed for the requested configuration.
Guides & Technical References
Use the CNC Insert Selection Guide for grade and geometry checks. For an overview of drill-body types, see WC Type vs SP Type U Drill.
For exact dimensions, approved grades or a quotation, send the complete drill-body and insert codes.
