Solid Carbide Spiral Flute Taps for Steel Thread Machining
Solid carbide spiral flute taps are designed for precision internal thread machining of carbon steel, alloy steel and selected stainless steel. The spiral flute geometry improves chip evacuation in blind holes, while the rigid carbide body supports stable cutting, accurate threads and extended tool life in CNC tapping applications.
Product Configurations
Flute Design: Spiral Flute for Blind Hole Tapping
Применение: CNC Machine Tapping / Internal Thread Machining
Workpiece Materials: Carbon Steel / Alloy Steel / Selected Stainless Steel
Thread Standards: Metric / UNC / UNF / Custom Standards Available
Thread Tolerance: ISO 2 / 6H and Customized Requirements
Варианты покрытия: Uncoated / TiN / TiCN / AlTiN / TiAlN
Consistent Quality
Consistent geometry across repeat orders.
Гибкие заказы
Small batches and mixed sizes available.
OEM Support
Custom marking, labels and packaging.
Стандартные и индивидуальные
Standard sizes and custom configurations.
Solid Carbide Spiral Flute Taps for Steel Thread Machining
This solid carbide spiral flute tap is designed for precision internal thread machining in carbon steel, alloy steel and selected stainless steel applications. The spiral flute geometry helps evacuate chips efficiently during blind-hole tapping, reducing chip accumulation and improving thread consistency. The fine-grain carbide construction provides high rigidity, wear resistance and stable cutting performance for CNC production environments requiring accurate threads, longer tool life and repeatable machining results.
TOOL TYPE
Solid Carbide Spiral Flute Tap
FLUTE DESIGN
Spiral Flute
APPLICATION
Steel Internal Threading
WORKPIECE MATERIAL
Carbon Steel / Alloy Steel
Product Design & Threading Performance
Spiral Flute Geometry for Efficient Chip Evacuation
The spiral flute design guides chips upward during blind-hole tapping, helping prevent chip packing around the cutting area. This structure improves tapping stability and reduces the risk of thread damage caused by poor chip removal.
Key Performance Advantages
High Rigidity Solid Carbide Construction
The fine-grain solid carbide body provides higher rigidity and wear resistance compared with conventional HSS taps. The stable cutting structure helps reduce tool deflection and supports consistent thread quality during CNC production.
Stable Thread Accuracy and Surface Quality
Precision-ground cutting edges and controlled thread geometry help maintain accurate internal threads, reduce variation between holes and support applications requiring repeatable production quality.
Flexible Thread Size and OEM Configuration
Different thread standards, sizes, coatings and packaging requirements can be reviewed according to application needs. OEM marking and customized supply solutions are available for distributors and industrial buyers.
Рекомендуемые области применения
Рекомендуемые области применения- Blind-hole thread machining where efficient chip evacuation is required
- CNC tapping of carbon steel and alloy steel components
- Precision internal threading applications requiring stable thread quality
- Small and medium thread sizes requiring high wear resistance and longer tool life
- Industrial production environments requiring repeatable tapping performance
Совместимость материалов
| WORKPIECE MATERIAL | TYPICAL APPLICATION |
|---|---|
| Углеродистая сталь | General steel components requiring accurate internal threads |
| Легированная сталь | Automotive, mold and precision mechanical parts |
| Stainless Steel (Confirmed Grades) | Applications requiring corrosion resistance and controlled tapping performance |
Application Note:
Solid carbide spiral flute taps should be selected according to thread size, workpiece material, hardness, hole type, machine rigidity and cutting conditions. Actual performance depends on proper tool selection, coolant strategy and production parameters.
Технические характеристики
Reference specifications for solid carbide spiral flute taps used in CNC internal thread machining. Customized thread sizes, tolerances, coatings and tool configurations can be reviewed according to workpiece material and production requirements.
| PARAMETER | REFERENCE CONFIGURATION |
|---|---|
| Тип инструмента | Solid Carbide Spiral Flute Tap |
| Thread Standard | Metric / UNC / UNF / Custom Thread Standards |
| Flute Design | Spiral Flute for Blind-Hole Tapping |
| Substrate | Fine-Grain Solid Carbide |
| Thread Size Range | Standard sizes and customized thread sizes available |
| Cutting Direction | Right-Hand Cutting |
| Варианты покрытий | TiAlN / TiCN / Other Application-Matched Coatings |
| Приложение | Steel Internal Thread Machining |

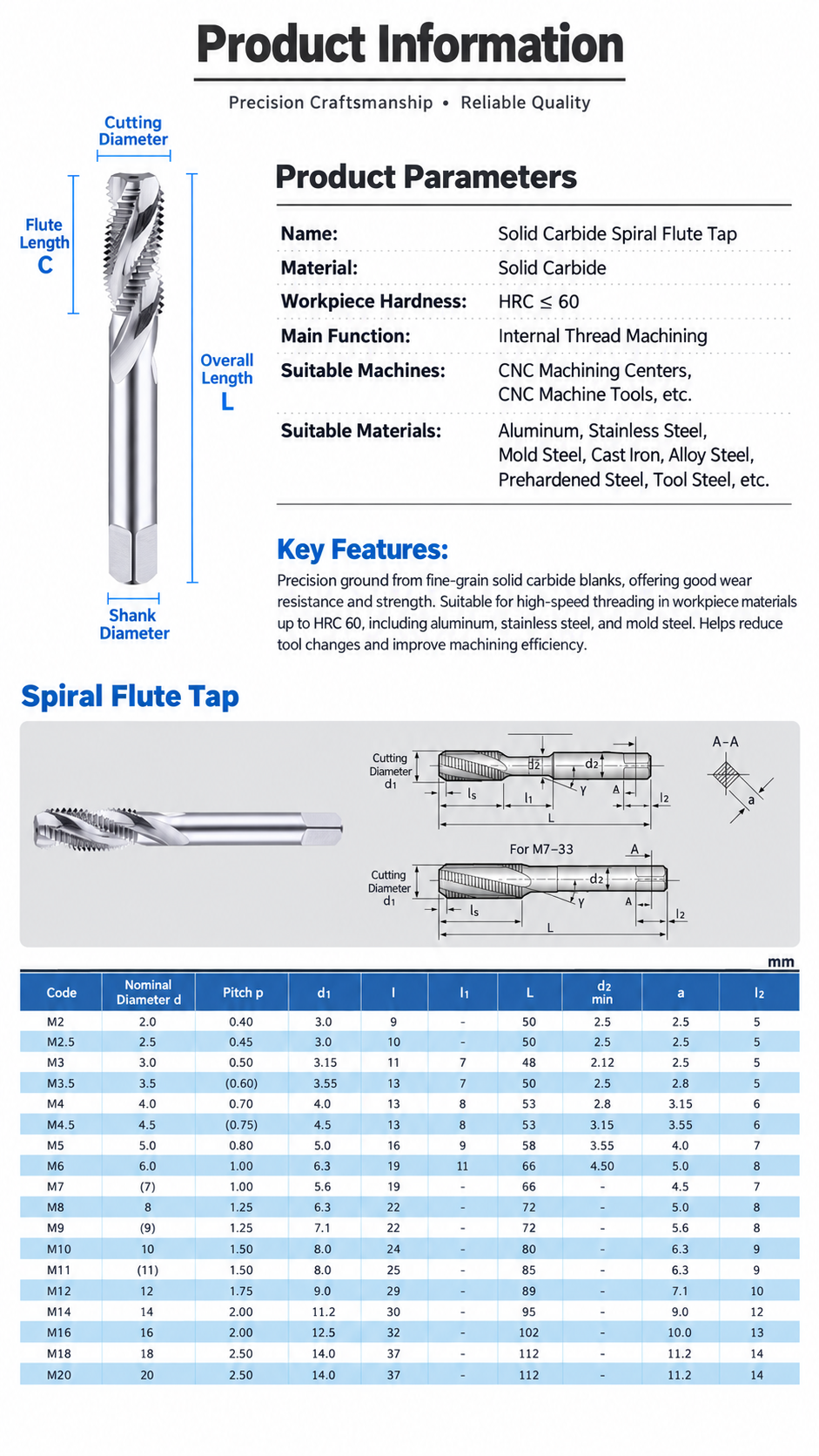

Tap Dimensions & Size Reference
The following dimensions define the main tap configuration. Actual dimensions may vary according to thread standard, size requirement and customized production specifications.
Standard Thread Size Matrix

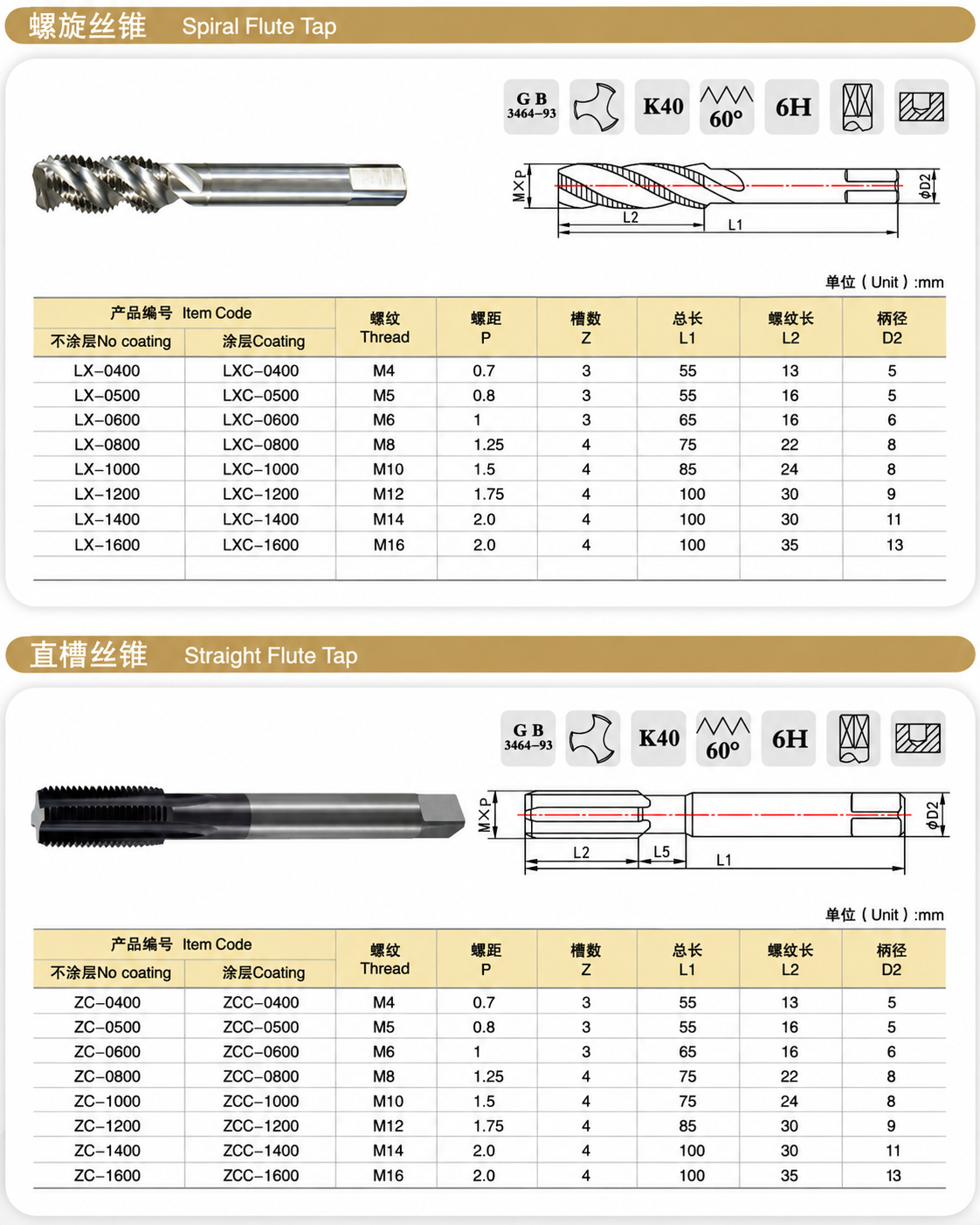

| THREAD SIZE | PITCH | OVERALL LENGTH | APPLICATION |
|---|---|---|---|
| M3 × 0.5 | 0.5 mm | Standard Configuration | Precision Small Thread Machining |
| M4 × 0.7 | 0.7 mm | Standard Configuration | General Steel Threading |
| M6 × 1.0 | 1,0 мм | Standard Configuration | CNC Steel Component Tapping |
Solid Carbide Spiral Flute Tap Customization
Thread standard, thread size, flute design, tap length, shank configuration, cutting geometry, coating and packaging options can be configured according to steel threading requirements. Standard spiral flute tap configurations are available for blind-hole tapping applications, while customized dimensions and thread specifications can be reviewed according to workpiece material, thread accuracy requirements and production conditions.
| PARAMETER | MANUFACTURING CAPABILITIES |
|---|---|
| Thread Standard | Metric, UNC, UNF and customized thread standards according to drawing requirements |
| Thread Size | Standard thread sizes and non-standard thread dimensions can be reviewed according to application requirements |
| Flute Design | Spiral flute configuration optimized for blind-hole tapping and efficient chip evacuation |
| Tap Length | Standard and customized overall length options according to machine conditions and tapping depth |
| Shank Configuration | Standard shank dimensions and customized clamping requirements can be supplied |
| Thread Geometry | Cutting angle, chamfer design and tooth profile can be reviewed according to material and thread requirements |
| Edge Preparation | Application-matched cutting edge preparation for stable steel threading and improved tool life |
| Coating Selection | TiAlN, TiCN and other application-specific coatings selected according to material, hardness and cutting conditions |
| Threading Application | Configuration can be reviewed for blind-hole tapping, CNC threading and precision internal thread machining |
| Dimensional Tolerance | Thread tolerance, diameter, length, shank size and other drawing-defined requirements can be confirmed before production |
Услуги по производству под брендом OEM и под частной торговой маркой
OEM manufacturing and private-label supply options are available for industrial distributors, tooling brands and repeat-production customers. Laser identification, label content, protective packaging and coating presentation can be configured according to the approved product specification and order requirements.
Laser Marking
Custom logos, tap specifications, thread sizes, product codes and batch numbers can be marked according to the available shank area.
Custom Labels & Packaging
Individual protective tubes, product labels, thread specifications, size identification and private-label packaging can be reviewed for distributor requirements.
Commercial Terms
MOQ, sample evaluation, customized thread requirements, repeat orders and scheduled supply programs are confirmed according to the selected tap configuration.
Technical Workflow
A structured review process is used to confirm standard, customized and private-label solid carbide tap requirements before production.
Inquiry
Submit thread standard, thread size, workpiece material, tapping depth, hole type, tolerance and quantity.
Engineering
Review thread geometry, spiral flute design, coating selection, cutting conditions and application requirements.
Commercial
Confirm quotation, MOQ, sample requirements, production schedule and delivery terms.
Production
Precision grinding, thread formation, flute processing, coating and laser marking are completed according to approved specifications.
Quality Control
Inspect thread profile, pitch accuracy, diameter, shank dimensions, runout, cutting edges and final packaging.
Quality, Inspection & Delivery
Our solid carbide spiral flute taps are controlled through carbide material verification, precision grinding, thread profile inspection, in-process measurement and final inspection. Critical features including thread accuracy, spiral flute geometry, cutting-edge condition, coating appearance and product identification are reviewed according to the approved specification or drawing before packing.
Three-Stage Quality Control
Inspection checkpoints are arranged throughout the manufacturing process to support thread accuracy, dimensional consistency and repeat-order control.
Incoming Material Control
Carbide substrate grade, blank dimensions and material consistency are checked according to production requirements to support stable tapping performance.
Thread Grinding & Geometry Control
Thread profile, pitch accuracy, spiral flute geometry, cutting-edge preparation and shank dimensions are monitored during precision grinding.
Final Tap Inspection
Finished taps are reviewed for thread accuracy, runout, cutting-edge condition, coating appearance, marking and packing identification before shipment.
Key Inspection Characteristics
Inspection requirements are confirmed according to the standard thread specification or the approved custom drawing.
| INSPECTION ITEM | CONTROL FOCUS | CONFIRMATION BASIS |
|---|---|---|
| Thread Diameter | Thread size accuracy and dimensional consistency | Standard thread specification or approved drawing |
| Pitch Accuracy | Thread pitch and profile consistency | Confirmed thread standard or custom requirement |
| Профиль темы | Tooth form, cutting geometry and thread quality | Approved product configuration |
| Spiral Flute Geometry | Flute angle, chip evacuation structure and grinding consistency | Approved manufacturing configuration |
| Диаметр хвостовика | Clamping-section dimension and surface condition | Applicable tool specification |
| Общая длина | Total tool length | Standard size matrix or approved drawing |
| Радиальное биение | Concentricity between cutting section and shank | Agreed inspection requirement |
| Cutting Edge & Coating | Edge condition, visible defects and coating appearance | Application-specific production requirement |
| Marking & Identification | Tool code, dimensions and batch information where applicable | Confirmed order and packaging specification |
Measurement & Batch Traceability
Optical measuring systems, thread inspection tools and appropriate dimensional gauges are selected according to the feature being checked.
Thread Profile Inspection
Thread form, pitch and cutting profile are reviewed according to specification requirements.
Optical Measurement
Cutting edges, flute geometry and surface condition are inspected with measurement equipment.
Edge Inspection
Cutting edge preparation and possible defects are checked before shipment.
Batch Identification
Order, product and batch information are linked where required for repeat supply.
Protective Packaging Process
Finished end mills are protected to reduce contact between cutting edges and to support clear product identification during storage and transportation.
Bulk-Order & Export Packaging
Bulk shipments can be arranged with reinforced cartons, protective wrapping, palletized loading or export cases according to order quantity, shipment weight and agreed transportation requirements.
Delivery Coordination
Production completion, packing method and dispatch arrangements are confirmed according to the approved order. Courier, air, sea or customer-designated shipping options can be reviewed according to shipment size and destination. Final lead time is confirmed after product specifications, quantity and packaging requirements are approved.
FAQ & Downloads
Review common product, application and ordering questions for the HRC55 4-flute solid carbide square end mill, then access the current end mill catalog and starting cutting-data guide.
Product & Application FAQs
Selection and application guidance for steel milling.
What materials is this HRC55 square end mill designed to machine?
It is primarily configured for carbon steel, alloy steel and confirmed pre-hardened steel applications. The exact coating and cutting parameters should be selected according to the workpiece grade, hardness, machining operation and machine rigidity.
Does HRC55 mean that every tool can machine steel at exactly 55 HRC?
HRC55 describes the product-series positioning and its upper target range under selected machining conditions. Actual suitability depends on the steel grade, operation, tool diameter, cutting data, holder condition, machine rigidity and coolant strategy. Application details should be reviewed before machining near the upper hardness range.
What operations are suitable for the 4-flute square-end design?
The four-flute square-end geometry supports side milling, shoulder milling, profiling, pocketing, slotting and finishing under suitable cutting conditions. Its flat end supports flat-bottom features and 90° shoulders, while the four-flute configuration provides cutting rigidity for general steel machining.
Why choose four flutes for steel milling?
Four flutes provide more cutting edges per revolution than a two-flute design and support rigid cutting geometry for steel side milling and finishing. The appropriate flute count depends on radial engagement, axial depth, chip evacuation and the required surface finish. Cutting parameters should be matched to the selected tool and operation.
Can this end mill perform full-width slotting and plunge cutting?
Full-width slotting requires suitable cutting parameters and effective chip evacuation, particularly with a four-flute tool. Plunge capability depends on the specific center-cutting geometry, so center-cutting availability and the entry method should be confirmed for the selected size or custom configuration.
Which coating should be selected for steel machining?
AlTiN, TiAlN, TiSiN, AlTiSiN or another application-specific coating may be selected according to the steel grade, hardness, cutting temperature and machining conditions. The coating should be matched with the carbide substrate and edge preparation rather than selected by color alone.
Ordering & Customization FAQs
Information for distributors, tooling brands and customers requesting standard or drawing-based configurations.
What standard sizes are available?
The Standard Size Matrix lists 16 reference configurations with cutting diameters from Ø1 to Ø20 mm, flute lengths from 3 to 45 mm, shank diameters from 3 to 20 mm and overall lengths from 50 to 100 mm. Refer to the individual rows for available dimension combinations and confirm availability, helix angle and coating before ordering.
Can non-standard dimensions or geometry be manufactured?
Yes. Selected cutting diameters, flute lengths, overall lengths, shank configurations, helix angles, edge preparation and coatings can be reviewed according to the drawing and machining application. Custom dimensions and tolerances are confirmed before production.
Are OEM marking and private-label packaging available?
Laser marking, tool codes, custom labels, protective tubes and private-label packaging can be reviewed according to the available marking area, order quantity and confirmed packaging specification.
What information is required for an accurate quotation?
Please provide the workpiece material and hardness, cutting diameter (D), flute length (L1), shank diameter (d), overall length (L), machining operation, axial and radial engagement, coating preference, tolerance requirements, order quantity and any OEM requirements. A tool drawing or component drawing is recommended for custom projects.
Technical Downloads
Access current product-range information and starting cutting references for solid carbide end mill selection.
Solid Carbide End Mills Catalog
Product families, hardness series, flute options and reference sizes.
End Mill Speeds & Feeds Guide
Starting cutting speeds, chip loads, engagement guidance and adjustment notes.
Cutting data are starting references only. Adjust the values according to the exact tool diameter, flute count, workpiece hardness, engagement, overhang, holder condition and machine rigidity.
Need Sizes, Pricing or Custom Options?
Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.
Drawings, size lists and reference photos are welcome.
