Спирально-канавчатый развертка из цельного твердого сплава для прецизионной обработки отверстий

SOLID CARBIDE SPIRAL FLUTE REAMER FOR PRECISION HOLE FINISHING

Solid carbide spiral flute reamer designed for precision hole finishing with optimized spiral flute geometry and fully ground cutting edges. It provides smooth chip evacuation, stable cutting performance and consistent hole accuracy for CNC machining applications.

Конфигурация продукта
Материал инструментаТвердый карбид
Материалы заявкиSteel / Aluminum / Non-Ferrous
Тип разверткиSpiral
Допуск на отверстиеPrecision H7 Finishing
Конфигурация флейты 4 / 6 Flutes
НастройкаВ наличии
ЛУЧШИЙ ДЛЯ

Spiral Flutes

Chip Control

Precision Sizing

Smooth Finish

Solid Carbide Spiral Flute Reamer Overview

Solid carbide spiral flute reamers for precision hole sizing and surface finishing after drilling or boring. Spiral geometry supports controlled chip flow and cutting engagement, with Ø2–Ø12 mm reference sizes and 4- or 6-flute configurations by model.

Spiral Geometry & Finishing Benefits

Controlled Chip Flow

Spiral direction and cutting geometry are selected for the hole type and chip-removal requirements.

Режущие кромки с прецизионной шлифовкой

Support consistent hole dimensions and smooth internal surfaces.

Rigid Carbide Construction

Solid carbide and 4- or 6-flute configurations support stable CNC reaming.

Номинальный диаметр
Ø2–Ø12 mm
Флейта
4 / 6, by Model

Precision Reaming Applications

For finishing prepared holes in steel, aluminum and selected copper-alloy components. Match cutting geometry and surface treatment to the material and required hole quality.

Идеально подходит для

Repeat CNC hole finishing where diameter control, surface finish and chip flow matter.

Не подходит для

Сверление в цельном материале или исправление значительных погрешностей в расположении отверстий.

Confirm blind or through hole, spiral direction, reaming allowance, runout and coolant before selection.

Workpiece material reference for spiral flute carbide reamers

Spiral Flute & Cutting-Edge Details

Solid carbide spiral flute reamer designCarbide reamer construction and cutting geometrySpiral flute geometry for controlled chip flowPrecision carbide reamer cutting-edge detail

Custom & OEM Supply: Drawing-based diameters, lengths, flute geometry, marking and packaging for distributors and repeat orders.

Spiral Flute Reamer Specifications

Эталонные конфигурации для прецизионной обработки отверстий с ЧПУ. Все размеры указаны в миллиметрах.

Размеры и стандартные габариты

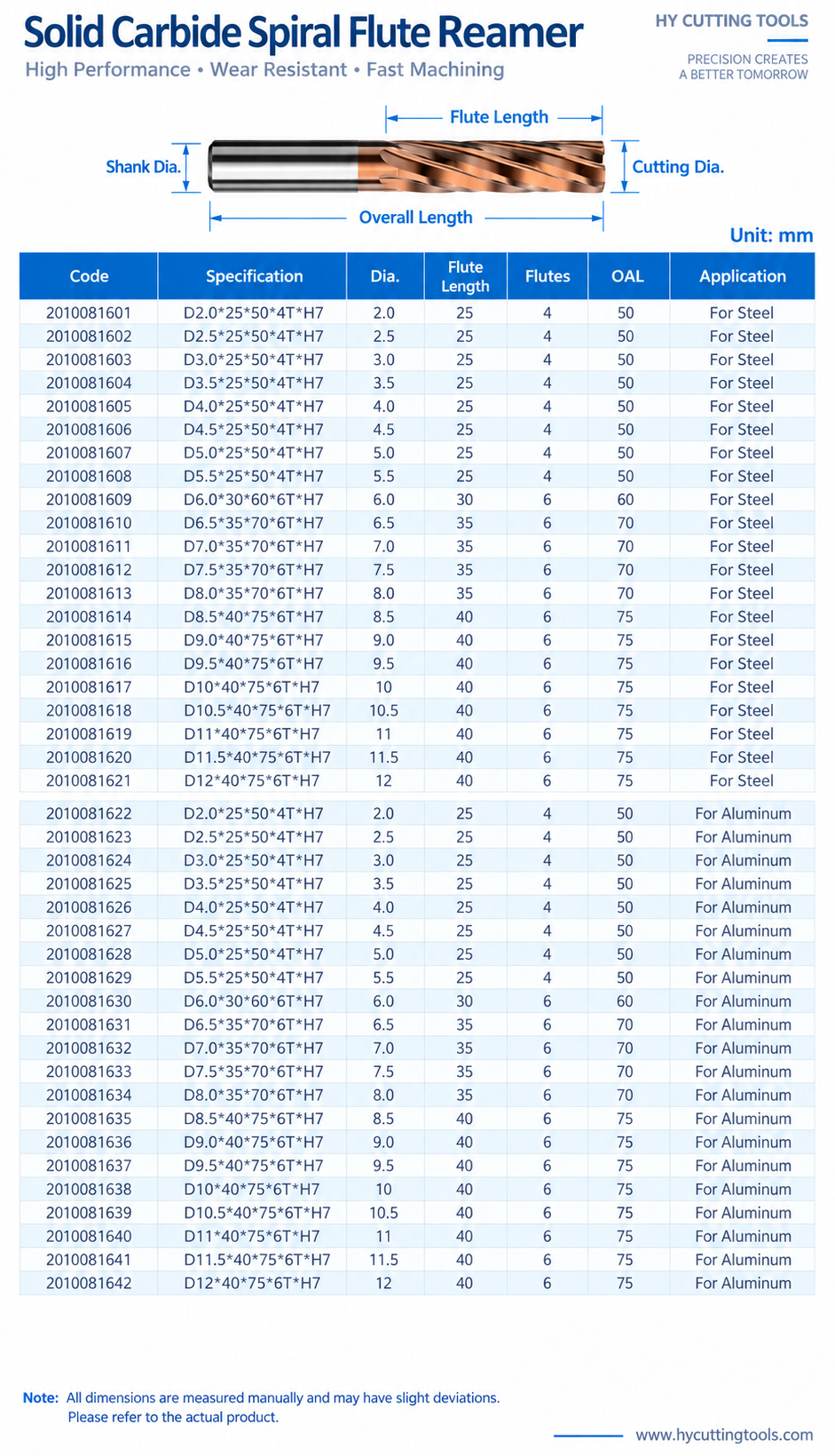

Solid carbide spiral flute reamer dimensions and standard size chart

Confirm cutting diameter, tolerance, flute count, shank and lengths for the selected model.

Selection & Cutting Conditions

  • Match the reamer to the finished-hole tolerance and prepared-hole allowance.
  • Confirm spiral direction and geometry for blind or through holes.
  • Select speed, feed and coolant by material, diameter, hole depth and setup rigidity.

View Reamer Selection Guide →

Spiral Flute Carbide Reamer Customization

Drawing-based carbide reamers with custom dimensions and spiral geometry for precision hole finishing and controlled chip flow.

OEM и частные торговые марки

Лазерная маркировка, этикетки по индивидуальному заказу и защитная упаковка для дистрибьюторов и производителей инструментов. Возможны пробные поставки и регулярные поставки по договоренности.

OEM marking and private-label packaging for spiral flute carbide reamers

Процесс изготовления инструментов на заказ

Application Review → Design Approval → Production → Final Inspection

Custom spiral flute carbide reamer manufacturing process

Качество и контроль

Spiral flute carbide reamers undergo material checks, in-process measurement and final inspection against approved specifications or drawings.

Material & Dimensions

Verify carbide grade, cutting diameter, lengths and shank size.

Spiral Geometry & Edges

Inspect flute form, lead geometry and cutting-edge condition.

Runout & Identification

Check radial runout, tool marking and product labels.

Manufacturing and final inspection for spiral flute carbide reamersDimensional measurement and quality control for carbide reamers

Протоколы проверки и идентификация партий могут быть оформлены в соответствии с требованиями заказа.

Защитная упаковка

Individual tubes or cases protect cutting edges, with clear size labels and cushioned cartons for transportation.

Protective packaging for solid carbide spiral flute reamers

Spiral Flute Carbide Reamer FAQ

What is a spiral flute carbide reamer used for?

It finishes prepared holes to improve diameter accuracy and surface quality. Material-specific configurations are available for steel, aluminum and selected copper alloys.

Should I choose a straight or spiral flute reamer?

Choose according to hole type, material and chip-control requirements. For spiral reamers, confirm both spiral direction and cutting direction; flute shape alone does not determine suitability for blind or through holes.

Can this reamer meet my finished-hole tolerance?

Send the required hole size and tolerance for review. Tool diameter and tolerance are specified separately from the finished-hole requirement. Results depend on reaming allowance, runout, material and machining conditions.

What diameters and flute counts are available?

Reference sizes cover Ø2–Ø12 mm, with 4 or 6 flutes and 50–75 mm overall lengths by model. Check the size chart for exact cutting lengths and shank dimensions.

Can I order custom spiral reamers and OEM packaging?

Yes. Custom diameters, lengths, spiral geometry, lead chamfers and coatings can be reviewed by drawing. Laser marking, labels and private-label packaging are available for distributor and OEM orders.

How do I request pricing, MOQ and delivery information?

Send finished and prepared hole sizes, tolerance, depth, hole type, material and quantity. MOQ depends on configuration. Standard sizes typically ship within 1–3 working days, subject to stock; custom lead times are confirmed after technical review.

Вам нужны размеры, цены или индивидуальные варианты?

Отправьте нам технические характеристики и количество товара для получения ценового предложения.

  • Стандартные размеры
  • Небольшие пробные заказы
  • Разные размеры
  • OEM и индивидуальные заказы
