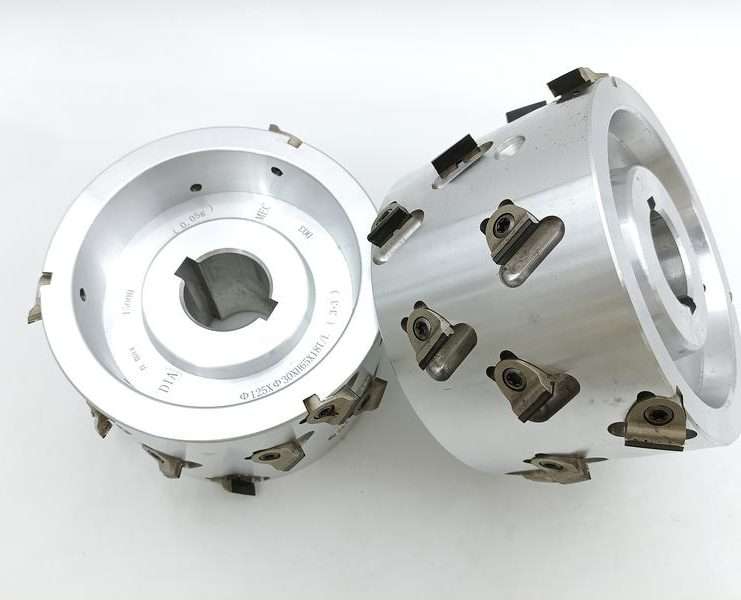

Replaceable PCD Pre-Milling Cutter for Edge Banding Machines

Replaceable PCD pre-milling cutters for panel edge preparation before edge banding. Wear-resistant diamond cutting edges help remove saw marks and prepare consistent bonding surfaces on MDF, particleboard, plywood and laminated panels.

◆
Construction: PCD cutting edges · Alloy steel body · Replaceable cutting elements
◆
Application: Panel edge pre-milling before edge banding
◆
Materials: MDF / Particleboard / Plywood / Laminated Panels
◆
Configuration: Diameter, cutting width, bore and tooth count matched to the machine
◆
Replacement Matching: Confirm cutter dimensions, rotation direction and cutting-element code
◆
For a Quote: Send the machine model, cutter drawing or marking photos, panel material and quantity
BEST FOR

Replaceable Tips

Clean Panel Edges

Wear Resistance

Custom Sizes

Product Overview

Replaceable PCD pre-milling cutters are designed for CNC edge banding machines to create cleaner and more stable board edges before banding.

In furniture panel production, sawing may leave burrs, ripple marks, chipped areas, or slightly uneven edges. A pre-milling cutter removes these surface defects before the edge banding process and helps create a smoother bonding surface.

Compared with conventional carbide cutters, replaceable PCD diamond tipped cutters provide stronger wear resistance, more stable cutting quality, and longer service intervals in continuous woodworking production.

The replaceable insert structure also helps reduce maintenance cost, because worn cutting tips can be replaced without changing the complete cutter body. This makes the tool suitable for MDF, particle board, plywood, laminated boards, and other wood-based furniture panels.

Product Features

01

Replaceable PCD Inserts

The replaceable insert design allows easier maintenance and helps reduce long-term tooling cost in high-volume furniture production.

02

Stable Cutter Body Structure

The cutter body is designed for reliable performance and smooth running on compatible CNC edge banding machines.

03

Refined Inner Bore Design

Precision-machined inner bore helps improve mounting stability and supports more consistent cutting results.

04

Customizable Dimensions

Diameter, bore size, cutting width, and tooth configuration can be customized according to machine type and production requirements.

Application Materials

Suitable for common wood-based panel materials used in furniture manufacturing and edge banding preparation.

  • MDF
  • Particle Board
  • Plywood
  • Melamine Laminated Board
  • Veneered Furniture Panels
  • Composite Wood Panels
Application materials for replaceable PCD pre-milling cutter

Recommended Applications

Furniture panel edge preparation

Furniture Panel Edge Preparation

Used before edge banding to remove rough or damaged panel edges and improve final bonding quality.

Cabinet and wardrobe production

Cabinet & Wardrobe Production

Suitable for modular furniture production lines requiring stable and consistent panel edge quality.

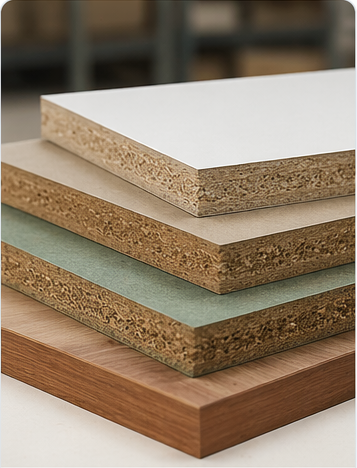

MDF and particle board processing

MDF & Particle Board Processing

Performs well on abrasive wood-based boards and supports longer operating time between maintenance cycles.

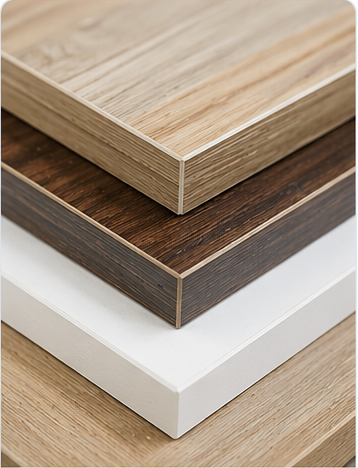

Laminated board trimming

Laminated Board Trimming

Helps reduce visible edge defects and supports cleaner, more uniform edge banding results.

Product Specifications

Item Description
Material PCD Diamond Tips + High-Strength Steel Body
Flutes (3+3)Z / (4+4)Z / Custom
Type Replaceable Pre-Milling Cutter
Hardness High Wear Resistance
Coating None (PCD Tip)
Diameter Range 80mm / 100mm / 120mm / 125mm / 150mm / Custom
Overall Height 35mm / 43mm / 50mm / 65mm / Custom
Bore Size 20mm / 30mm / Custom
Suitable Machines CNC Edge Banding Machine / Woodworking Machine
Application Materials MDF, Particle Board, Plywood, Laminated Panels
Packaging Individual Protective Packaging
Customization Supported According to Drawings or Machine Requirements
OEM/ODM Supported

Size Chart

Standard sizes are available for common CNC edge banding machines. Custom dimensions can also be produced according to drawings or machine configuration.

Replaceable PCD Pre-Milling Cutter for Edge Banding Machines 1
Diameter (D) Bore (d) Cutting Width (H) Teeth
80 20 35 / 45 / 50 / 65 Custom
80 30 35 / 50 (3+3)Z
100 30 48 / 50 / 65 12 / 15
120 30 43 Custom
125 30 35 / 40 / 43 / 50 / 55 / 65 Custom
150 30 35 / 43 / 50 / 65 (4+4)Z

Note: The size combinations above are reference options based on common market configurations. Final production dimensions should match your actual machine model and technical requirements.

Recommended Tool Guide

Workpiece Material Recommended Tool Type Suggested Advantage
MDF Standard Replaceable PCD Pre-Milling Cutter Stable cutting and long service life
Particle Board Wear-Resistant PCD Insert Geometry Better durability on abrasive panels
Plywood Reinforced Cutting Edge Design Cleaner trimming and reduced edge chipping
Laminated Panels Fine Edge PCD Configuration Improved edge finish and more stable bonding surface
High-Volume Furniture Panels Customized Replaceable PCD Cutter Better balance of efficiency, maintenance, and tool life

Processing Advantages

Why Choose This Replaceable PCD Pre-Milling Cutter

This tool helps remove burrs, ripple marks, and uneven edges left after sawing, creating a cleaner surface before edge banding. With replaceable PCD tips and a stable cutter body design, it supports longer service intervals, lower maintenance cost, and more consistent panel edge quality in furniture production.

Quality Control

To ensure stable cutting performance and reliable product quality, each cutter can be checked through strict production and inspection procedures.

  • Raw material inspection
  • PCD insert brazing and grinding control
  • Cutter body machining and balance verification
  • Inner bore precision inspection
  • Insert consistency checking
  • Final appearance and packaging inspection
Replaceable PCD pre-milling cutter manufacturing process

Frequently Asked Questions

What does a pre-milling cutter do before edge banding?

It removes a controlled allowance from the sawn panel edge to reduce saw marks, burrs and minor edge damage. This prepares a more uniform surface for edge banding. Final bonding quality also depends on adhesive, machine settings and panel condition.

Which panel materials can this PCD cutter machine?

The range is intended for MDF, particleboard, plywood, melamine-faced boards and veneered panels. Select the cutting-edge configuration according to panel construction, thickness and required edge finish.

Why choose PCD instead of a carbide pre-milling cutter?

PCD offers high wear resistance for abrasive wood-based panels and can extend service intervals in repeat production. The practical benefit depends on panel material, cutting allowance and production volume; no fixed tool-life improvement applies to every application.

Can the PCD cutting elements be replaced separately?

This range uses replaceable cutting elements, allowing a serviceable cutter body to be retained. Send the cutter model and clear photos to confirm the replacement specification, fixing system and fitting requirements. Cutting elements are not universally interchangeable.

How do I match the cutter to my edge banding machine?

Provide the machine model, existing cutter markings or drawing, outside diameter, bore, cutting width and rotation direction. Confirm mounting details, tooth configuration and permissible speed before ordering. Diameter and bore alone do not establish compatibility.

What sizes and custom options are available?

Reference diameters include 80, 100, 120, 125 and 150 mm, with 20 or 30 mm bore options in selected configurations. Cutting width and tooth arrangement vary by model. Custom dimensions and OEM requirements can be reviewed from your drawing; confirm each combination, MOQ and lead time before ordering.

Send your machine model and cutter details for matching and quotation.
