PCD Bowl Tray Router Bit for CNC Wood Recessing and Pocket Cutting
Designed for smooth tray grooving, rounded recess shaping, and decorative pocket profiling in woodworking CNC processing.
PCD bowl and tray router bit for woodworking CNC machining, suitable for rounded recesses, tray grooves, decorative pocket profiling, and smooth shaping on wood materials.
Configurations：
Material: PCD + steel body
Flutes: 2Z, 3Z
Type: Bowl & Tray Router Bit
Radius: R3.175, R3.96, R6.35
Shank Diameter: 12.70 mm
Diameter Range: 11.10–40 mm
Overall Length: 65 mm
Application Materials: Solid wood, MDF, plywood, hardwood panels, furniture board
Consistent Quality
Consistent geometry across repeat orders.
Flexible Orders
Small batches and mixed sizes available.
OEM Support
Custom marking, labels and packaging.
Standard & Custom
Standard sizes and custom configurations.
| Product Overview |
PCD bowl & tray router bit is designed for woodworking CNC grooving, rounded recess machining, and tray profile shaping. It is suitable for applications that require smooth contour generation, stable cutting performance, and longer service life in repeated production.
This tool is commonly used for bowl-shaped pockets, tray grooves, decorative recesses, and rounded-bottom profile machining on wood-based materials. With durable PCD cutting edges and stable tool geometry, it helps improve profile consistency while reducing tool replacement frequency.
| Product Features |
| Typical Applications |

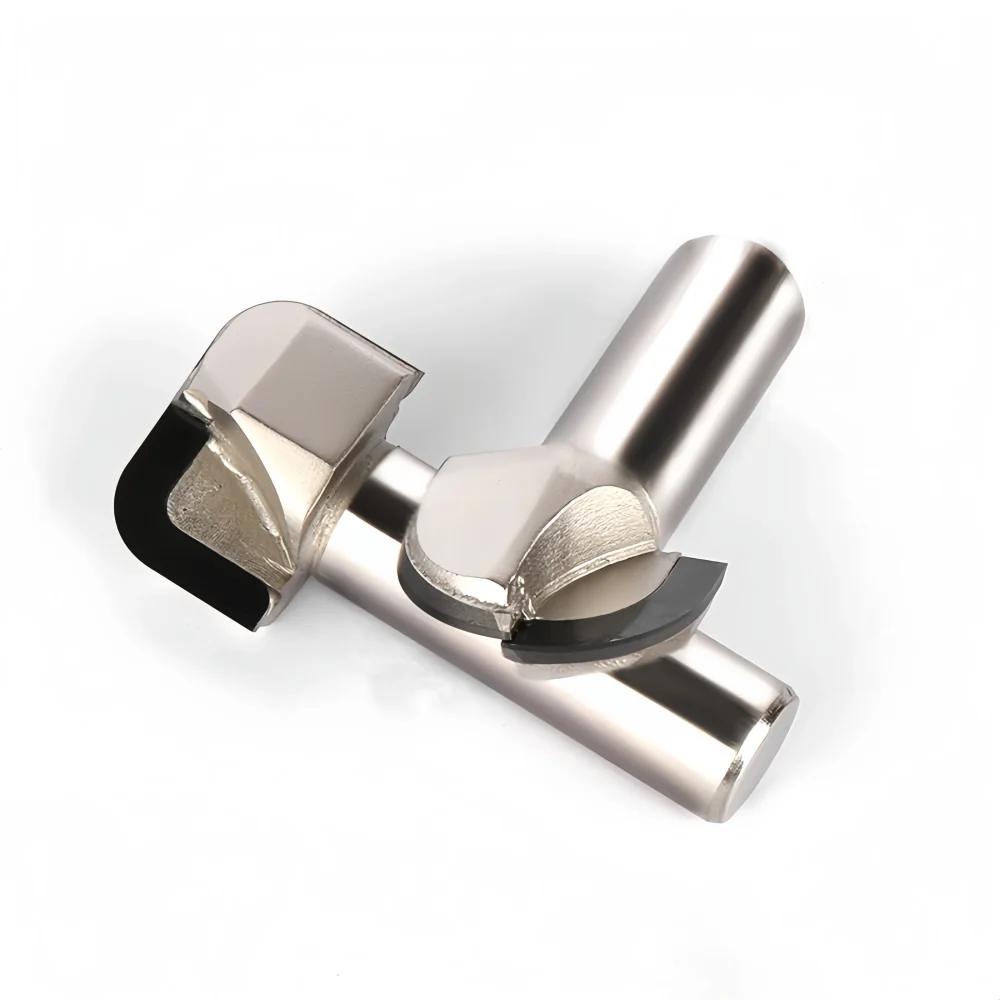

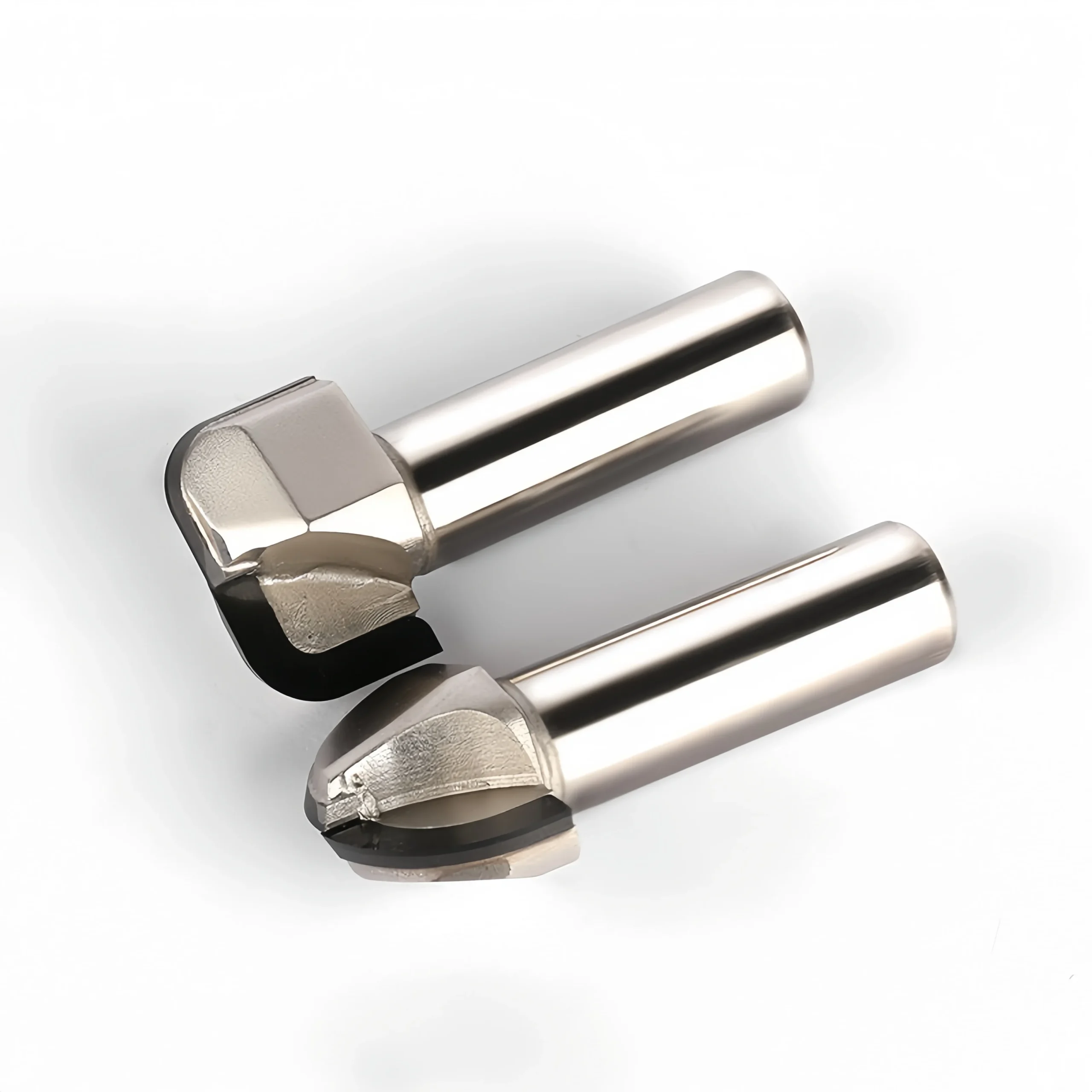

| Tool Structure & Finished Profile |
This type of router bit is designed to generate rounded-bottom grooves and tray-style recesses. The tool profile is selected according to the required groove width, cutting depth, and finished corner radius, making structure reference and finished-profile display especially important for customer selection.
| Application Materials |
| Product Specifications |
| Material | PCD + Steel Body |
| Flutes | 2Z, 3Z |
| Type | Bowl & Tray Router Bit |
| Radius | R3.175, R3.96, R6.35 |
| Diameter Range | 11.10–40 mm |
| Overall Length | 65 mm |
| Shank Diameter | 12.70 mm |
| Application Materials | Solid wood, MDF, plywood, hardwood panels, furniture board |
| Size Table |
| Item Code | Specification | D (mm) | H (mm) | R | d (mm) | L (mm) | Z |
|---|---|---|---|---|---|---|---|
| HY09001 | 1/2″ × 7/16″ × 2Z | 11.10 | 12.70 | R3.175 | 12.70 | 65 | 2Z |
| HY09002 | 1/2″ × 1/2″ × 2Z | 12.70 | 12.70 | R3.175 | 12.70 | 65 | 2Z |
| HY09003 | 1/2″ × 5/8″ × 3Z | 15.88 | 14.30 | R3.96 | 12.70 | 65 | 3Z |
| HY09004 | 1/2″ × 3/4″ × 3Z | 19.05 | 15.90 | R6.35 | 12.70 | 65 | 3Z |
| HY09005 | 1/2″ × 7/8″ × 3Z | 22.20 | 15.90 | R6.35 | 12.70 | 65 | 3Z |
| HY09006 | 1/2″ × 1″ × 2Z | 25.40 | 15.90 | R6.35 | 12.70 | 65 | 2Z |
| HY09007 | 1/2″ × 1-1/8″ × 3Z | 28.60 | 15.90 | R6.35 | 12.70 | 65 | 3Z |
| HY09008 | 1/2″ × 1-1/4″ × 3Z | 31.75 | 15.90 | R6.35 | 12.70 | 65 | 3Z |
| HY09009 | 1/2″ × 30 × H15 × 2Z | 30 | 15.90 | R6.35 | 12.70 | 65 | 2Z |
| HY09010 | 1/2″ × 35 × H15 × 3Z | 35 | 15.90 | R6.35 | 12.70 | 65 | 3Z |
| HY09011 | 1/2″ × 38 × H15 × 2Z | 38 | 15.90 | R6.35 | 12.70 | 65 | 2Z |
| HY09012 | 1/2″ × 40 × H15 × 2Z | 40 | 15.90 | R6.35 | 12.70 | 65 | 2Z |
| HY09013 | 1/2″ × 32 × H15 × 3Z | 32 | 15.90 | R6.35 | 12.70 | 65 | 3Z |
| Recommended Tool Guide |
| Application | Recommended Tool | Profile Radius | Recommendation |
|---|---|---|---|
| Tray Groove Machining | PCD Bowl & Tray Router Bit | R3.175 / R3.96 / R6.35 | Choose the radius according to the required tray groove bottom profile and groove width. |
| Rounded Recess Shaping | PCD Bowl & Tray Router Bit | Based on finished contour | Suitable for shallow recesses and bowl-like cavities requiring smoother bottom transition. |
| Decorative Pocket Profiling | PCD Bowl & Tray Router Bit | Profile dependent | Recommended when rounded-bottom decorative recesses and cleaner profile transitions are needed. |
| Custom Form Requirement | Custom PCD Profile Tool | Custom | Provide drawing, sample, or finished-shape requirement for custom profile development. |
| Quality Control |
Each tool is produced with attention to cutting edge integrity, profile consistency, and tool body stability for woodworking form machining applications. The use of PCD cutting edges helps maintain performance in repeated profile cutting and recess shaping.
Before shipment, products can be checked for dimensional consistency, profile accuracy, and general production quality to better match customer requirements.
Standard models are available, and custom specifications can also be discussed for diameter, radius, flute configuration, and non-standard profile requirements.
| More PCD Woodworking Tools Available |
Beyond standard bowl & tray router bits, we also supply more PCD woodworking tools for shaping, trimming, and custom profile machining.
Need Sizes, Pricing or Custom Options?
Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.
Drawings, size lists and reference photos are welcome.
