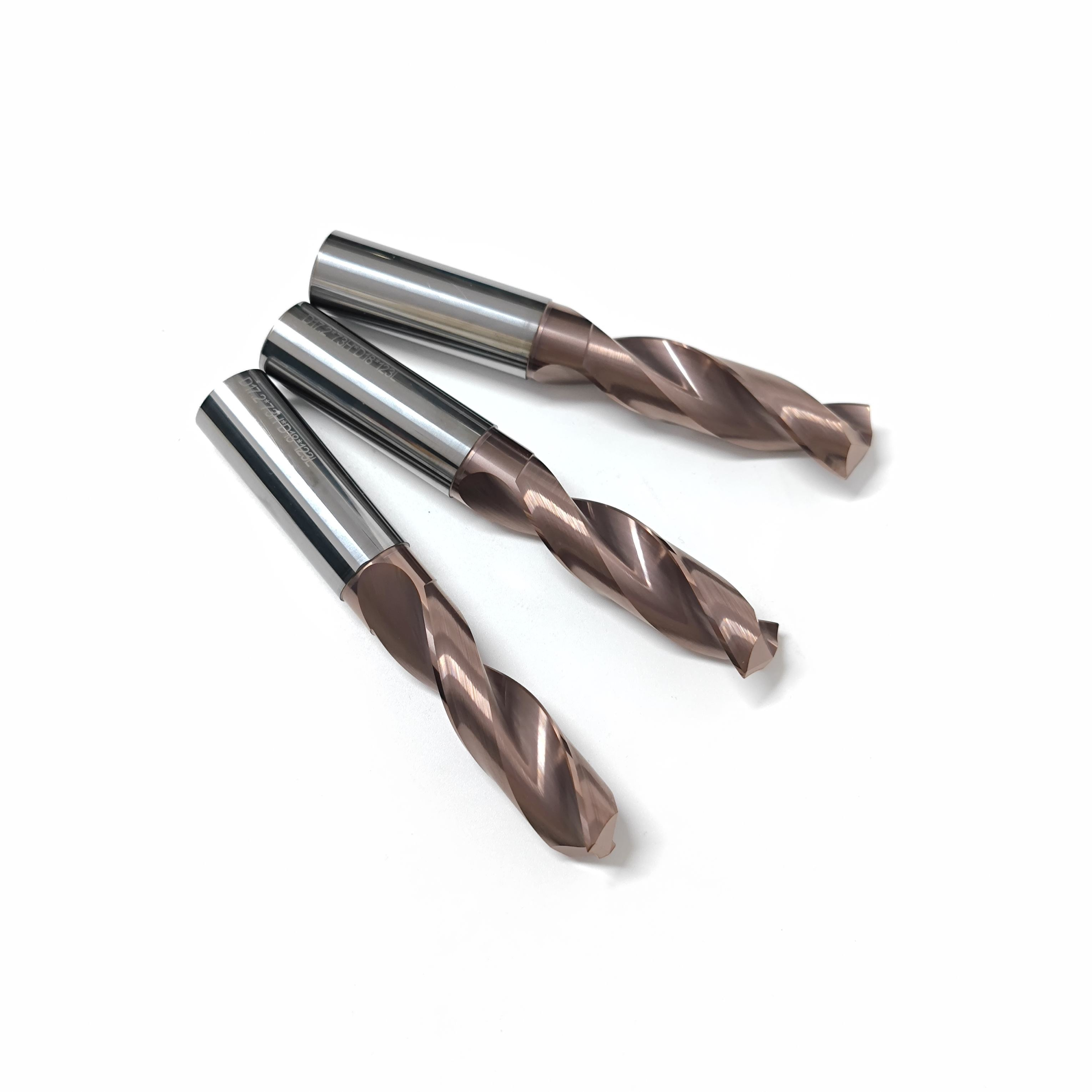

2-Flute Jobber-Length Solid Carbide Twist Drill for Steel Machining
Consistent Quality
Consistent geometry across repeat orders.
Flexible Orders
Small batches and mixed sizes available.
OEM Support
Custom marking, labels and packaging.
Standard & Custom
Standard sizes and custom configurations.

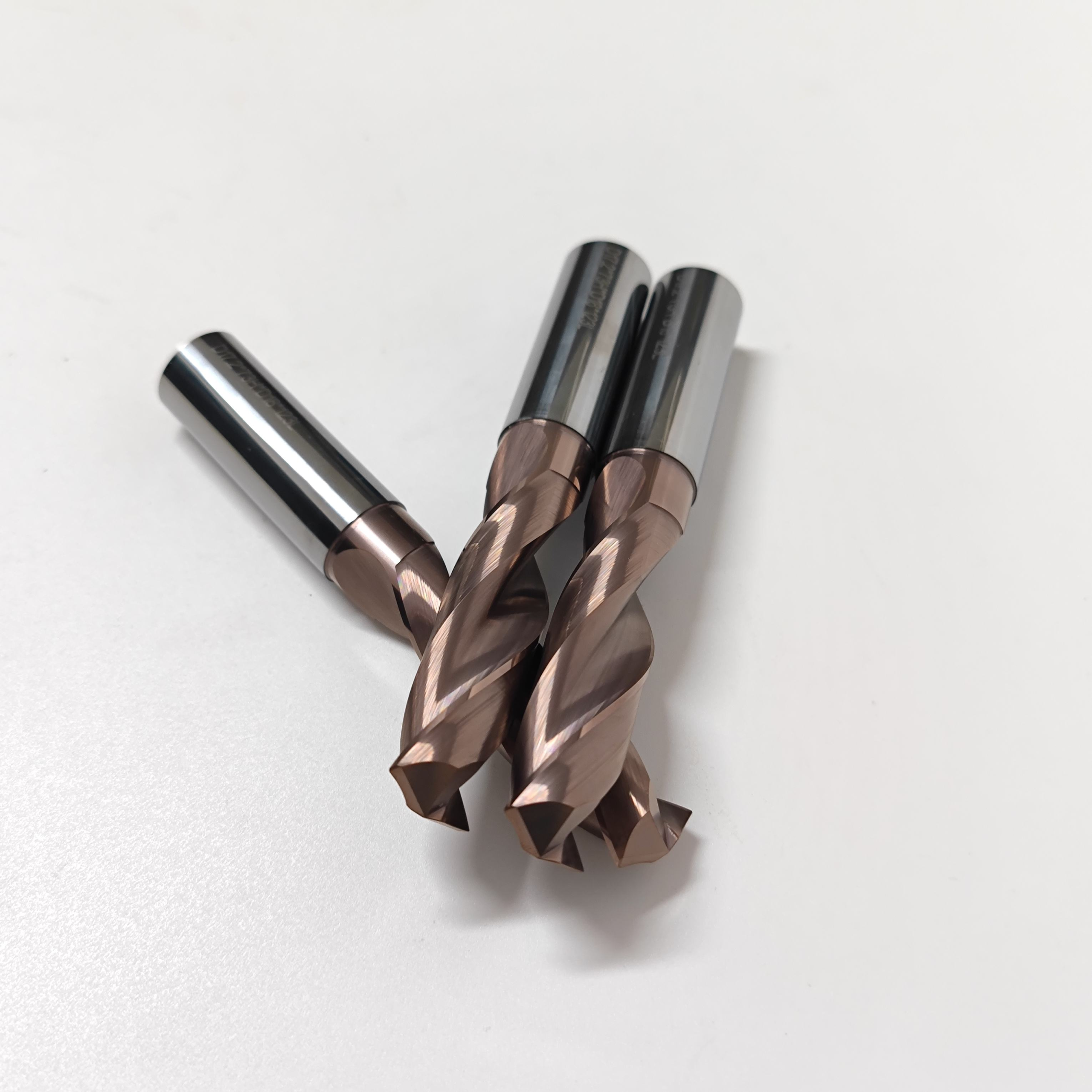

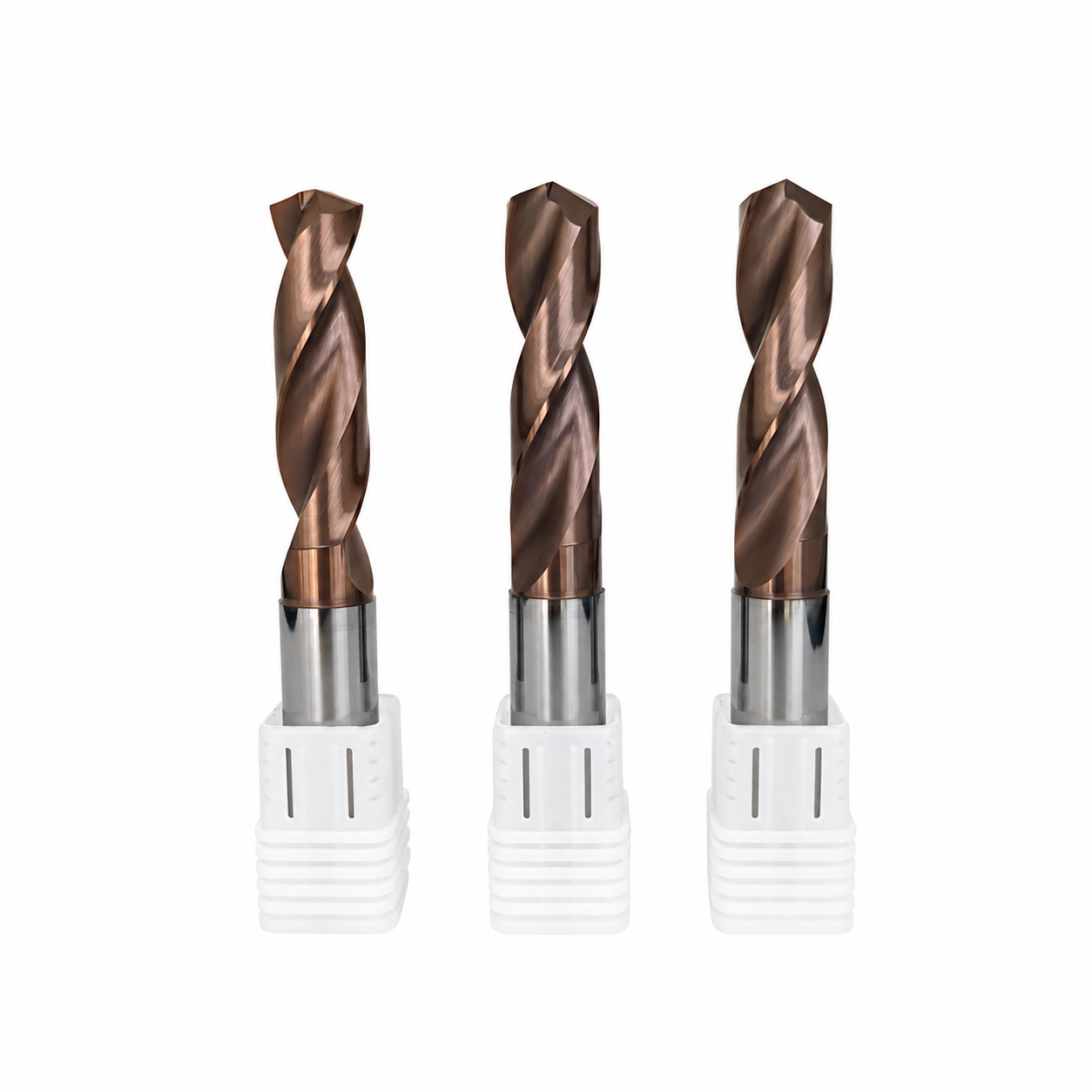

Jobber-Length Carbide Twist Drill
This 2-flute jobber-length solid carbide twist drill is designed for routine CNC drilling where a practical balance of reach, rigidity and chip evacuation is required. Compared with stub drills, the jobber-length configuration provides additional reach while remaining more rigid than long-series tools. Two spiral flutes support chip removal in blind-hole and through-hole machining, while the fine-grain carbide body helps maintain stable hole quality in repeat production. The reference series covers Ø0.5–13.0 mm, with flute length, shank diameter, overall length, point geometry and coating selected according to the required diameter and application.
Ø0.5–13.0 mm
Jobber-Length
2 Spiral Flutes
Fine-Grain Solid Carbide
Key Configuration
Jobber-Length Design
Provides more reach than a stub drill while maintaining better rigidity than a long-series tool for general CNC drilling.
Two Spiral Flutes
Two flutes support steady cutting and chip evacuation in routine blind-hole and through-hole machining.
Flexible Tool Configuration
Point geometry, coating, reinforced shank, length and tolerance can be matched to the workpiece and production requirement.
Key Product Advantages
Balanced Reach & Rigidity
The jobber-length format is suited to general CNC drilling where additional reach is needed without moving to an extra-long tool.
Fine-Grain Carbide Stability
The solid carbide body provides rigidity and cutting-edge stability for repeatable CNC hole production.
Reliable Chip Evacuation
Two spiral flutes provide dedicated chip channels for both blind-hole and through-hole applications.
Standard & Custom Supply
Diameter, flute length, shank, overall length, coating, polishing, tolerance and marking can be customized when required.
Workpiece Material Compatibility
Applications & Target Scope
- General CNC drilling in steel components
- Blind-hole machining
- Through-hole machining
- Small and medium precision holes
- Routine repeat-batch hole production

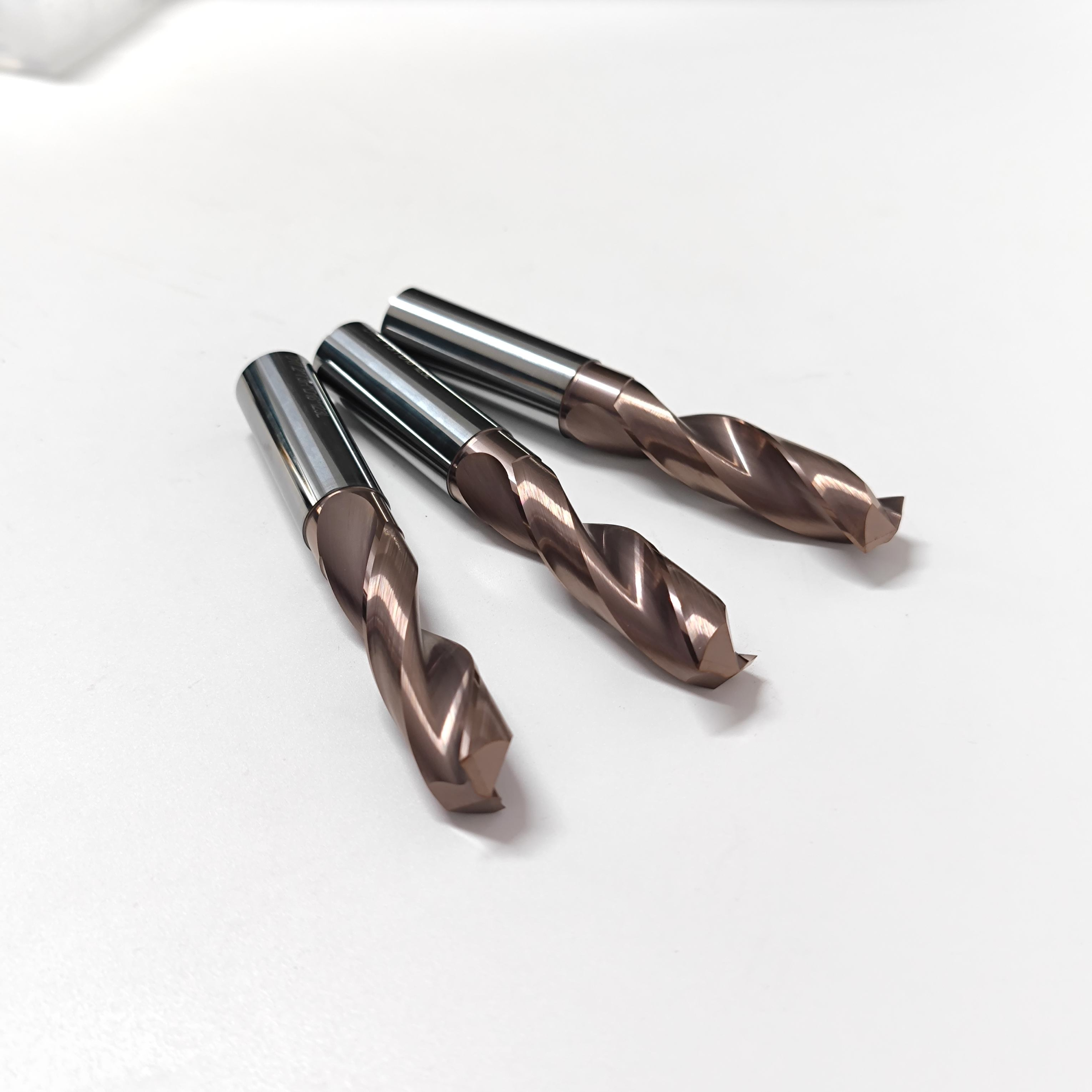

Product & Cutting-Edge Details

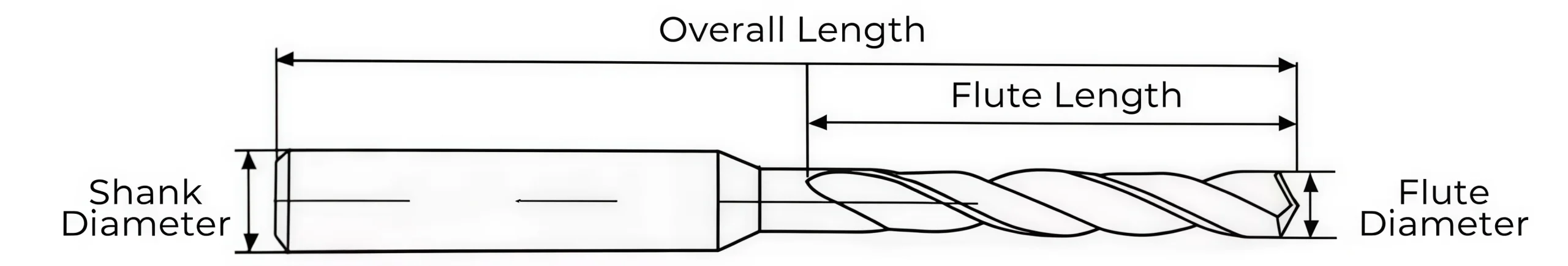

Tool Nomenclature & Dimensions
This jobber-length solid carbide twist drill series is intended for general CNC drilling where balanced reach and rigidity are required. Reference dimensions cover Ø0.5–13.0 mm cutting diameter, 5–77 mm flute length, Ø4–13 mm shank diameter and 50–124 mm overall length. Final L1, d and L depend on the selected cutting diameter and tool configuration.
Reference Size Range
The original product page provides the following dimensional ranges rather than a fixed row-by-row size matrix.
| DIMENSION | REFERENCE RANGE | REMARKS |
|---|---|---|
| Cutting Diameter D | 0.5–13.0 mm | Standard and custom diameters |
| Flute Length L1 | 5–77 mm | Varies with cutting diameter |
| Shank Diameter d | 4–13 mm | Reinforced shank available |
| Overall Length L | 50–124 mm | Jobber-length configuration |
| Custom Dimensions | On Request | Confirm D × L1 × d × L |
Jobber-Length CNC Drilling Guidance
- Use a Precision Holder: Keep spindle and holder runout low to support stable hole position and cutting-edge loading.
- Control Tool Overhang: Keep overhang as short as practical while maintaining the reach required for the hole.
- Maintain Chip Removal: Use reliable external coolant or air blast according to the workpiece and hole condition.
- Match Cutting Data: Speed and feed should be selected according to material, coating, cutting diameter and hole depth.
- Choose the Correct Length Series: Use a stub drill when maximum rigidity is required and a long-series drill when additional reach exceeds the jobber-length range.
Recommended Starting Cutting Parameters
The original product page does not provide a fixed speeds-and-feeds table. Starting parameters should therefore be selected according to the exact steel grade, hardness, drill diameter, coating, hole depth, holder runout and coolant condition.
Solid Carbide Drill Cutting Data Guide
Use the general cutting-data guide as a starting reference after the material, diameter and hole depth are confirmed.
Solid Carbide Drill Product Family Overview
Select the length series according to required reach and rigidity.
Jobber-Length Drill
Balanced Reach & Rigidity (Current)
Stub-Length Drill
Maximum Rigidity / Short Holes
Long-Series Drill
Extended Reach / Deep Features
Custom Twist Drill
Special Diameter / Length
For additional sizes and related drill series, View the Solid Carbide Drill Catalog.
Jobber-Length Steel Drill Customization
Cutting diameter, jobber-length proportions, two-flute geometry, point form, edge preparation, coating and tolerance can be configured for general steel hole machining. Each configuration is reviewed according to the steel grade, hardness, hole depth and required production stability.
Jobber-Length Geometry & Edge Preparation
Point geometry, web thinning, flute profile, margin design and cutting-edge preparation can be configured to support controlled entry, stable chip formation and reliable steel drilling.
Diameter & Jobber-Length Options
Metric, fractional-inch and drawing-defined diameters can be combined with jobber-length or selected custom flute, shank and overall dimensions.
OEM & Private Label Services
OEM manufacturing and private-label supply options for industrial distributors, tooling brands and steel-machining customers.
Laser Etching
Custom laser marking for logos, tool codes, diameter specifications, coating identification and batch numbers.
Custom Packaging
Individual protective tubes, diameter labels, multi-pack boxes, custom inserts and private-label packaging options.
Commercial Terms
Flexible MOQ options for standard configurations, custom sizes, trial orders and scheduled repeat supply.
Technical Workflow
Inquiry
Submit the steel grade, hardness, hole dimensions, tolerance and quantity.
Engineering
Jobber-length dimensions, point geometry, edge preparation and coating are reviewed.
Commercial
Quotation, MOQ, production schedule and delivery terms are confirmed.
Production
CNC grinding, point formation, edge preparation, coating and tool identification.
Quality Control
Diameter, flute length, point geometry, runout and cutting edges are inspected.
Inspection & Quality Control
Drill dimensions, cutting-edge geometry and visible surface condition are checked according to the confirmed product specification and application requirements.
Protective Packing for Shipment
Finished drills are protected individually before batch labeling and export-carton reinforcement.
Individual Tool Protection
Each drill is individually protected in a plastic tube to reduce contact damage during storage, handling and transportation.
Batch & Label Verification
Tools are grouped and labeled by specification to support order verification before carton packing.
Export Carton Protection
Batch packaging, cushioning materials and reinforced export cartons are selected according to the order quantity and shipping method.
Reference Lead Time
The following timeframes are general references. Availability and production scheduling are reviewed for each order.
Shipping Options
Shipping arrangements can be selected according to order size, delivery schedule and destination.
Product FAQs
Product-specific information about jobber-length carbide drilling, 2-flute geometry, steel machining, chip evacuation, toolholding and machining setup.
What is a jobber-length solid carbide twist drill used for?
A jobber-length solid carbide twist drill is intended for general CNC hole machining where more reach is required than a stub-length drill but an extra-long tool is unnecessary. It provides a practical balance between drilling reach, tool rigidity and chip evacuation for routine steel machining.
What types of steel can this drill be used for?
The drill can be configured for carbon steel, alloy steel and other confirmed steel grades. Final carbide grade, point geometry, edge preparation and coating should be selected according to the exact material grade, hardness, heat treatment and required hole depth.
Why does this drill use two spiral flutes?
The two-flute geometry provides two cutting edges and dedicated chip channels for continuous chip removal during drilling. Stable chip evacuation is especially important in blind holes and deeper jobber-length applications where chips must travel farther before leaving the hole.
What machining conditions are important for accurate steel drilling?
Use a rigid CNC machine, accurate toolholder, low spindle runout, secure workpiece clamping and the shortest practical tool overhang. Stable feed, controlled entry and reliable coolant delivery also help maintain hole position, diameter and cutting-edge condition.
Can the diameter, flute length and coating be customized?
Yes. Cutting diameter, flute length, overall length, shank diameter, point geometry, edge preparation and coating can be reviewed according to the steel grade, hole depth, tolerance and CNC setup. Non-standard dimensions can also be evaluated from a drawing or existing tool sample.
What information is required for a quotation?
Please provide the cutting diameter, hole depth, blind-hole or through-hole requirement, steel grade, hardness, flute length, shank diameter, overall length, required tolerance, coolant condition, machine type and quantity. A drawing is recommended for non-standard dimensions or special hole requirements.
Ordering & OEM FAQs
General information for trial orders, mixed sizes, OEM marking and repeat distributor supply.
Do you accept small trial orders?
Yes. Small trial quantities can be reviewed for hole-quality testing, dimensional verification, chip-evacuation evaluation and tool-life comparison before larger repeat orders.
Can mixed drill sizes be ordered together?
Yes. Different cutting diameters and length configurations can normally be combined in one order when the carbide grade, geometry, coating and production requirements are compatible.
Is OEM laser marking available?
Yes. Logo, item code, tool size and batch identification can be reviewed for laser marking where the available shank area permits. Custom labels and private-brand packaging are also available for OEM programs.
What is the typical production lead time?
Lead time depends on cutting diameter, flute length, coating, custom geometry and order quantity. Final production scheduling is confirmed after the tool specification and application requirements are approved.
