DNMG 1504/1506 Carbide Turning Inserts for Steel and Stainless Steel

DNMG1504 and DNMG1506 carbide turning inserts are designed for stable external turning, facing and profiling of steel and stainless steel. Available in multiple thicknesses, corner radii, grades, coatings and chipbreakers, the series supports finishing, medium machining and roughing with reliable chip control, strong cutting edges and consistent quality across repeat orders.

◆Complete DNMG1504 and DNMG1506 model coverage
◆Multiple grades and chipbreakers for steel and stainless steel
◆Mixed-model orders and private-label packaging
◆Stable batch-to-batch quality for repeat wholesale orders

Models
DNMG150404 / 150408 / 150412
DNMG150604 / 150608 / 150612
Materials & Operations
Steel / Stainless Steel · Turning / Facing / Profiling
Grade & Chipbreaker
PVD / CVD options · Finishing / Medium / Roughing
Pack & Supply
10 pcs / box · Mixed models · Neutral / Private-label packaging

Consistent Quality

Consistent geometry across repeat orders.

Flexible Orders

Small batches and mixed sizes available.

OEM Support

Custom marking, labels and packaging.

Standard & Custom

Standard sizes and custom configurations.

◆Product Overview

The DNMG 1504/1506 carbide turning insert series provides a practical 55° diamond insert range for external turning, facing and profiling of steel and stainless steel. Multiple corner radii, grades, coatings and chipbreakers support finishing, medium machining and roughing applications.

Customers building a broader CNC insert range can compare DNMG inserts with our complete turning and milling insert range. Mixed-model orders, neutral packaging and private-label options can be confirmed according to the selected models and order quantity.

Quick Procurement Summary
Model Coverage DNMG150404 / 150408 / 150412 · DNMG150604 / 150608 / 150612
Materials & Operations Steel / Stainless Steel · Turning / Facing / Profiling
Grade & Chipbreaker PVD / CVD options · Finishing / Medium machining / Roughing
Pack & Supply Reference pack: 10 pieces per box · Mixed models · Neutral or private-label packaging

DNMG 1504 and 1506 carbide turning insert series

Coated DNMG carbide turning inserts for steel and stainless steel

DNMG turning insert grades chipbreakers and coating options

◆Available Models & Dimensions

Select the insert thickness and corner radius according to the toolholder, workpiece drawing and machining conditions. All dimensions are in millimeters.

ISO Model ANSI Reference IC Thickness Corner Radius Typical Selection
DNMG150404 DNMG 431 12.70 4.76 0.4 Finishing / Light cutting
DNMG150408 DNMG 432 12.70 4.76 0.8 General-purpose turning
DNMG150412 DNMG 433 12.70 4.76 1.2 Stronger corner
DNMG150604 DNMG 441 12.70 6.35 0.4 Thicker insert / Fine radius
DNMG150608 DNMG 442 12.70 6.35 0.8 Thicker insert / General use
DNMG150612 DNMG 443 12.70 6.35 1.2 Thicker insert / Strong corner

Reference dimensions only. Confirm the complete insert code, toolholder seat, chipbreaker and carbide grade before ordering.

◆Grade and Chipbreaker Selection

◆

Steel turning:
select the coating and chipbreaker according to finishing, medium machining or roughing requirements, together with cutting continuity and machine stability.

◆

Stainless-steel turning:
use an application-matched geometry that supports chip flow and helps control cutting heat and built-up edge.

◆

Replacement matching:
send the current insert code, grade, chipbreaker, workpiece material and cutting conditions for a more accurate recommendation.

Learn more about insert shapes and carbide grades in our carbide insert selection guide.

◆Customer Purchasing Support

Complete Core Model Coverage

DNMG1504 and DNMG1506 thickness series are available with 0.4, 0.8 and 1.2 mm corner-radius options.

Mixed-Model Order Support

Selected models and grades can be combined according to the confirmed customer purchasing plan.

Neutral and Private-Label Packaging

Neutral boxes, customer SKU labels, barcode labels and branded packaging are available by confirmation.

Product Information Support

Product images, specifications and catalogue materials can be provided to support customer product selection and resale.
full series of carbide turning inserts hy cutting tools Images of carbide inserts hy cutting toolscommon problem solution for carbide inserts

Information Required for Quotation

Please provide the complete DNMG insert code, required grade or workpiece material, toolholder model, order quantity and packaging requirements. Clear photographs of the current insert and holder markings can help us verify the correct replacement.

◆Specifications & Size Chart

The dimension chart lists six DNMG 1504/1506 carbide turning inserts. DNMG is a 55° diamond, 0° relief insert family with a central fixing hole. The 1504 and 1506 groups share the listed 12.7 mm inscribed circle and 5.16 mm hole diameter, while thickness changes from 4.76 to 6.35 mm. Select the complete code, including the charted HQ or CQ geometry suffix, and confirm its carbide grade and coating.

Charted Model L (mm) IC (mm) S (mm) d (mm) r (mm)
DNMG150404-HQ 15.5 12.7 4.76 5.16 0.4
DNMG150408-HQ 15.5 12.7 4.76 5.16 0.8
DNMG150412-HQ 15.5 12.7 4.76 5.16 1.2
DNMG150604-HQ 15.5 12.7 6.35 5.16 0.4
DNMG150608-HQ 15.5 12.7 6.35 5.16 0.8
DNMG150612-CQ 15.5 12.7 6.35 5.16 1.2
Dimension note: L is the dimension marked L in the source drawing; IC is inscribed-circle diameter, S is thickness, d is fixing-hole diameter and r is corner radius. The diagram uses DNMG150608-MA as a code example, but MA is not listed among the six dimensional rows. The listed DNMG150612 uses CQ, not HQ. Confirm chipbreaker, grade and availability by complete code.

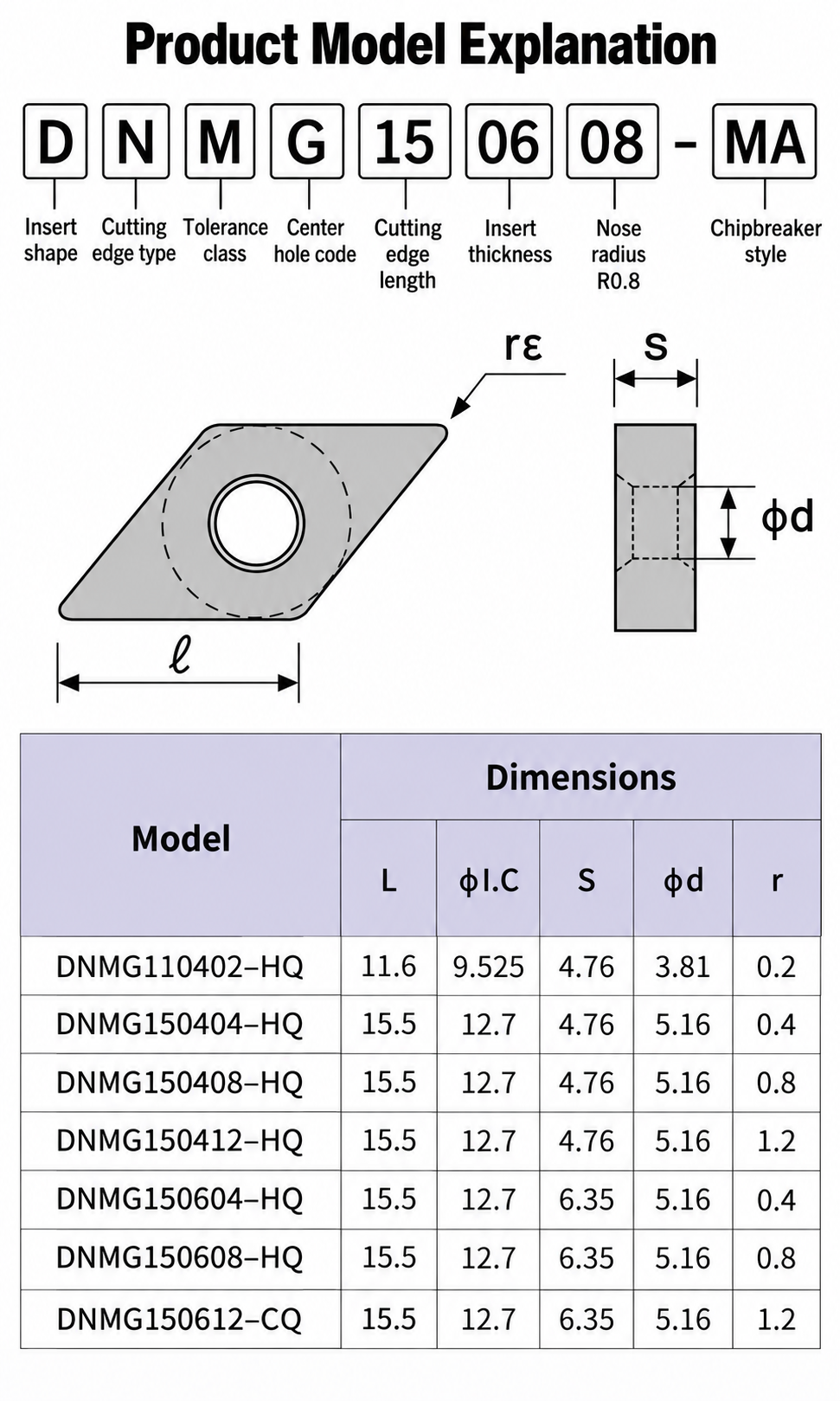

DNMG1504 and DNMG1506 insert designation and dimension chart with HQ and CQ models
Source dimension chart; use the complete model and grade when requesting the current drawing.

◆Specification Checklist by Model

Parameter Details to Confirm
Insert geometry 55° diamond, 0° relief, fixing-hole and chipbreaker configuration matched to the holder.
Thickness and radius 1504: S 4.76 mm; 1506: S 6.35 mm. Listed corner radii: 0.4, 0.8 and 1.2 mm.
Chipbreaker HQ or CQ as charted; confirm the manufacturer's application and operating range for the selected suffix.
Grade and coating Carbide grade, actual coating designation, workpiece group and cut-continuity range. PVD/CVD availability depends on the ordered configuration.
Holder compatibility Holder pocket, seat, clamp and thickness compatibility, especially when changing from 1504 to 1506.
Pack and supply Overview reference: 10 pieces per box; confirm final pack quantity, MOQ, stock and lead time by full code.

◆How to Select a Compatible DNMG Insert

1. Check holder fitVerify the 55° pocket, fixing hole, clamp, seat and the required 1504 or 1506 thickness.
2. Choose the corner radiusCompare 0.4, 0.8 and 1.2 mm against the profile, required finish, feed and machine rigidity.
3. Match grade and geometrySpecify steel or stainless-steel grade, hardness, cut continuity, coolant and finishing or roughing load.
4. Validate a sampleRecord cutting parameters and compare chip form, wear, finish and dimensions on the actual workpiece.

For a broader selection process, see the CNC Insert Selection Guide.

◆Starting Cutting Data

The supplied dimension chart does not give cutting speed, feed or depth-of-cut ranges. Select starting values only after confirming the exact carbide grade, coating, chipbreaker, steel or stainless-steel grade, holder overhang and coolant. Record the full setup before changing parameters.

Trial note: Observe chip evacuation, edge wear, built-up edge, surface finish and dimensional stability. A thicker 1506 insert or larger radius does not by itself establish a permissible feed or depth of cut; use the grade and geometry supplier's operating window.

◆Related Series & Technical References

Compare other turning-insert shapes in the carbide turning and milling insert range. For the complete DNMG code, compatible holder, grade-specific cutting data or a quotation, send your workpiece and insert requirements.

◆Carbide Insert Customization & OEM

Specify the insert around the machining operation, workpiece and holder. We can review standard replacements, application-specific geometry and private-label requirements using your insert designation, drawing or sample. Available grades, coatings, dimensions and order quantities are confirmed for each requested series.

Geometry & Chip Control

Review chipbreaker, rake, cutting-edge preparation, nose radius and corner design for the operation and workpiece. Confirm holder compatibility before approving a modified geometry.

Substrate & Coating

Select an available carbide grade and coating for the workpiece material, cutting conditions and desired balance of wear resistance and edge toughness.

Dimensions & OEM

Review insert size, thickness, locating and clamping features, tolerances, laser marking and private-label packaging against the approved specification.

◆Customization Options

Use the fields below when sending an inquiry. The exact options depend on the insert family and are confirmed in the quotation or approved drawing.

Specification Details to Confirm
Insert Type Turning, milling, threading, grooving or drilling insert; send the designation or drawing.
Size & Fit Shape, size, thickness, inscribed circle or edge length, hole or clamping form, and holder model.
Cutting Geometry Chipbreaker, nose or corner radius, edge preparation, cutting direction and application-specific profile.
Grade & Coating Workpiece group and grade, carbide substrate, coating system and wet or dry cutting conditions.
Tolerance & Inspection Critical dimensions, profile requirements, inspection method and any required report.
OEM Presentation Insert or box marking, label content, packaging format and quantity per pack.

◆How to Request a Custom Insert

HY Cutting Tools Carbide Inserts series photo
01 · Share the ReferenceSend a designation, drawing, sample photos and holder model.
02 · Describe the CutState the workpiece, operation, cutting conditions and current problem.
03 · Confirm the ProposalReview geometry, grade, coating, tolerance, quantity and sample plan.
04 · Approve the OrderApprove the final drawing, marking, packaging and delivery terms.
Specification Note: A matching ISO designation does not by itself establish the same chipbreaker, carbide grade, coating or cutting performance. Confirm the complete configuration before ordering a replacement.

Send your insert requirements through our contact form or review our OEM and private-label service.

◆Carbide Insert Quality Control

quality control carbide inserts hy cutting tools

Insert quality depends on the approved grade, geometry, coating and dimensional specification. We review the requirements at order confirmation and align the inspection scope with the insert series and any customer drawing. Share critical dimensions or documentation needs before production so they can be included in the agreed inspection plan.

01 · Incoming Material

Confirm the specified carbide grade or material documentation against the order requirements.

02 · In-Process Checks

Review dimensions and cutting-edge features during production against the approved specification.

03 · Final Inspection

Check the agreed dimensions, appearance, edge condition, coating identification and marking as applicable.

04 · Packing Review

Verify the item code, quantity, labels and protective packing against the approved order.

◆Inspection & Documentation

Inspection points and acceptance criteria should be agreed for the ordered series. For custom inserts, the approved drawing takes priority over a generic catalogue description.

Check Area What to Confirm
Dimensions & Fit Insert size, thickness, corner radius, clamping features and any drawing tolerances.
Cutting Geometry Chipbreaker, edge preparation, usable corners and profile where applicable.
Grade & Coating Approved grade and coating designation; any requested verification method.
Appearance & Packing Visible edge damage, marking, item code, count and packing format.
Requested Records Inspection report, material or coating documentation, sample approval or batch identification when agreed.
Quality Note: Inspection method, sampling level and documentation vary by product and order. If a dimension, coating property or report is critical, include its acceptance criteria in the purchase specification before production.

◆Order & Delivery

HY Cutting Tools Carbide Inserts series collection photo
HY Cutting Tools Carbide Inserts series with package

Share a line-by-line list of insert codes and quantities for a mixed-size quotation. Stock status, minimum quantity, sample requirements and production lead time are confirmed for each grade, coating and configuration.

Stock & MOQConfirm by item code and requested quantity.
Samples & ApprovalAgree the sample specification and evaluation criteria before a custom production order.
Lead TimeConfirm dispatch timing after specifications, quantity and packaging are approved.
Packing & ShippingAgree box labels, pack quantity, shipping method and required documents.

Send your item list and quality requirements through our contact form for specification, availability and delivery confirmation.

◆Product FAQs

What is the difference between DNMG1504 and DNMG1506?

The supplied chart lists the same 12.7 mm inscribed circle and 5.16 mm fixing-hole diameter for both groups. DNMG1504 is 4.76 mm thick; DNMG1506 is 6.35 mm thick. Check the holder seat and clamp before changing thickness, even when the insert shape and nose radius match.

Which corner radii are listed for this DNMG series?

The listed 04, 08 and 12 endings correspond to 0.4, 0.8 and 1.2 mm corner radii. Each radius appears in both thickness groups in the supplied chart. Choose the radius with the required profile, feed, finish and machine rigidity in mind; also verify the complete suffix and grade.

Are these DNMG inserts suitable for both steel and stainless steel?

The DNMG shape alone does not determine material suitability. Provide the workpiece grade and hardness, operation, continuous or interrupted cut, coolant and required finish. Confirm a carbide grade, coating and chipbreaker approved for the specific steel or stainless-steel application.

What do the HQ and CQ suffixes mean?

HQ and CQ identify supplier-specific cutting geometries in the supplied dimension chart. Five listed 1504/1506 models have HQ; DNMG150612 has CQ. The chart does not define their feed and depth-of-cut ranges, so confirm the chipbreaker application and availability for the complete ordering code.

Is DNMG150608-MA available in this series?

The illustration uses DNMG150608-MA to explain the designation, but the dimensional rows list DNMG150608-HQ instead. The example does not establish MA availability, grade or cutting data. Request confirmation if MA is the geometry you need.

Can a matching DNMG size code replace another manufacturer's insert?

Compare the full code, thickness, hole and seat dimensions, chipbreaker, edge preparation, grade and coating. Verify the holder fit and test the proposed replacement on the actual workpiece. A matching nominal size does not guarantee the same chip control or tool life.

◆Ordering & OEM FAQs

Can I combine DNMG1504 and DNMG1506 models in one order?

Send a line-by-line list with each complete model, geometry suffix, carbide grade and quantity. Mixed-model supply, minimum quantity, stock status and lead time are confirmed for the selected combinations.

How many inserts are packed per box?

The supplied Overview lists 10 pieces per box as a reference. Confirm the pack quantity and box-label details for the exact model and grade in the quotation, especially for mixed-model orders.

Are neutral or private-label boxes available?

The Overview offers neutral and private-label packaging by confirmation. Provide your artwork, barcode or customer SKU, required label information, model mix and quantity so the packaging specification and lead time can be reviewed.

What should I send for a sample or quotation?

Provide the complete DNMG code and grade, holder model, steel or stainless-steel grade, operation, current cutting conditions, quantity and packaging needs. For replacement matching, include photos of the original insert and box label, then compare sample wear, finish and chip control under recorded conditions.

◆Guides & Technical References

Use the CNC Insert Selection Guide for shape, nose-radius, grade and chipbreaker selection. The Carbide Insert Types Guide explains other turning-insert families.

For a model-specific drawing, grade-specific cutting data or quotation, send the complete DNMG and holder codes with your workpiece, application and quantity.

Need Sizes, Pricing or Custom Options?

Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.

Standard Sizes Small Trial Orders Mixed Sizes OEM & Custom Options
Request Price & Specifications Chat on WhatsApp

Drawings, size lists and reference photos are welcome.
