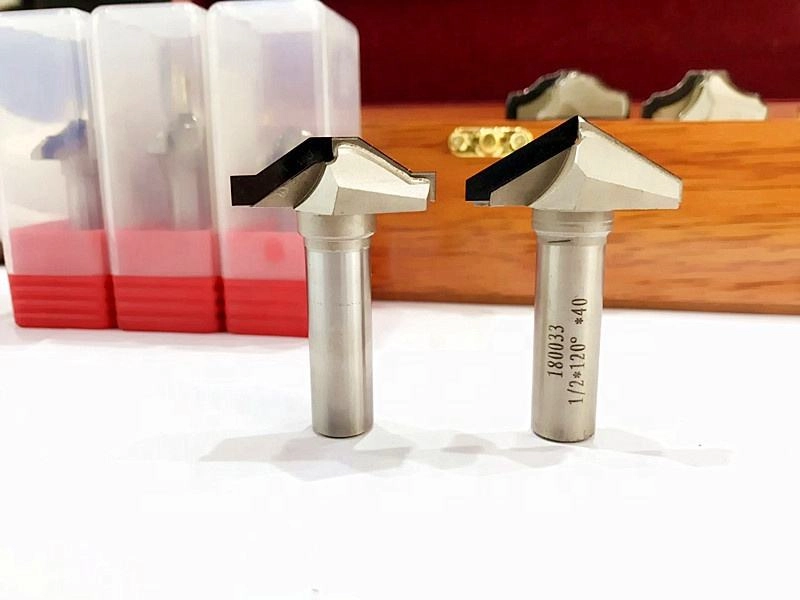

90°/120° PCD V-Groove Router Bit for Woodworking
Available in 90° and 120° angles for precise V-grooving, chamfering, and decorative slotting in woodworking applications.
PCD V slotting bit for woodworking, available in 90° and 120° angles for clean grooving, chamfering, and decorative panel machining.
⚙ Configurations
- Material: PCD
- Type: V Slotting Bit
- Angle: 90° / 120°
- Shank Diameter: 12.7mm
- Application: Woodworking
- Suitable For: MDF, plywood, particle board, laminated boards
- Customization: Available
Consistent Quality
Consistent geometry across repeat orders.
Flexible Orders
Small batches and mixed sizes available.
OEM Support
Custom marking, labels and packaging.
Standard & Custom
Standard sizes and custom configurations.
| Product Overview |
PCD V slotting bit is designed for precision V-grooving, chamfering, and decorative panel processing in CNC woodworking applications. Available in both 90° and 120° angles, it helps manufacturers achieve cleaner groove profiles, more consistent edge lines, and stable machining performance in repeated production.
This tool is especially suitable for wood-based panels such as MDF, particle board, plywood, laminated board, melamine-faced panels, and veneered materials. With a wear-resistant PCD cutting edge, it offers longer service life and more stable machining quality than conventional carbide tools in abrasive board processing.
| Product Features |
| 90° vs 120° Selection Guide |
| Application Materials |
| Typical Applications |
| Application | Description |
|---|---|
| Furniture Panel Grooving | Used for decorative V-line grooves and design features on cabinet doors, wardrobes, and furniture panels. |
| Chamfering | Suitable for edge beveling and profile finishing where a clean chamfer line is required. |
| Decorative Slotting | Ideal for decorative panels and visible groove designs in interior woodworking projects. |
| Panel Surface Profiling | Can be used in CNC panel processing where angle consistency and groove appearance are important. |
| Processing Video |

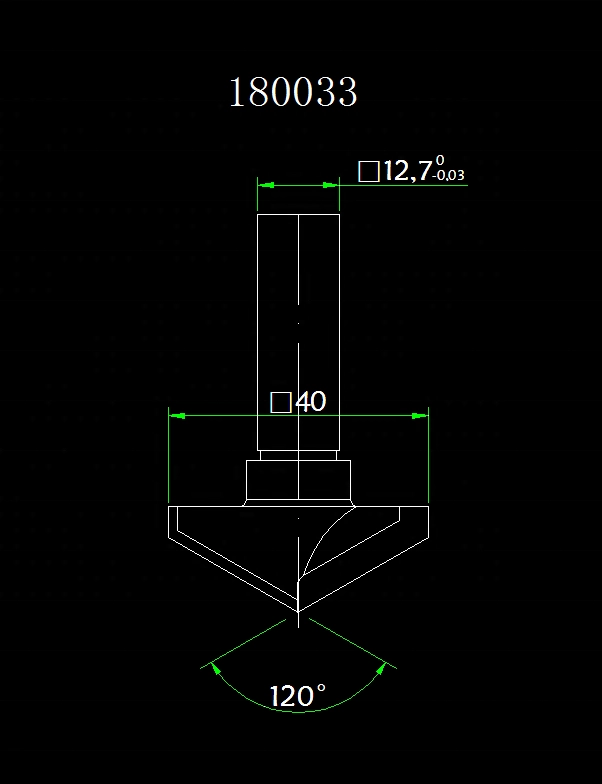

| Structure and Dimension Reference |
| Machining Result Display |
| Product Specifications |
| Material | PCD |
| Type | V Slotting Bit |
| Available Angles | 90° / 120° |
| Shank Diameter | 12.7mm or customized |
| Application Materials | MDF, particle board, plywood, laminated board, melamine faced board, veneered panels |
| Application | V-grooving, chamfering, decorative slotting, panel profiling |
| Customization | Available |
| Size Table |
| Item Code | Specification | D (mm) | H (mm) | V | d (mm) | L (mm) | Z |
|---|---|---|---|---|---|---|---|
| HY06001 | 1/2″*10*90°*2Z | 10 | 9 | 90° | 12.70 | 60 | 2Z |
| HY06002 | 1/2″*1/2″*90°*2Z | 12.70 | 10.35 | 90° | 12.70 | 60 | 2Z |
| HY06003 | 1/2″*5/8″*90°*2Z | 15.90 | 13.95 | 90° | 12.70 | 60 | 2Z |
| HY06004 | 1/2″*1″*90°*2Z | 25.40 | 17.70 | 90° | 12.70 | 60 | 2Z |
| HY06005 | 1/2″*30*90°*2Z | 30 | 20 | 90° | 12.70 | 60 | 2Z |
| HY06006 | 1/2″*35*90°*2Z | 35 | 22.50 | 90° | 12.70 | 65 | 2Z |
| HY06007 | 1/2″*40*90°*2Z | 40 | 25 | 90° | 12.70 | 65 | 2Z |
| HY06008 | 1/2″*50*90°*2Z | 50 | 30 | 90° | 12.70 | 75 | 2Z |
Remark: The models and specifications listed are partial; more options and customizations are available.
| Item Code | Specification | D (mm) | H (mm) | V | d (mm) | L (mm) | Z |
|---|---|---|---|---|---|---|---|
| HY07001 | 1/2″*1/2″*120°*2Z | 12.70 | 8.65 | 120° | 12.70 | 60.42 | 2Z |
| HY07002 | 1/2″*5/8″*120°*2Z | 15.90 | 9.59 | 120° | 12.70 | 54.59 | 2Z |
| HY07003 | 1/2″*1″*120°*2Z | 25.40 | 12.33 | 120° | 12.70 | 57.33 | 2Z |
| HY07004 | 1/2″*35*120°*2Z | 35 | 15.10 | 120° | 12.70 | 60.10 | 2Z |
| HY07005 | 1/2″*40*120°*2Z | 40 | 16.55 | 120° | 12.70 | 61.55 | 2Z |
| HY07006 | 1/2″*50*120°*2Z | 50 | 19.43 | 120° | 12.70 | 64.43 | 2Z |
Remark: The models and specifications listed are partial; more options and customizations are available.
| Recommended Tool Guide |
| Material | Recommended Version | Suggestion |
|---|---|---|
| MDF | 90° / 120° PCD | Select by groove angle and panel design requirement |
| Particle Board | PCD recommended | Better wear resistance in abrasive boards |
| Laminated Board | PCD recommended | Good for longer production life and cleaner finished edges |
| Decorative Panels | 90° or 120° | Choose according to final groove appearance |
| Quality Control |
Each PCD V slotting bit is produced with attention to edge integrity, angle consistency, and dimensional stability to support repeatable woodworking performance.
Before shipment, tools can be checked for key dimensions, overall finish, and structural consistency to help ensure reliable installation and stable machining results in panel production.
Need Sizes, Pricing or Custom Options?
Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.
Drawings, size lists and reference photos are welcome.
