3+3 PCD Compression Spiral Router Bit for CNC Nesting

Engineered for high-volume CNC nesting with cleaner panel edges, reduced chipping, and extended tool life in woodworking production.

Premium 3+3 PCD compression spiral router bit for CNC nesting, delivering clean top and bottom edges, reduced chipping, longer life, and stable panel processing performance.

⚙ Configurations

Material: Polycrystalline Diamond (PCD)
Body Material: High-strength steel body
Flutes: 3+3 compression spiral
Type: PCD Compression Spiral Router Bit
Hardness: Ultra wear-resistant PCD grade
Helix Angle: Compression spiral geometry
Cutting Direction: Upcut + Downcut
Application Materials: MDF, particle board, plywood, laminated board, melamine board, chipboard, engineered wood panels

Get a Quote Chat On WhatsApp

Consistent Quality

Consistent geometry across repeat orders.

Flexible Orders

Small batches and mixed sizes available.

OEM Support

Custom marking, labels and packaging.

Standard & Custom

Standard sizes and custom configurations.

 Product Overview

3+3 PCD compression spiral router bit is designed for CNC nesting, panel sizing, and precision cutting applications, delivering cleaner top and bottom edges, reduced chipping, and stable cutting performance in high-volume woodworking production.

It is especially suitable for MDF, particle board, plywood, melamine board, laminated panels, and other engineered wood materials where compression cutting quality, edge finish, and long tool life are required.

 Product Features
Enhanced Compression Cutting
The 3+3 compression structure provides stronger cutting balance and supports cleaner top and bottom edges in demanding panel processing applications.
Reduced Edge Chipping
Designed to minimize chipping and improve finishing quality when machining laminated boards, melamine-faced panels, and decorative surfaces.
Long Tool Life
PCD cutting edges provide excellent wear resistance and much longer service life than conventional carbide tools in continuous CNC nesting production.
Custom Size Available
Cutting diameter, cutting length, shank diameter, and overall length can be customized to match different CNC router and nesting machine requirements.

 Why Choose PCD Tools

Compared with conventional carbide tools, PCD tools offer longer service life, better wear resistance, smoother cutting performance, and higher efficiency in demanding CNC woodworking and nesting applications.

PCD tools vs carbide tools comparison for CNC woodworking
Longer Tool Life
PCD tools can provide significantly longer service life than standard carbide tools in high-volume panel processing.
Better Wear Resistance
PCD cutting edges offer stronger wear resistance, making them ideal for abrasive board materials and continuous CNC production.
Cleaner Cutting Results
PCD tools help achieve smoother surfaces, cleaner edges, and more stable cutting quality in nesting and routing applications.
Higher Production Efficiency
With longer service intervals and stable machining performance, PCD tools are well suited for demanding industrial woodworking.

 Compression Cutting Advantage

The 3+3 compression spiral design is ideal for panel cutting applications that require cleaner upper and lower edges, reduced chipping, and more stable finishing quality on laminated and melamine-faced materials.

Cleaner Top and Bottom Edges
Suitable for compression cutting where better edge appearance is required on both surfaces of the board.
Better Finish on Laminated Boards
Helps reduce chipping and supports cleaner cutting results on melamine, laminated board, and decorative panels.

 Why Choose 3+3 Instead of 2+2?

Compared with standard 2+2 compression spiral tools, the 3+3 design provides more cutting edges in engagement, helping improve cutting stability, edge consistency, and performance in demanding CNC nesting and panel production applications.

Comparison Item 2+2 Compression Spiral 3+3 Compression Spiral
Cutting Edge Count Standard configuration for general compression cutting √ More cutting edges for smoother and more balanced engagement
Cutting Stability Suitable for regular nesting work √ Better stability in continuous and demanding production
Edge Finish Quality Good top and bottom edge quality √ Cleaner and more consistent finish on laminated panels
Production Suitability Common choice for standard production √ Better suited for higher-volume and higher-standard panel processing
Recommended Scenario General CNC routing and nesting applications √ Factories requiring better finish quality and more stable long-run performance

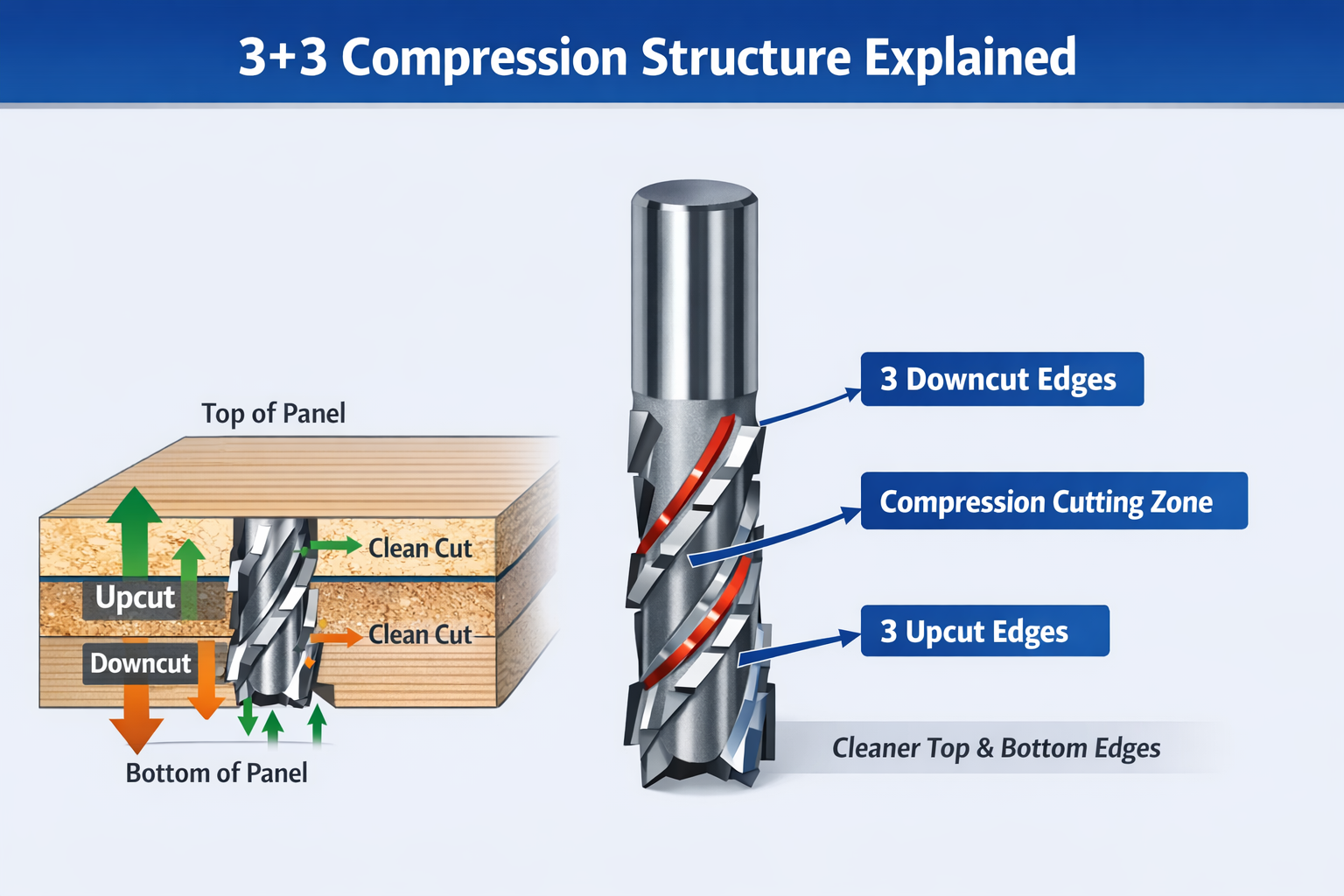

3+3 Compression Structure Explained

The 3+3 compression geometry combines upcut and downcut cutting action in one tool body. With more cutting edges participating in the machining process, it helps improve chip control, cutting smoothness, and edge finish quality in panel processing applications.

3 Upcut Edges
Support efficient chip evacuation from the lower cutting zone and help maintain stable material removal during nesting.
3 Downcut Edges
Help protect the upper surface of the panel and improve cutting quality on laminated and melamine-faced materials.
Compression Cutting Zone
The combined action supports cleaner top and bottom edges, reduced chipping, and more consistent machining results.
3+3 compression spiral router bit structure explained

 When to Choose 3+3 Compression Router Bit

A 3+3 PCD compression spiral router bit is a better choice when your production requires higher finish quality, more stable cutting action, and better long-run consistency than standard compression tools.

For Laminated and Melamine Boards
Recommended when cleaner upper and lower edges are required on decorative surfaces and laminated panels.
For High-Volume CNC Nesting
Suitable for continuous production environments where stable performance and long tool life are important.
For Better Edge Consistency
A good choice when you need more consistent edge quality across different panel batches and long machining cycles.
For Upgrading from Standard 2+2
Ideal for customers looking for a higher-level compression cutting solution with improved stability and finish performance.

 Series Display

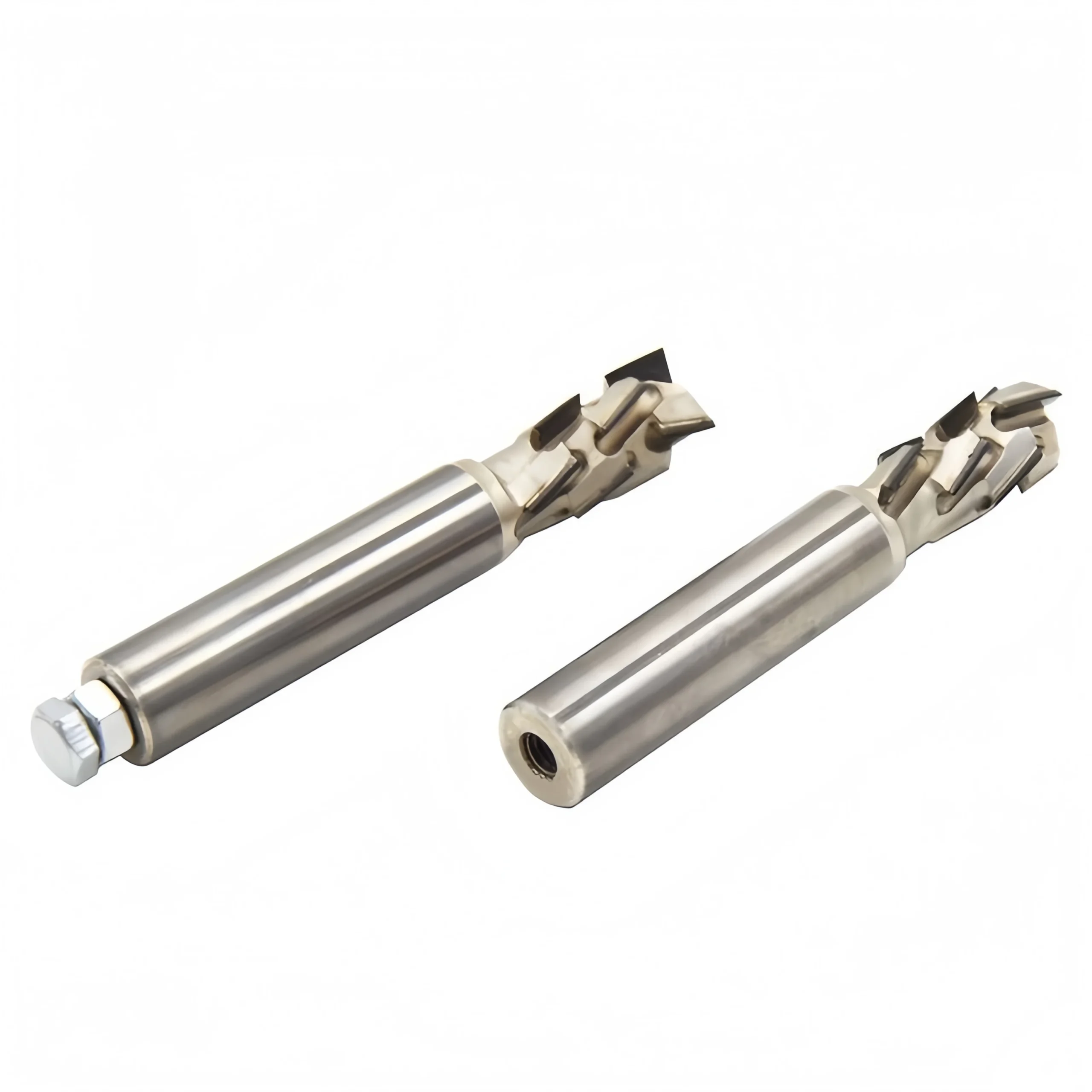

3+3 PCD Compression Spiral Router Bit for CNC Nesting 1

The 3+3 cutting edge configuration is widely used for CNC nesting and compression cutting, helping improve edge finish, cutting stability, and machining consistency in demanding board processing applications.

3+3 Compression Structure
Designed for cleaner compression cutting performance and more stable processing in high-volume nesting work.
Ideal for Panel Production
Suitable for CNC router and nesting machines used in furniture, cabinet, and laminated board production lines.

 Application Materials

Suitable for common wood-based panels used in CNC nesting, panel cutting, and precision woodworking production.

MDF
Plywood
Particle Board
Laminated Board
Melamine Board
HDF
Chipboard
Wood-Based Composite Panels

 Product Specifications

MaterialPCD DiamondBody MaterialSteel Body / Custom AvailableType3+3 Compression Spiral Router BitApplicationCNC Routing / Nesting / Compression CuttingCutting Edge3+3Workpiece MaterialMDF, Particle Board, Plywood, Laminated Panels, Melamine Board, ChipboardShank Diameter10mm / 12mm / 12.7mm / 16mm / 20mm / CustomCutting DiameterCustom AvailableCutting LengthCustom AvailableOverall LengthCustom AvailableMachine CompatibilityCNC Router / Nesting MachineCustomizationOEM Available

 Size Chart

3+3 PCD compression spiral router bit size chart

Need Sizes, Pricing or Custom Options?

Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.

Standard Sizes Small Trial Orders Mixed Sizes OEM & Custom Options
Request Price & Specifications Chat on WhatsApp

Drawings, size lists and reference photos are welcome.
