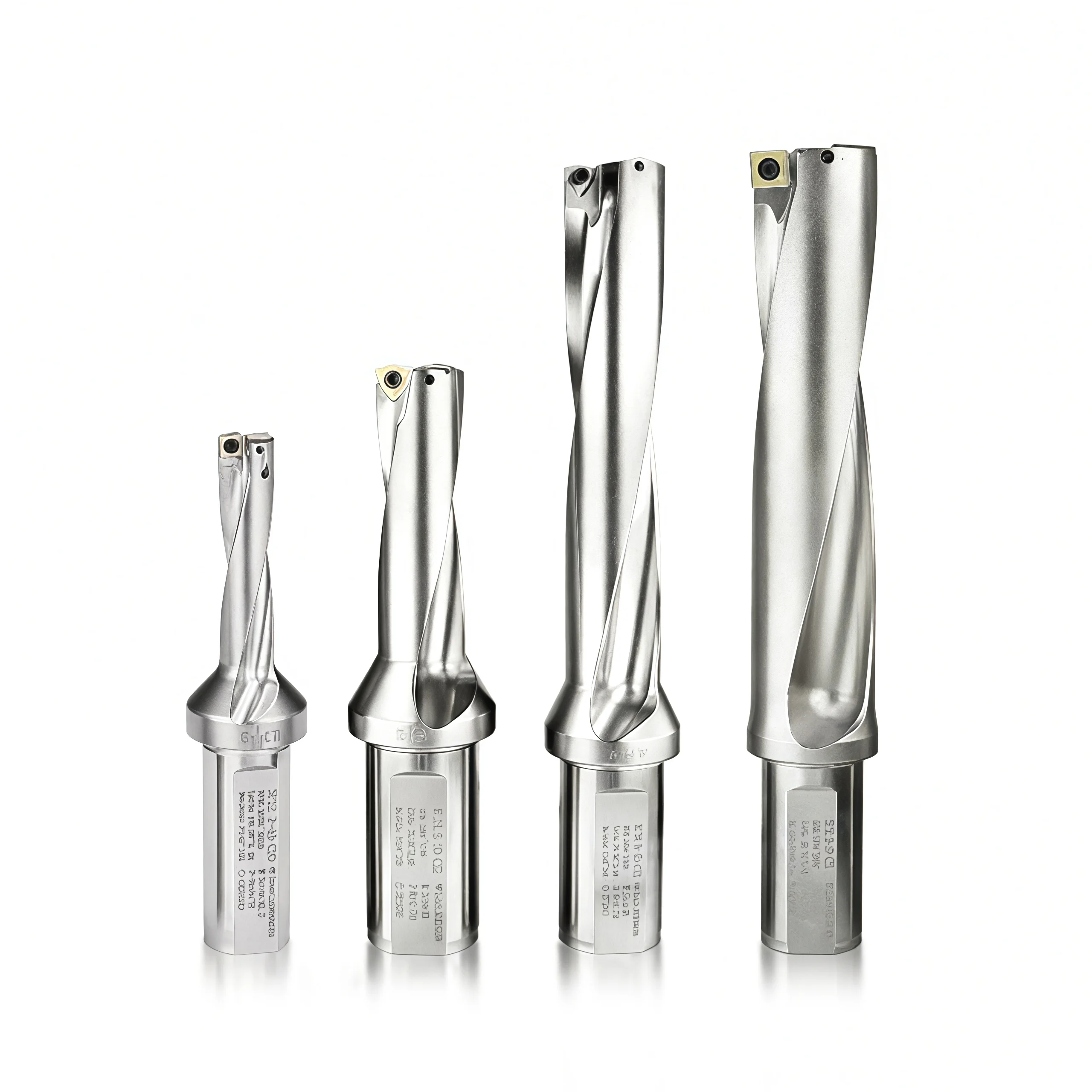

2D–5D Compact SP/SQ Indexable U-Drill for Small-Diameter Holes

Compact SP-series indexable U-drills for small-diameter CNC holes. The supplied selection chart covers Ø13–24.5 mm with SP05, SP06 and SP07 insert families and lists 2×D to 5×D depth classes. Select the complete body by hole diameter and depth, then confirm the matching insert, shank and coolant connection.

Key Configuration

Tool TypeIndexable U-Drill
Depth Classes2×D / 3×D / 4×D / 5×D*
Diameter RangeØ13–24.5 mm*
Insert FamiliesSP05 / SP06 / SP07
Screw / WrenchM2.2 × 5 or M2.5 × 7 / T6
Shank & CoolantConfirm by Body Model

*Selection-chart ranges; confirm the orderable diameter and usable depth for each complete body model.

For a quotation: Send the hole diameter, drilling depth, workpiece grade, holder and coolant details, and required quantity. We will confirm the body and matching SP insert code.

Consistent Quality

Consistent geometry across repeat orders.

Flexible Orders

Small batches and mixed sizes available.

OEM Support

Custom marking, labels and packaging.

Standard & Custom

Standard sizes and custom configurations.

Product Overview

Precision Small-Bore Machining Redefined

The Compact U-Drill Series represents a breakthrough in small-diameter deep hole drilling technology. Specifically engineered with SP (Short Pitch) and SO (Special Optimized) geometries, these tools overcome the traditional limitations of machining bores under 25mm diameter. By combining an ultra-rigid compact body design with advanced insert technology, this series delivers unprecedented stability and precision in confined machining spaces where conventional tools typically fail.


Technical Specifications
Parameter Specification
Tool Series SP-Type (General Purpose) / SO-Type (Optimized for Hard Materials)
Diameter Range φ6.0mm – φ24.9mm (Standard), φ4.0mm Available on Request
Depth Capability 2D, 3D, 4D, 5D Standard Configurations
Insert Locking Double-Wedge Centrifugal Safety System
Coolant Pressure Up to 70 Bar Through-Tool Coolant
Shank Options HSK-E32, Capto C4-C6, BT30-40, Custom
Body Material High-Tensile Alloy Steel with Anti-Corrosion Treatment
Runout Tolerance ≤ 0.008mm at 4×D
Surface Finish Ra 1.6μm Achievable in Single Operation

Design Innovations
1. Geometry-Optimized Body Design
  • SP-Type (Short Pitch): Features reduced flute pitch for maximum rigidity in general steel and cast iron applications, minimizing deflection during interrupted cuts

  • SO-Type (Special Optimized): Incorporates harmonic-dampening mass distribution and variable helix angles specifically engineered for stainless steels, superalloys, and hardened materials

  • Asymmetric Body Reinforcement: Proprietary design places additional material on the pressure side while maintaining adequate chip clearance

2. Micro-Precision Insert System
  • Sub-Miniature Inserts: Available in 3.5mm and 4.5mm cutting edge lengths with six corner usability

  • Multi-Layer Coating: TiAlN+AlCrN hybrid coating with graded interface technology

  • Chipbreaker Evolution: Fifth-generation chipbreaker design maintains consistent chip control from 0.05-0.25mm/rev feed rates

  • Integrated Wiper Geometry: Built-in wiper flats deliver superior surface finish without secondary tools

3. Enhanced Coolant Dynamics
  • Dual-Orifice Design: Front and side coolant outlets create optimized flow patterns for different materials

  • Venturi Chip Evacuation: Accelerated coolant flow through specially shaped channels creates vacuum-assisted chip removal

  • Thermal Barrier Coating: Internal surfaces feature ceramic-based coating to reduce heat transfer to tool body


Performance Data
Machining Efficiency Comparison
Operation Conventional Drill Competitive U-Drill Our Compact U-Drill
Setup Time (min) 15-20 8-12 3-5
Tool Life (meters) 50-80 120-180 250-350
Surface Finish (Ra) 3.2-6.4μm 2.5-3.2μm 1.6-2.0μm
Straightness (at 5D) 0.08-0.12mm 0.04-0.06mm 0.015-0.025mm
Cost per Hole $0.85-1.20 $0.45-0.65 $0.22-0.35
Material-Specific Performance
Material Group Recommended Feed (mm/rev) Cutting Speed (m/min) Coolant Pressure (Bar)
Carbon Steel (C<0.3%) 0.08-0.15 180-220 20-30
Stainless Steel (304/316) 0.06-0.12 90-120 30-40
Cast Iron (GG25) 0.10-0.18 150-180 15-25
Aluminum Alloy 0.15-0.25 300-400 10-20
Titanium (Ti-6Al-4V) 0.04-0.08 50-70 40-50

2D–5D Compact SP/SQ Indexable U-Drill for Small-Diameter Holes 1 2D–5D Compact SP/SQ Indexable U-Drill for Small-Diameter Holes 3 2D–5D Compact SP/SQ Indexable U-Drill for Small-Diameter Holes 5 2D–5D Compact SP/SQ Indexable U-Drill for Small-Diameter Holes 7 2D–5D Compact SP/SQ Indexable U-Drill for Small-Diameter Holes 9

Size Chart & Specifications

The SP selection chart identifies compact drill-body groups from Ø13 to Ø24.5 mm with SP05, SP06 and SP07 insert families. It lists 2×D, 3×D, 4×D and 5×D depth classes; confirm availability and usable cutting length for each complete drill-body code.

SP indexable U-drill body selection chart showing insert, screw and wrench by diameter
Drill Diameter (mm) Insert Family Screw Wrench
Ø13–13.5 SP05 M2.2 × 5 T6
Ø14–15.5 SP05 M2.2 × 5 T6
Ø16–21.5 SP06 M2.2 × 5 T6
Ø22–24.5 SP07 M2.5 × 7 T6

Chart note: These are insert-family and hardware references, not a full dimensional drawing. Confirm the body diameter, usable drilling depth, shank diameter, overall length, exact insert code and supplied hardware for the ordered model.

How to Select the Drill Body

01 · Hole size: State the required finished diameter and tolerance; the selected insert family changes across the diameter groups above.
02 · Depth: Specify the actual depth in mm and check the available 2×D, 3×D, 4×D or 5×D body drawing. Nominal depth ratio alone does not define overall length.
03 · Inserts: Confirm the complete insert designation, grade and chipbreaker for the workpiece material and cutting conditions.
04 · Machine fit: Verify shank and holder dimensions, coolant connection, clearance, screw and wrench for the complete body code.

Cutting Data & Application Note

Start with grade-specific cutting speed and feed recommendations for the selected SP insert and workpiece. Check chip evacuation, coolant delivery, machine stability and hole quality at the actual diameter and depth. Speed, feed, tool life, finish and cost per hole depend on the complete tool configuration and machining conditions.

Spindle speed: n = (1000 × Vc) / (π × D), where n is RPM, Vc is the approved cutting speed in m/min and D is nominal drill diameter in mm.
Feed rate: When programming in mm/min, F = n × f, where f is the approved drilling feed in mm/rev.
Trial checks: Inspect insert wear and chips, then measure hole diameter, straightness and finish under the intended production conditions.

U-Drill Customization & OEM

Share the hole diameter, drilling depth, workpiece material, machine connection and current tool reference. We can review a standard indexable U-drill configuration or an application-specific drill body, then confirm the matching insert pockets, center and peripheral inserts, coolant arrangement and order details. Available modifications depend on the approved drawing and production feasibility.

Drill body: Cutting diameter, usable drilling depth, overall length, body clearance and shank dimensions.
Insert system: WC- or SP-style pocket where applicable, plus the complete center and peripheral insert codes, grades and edge geometries.
Coolant & chips: Through-tool coolant provision, connection, channel layout and chip evacuation requirements for the selected depth.
OEM details: Body marking, replacement screws, wrench, protective packaging, labels and documentation as agreed.

Information for a Custom Quote

Use the following checklist for a replacement body or a new drilling application. Dimensions and options are confirmed for each model.

Item Details to Provide
Hole & Reach Finished hole diameter and tolerance; blind or through hole; required drilling depth in mm; entry and exit conditions.
Body & Holder Existing body code or drawing, depth ratio, shank style and size, holder model and available clearance.
Inserts & Hardware Pocket family, center and peripheral insert codes, grades, screw specifications and required spares.
Application Workpiece grade and hardness, machine type, coolant supply and current cutting conditions.
Order & OEM Quantity, target delivery date, marking, packaging, drawings and inspection records required.
Performance Target Hole quality, chip evacuation, insert life or cycle-time issue to be addressed; sample-trial criteria if needed.

From Request to Approval

01 · Send the application: Provide the hole drawing, current body and insert codes, machine and workpiece details.
02 · Review the configuration: Confirm the body dimensions, insert seats, coolant provision, hardware and quotation.
03 · Approve a trial if required: Agree the sample quantity and the hole-quality and tool-life checks.
04 · Release the order: Approve the final drawing, insert list, marking, packaging and delivery terms.

Fit note: Similar drill diameters or insert shapes do not establish pocket interchangeability. Verify the complete body model, insert designation and screw specification before ordering.

Send your drawing and requirements through our contact form.

U-Drill Quality Control

Quality checks are based on the approved drill-body drawing and the ordered insert configuration. State critical hole tolerances, body dimensions, coolant requirements and any reporting needs before production so the inspection scope can be agreed for the specific model.

01 · Specification review: Confirm cutting diameter, drilling depth, shank, insert seats, coolant connection and supplied accessories against the order.
02 · Body inspection: Check the agreed dimensions, insert-seat condition, screw threads, visible finish and body marking.
03 · Assembly review: Verify the specified center and peripheral inserts, screws and seating on a sample or as otherwise agreed.
04 · Packing check: Match the body code, insert and hardware list, quantity, labels and protective packing to the approved order.

Inspection & Documentation

The drawing and purchase specification define acceptance criteria. Confirm the inspection method, sampling level and documents needed for the order.

Check Area What to Confirm
Body Dimensions Cutting diameter, usable depth, overall length, shank dimensions and drawing tolerances.
Insert Seats & Hardware Center and peripheral pockets, seating faces, screw threads, required fasteners and tool fit.
Coolant & Condition Specified connection and channel provision, visible damage, burrs and corrosion protection; any functional check by agreement.
Insert Identification Complete insert codes, center/peripheral positions, grade and coating when inserts are included.
Requested Records Dimensional report, material record, sample approval or batch identification when agreed in the order.

Quality note: The drill body's inspection does not guarantee a finished hole tolerance or surface finish. Those results also depend on the selected inserts, workpiece, machine setup, coolant and cutting conditions; confirm them in a trial when critical.

Order & Delivery

Send a line-by-line list of drill-body codes, depth ratios and quantities. Specify whether inserts, screws and wrenches are included. Stock, minimum order quantity, sample availability and dispatch or production lead time are confirmed by configuration.

Stock & MOQ: Confirm separately for each diameter, depth ratio, shank and insert package.
Samples & approval: Agree the drawing, assembly contents and test criteria for custom bodies before bulk production.
Lead time: Confirm after the model, quantity, inspection scope and packaging have been approved.
Shipping contents: Verify body protection, labels, included inserts and spares, packing list and requested documents.

Send your model list and inspection requirements through our contact form for availability and delivery confirmation.

Product FAQs

Which small diameters are listed in the SP chart?

The compact selection shown here covers Ø13–24.5 mm. SP05 is listed for Ø13–15.5 mm, SP06 for Ø16–21.5 mm and SP07 for Ø22–24.5 mm. Confirm the complete body code for the exact diameter.

Are 2×D, 3×D, 4×D and 5×D available in every diameter?

The selection chart identifies these depth classes for the SP series but does not list every body dimension. Check the model-specific drawing for the orderable diameter and usable drilling depth.

Are SP05, SP06 and SP07 inserts interchangeable?

No interchangeability is established by the family names. Match the complete insert code, screw and pocket to the selected drill body before ordering replacements.

Does this chart specify an SQ insert option?

The supplied selection chart identifies SP05, SP06 and SP07 only. If you need an SQ configuration, send its separate drill-body drawing or complete model code for review.

What coolant pressure and cutting data should I use?

Confirm coolant pressure and flow for the exact body, insert grade, material and drilling depth. Use grade-specific speed and feed data as a starting point, then validate chip clearance and hole quality in a trial cut.

Is a specific hole tolerance or Ra finish guaranteed?

No series-wide hole tolerance, straightness or surface finish follows from the selection chart. Agree the target for your workpiece and verify it using the actual tool, inserts, machine and coolant setup.

Ordering & OEM FAQs

What information is needed for a quotation?

Send the hole diameter and tolerance, drilling depth in mm, workpiece material, machine holder, coolant capability, quantity and any current body or insert code.

Are the inserts, screws and wrench included?

Specify whether you need a drill body only or a complete kit. The quotation should identify the included insert codes, screw sizes, wrench and spare parts.

Can I request a different shank or depth?

Share the holder interface and required usable depth. A custom configuration is reviewed against the drawing, insert seat, coolant passage, quantity and production feasibility.

Can I evaluate a sample before a larger order?

Request the complete body and insert combination and define the workpiece, hole depth and inspection criteria. Sample availability and lead time are confirmed for the selected model.

Related Series & Inquiry

For other insert families and larger diameter groups, see the 2D–5D Indexable U-Drill range. For the exact body drawing and quotation, send your application requirements.

Need Sizes, Pricing or Custom Options?

Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.

Standard Sizes Small Trial Orders Mixed Sizes OEM & Custom Options
Request Price & Specifications Chat on WhatsApp

Drawings, size lists and reference photos are welcome.
