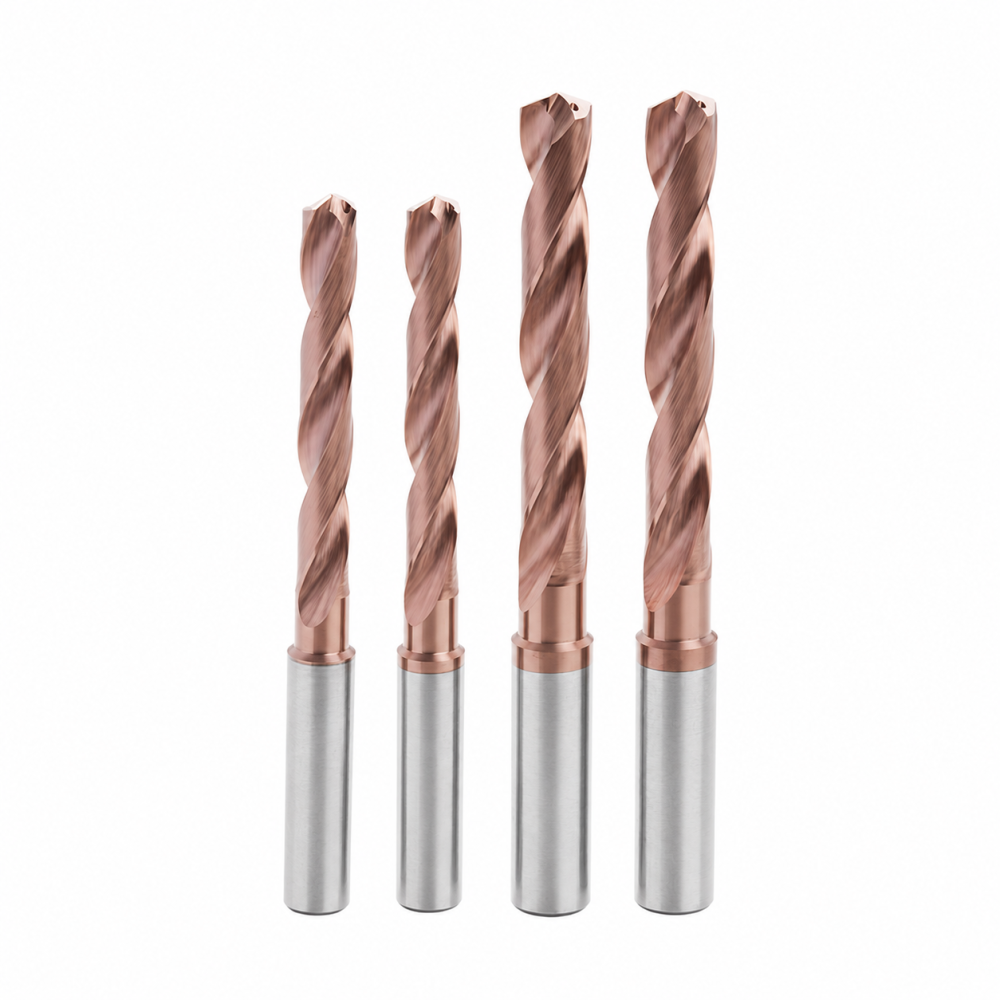

8D Solid Carbide Drill for Deep-Hole Machining

Deep-Hole Solid Carbide Drill Series
High-performance deep-hole drilling for ISO P, M, K and N materials up to 8×D depth.
Substrate:Sub-Micron Carbide
L/D Ratio:8×D (Deep-Hole)
Drill Type:Deep-Hole Drill
Point Angle:140° (Self-Centering)
Flute Count:2 Flutes (Polished)
Coolant:Through-Coolant Recommended
Dia. Range:Standard & Custom Sizes
Coating:AlTiN / Custom PVD
Application / Material
P SteelM StainlessK Cast IronN Non-Ferrous

Consistent Quality

Consistent geometry across repeat orders.

سفارش‌های انعطاف‌پذیر

Small batches and mixed sizes available.

OEM Support

Custom marking, labels and packaging.

استاندارد و سفارشی

Standard sizes and custom configurations.

8D Solid Carbide Drill Overview

This 8D solid carbide drill is designed for demanding deep-hole drilling applications. Its optimized flute form and application-specific coating options support chip evacuation, cutting-edge stability and consistent hole production under suitable machining conditions. Standard sizes are available for regular orders, while diameter, length, coating, marking and packaging can be reviewed for custom or OEM requirements.

Hole Depth
Up to 8×D
Point Angle
140°
Tool Material
Solid Carbide
Coolant
Through-Coolant

Key Configuration

8×D Depth Ratio

Deep-hole flute geometry designed to support stable drilling up to 8×D under suitable machining conditions.

140° Point Geometry

The point geometry supports centering stability and controlled entry under suitable cutting conditions.

DIN 6535 HA or Confirmed Shank

The confirmed shank configuration supports consistent clamping in compatible toolholders.

Key Product Advantages

Precision-ground point geometry of solid carbide drill

Precision-Ground Point Geometry

Crescent-shaped cutting edges and chamfer protection support centering stability, edge strength and controlled chip formation.

Flute and shank configuration of solid carbide drill

Optimized Flute Profile

The flute configuration is designed to support chip evacuation and reduce chip accumulation during deep-hole drilling under suitable coolant conditions.

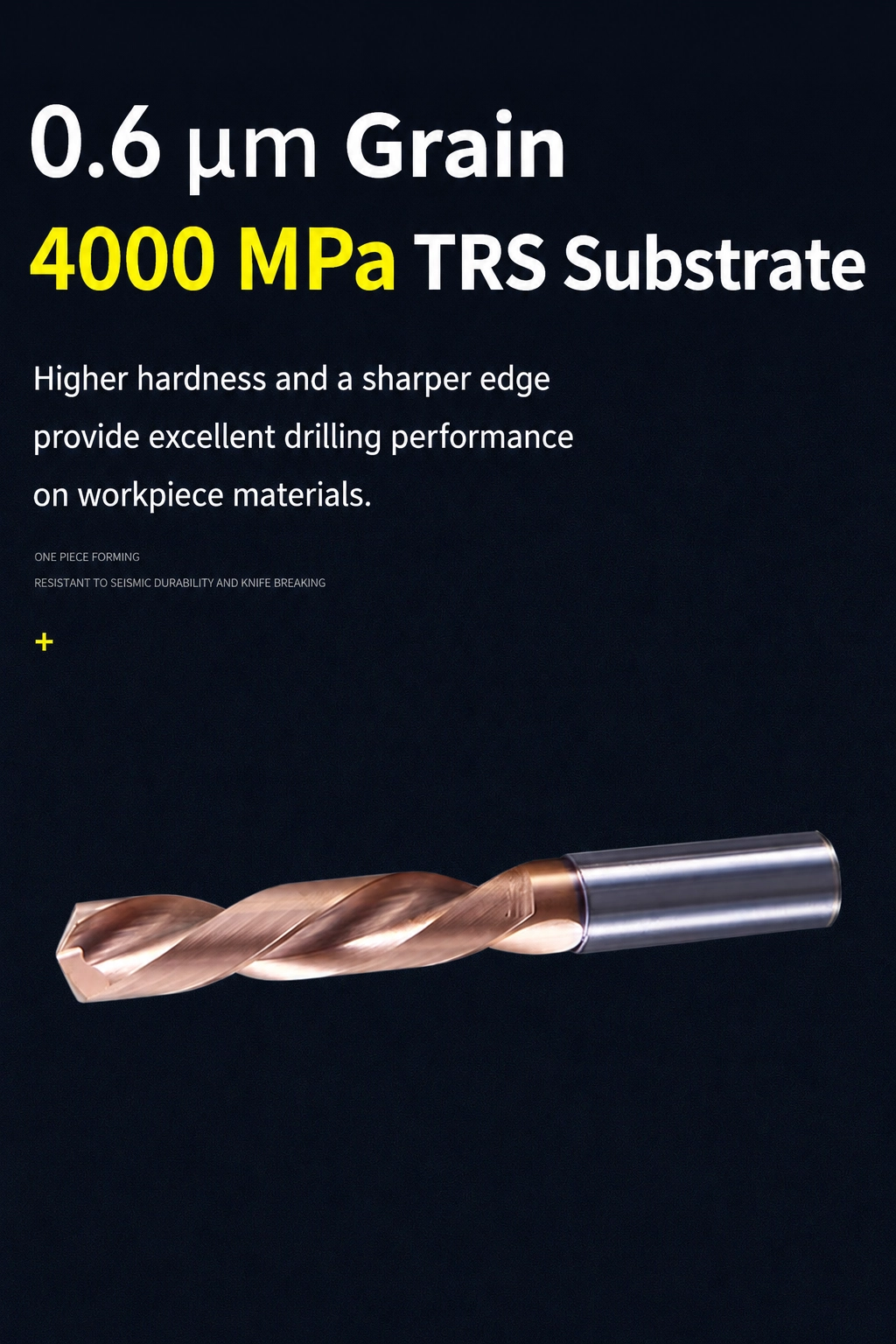

Carbide drill coating and material configuration

Application-Specific Coating

PVD coating options can be selected according to the workpiece material, hardness, drilling depth and coolant condition.

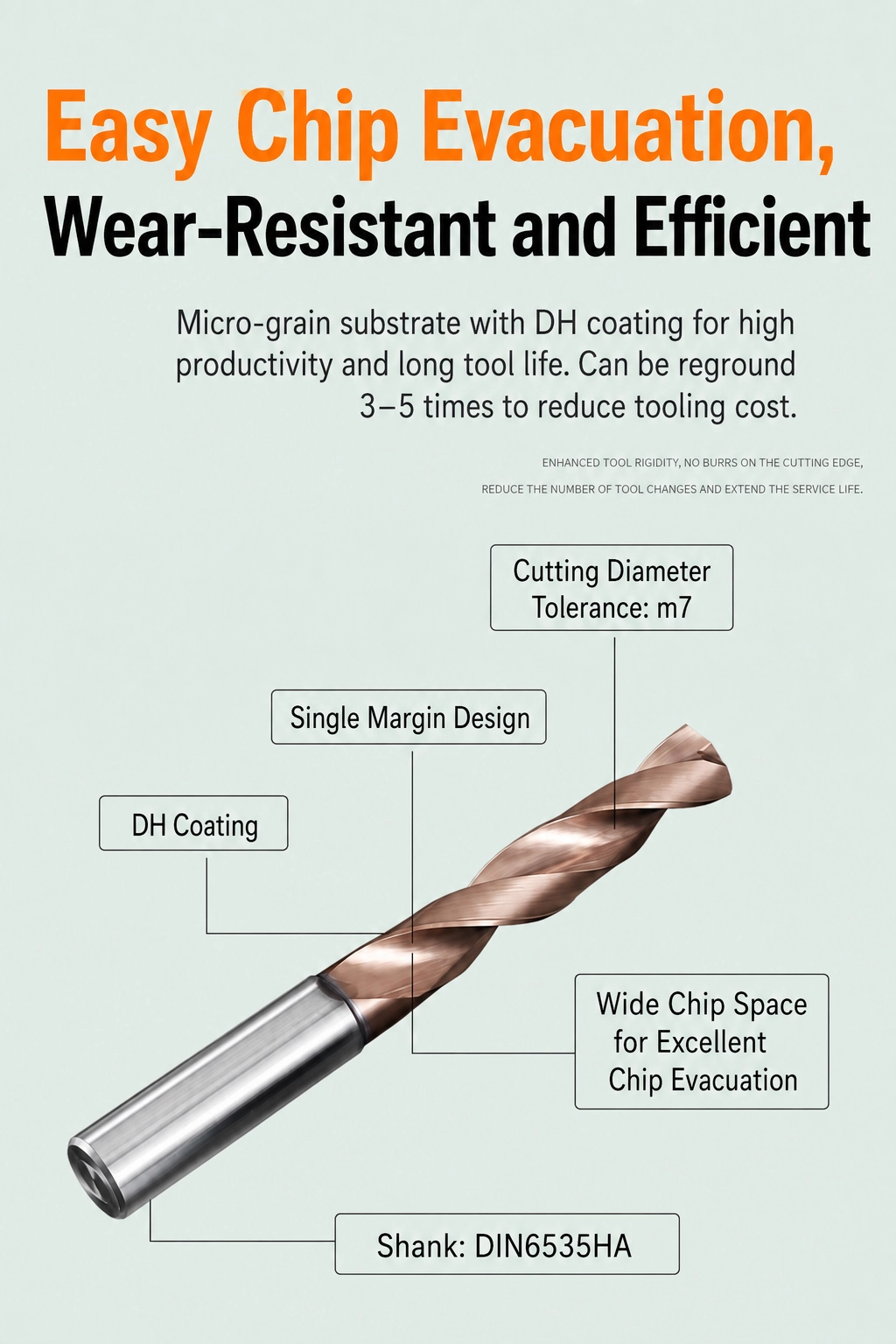

Cutting-edge preparation of solid carbide drill

Edge Strength Configuration

Fine-grain carbide and controlled edge preparation support cutting-edge stability during continuous CNC drilling.

Workpiece Material Compatibility

ISO CODE MATERIAL GROUP REPRESENTATIVE MATERIALS SUITABILITY
P Steel / Alloy Steel Carbon steel, alloy steel, tool steel (< 350 HB) ● Recommended
M Stainless Steel Austenitic & duplex stainless steel (304, 316, 2205) ● Recommended
K Cast Iron Grey cast iron, ductile iron (GG25, GGG40) ● Recommended
N Non-Ferrous Metals Aluminum alloys, copper, brass ○ Uncoated Available
S Heat-Resistant Alloys Titanium alloys, Inconel, nickel-based alloys ○ Custom Geometry
H Hardened Materials Hardened steel components (> 48 HRC) – Not Recommended
Application Note:
Select geometry and coating according to the workpiece material, hardness, hole depth and coolant condition. Non-ferrous and heat-resistant alloy applications should be confirmed separately.

Applications & Target Scope

  • Deep-hole drilling in engine blocks and transmission components
  • Cooling-channel holes in mold and die components
  • Hydraulic and pneumatic valve components
  • Structural pin holes in machinery and agricultural equipment
  • Deep through-hole and blind-hole machining up to 8×D

Product & Cutting-Edge Details

8D Solid Carbide Drill Series
8d carbide drill bits for stainess steel8D Solid Carbide Drill Series
Tool Rotation & Cutting-Edge Detail

Tool Nomenclature & Dimensions

Standard dimensional parameters and technical nomenclature for 8D solid carbide twist drills.

D: Cutting Dia (m7) d: Shank Dia (h6) L1: Flute Length L: Overall Length Sigma (Σ): 140° Point Angle

Standard Size Matrix

Reference standard configurations for this drill series. Final availability is confirmed by size and order quantity.

ORDERING CODE D (MM) d (MM) L1 (MM) L (MM) MAX HOLE DEPTH AVAILABILITY
HY8D-0300 3.0 3.0 28 65 24 mm Standard Configuration
HY8D-0600 6.0 6.0 55 100 48 mm Standard Configuration
HY8D-1000 10.0 10.0 95 145 80 mm Standard Configuration
HY8D-CUSTOM 3.0 – 20.0 3.0 – 20.0 Per Drawing Per Drawing Up to 8×D Made to Order

Deep-Hole Drilling Guidance

  • Pilot Entry: Confirm whether a pilot hole or guided entry is required for the selected drill series.
  • Stable Feed: Use a stable and perpendicular entry condition before increasing to the recommended cutting speed.
  • Coolant & Evacuation: Maintain continuous coolant delivery and verify chip evacuation throughout the drilling cycle.
  • Parameter Verification: Confirm series-specific entry, coolant, and cutting data before machining holes deeper than 8×D.

Recommended Starting Cutting Parameters

General starting values and detailed application parameters are available in our technical guides.

Solid Carbide Drill Cutting Data Guide

Access complete ISO-categorized starting speeds and feeds optimized for deep-hole drilling.

View Cutting Data Guide

Drilling Product Family Overview

Explore matching series across different depth-to-diameter configurations.

HY-3D Series

Pilot & Short Drilling

HY-5D Series

Standard Medium Depth

HY-8D Series

Deep-Hole (Current)

HY-12D Series

Extra Deep-Hole

For additional size ranges and related drill series, View the Solid Carbide Drill Catalog . Custom dimensions can be reviewed according to your drawing or application requirements.

8D Deep-Hole Drill Customization

Cutting diameter, 8×D drilling depth, guiding geometry, flute profile, coolant configuration and tolerance can be engineered for precision deep-hole machining. Tool design is reviewed around hole straightness, chip evacuation, coolant supply and setup rigidity.

Custom 8D solid carbide deep-hole drill geometry

8D Guiding Geometry & Edge Preparation

Point form, web design, guiding margins, flute profile and edge preparation can be configured to support stable tracking and controlled cutting at 8×D depth.

8D diameter and length options for solid carbide deep-hole drills

8D Diameter & Deep-Hole Length Options

Metric and drawing-defined diameters can be configured with 8×D flute and overall lengths plus application-matched shank dimensions.

PARAMETER MANUFACTURING CAPABILITIES
Diameter Capability Metric, fractional-inch and selected non-standard diameters for deep-hole machining
Drilling Depth 8×D configuration with matched flute length, usable depth, reach and overall length
Shank Configuration Precision cylindrical shank or drawing-defined clamping dimensions for low-runout holding
Point & Guiding Geometry Self-centering point, reinforced web and guiding margins configured for stable hole tracking
Flute & Edge Preparation Deep-hole flute profile and edge preparation selected for chip transport and cutting stability
Coating Selection Application-specific PVD or non-ferrous coating selected according to workpiece material
Coolant & Chip Evacuation Internal coolant preferred where applicable; pressure, flow and filtration reviewed by diameter and material
Dimensional Tolerance Drawing-defined diameter, runout, straightness, concentricity and deep-hole accuracy requirements
Engineering Note: Provide the material, hardness, diameter, depth, blind or through-hole condition, coolant pressure, filtration and setup. Pilot-entry requirements are reviewed before production.

خدمات OEM و برند خصوصی

OEM manufacturing and private-label supply options for deep-hole machining facilities, industrial distributors and precision-tool brands.

OEM branding and packaging for 8D Solid Carbide Drill for Deep-Hole Machining

Laser Etching

Custom laser marking for logos, tool codes, diameter specifications, coating identification and batch numbers.

Custom Packaging

Individual protective tubes, diameter labels, multi-pack boxes, custom inserts and private-label packaging options.

Commercial Terms

Flexible MOQ options for standard configurations, custom sizes, trial orders and scheduled repeat supply.

Technical Workflow

STAGE 01

Inquiry

Submit the material, 8×D hole dimensions, coolant data, tolerance and quantity.

STAGE 02

Engineering

Guiding geometry, flute profile, coolant supply and setup rigidity are reviewed.

STAGE 03

Commercial

Quotation, MOQ, production schedule and delivery terms are confirmed.

STAGE 04

Production

CNC grinding, margin preparation, coating, coolant-channel finishing and marking.

STAGE 05

Quality Control

Diameter, 8×D length, point geometry, runout and coolant-channel condition are inspected.

Inspection & Quality Control

Drill dimensions, cutting-edge geometry and visible surface condition are checked according to the confirmed product specification and application requirements.

Carbide drill inspection and quality control at HY Cutting Tools
INSPECTION ITEM WHAT WE CHECK
Cutting Diameter Checked against the confirmed product specification or drawing requirement
Overall & Flute Length Dimensional consistency according to the confirmed drill configuration
Runout Checked according to the drill type, diameter and agreed application requirement
Point Geometry Point angle, cutting-edge form and visible geometry condition
Cutting Edge Visible edge condition, grinding quality and edge preparation
Surface & Coating Coating condition, surface consistency and visible defects
Marking & Packaging Product model, quantity, marking and label consistency against the confirmed order
Quality Note: Inspection requirements and tolerance values vary by drill type, diameter, geometry and application. Product-specific requirements are confirmed before production.
مشاهده تولید و کیفیت

Protective Packing for Shipment

Finished drills are protected individually before batch labeling and export-carton reinforcement.

Individual plastic tube protection for carbide drills

Individual Tool Protection

Each drill is individually protected in a plastic tube to reduce contact damage during storage, handling and transportation.

Batch identification label and spec verification for cutting tools

Batch & Label Verification

Tools are grouped and labeled by specification to support order verification before carton packing.

Protective batch packing and export carton protection for cutting tools

Export Carton Protection

Batch packaging, cushioning materials and reinforced export cartons are selected according to the order quantity and shipping method.

Each tool is individually protected before being packed into export cartons. Custom labels, tube colors and outer packaging can be discussed for OEM orders.

Reference Lead Time

The following timeframes are general references. Availability and production scheduling are reviewed for each order.

ORDER TYPE REFERENCE LEAD TIME
Standard Products Usually 3–7 working days, subject to availability
Coated or Marked Products Confirmed after specification and order review
ابزارهای برش سفارشی Usually 10–20 working days after drawing approval
Large Batch Orders Confirmed according to the production schedule
Lead Time Note: Final lead time is confirmed according to specification, quantity, coating and packaging requirements.

Shipping Options

Shipping arrangements can be selected according to order size, delivery schedule and destination.

International Express Door-to-door delivery
Customer-Nominated Forwarder Shipment through your appointed agent
Air Freight For time-sensitive batch orders
Sea Freight For larger-volume orders
Shipping and payment hy cutting tools end mill drills
View Buyer & Reseller Resources

Product FAQs

Product-specific information about applications, available configurations, customization and machining requirements for this carbide drill.

What materials and applications is this drill designed for?This product is positioned for steel, stainless steel, and non-ferrous materials. Final suitability should be confirmed from the exact workpiece grade, hole type, diameter, depth, and machining conditions.
What does the 8D configuration mean for this drill?The 8D designation identifies a deep-hole configuration with an intended drilling depth of approximately eight times the drill diameter. The exact usable depth should follow the confirmed specification.
What sizes and configurations are available?The product is offered around the stated 8D configuration. Other diameter, flute-length, overall-length, or shank requirements can be reviewed according to the confirmed specification.
What should be considered for chip evacuation?As reach or hole depth increases, chip control becomes critical. External coolant, air, or mist can be used where suitable, while an internal-coolant version can be reviewed when the application requires stronger chip evacuation.
Can the drill geometry or coating be customized?Yes. Point geometry, flute configuration, edge preparation, and coating can be reviewed according to the application, provided the final specification is technically suitable.
What information is required for a quotation?Please provide the required diameter, hole depth or reach, workpiece material, and estimated quantity. A drawing is recommended for custom or non-standard requirements.

Ordering & OEM FAQs

General information for trial orders, mixed-size purchasing, private labeling, and production scheduling.

Do you accept small trial orders?Yes. Small sample or trial orders are welcomed for testing and performance evaluation before committing to volume purchasing.
Can mixed sizes be ordered together?Yes. Standard and custom sizes can be combined in one order when the production and coating requirements are compatible. Mixed-size purchasing is useful for distributors and batch inventory planning.
Is OEM laser marking available?Yes. Custom shank laser marking such as logo, model number, specifications, or batch identification can be reviewed together with OEM labels and packaging requirements.
What is the typical production lead time?Standard stock items normally have a shorter lead time, while custom tools and special OEM orders require additional production time. The exact schedule is confirmed according to specification, quantity, coating, and current production capacity.

Downloads & Technical Resources

Access product dimensions, series information and starting cutting data for product selection and application review.

Product Series Catalog PDF
Complete product range, dimensions and available configurations
Speeds & Feeds Guide
Starting cutting data for product selection and application testing

Need Sizes, Pricing or Custom Options?

Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.

Standard Sizes Small Trial Orders Mixed Sizes OEM & Custom Options
Request Price & Specifications Chat on WhatsApp

Drawings, size lists and reference photos are welcome.
