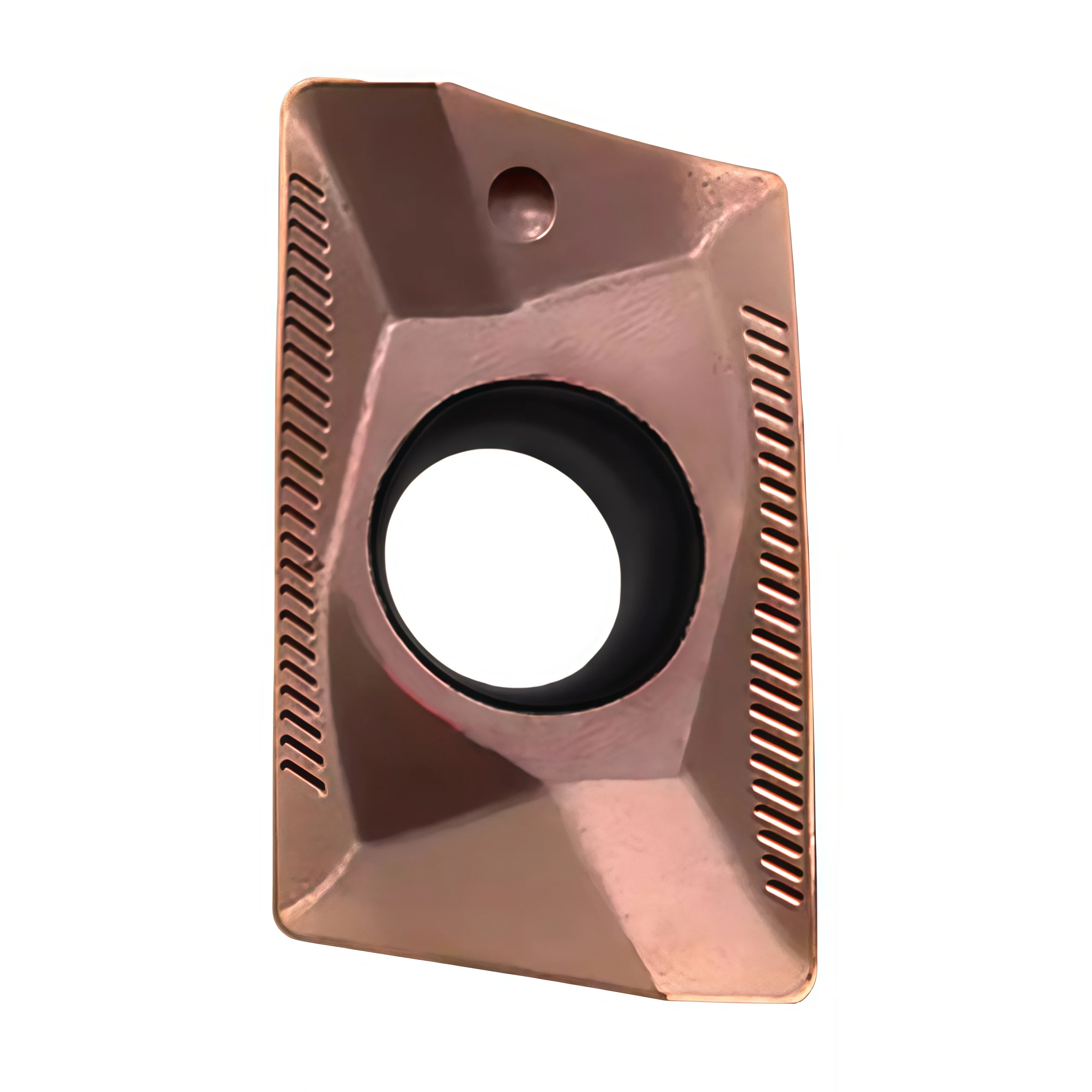

XOMX 180608-TR Carbide Square Shoulder Milling Inserts
XOMX180608-TR carbide milling inserts are designed for compatible square-shoulder milling cutters used in face, shoulder and side-milling operations. The robust insert geometry supports stable cutting and practical chip evacuation, with grade and coating options available for different steel and stainless-steel conditions.
جودة متسقة
Consistent geometry across repeat orders.
الطلبات المرنة
Small batches and mixed sizes available.
OEM Support
Custom marking, labels and packaging.
قياسي ومخصص
Standard sizes and custom configurations.
◆نظرة عامة على المنتج
إن XOMX 180608-TR carbide square-shoulder milling insert is designed for indexable milling cutters used in steel, stainless steel and selected alloy-material machining. Its robust geometry supports stable shoulder milling, face milling and edge machining under medium and heavier cutting loads.
Different carbide grades and coatings can be supplied according to the workpiece material, cutting load and machine conditions. For other shapes and applications, customers can also view our indexable turning and milling inserts.
| الطراز | XOMX 180608-TR |
| Product Type | Indexable carbide square-shoulder milling insert |
| Operations | Shoulder milling, face milling, edge milling and selected slotting |
| Workpiece Materials | Steel, stainless steel, alloy steel and grade-dependent cast iron applications |
| Grade & Coating | Carbide grade and coating selected according to the machining application |
| Supply Options | Standard packaging, mixed-model orders and private-label options |
◆Cutting Features
◆
◆
◆
◆
◆Insert Geometry Details
◆Applications and Materials
| المواد | Typical Operations | Selection Note |
|---|---|---|
| الفولاذ الكربوني | Shoulder and face milling | Use a steel-oriented coated carbide grade |
| الفولاذ المقاوم للصدأ | Shoulder and edge milling | Prioritize substrate toughness and chip control |
| Alloy or Tool Steel | Medium milling | Confirm the workpiece hardness before grade selection |
| حديد مصبوب | Face and shoulder milling | Suitable grade availability should be confirmed |
The final carbide grade and cutting parameters should be selected according to the material grade, hardness, cutter diameter, cutting engagement, coolant and machine rigidity.

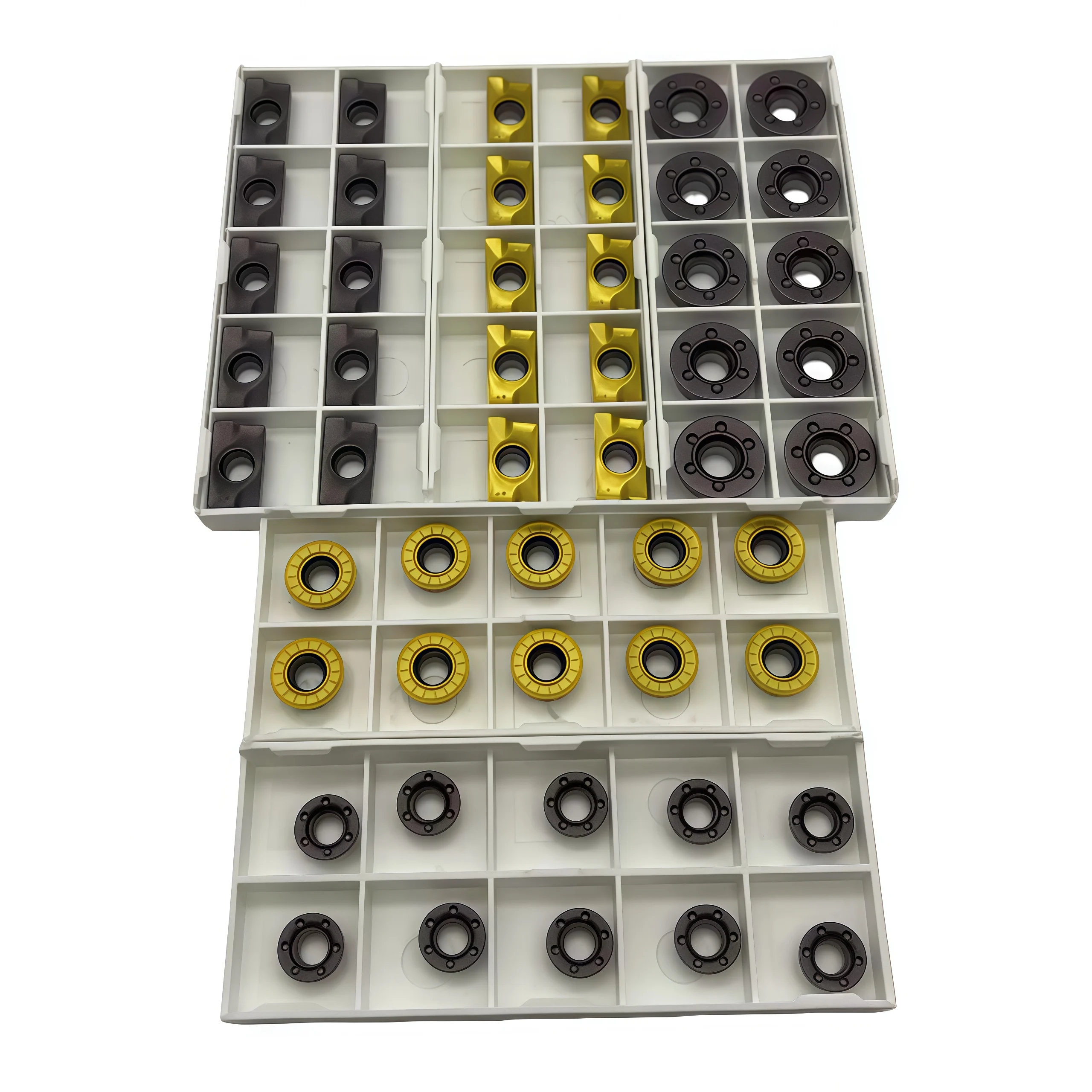

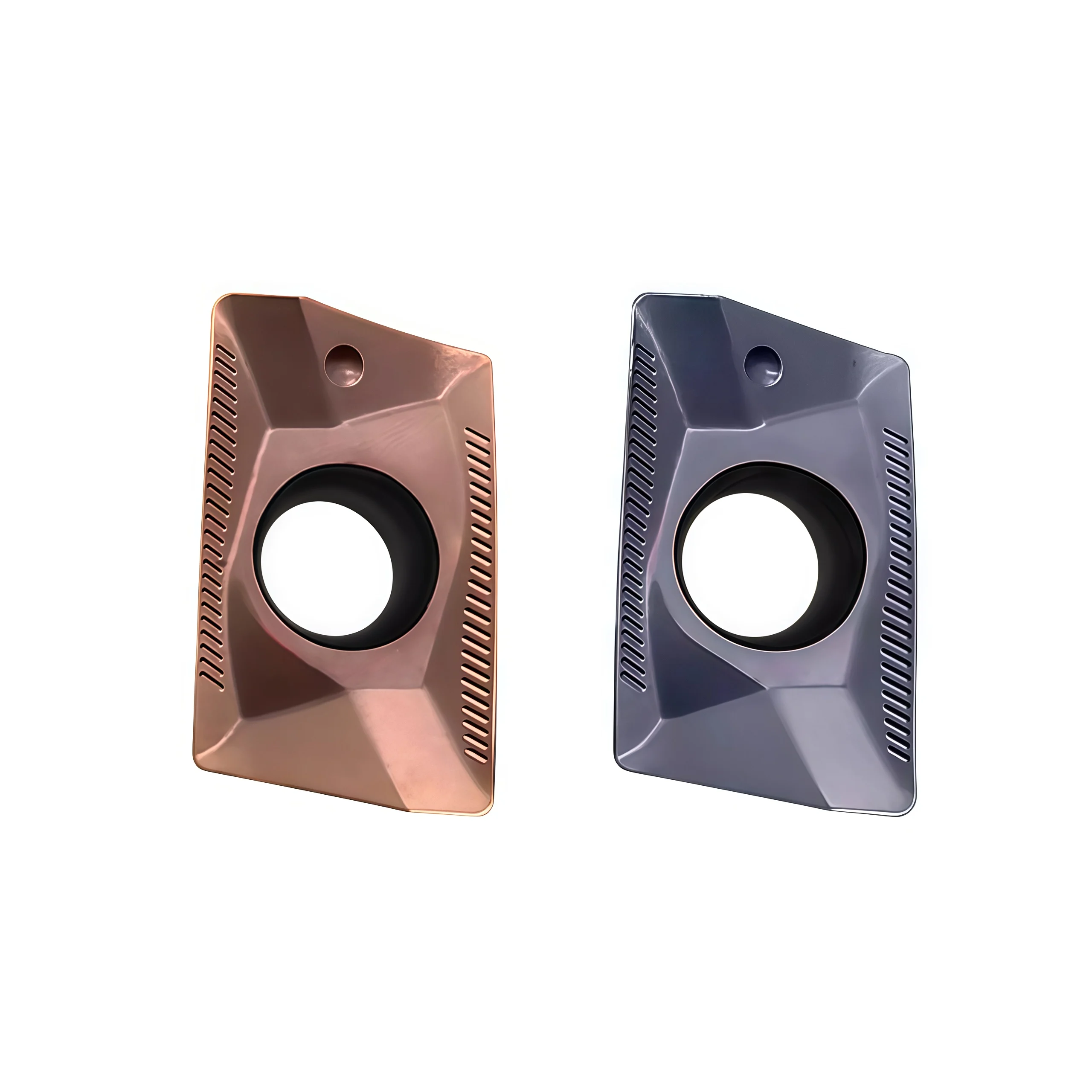

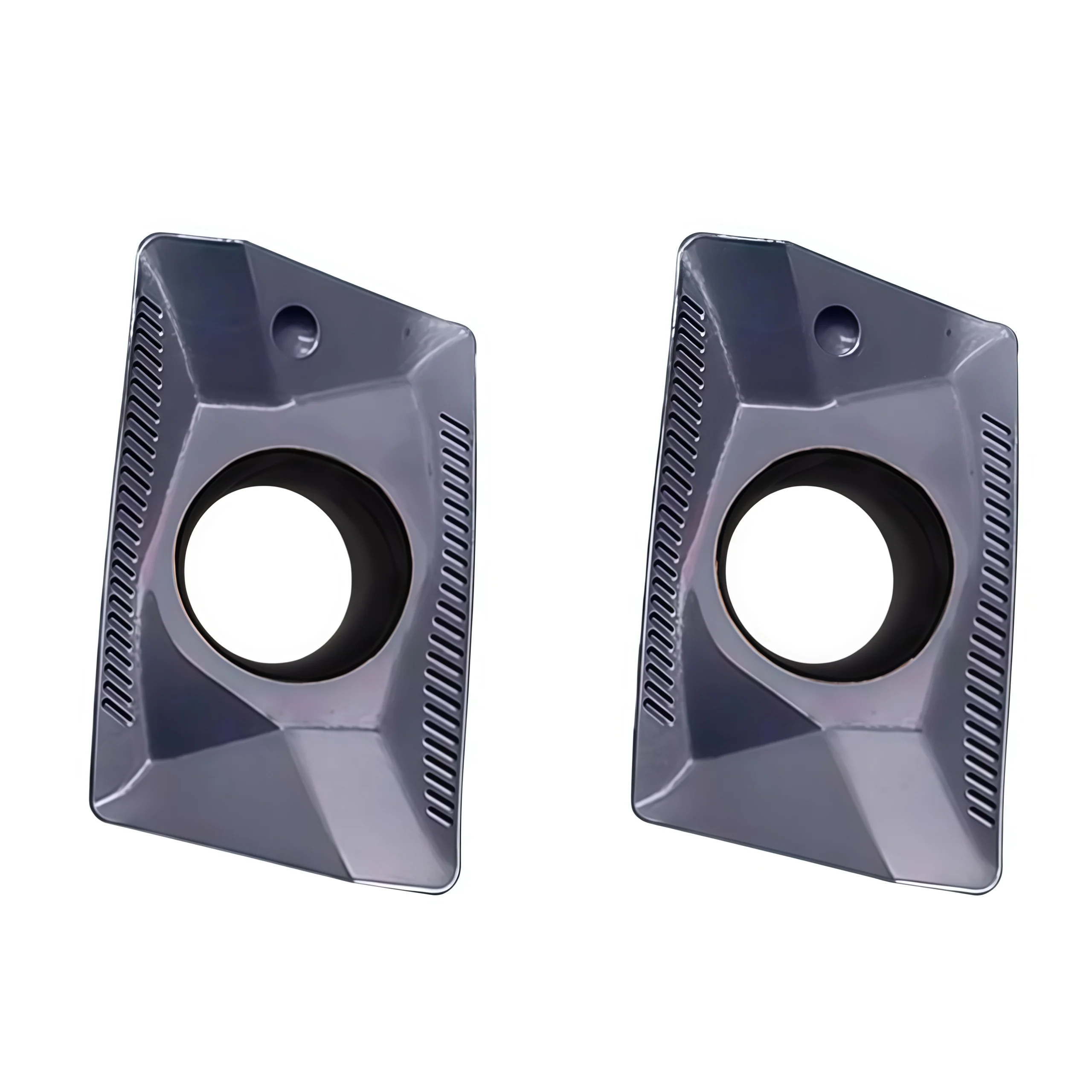

◆Product Display
XOMX 180608-TR inserts should not be ordered solely by visual similarity. Compatibility depends on the cutter pocket, locating surfaces, clamping method and manufacturer’s cutter specification.
For model matching or quotation, please provide:
- Complete insert model, grade and chipbreaker code
- Cutter-body model or clear photographs of the markings
- Workpiece material, hardness and milling operation
- Required quantity and packaging preference
Standard and mixed-model orders can be arranged according to the confirmed purchasing plan. Neutral packaging, private-label boxes, customer SKU labels and barcode labels are available. Confirmed insert codes, grades and packaging information can also be recorded for repeat orders.
◆Specifications & Model Details
XOMX 180608-TR is the model stated for this square-shoulder milling insert. The supplied HY detail text does not contain a verified dimensional drawing or complete grade code. The model details below distinguish what is stated on this page from the information required to approve a cutter fit.
| البند | Details |
|---|---|
| الطراز | XOMX 180608-TR; confirm any additional geometry and carbide-grade suffix. |
| Insert type | Indexable carbide insert for an approved square-shoulder milling cutter. |
| Nominal size code | 180608. Confirm actual length, width, thickness, fixing hole and corner radius using the supplied HY drawing. |
| Cutting geometry | TR as listed; request the complete supplier-defined chipbreaker and edge-preparation specification. |
| Grade & coating | Carbide; exact substrate and coating depend on the quoted full item code. |
| Usable edges | Confirm from the ordered insert drawing and indexing instructions. |
| Cutter fit | Compare pocket, locating surfaces, clamping screw, insert hand and approved cutter-body list. |
◆Material & Application
| Selection Field | What to Confirm |
|---|---|
| قطعة العمل | Steel (ISO P), stainless steel (ISO M), and grade-dependent cast iron (ISO K); provide actual grade and hardness. |
| Operation | Shoulder, face and edge milling with an approved cutter; slotting and ramping require cutter-specific limits. |
| Grade selection | Check grade, coating and edge geometry for workpiece, continuous or interrupted cut and coolant conditions. |
| Shoulder requirement | Verify actual cutter entering angle, corner geometry, wall tolerance, finish allowance and tool deflection. |
◆How to Select the Insert
◆Starting Cutting Data
Use grade- and cutter-specific cutting speed (Vc), feed per tooth (fz), axial depth (ap) and radial engagement (ae). The supplied HY description does not establish a validated numerical range. Do not apply another brand's grade-specific cutting values to this insert without a controlled trial.
◆Related Guide & Ordering
Review our CNC Insert Selection Guide. Send the full insert and cutter-body codes for the product drawing, current grade options and quotation.
◆Carbide Insert Customization & OEM
Specify the insert around the machining operation, workpiece and holder. We can review standard replacements, application-specific geometry and private-label requirements using your insert designation, drawing or sample. Available grades, coatings, dimensions and order quantities are confirmed for each requested series.
Geometry & Chip Control
Review chipbreaker, rake, cutting-edge preparation, nose radius and corner design for the operation and workpiece. Confirm holder compatibility before approving a modified geometry.
Substrate & Coating
Select an available carbide grade and coating for the workpiece material, cutting conditions and desired balance of wear resistance and edge toughness.
Dimensions & OEM
Review insert size, thickness, locating and clamping features, tolerances, laser marking and private-label packaging against the approved specification.
◆Customization Options
Use the fields below when sending an inquiry. The exact options depend on the insert family and are confirmed in the quotation or approved drawing.
| المواصفات | Details to Confirm |
|---|---|
| Insert Type | Turning, milling, threading, grooving or drilling insert; send the designation or drawing. |
| Size & Fit | Shape, size, thickness, inscribed circle or edge length, hole or clamping form, and holder model. |
| هندسة القطع | Chipbreaker, nose or corner radius, edge preparation, cutting direction and application-specific profile. |
| Grade & Coating | Workpiece group and grade, carbide substrate, coating system and wet or dry cutting conditions. |
| Tolerance & Inspection | Critical dimensions, profile requirements, inspection method and any required report. |
| OEM Presentation | Insert or box marking, label content, packaging format and quantity per pack. |
◆How to Request a Custom Insert
Send your insert requirements through our contact form or review our OEM and private-label service.
◆Carbide Insert Quality Control
Insert quality depends on the approved grade, geometry, coating and dimensional specification. We review the requirements at order confirmation and align the inspection scope with the insert series and any customer drawing. Share critical dimensions or documentation needs before production so they can be included in the agreed inspection plan.
01 · Incoming Material
Confirm the specified carbide grade or material documentation against the order requirements.
02 · In-Process Checks
Review dimensions and cutting-edge features during production against the approved specification.
03 · Final Inspection
Check the agreed dimensions, appearance, edge condition, coating identification and marking as applicable.
04 · Packing Review
Verify the item code, quantity, labels and protective packing against the approved order.
◆Inspection & Documentation
Inspection points and acceptance criteria should be agreed for the ordered series. For custom inserts, the approved drawing takes priority over a generic catalogue description.
| Check Area | What to Confirm |
|---|---|
| Dimensions & Fit | Insert size, thickness, corner radius, clamping features and any drawing tolerances. |
| هندسة القطع | Chipbreaker, edge preparation, usable corners and profile where applicable. |
| Grade & Coating | Approved grade and coating designation; any requested verification method. |
| Appearance & Packing | Visible edge damage, marking, item code, count and packing format. |
| Requested Records | Inspection report, material or coating documentation, sample approval or batch identification when agreed. |
◆Order & Delivery
Share a line-by-line list of insert codes and quantities for a mixed-size quotation. Stock status, minimum quantity, sample requirements and production lead time are confirmed for each grade, coating and configuration.
Send your item list and quality requirements through our contact form for specification, availability and delivery confirmation.
◆Product FAQs
What is XOMX 180608-TR used for?
It is an indexable carbide insert offered for square-shoulder, face and edge milling with a compatible cutter. Confirm the full model, grade and cutter-body limits for the workpiece and operation.
Does XOMX 180608-TR fit any size-18 shoulder mill?
No. Match the complete insert designation to the cutter's approved list and compare pocket, locating faces, fixing hole, clamping screw, cutting hand and edge geometry. Similar nominal size is not sufficient for substitution.
Is the insert single-sided or double-sided?
The supplied HY text does not state the usable-edge count. Seco's XOMX180608TR Turbo 18 example is single-sided with two edges, but the actual HY insert should be checked against its drawing before specifying the number of indexable edges.
Can the same insert grade mill steel and stainless steel?
Some coated carbide grades can cover both ISO P and ISO M applications, but the substrate, coating and chipbreaker should be checked for each alloy, hardness and cutting load. Request grade-specific cutting data rather than selecting by the XOMX size code alone.
Can it be used for full-width slotting or ramping?
These operations depend on the cutter body and complete insert geometry. Check the approved axial depth, feed, ramp angle and chip-clearance limits before programming a slot or entry move.
Does it produce a perfectly square shoulder?
The finished wall depends on cutter geometry, insert corner, runout, tool deflection and machining conditions. Verify the required wall tolerance and floor finish on the actual part; allow a finishing pass where needed.
◆Ordering & OEM FAQs
What should I send for a replacement-insert request?
Provide the original manufacturer's complete insert code and grade, box-label photo, photos of both insert faces, cutter-body model, workpiece grade, current cutting conditions and required quantity. Compare fit and cutting results with a sample.
Can I order several grades together?
Send a line-by-line list of each full insert designation, grade and quantity. Mixed-grade supply, packaging, minimum quantity and lead time are confirmed by item.
Are custom coatings or chipbreakers available?
Share the target material, application, cutter-body code, current insert drawing and expected order volume. Feasibility and the final grade or geometry are confirmed in the approved specification and quotation.
Can I request private-label boxes?
Send the label artwork, marking requirements, pack count, full item codes and quantity. Confirm the sample and packaging details before repeat production.
◆Guides & Technical References
See our CNC Insert Selection Guide و Carbide Insert Types Guide for selection principles.
For the actual XOMX drawing and quotation, send the complete insert and cutter-body codes.
Need Sizes, Pricing or Custom Options?
Send us the required tool type, sizes, quantities, workpiece material and any OEM or custom requirements. We will confirm suitable specifications, availability, lead time and quotation details.
Drawings, size lists and reference photos are welcome.
